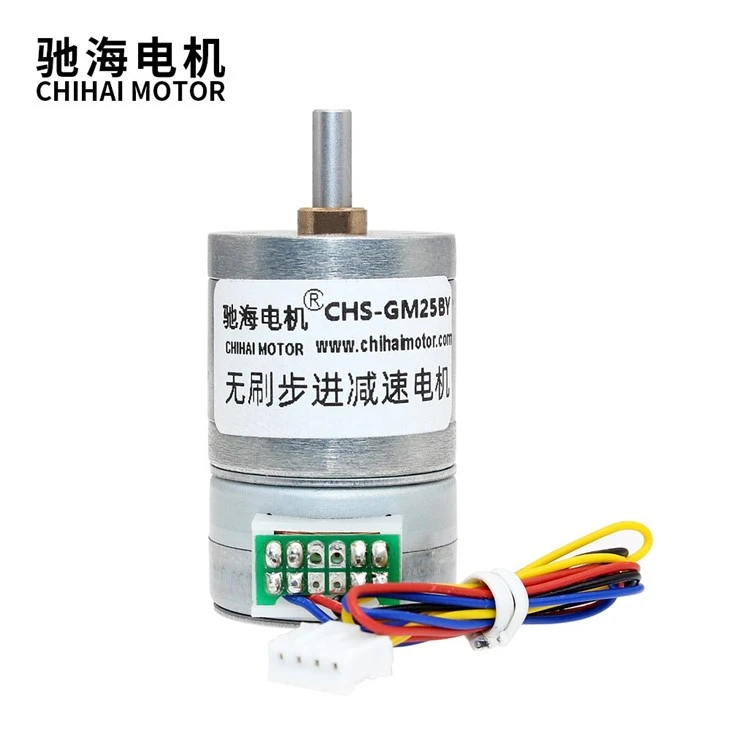

2-phase 4-wire Brushless Stepper Motor
Product Description
| Product Type | Chs-gm25by 2-phase 4-wire brushless stepper motor |
| Size | Φ25mm (different deceleration different ratio) |
| Shaft length | 12mm D 8mm |
| Shaft Dianeter | Φ4mm, D thickness 3.5mm |
| Voltage | DC 12V |
| Weight | About 75 g |
Brushless stepper motor is a kind of high efficiency and stable motor, which is suitable for many occasions because it does not need excitation to realize stepping motion.
Compared with the traditional brush stepping motor, brushless stepping motor is more stable, durable, and less noise and vibration, which can improve the efficiency to a certain extent.
For transmission performance, the brushless stepper motor also has high control accuracy and sensitivity, which can more accurately control the stepping position and stepping speed. In practical applications, the motor usually uses a two-phase four-wire drive to achieve smoother and more precise stepping control.

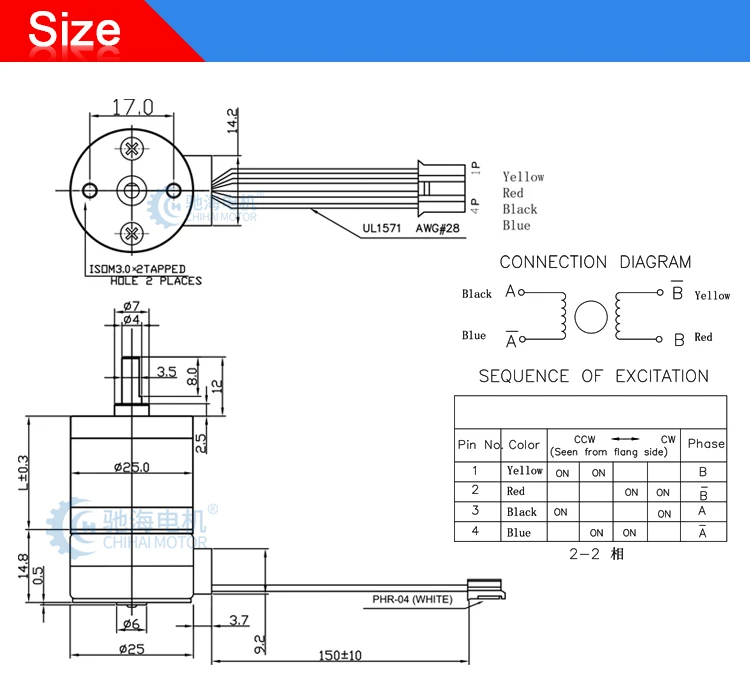

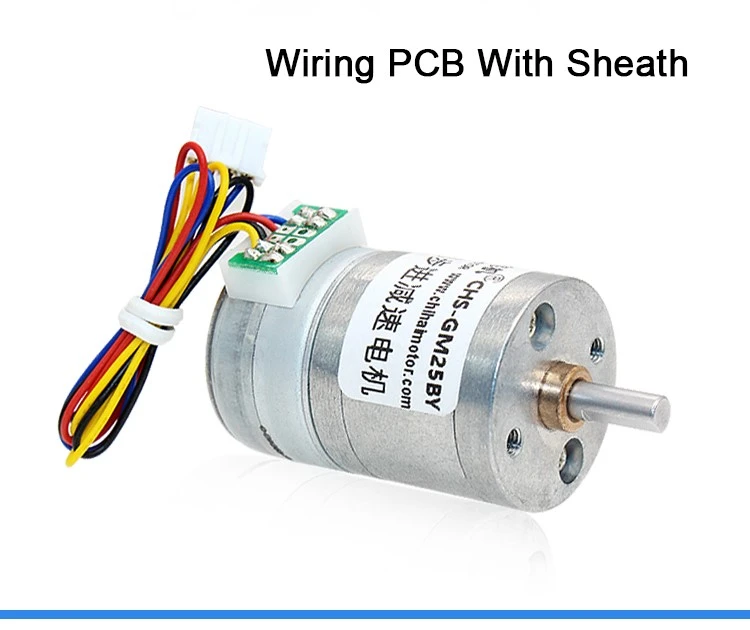

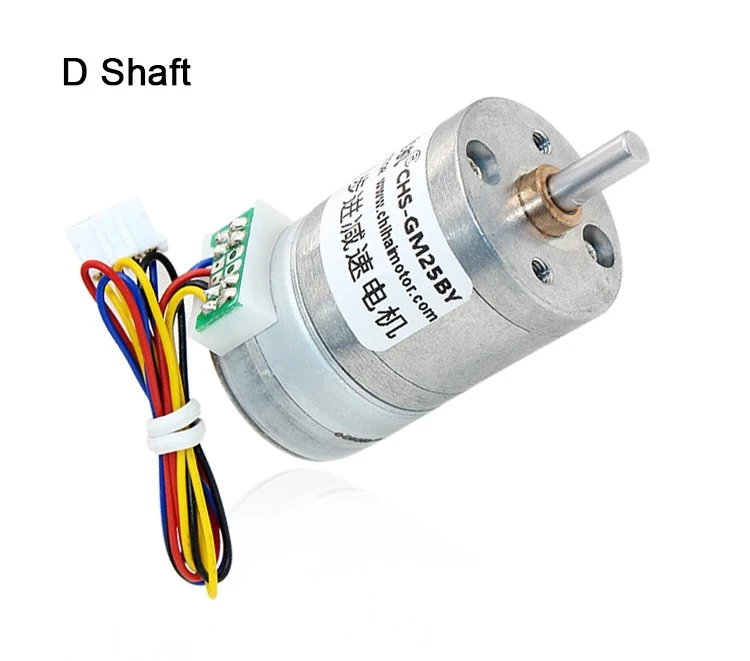

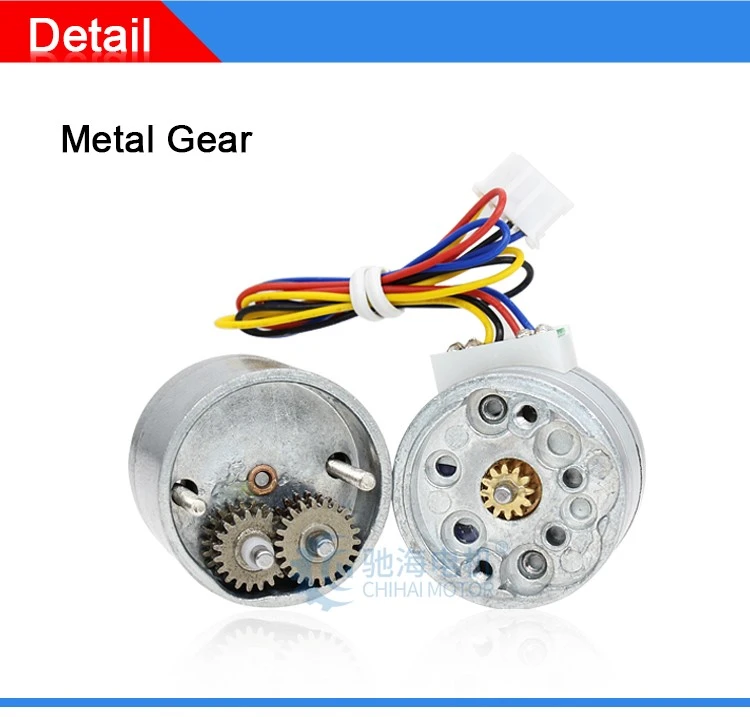

Detailed Images
Input stepper motor parameters
| Model | CHS-25BY-M2510 |
| RATED VOLTAGE | 12 V DC (DrIVER IC:l6219) | CURRENT PER PHASE | 300mA / PHASE |
| COIL RESISTANCE | 10±7% ohm / PHASE | NO.OF PHASES | 2 PHASES |
| STEP ANGLE | 15° / STEP | EXCITATION METHOD | 2 PHASES EXCITATION |
| DRIVE MODE | BIPOLAR DRIVE | COIL INDUCTANCE | 7.5 mH / PHASE |
| PULL-OUT TORQUE |
MORE THAN 60 gf-cm AT 100 pps |
HOLDING TORQUE |
MORE THAN 75 gf-cm AT 0 pps |
| MAX RESPONSE FREQUENCY | MORE THAN 1300 pps | MAX STARTING FREQUENCY | MORE THAN 800 pps |
| INSULATION CLASS | CLASS E FOR COILS | INSULATION STRENGTH | 100 V AC FOR ONE SECOND |
| INSULATION RESISTANCE | 100MΩ DC 500V | OPERATING TEMPERATURE | -10 ～ +55℃ |

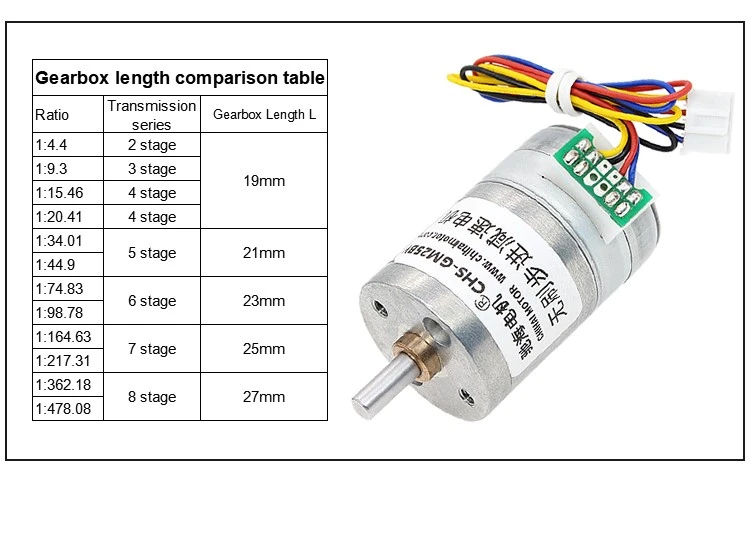

Output parameters of deceleration motor
| Model：CHS-GM25BY Brushless Stepper Motor |
| Voltage:DC 12V |
| Reduction ratio | STEP ANGLE (STEP) |
No-load speed 700PPS(rpm) |
Holding torque （kg.cm) |
Pull-out torque （kg.cm) |
| 1：4.4 | 3.40 | 397.7 | ≥0.3 | ≥0.25 |
| 1：9.3 | 1.61 | 188.2 | ≥0.6 | ≥0.50 |
| 1：15 | 1.0 | 116.7 | ≥1.0 | ≥0.8 |
| 1：20 | 0.75 | 87.5 | ≥1.3 | ≥1.0 |
| 1：34 | 0.44 | 51.5 | ≥2.0 | ≥1.8 |
| 1：44.9 | 0.33 | 38.98 | ≥3.0 | ≥2.50 |
| 1：57 | 0.26 | 30.7 | ≥3.5 | ≥3.0 |
| 1：74.8 | 0.2 | 23.4 | ≥5.0 | ≥4.0 |
| 1：98.8 | 0.15 | 17.7 | ≥6.5 | ≥5.5 |
| 1：125 | 0.12 | 14 | ≥8.0 | ≥7.0 |
| 1：165 | 0.09 | 10.6 | can't exceed 9.0kg.cm | can't exceed 9.0kg.cm |
| 1：217 | 0.069 | 8.1 | ||
| 1：362 | 0.041 | 4.8 | ||
| 1：478 | 0.031 | 3.7 |
