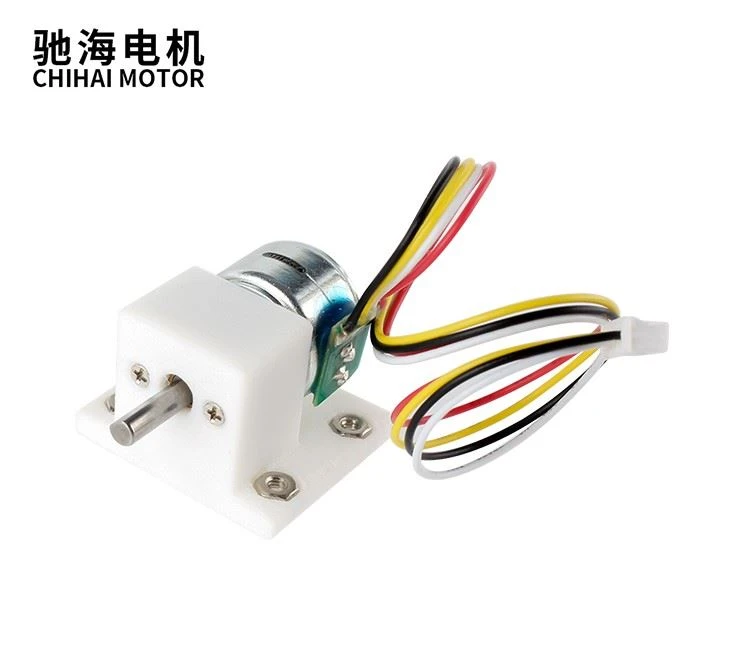

GM12-15BY Stepping Brushless Dc Reduction Motor
Product Description： With side mounting bracket All-metal gears： Adoption of all-metal gear material more wear-resistant prolongs its service life Brushless 2-phase 4-wire stepper motor input D Shaft： More convenient installation, not easy to slip to save installation time Detailed Images：
Send Inquiry

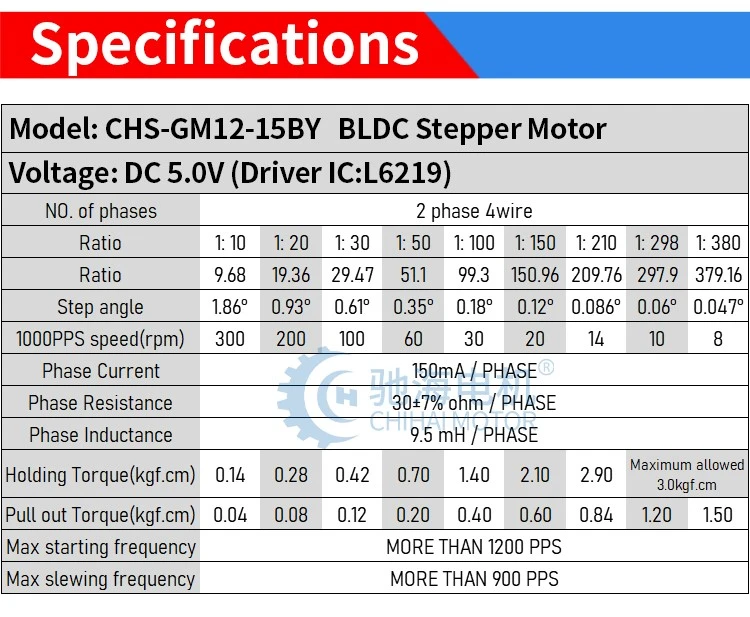

Product Description：
| Brand | chihai motor |
| Model | CHS-GM12-15BY stepping brushless dc reduction motor |
| COIL RESISTANCE | 30Ω |
| Shaft length | 8mm one-way out shaft (customizable) |
| Shaft DiaMeter | Φ3mm D shaft |
| Voltage | DC 5-12V |
| Weight | About 14g |
| application | Smart selfie stick, smart camera gimbal, Intelligent robot camera corner, intelligent micro robot, etc. |
With side mounting bracket

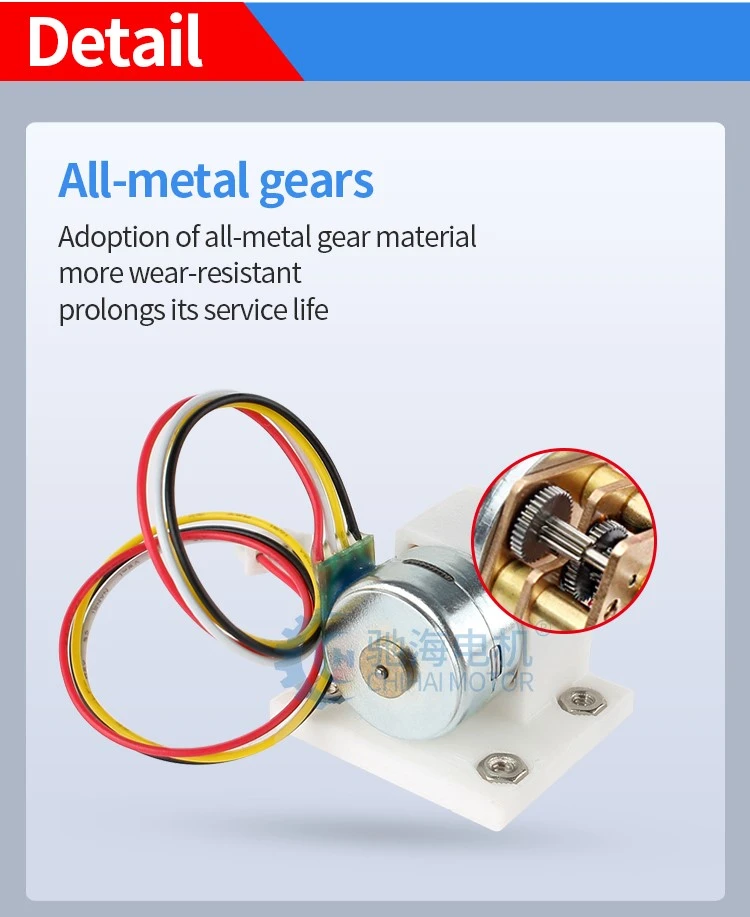

All-metal gears：
Adoption of all-metal gear material more wear-resistant prolongs its service life

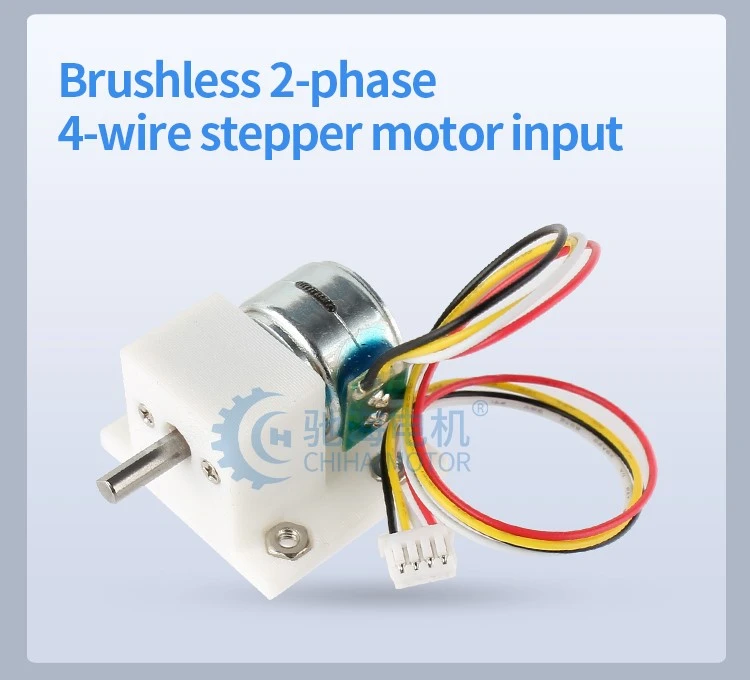

Brushless 2-phase 4-wire stepper motor input
D Shaft：
More convenient installation, not easy to slip to save installation time
Detailed Images：
