GM15BY Stepping Brushless Motor
Intelligent robot camera corner
intelligent micro robot, etc.

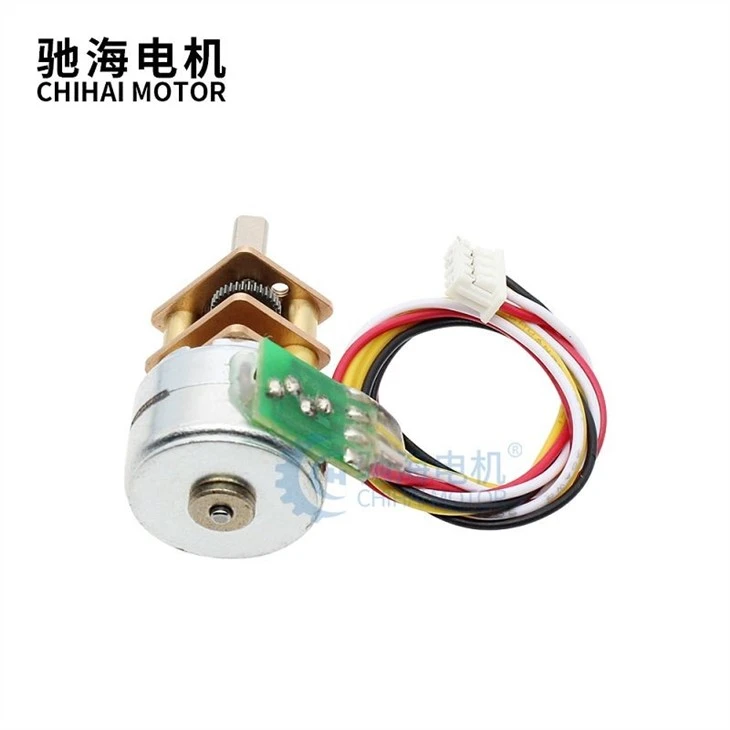

GM15BY stepping brushless motor
Product Description
Product Type: | CHS-GM15BY stepping brushless dc reduction motor |
Size: | Φ15*20mm (not include the length of the axis) |
Shaft length: | 10mm one-way out shaft (customizable) |
Shaft diameter： | Φ3mm D shaft |
Voltage： | DC 5-12V |
Weight： | About 13g |
Application： | Smart selfie stick, smart camera gimbal, Intelligent robot camera corner, intelligent micro robot, etc. |
Detailed Images
Input stepper motor parameters
MODEL | CHS-15BY-M3015 | ||
RATED VOLTAGE | 5 V DC (DrIVER IC:16219) | CURRENT PER PHASE | 160mA / PHASE |
COIL RESISTANCE | 30±7% ohm / PHASE | NO.OF PHASES | 2 PHASES |
STEP ANGLE | 18° / STEP | EXCITATION METHOD | 2 PHASES EXCITATION |
DRIVE MODE | BIPOLAR DRIVE | COIL INDUCTANCE | 9.5 mH / PHASE |
MORE THAN | MORE THAN | ||
PULL-OUT TORQUE | 4 gf-cm AT 500 pps | HOLDING TORQUE | 16 gf-cm AT 0 pps |
MAX RESPONSE FREQUENCY | MORE THAN 1200 pps | MAX STARTING FREQUENCY | MORE THAN 900 pps |
INSULATION CLASS | CLASS E FOR COILS | INSULATION STRENGTH | 100 V AC FOR ONE SECOND |
INSULATION RESISTANCE | 50MΩ DC 500V | OPERATING TEMPERATURE | -0 ～ +55℃ |
Output parameters of deceleration motor
Model：CHS-GM15BY BLDC Stepper Motor | |||||||||
Voltage: DC 5.0V (Driver IC:L6219) | |||||||||
NO. of phases | 2 phase 4wire | ||||||||
Ratio | 1: 10 | 1: 20 | 1: 30 | 1: 50 | 1: 100 | 1: 150 | 1: 210 | 1: 298 | 1: 380 |
Ratio | 9.68 | 19.36 | 29.47 | 51.1 | 99.3 | 150.96 | 209.76 | 297.9 | 379.16 |
Step angle | 1.86° | 0.93° | 0.61° | 0.35° | 0.18° | 0.12° | 0.086° | 0.06° | 0.047° |
1000PPS speed(rpm) | 300 | 200 | 100 | 60 | 30 | 20 | 14 | 10 | 8 |
Phase Current | 150mA / PHASE | ||||||||
Phase Resistance | 30±7% ohm / PHASE | ||||||||
Phase Inductance | 9.5 mH / PHASE | ||||||||
Holding Torque(kgf.cm) | 0.14 | 0.28 | 0.42 | 0.70 | 1.40 | 2.10 | 2.90 | Maximum allowed | |
Pull out Torque(kgf.cm) | 0.04 | 0.08 | 0.12 | 0.20 | 0.40 | 0.60 | 0.84 | 1.20 | 1.50 |
Max starting frequency | MORE THAN 1200 PPS | ||||||||
Max slewing frequency | MORE THAN 900 PPS | ||||||||
