12mm 15BY Stepping Gear Motor
Robot, intelligent manipulator, etc
Optional accessories:flange coupling, simple drive, etc.
12mm 15BY Stepping Gear Motor
Product Description
Product Type: | CHS-GW12-10BY Brushless Stepping Gear Motor |
Size: | 10mm * 12mm * 20mm (without shaft and terminal) |
Shaft length: | 10mm (batch customizable) |
Shaft diameter： | 3mm D thick 2.5mm (batch customizable) |
Voltage： | DC 5.0V |
Weight： | About 13g |
Application： | Intelligent platform, electric selfie stick, mobile phone camera tracking equipment Robot, intelligent manipulator, etc Optional accessories:flange coupling, simple drive, etc. |
DC Stepping Gear Motor is a vital component in many industries. It is known for its accuracy and precision, making it a popular choice in applications that require a high degree of control. This motor is versatile and can be used in a wide range of applications, from robotics and automation to medical equipment and industrial machinery.
The DC Stepping Gear Motor is designed to provide smooth, reliable operation, even in the most demanding applications. It has a low noise level and can operate at high speeds, making it an ideal choice for applications that require both accuracy and speed.
Aside from its mechanical advantages, the DC Stepping Gear Motor is also easy to control. It can be easily programmed and integrated into automated systems, making it a popular choice for industrial automation projects. Moreover, it is energy-efficient, producing less heat than other types of motors, resulting in lower energy costs and reduced environmental impact.
Dc stepper motors are an important component in many industries because of their precision, precision, speed, reliability and energy efficiency. It provides an excellent solution for industrial automation and control, making it a cost-effective and sustainable choice for many businesses.

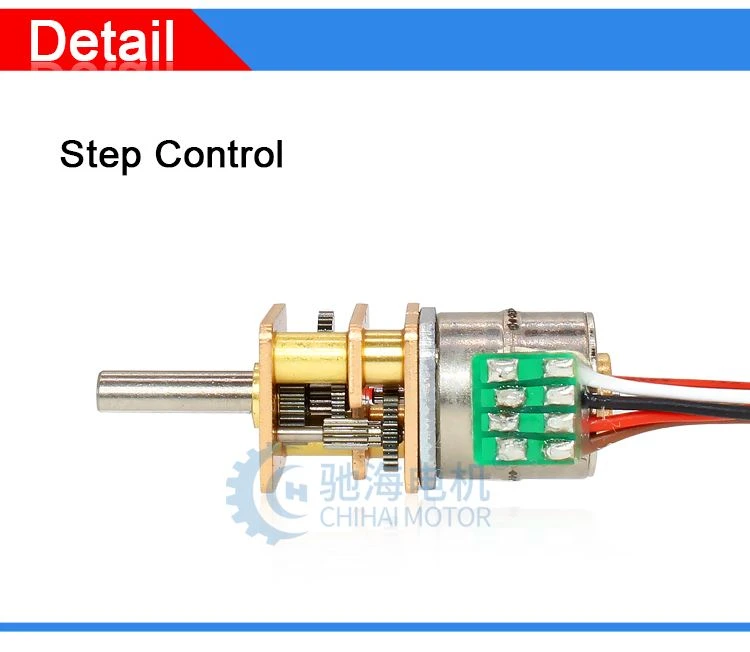

Step control：
The electrical pulse signal is transformed into angular displacement control Convenient intelligent control.
D font axis：
More convenient installation, not easy to slip Save installation time.
All-metal gear：
Using all metal gear material, use it more Wear resistance prolongs service life.

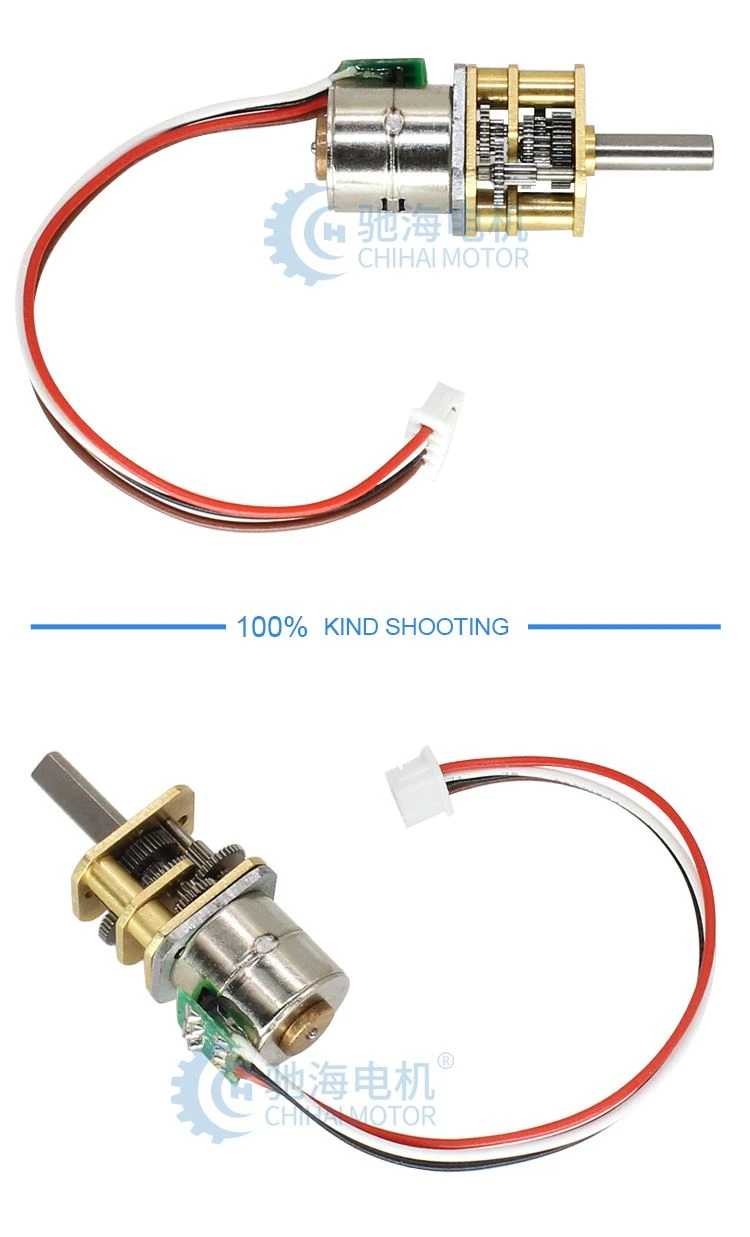

Detailed Images
Product Parameters
Model:CHS-GM12-10BY Brushless Stepping Gear Motor | |||||||||
Voltage: DC 5.0V (Driver IC:L6219) | |||||||||
NO. of phases | Bipolar 2-2 Phase | ||||||||
Ratio | 1: 10 | 1: 20 | 1: 30 | 1: 50 | 1: 100 | 1: 150 | 1: 210 | 1: 298 | 1: 380 |
Accurate reduction ratio | 9.68 | 19.36 | 29.47 | 51.1 | 99.3 | 150.96 | 209.76 | 297.9 | 379.16 |
Step angle | 1.86° | 0.93° | 0.61° | 0.35° | 0.18° | 0.12° | 0.086° | 0.06° | 0.047° |
Phase Current | 128mA / PHASE | ||||||||
Phase Resistance | 39±7% ohm / PHASE | ||||||||
Phase Inductance | 14.3 mH / PHASE | ||||||||
Holding Torque(kgf.cm) | 0.12 | 0.24 | 0.36 | 0.60 | 1.20 | 1.80 | 2.50 | Maximum allowed | |
Pull out Torque(kgf.cm) | 0.03 | 0.06 | 0.09 | 0.15 | 0.30 | 0.45 | 0.63 | 0.90 | 1.10 |
Max starting frequency | MORE THAN 1200 PPS | ||||||||
Max response frequency | MORE THAN 900 PPS | ||||||||

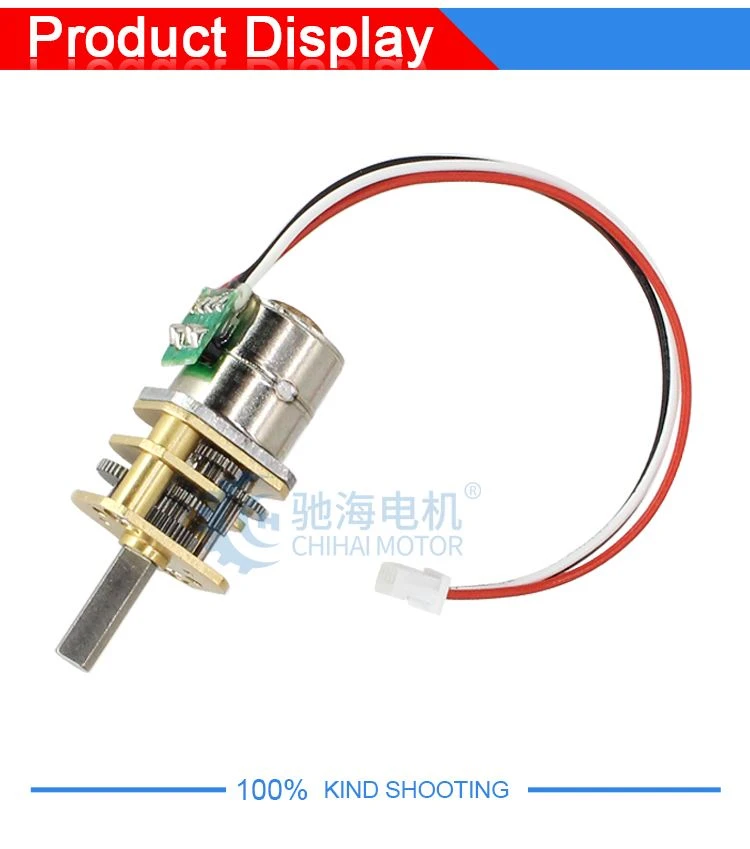

Product &display
Packing & Delivery
PACKAGE:
Standard export carton packing.
DELIVERY TIME:
3-20 days after confirming order,detail delivery date should be decided according to
production season and order quantity.
ATTENTION:
If special customs clearance documents are required, please contact us in advance for confirmation.
FAQ
Q:1.What kind of motors you can provide?
A: For now, We mainly provide micro motor and a series of dc deceleration motor, including straight tooth deceleration motor, planetary deceleration motor, worm deceleration motor.At present, our company focuses on developing various types of motors with voltage between 1VDC and 30VDC and motor diameter between 8 and 51mm.
Q:2. Can you send me a price list?
A: For all of our motors, they are customized based on different requirements like lifetime, noise, voltage, and shaft etc. The price also varies according to annual quantity. So it's really difficult for us to provide a price list. If you can share your detailed requirements and annual quantity, we'll see what offer we can provide.
Q:3. What's the lead time for regular order?
A:For orders, the standard lead time is 3-25 days and this time can be shorter or longer based on different model, period and quantity.
Q:4. Is it possible for you to develop new motors if we can provide tooling cost?
A: Yes. Please kindly share the detailed requirements like performance, size, annual quantity, target price etc. Then we'll make our evaluation to see if we can arrange or not.
Q:5.Could you send me free samples?
Yes,also we can return your samples fee back when you place order.
