What is a Pinion Gear?



Pinion Gear: A pinion is a round gear, usually the smaller of two meshed gears. Pinions can be either spur or helical type gears and be either the driving or driven gear, depending on the application. Pinion gears are used in many different types of gearing systems such as ring and pinion or rack and pinion systems.

Benefits of Using Pinion Gear
GM1024-N20 Inverted Miniature DC Gear Reduction Motor

Higher Efficiency

Pinion gears can reduce friction and power loss by minimizing the contact area between the teeth and the meshing surface. This can improve the performance and durability of the system.

GM1024-N20 Inverted Miniature DC Gear Reduction Motor

Lower Noise

Pinion gears can produce less noise than other types of gears because they have fewer teeth and a smoother motion. This can enhance the comfort and safety of the users and the environment.

Ball Bearing Planetary Gear Reduction Motor

Compact Design

Pinion gears can save space and weight by allowing a smaller gear ratio and a shorter shaft. This can make the system more compact and easier to install and maintain.

Inverted DC Gear Reduction Motor

Versatility

Pinion gears can be used with different types of gears and racks, such as spur, helical, bevel, worm, or planetary gears. This can increase the flexibility and adaptability of the system to various needs and conditions.


Different Types of Gears




There are many types of gears used in machinery. Each of these gears is engineered to transfer motion from one shaft to another. However, the uses of these gears in various industrial, automotive, and commercial applications all vary depending on their design.
Spur Gears

One of the most common types of gears is spur gears. These gears have a cylindrical design and transmit motion between two parallel shafts. They are popular to use in industrial applications because their design makes them easily installable in most machinery. Spur gears can fit even in the tightest of equipment gearboxes and transmissions.



Since their design is highly effective, this gear is also commonly custom-manufactured to improve overall machine efficiency. Spur gears are also less likely to dislodge in equipment, making them a highly durable gear option. The versatility of these gears makes them useful for a variety of machine applications.

Helical Gears

Helical gears have slanted teeth along their gear axis. The teeth of helical gears are longer than most spur gears, making them more effective at transferring higher power between shafts. Helical gears are also known to reduce vibration and noise when they operate in equipment. The designs of these gears make them optional for working in transmissions and other industrial equipment.

Bevel Gears

There are many different types of bevel gears, including straight bevel gears, spiral bevel gears, hypoid gears, and miter gears. Although all these designs aren't engineered the same, they have similar uses.



Bevel gears have conically shaped surfaces with gear teeth cut along their edges. Rather than transmitting motion between shafts, bevel gears transfer motion perpendicularly to create a higher velocity. Bevel gears are also optimal for managing large volume loads in machinery. There are a variety of different applications for bevel gears.

Spiral Gears

Spiral gears have two intersecting helical gears with a high angle. Spiral bevel gears transfer their power between two non-parallel shafts at lower speeds, which creates low-functioning movement. Due to spiral gears' low power and speed, they're rarely found in industrial equipment and are instead used for more commercial purposes.

Hypoid Gears

Hypoid gears are another type of spiral bevel gear. However, unlike the design of spiral bevel gears, hypoid gears don't have two intersecting axes. Instead, their shape is based on a hyperboloid, which is a quadric surface that's neither a cone nor a cylinder but has a center of symmetry, which creates a hyperbola-like shape. These gears are used in most gearbox applications.

Miter Gears

Miter gears are also a type of bevel gear, which has a ratio of one. These gears change the direction of transmissions. However, they're unable to control the speed of them. Miter gears are engineered with both straight and spiral gear teeth depending on their applications in transmissions. However, these gears are most commonly found in automatic transmissions and gearbox equipment.

Rack and Pinion Gears

Rack and pinion gears are used to shift circular motions to linear motions. Racks are specifically engineered as cylindrical gears, and pinions are a type of spur gear that supports rack gears as they transfer motion from side to side. These gears are used in a wide variety of industrial, automotive, and commercial machines.

Worm and Worm Gears

Worm and worm gears create a slipping contact between screws and worm gears. The worm (or screw) of these gears is often produced from rigid materials, whereas the worm wheel is made from soft materials to reduce friction. Worm and wheel gears are primarily used in skew shafts and positioned at right angles, making them ideal for lifting applications.

Internal Gears

The teeth of internal gears are located inside the cylinder of the gear rather than the outside. A spiral gear or external gears are situated inside the circumferences of internal gears and rotates around in a circular motion to create a planetary drive. The planetary drive is essential to most electric vehicles and is one of the oldest gear engineering designs. There are several applications for internal gears that create planetary drives.



Applications of Pinion Gear

A pinion gear is a round gear that is usually the smaller of two meshed gears, used in various applications:

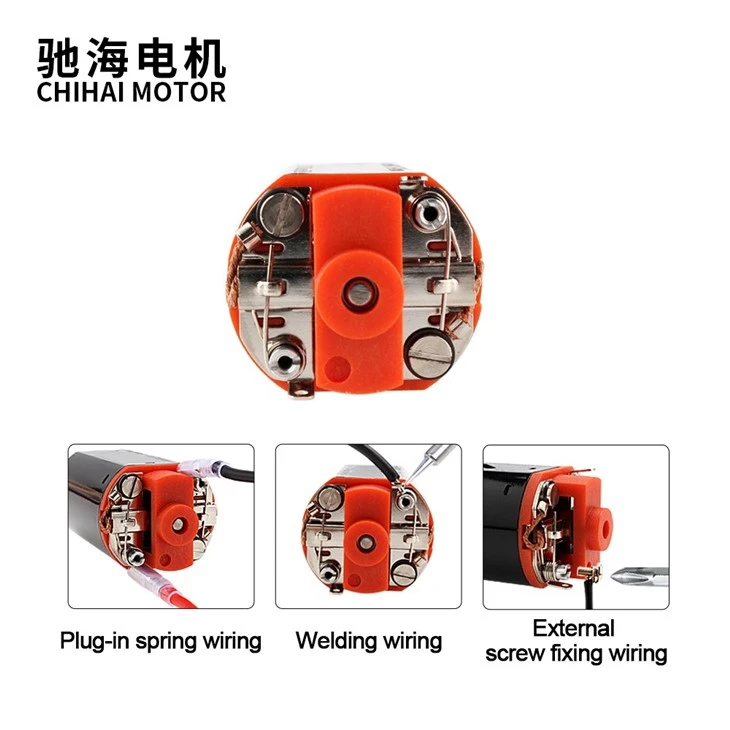

High Torque High Speed 480 Motor 38TPA

The Steering System of Vehicles

A pinion gear meshes with a rack, which is a linear gear with straight teeth. As the pinion gear rotates, it moves the rack left or right, which in turn changes the direction of the wheels. This allows the driver to control the steering angle and speed of the vehicle.

Dc Brushless Stepper Secondary Variable Speed Motor 2-phase 4-wire

CNC Machinery

CNC machines use pinion gears and racks to move the cutting tool or workpiece along a precise path. The pinion gear is driven by a motor and connected to a controller that sends signals to adjust the speed and position of the gear. By using pinion gears and racks, CNC machines can achieve high accuracy and efficiency in various manufacturing processes.

Dc Brushless Stepper Secondary Variable Speed Motor 2-phase 4-wire

Industrial Automation

They can convert rotational motion into linear motion or vice versa. For example, pinion gears can be used to drive conveyor belts, lift platforms, or robotic arms. Pinion gears can also be combined with other types of gears, such as spur gears or helical gears, to create complex gear systems that can transmit power and motion in different directions and ratios.

Stepping Brushless Dc Reduction Motor

Other Applications

Some other applications of pinion gears include elevators, linear actuators, printing and packaging machinery, woodworking tools, and gantry systems. Pinion gears have many advantages, such as compact size, high torque transmission, non-reversibility, and easy maintenance.


Starter Motor Components & Their Functions

Armature

The armature is an electromagnet, mounted on the drive shaft and bearings for support. It is a laminated soft iron core which is wrapped with numerous conductors loops or windings.

Commutator

The commutator is a section of the shaft at the rear of the housing on which the brushes run to conduct electricity. The commutator is made up of two plates attached to the axle of the armature. These plates provide the two connections for the coil of the electromagnet.

Brushes

The brushes run on a section of the commutator at the rear of the housing, making contact with the contacts of the commutator and conducting electricity.

Solenoid

The solenoid contains of two coils of wire that are wrapped around a moveable core. The solenoid acts as a switch to close the electrical connection and connects the starter motor to the vehicle's battery.

Plunger

The plunger works by using the connected vehicle battery and the solenoid to push the plunger forward, which engages the pinion.

Lever Fork

The lever fork is connected to the plunger so when the plunger is pushed forwards, so is the lever fork. This process then activates the pinion.

Pinion

The pinion is a unique combination of a gear and springs. Once the starter is engaged the gear is extended into the gearbox housing and is engaged with the flywheel. This spins the engine to begin the combustion process.

Field Coils

The housing holds the starter fields in the housing with screws. This can consist of two to four field coils connected in series. Energized by the battery this converts the coils into an electromagnet which then turns the armature. When the armature coils are powered a magnetic field is created around the armature.

Common Materials for Gears



 There are various raw materials that are commonly used in gear construction, and each one has a sweet spot where its mechanical properties stand out as the superior choice. The main categories of materials are copper alloys, iron alloys, aluminum alloys, and thermoplastics.

Stepping Brushless Dc Reduction Motor

Copper Alloys

When designing a gear that is going to be subjected to a corrosive environment or needs to be non-magnetic, a copper alloy is usually the best choice. The three most common copper alloys used in gearing are brass, phosphor bronze, and aluminum bronze. Brass is an alloy of copper and zinc. The amount of zinc varies in the different brass alloys, and its presence changes the ductility of the alloy.

Iron Alloys

When a gear design requires a superior material strength, iron alloys are the best choice. In its raw form, gray iron can be cast and machined into gears. Typically, cast iron is used in applications where phosphor bronze is a suitable alternative, but the application is not constrained by the material's magnetic fields. Steel is an alloy of iron, carbon, and other trace elements. There are four major designations of steel alloy. These are carbon steel, alloy steel, stainless steel, and tool steel.

Aluminum Alloys

Aluminum alloys are a good alternative to iron alloys in applications that need a high strength-to-weight ratio. Aluminum alloys are typically one-third the weight of steel alloys of the same size. A surface finish known as passivation protects aluminum alloys from oxidation and corrosion. This is similar to rust on steel alloys; however, it coats the surface, protecting it from further damage. Aluminum alloys are more expensive than carbon steel but less expensive than stainless steel. However, they are easy to machine, thus offsetting the increase in material costs.

Thermoplastics

Thermoplastics are the best choice for gears where weight is the most important criterion. Gears made from plastics can be machined like metallic gears; however, some thermoplastics are better suited for manufacturing via injection molding. One of the most common injection-molded thermoplastic is acetal. This material is also known as polyacetal or polyoxymethylene (POM). Polyoxymethylene is available in two forms: It is either produced as a homopolymer (POM-H), or it is produced as a copolymer (POM-C). Gears can be made from either polymer. These can be spur gears, helical gears, worm wheels, bevel gears, and gear racks.

How to Choose the Right Pinion Gear for Your Project?

When choosing a pinion gear for your project, you should consider these features and how they match your design requirements.

Material

The material of the pinion gear determines its strength, durability, wear resistance, and corrosion resistance. Common materials include steel, stainless steel, brass, bronze, aluminum, and plastic.


Module

The module of the pinion gear is the ratio of the pitch diameter to the number of teeth. It indicates the size of the gear and affects the speed and torque of the transmission. Smaller modules result in higher speed and lower torque, while larger modules result in lower speed and higher torque.


Pressure Angle

The pressure angle of the pinion gear is the angle between the line of action and the tangent to the pitch circle. It affects the amount of force and friction generated between the teeth. Standard pressure angles are 14.5°, 20°, and 25°. Higher pressure angles reduce the contact ratio and increase the efficiency, but also increase the stress and noise.


Tooth Profile

The tooth profile of the pinion gear is the shape of the tooth surface. It affects the smoothness and accuracy of the meshing. Common tooth profiles include involute, cycloidal, and helical. The involute tooth profile is the most widely used because it provides a constant velocity ratio and minimal wear.


Pitch

The pitch of the pinion gear is the distance between two adjacent teeth measured along the pitch circle. It affects the number of teeth and the size of the gear. Smaller pitches result in more teeth and smaller gears, while larger pitches result in fewer teeth and larger gears.



Our Certifications and Airsoft Motor



productcate-800-572

productcate-730-730

CHIHAI MOTOR

productcate-730-730

CHIHAI MOTOR

productcate-730-730

CHIHAI MOTOR



Frequently Asked Questions about Pinion Gear

Q: What is a pinion gear?

A: Pinion gears and pinion racks feature the same shape and the same sized teeth that are cut along a flat surface at an equal distance apart from each other. Together, these two flat surfaces form a rack with a cylindrical, and the rotational motion becomes converted into a linear motion to generate movement. The unique, two-piece pinion gear set is essentially a fundamental and integral aspect of the traditional drive train. In fact, a pinion gearbox was used in the first commercially successful steam locomotive!

Q: What are pinion gears used for?

A: These have been used for centuries as the integral motion facilitator of the conventional drive train. Today, the rack and it set is used in a variety of small appliances, motorized toys like RC cars, and even elevator and smart antenna systems.

These are ideal for giving the user the ability to control the speed of movement. As the cylindrical wheel rolls along the flat, linear straight-toothed component, it generates tension, but it also converts rotational movement into linear motion-ultimately propelling an object forward or backwards.

With the unique ability to maintain comprehensive control over that linear movement, pinion gears are applicable in a wide range of mechanized industrialized equipment as well as more common products.

Q: What the relationship to spur gears & helical gears?

A: When it comes to pinion gears, they’re actually related to spur gears and helical gears – almost always, any system that uses a rack and pinion gear set will also use a combination of spur gears and/or helical gears to facilitate motion and movement. The unique characteristics of pinion gears to seamlessly combine with other gear systems make it an integral component and a gear that is always in high demand amongst our customers.

Q: What is rack and pinion gear?

A: A rack and pinion gear set can change the direction of a rotary motion into a linear one or vice versa. It comprises two major components: a straight bar with teeth on one side, known as the rack, and a round gear with teeth around its circle, known as the pinion. When the pinion rotates, it contacts the rack’s teeth and causes the rack to move linearly.

A rack and pinion gear set can change the direction of a rotary motion into a linear one or vice versa. It comprises two major components: a straight bar with teeth on one side, known as the rack, and a round gear with teeth around its circle, known as the pinion. When the pinion rotates, it contacts the rack’s teeth and causes the rack to move linearly.

Its linear motion can drive various systems or precisely control several applications. Common rack and pinion gear uses include automobile steering systems, robotics, industrial, and other applications requiring precise motion control. Their effectiveness and efficiency, small size, and user-friendliness make them popular in various industries.

Q: What is the function of pinion gear in differential?

A: The differential system uses a ring gear and pinion gear to transmit rotational motion. The pinion gear turns in response to the rotation of the ring gear. Differential ring and pinion, gear and Pinion direct affect of the performance and economy of your vehicle.

Q: What is the pinion gear in power steering?

A: The pinion gear is attached to the steering shaft so that when the steering wheel is turned, the gear spins, moving the rack. The axial rod at each end of the rack connects to the tie rod end, which is attached to the spindle.

Q: What's the difference between absolute and incremental encoders?

A: Encoders may produce either incremental or absolute signals. Incremental signals do not indicate specific position, only that the position has changed. Absolute encoders, on the other hand, use a different “word” for each position, meaning that an absolute encoder provides both the indication that the position has changed and an indication of the absolute position of the encoder.

Q: What component does the pinion gear engage with?

A: The pinion then engages with the ring gear that is part of the engine's flywheel and turns the flywheel that rotates the engine's crankshaft.

Q: What is the pinion gear on a starter?

A: The pinion gear transfers rotational force from the starter motor to the engine's crankshaft, initiating the combustion process and enabling the engine to start. Starter pinion gears are designed to withstand high torque loads and provide reliable engagement with the flywheel or flexplate.

Q: What is the difference between steering gear and rack and pinion?

A: Steering gear boxes typically have more components, which makes them heavier. They're also more difficult to handle. If you want a steering system that's durable, straightforward, and lightweight, rack and pinion is the way to go. You'll get better handling and fuel economy.

Q: Is a smaller pinion gear faster?

A: A larger pinion gear or a smaller spur gear will both provide more speed. A smaller pinion gear or a larger spur gear will provide more torque and acceleration, but less top speed. You may change one or both gears to achieve the desired effect.

Q: Is a bigger or smaller pinion gear better?

A: A bigger pinion or smaller spur gear makes the vehicle have more top speed, at a decrease in acceleration. It's most likely that gearing up will make everything run a bit hotter, and shorten run times. A smaller pinion or larger spur gear has the opposite effect.
