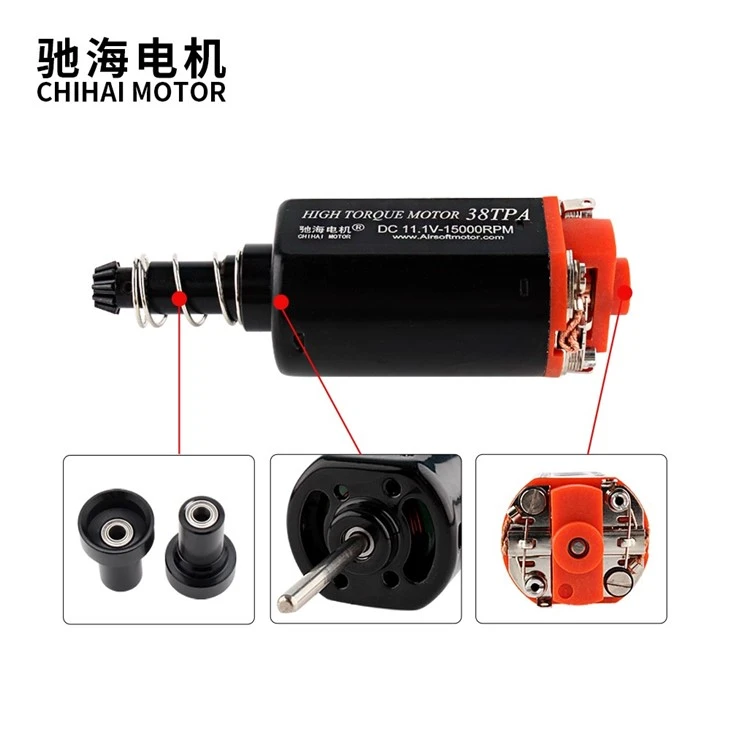

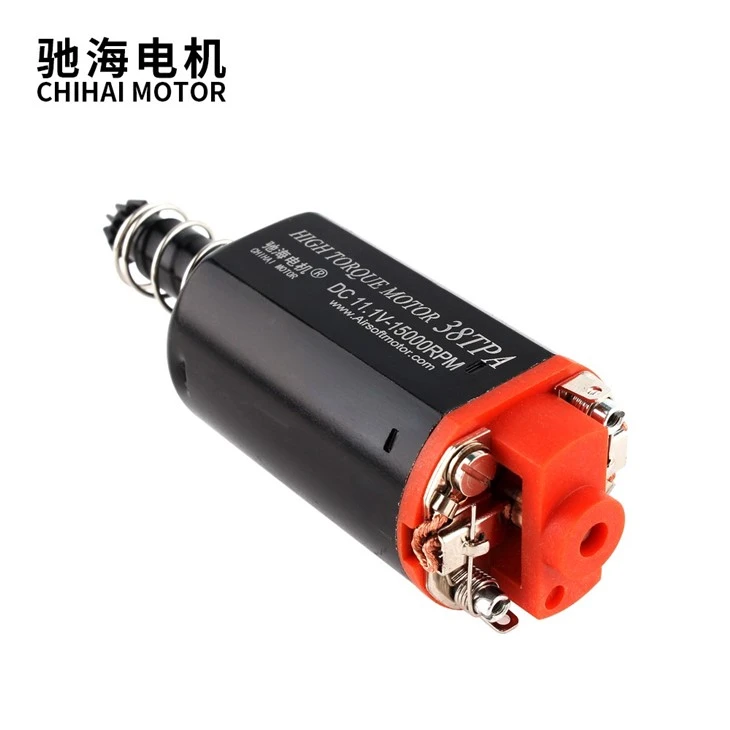

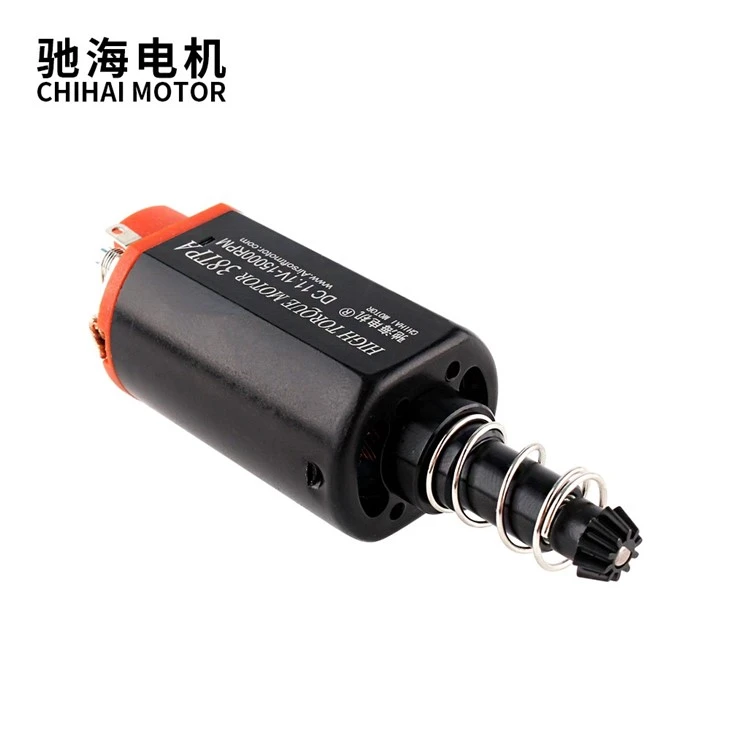

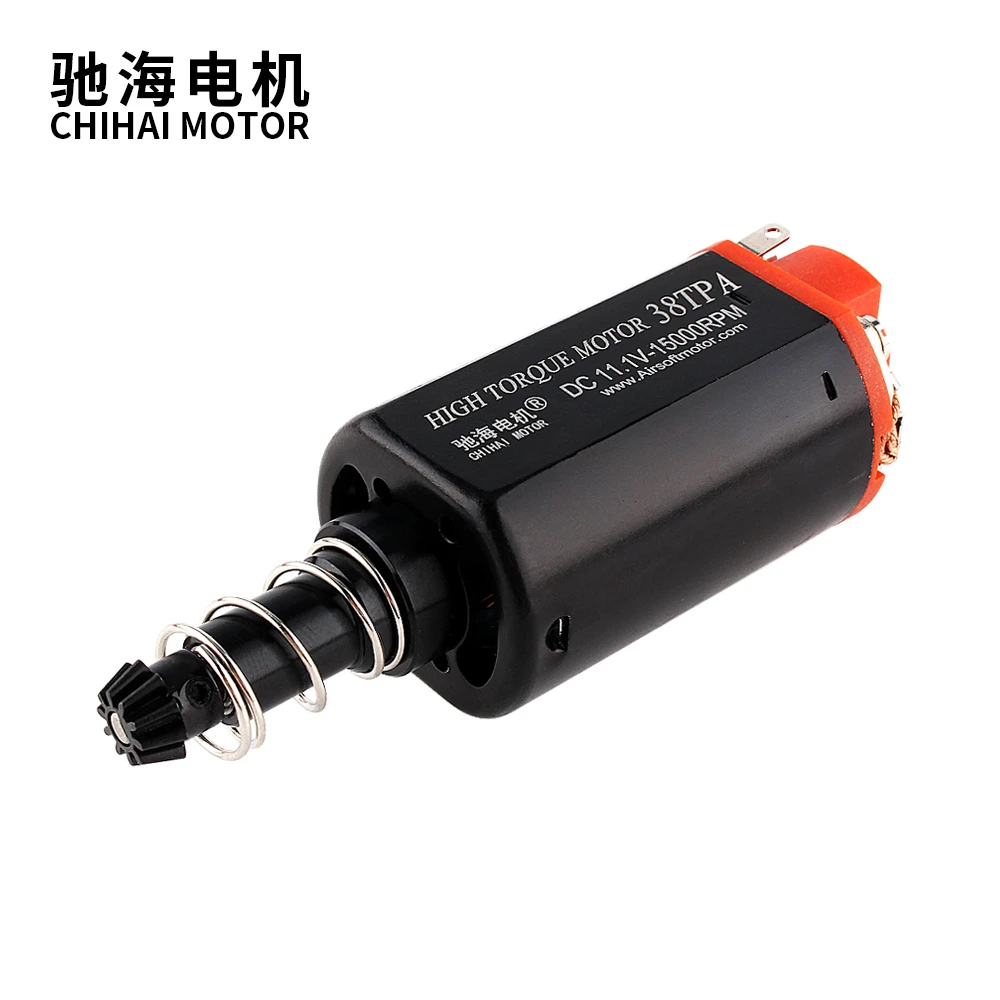

High Torque High Speed 480 Motor 38TPA
Product Description
| Product Type |
CHF-480WA-5038 T High torque high speed 480 motor |
| Appearance | Shell paint/200℃ Thermostable back cover |
| Magnetic materials |
N35 Nd-Fe-b high torque strong output |
| DC 11.1V | 15000 rpm |
| weight | About 150g |
| Application |
Adaptation type： Ver.2 gearbox Airsoft gun JIN MING M4A1-J9 ACR-J10 Wavebox upgrade 480 motor insertion Special wave box type: WARINTEREST JIQU HK416D / KUBLAI BD556 JINGJI SLR / NEW WELL M4 FB WAVE BOX FIGHTING BRO |
With the continuous development of science and technology, the popularity of electric devices has gradually increased. Among all kinds of electric devices, motors are widely used in automobiles, machinery and other fields. And one of the important performance indicators is the torque and speed of the motor.
As an important advancement in motor technology, high-torque and high-speed motors have many superior properties. First of all, high-torque high-speed motors have better power performance, allowing equipment to accelerate and stop faster; at the same time, it has a higher rotational speed, which can improve the efficiency of the device and reduce energy consumption.
The application scope of high-torque high-speed motors is also becoming more and more extensive, due to its outstanding performance advantages, it can be used in a variety of electric devices. For example, high-speed electric vehicles can be recharged in a shorter period of time and achieve higher speeds while charging quickly. In addition, high-torque high-speed motors can also be used in the field of machinery, such as wind power and hydroelectric power generation.

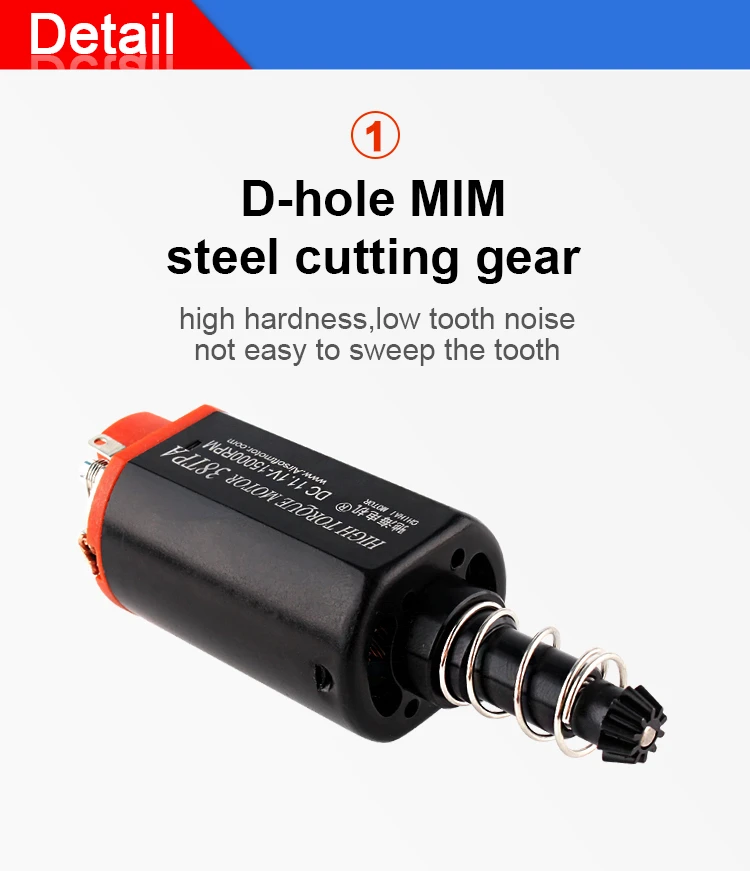

D-hole MIM steel cutting gear
high hardness,low tooth noise not easy to sweep the tooth

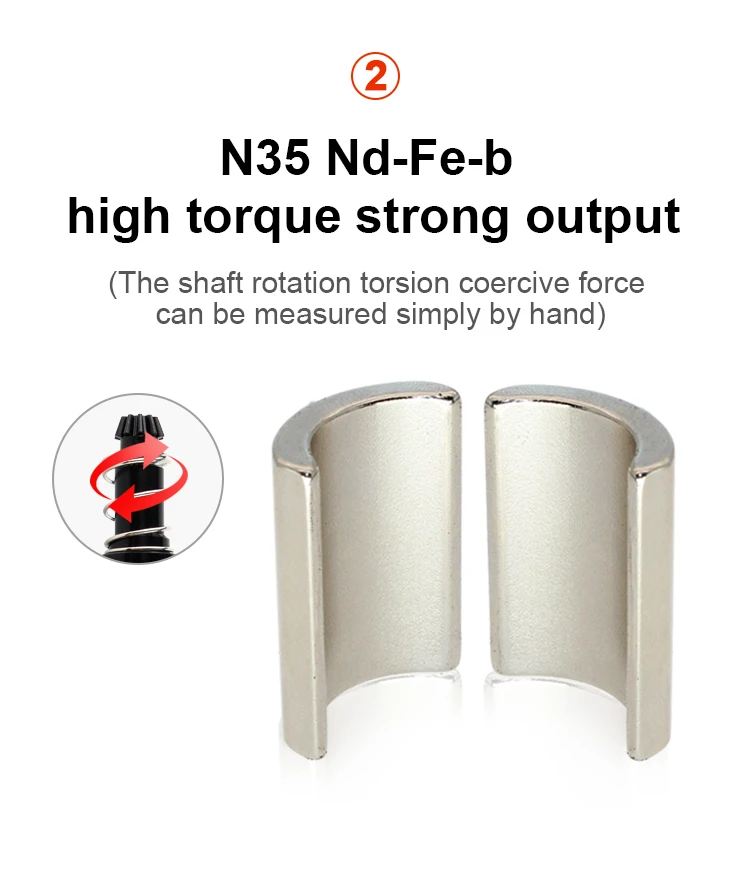

N35 Nd-Fe-b high torque strong output
(The shaft rotation torsion coercive force can be measured simply by hand)

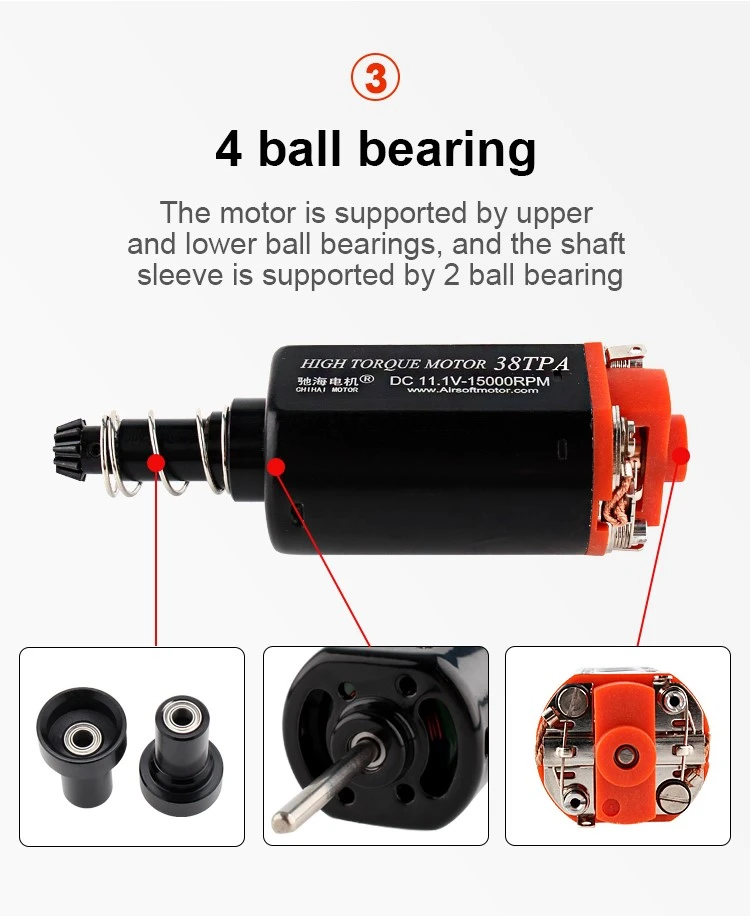

4 ball bearing
The motor is supported by upper and lower ball bearings, and the shaft sleeve is supported by 2 ball bearing

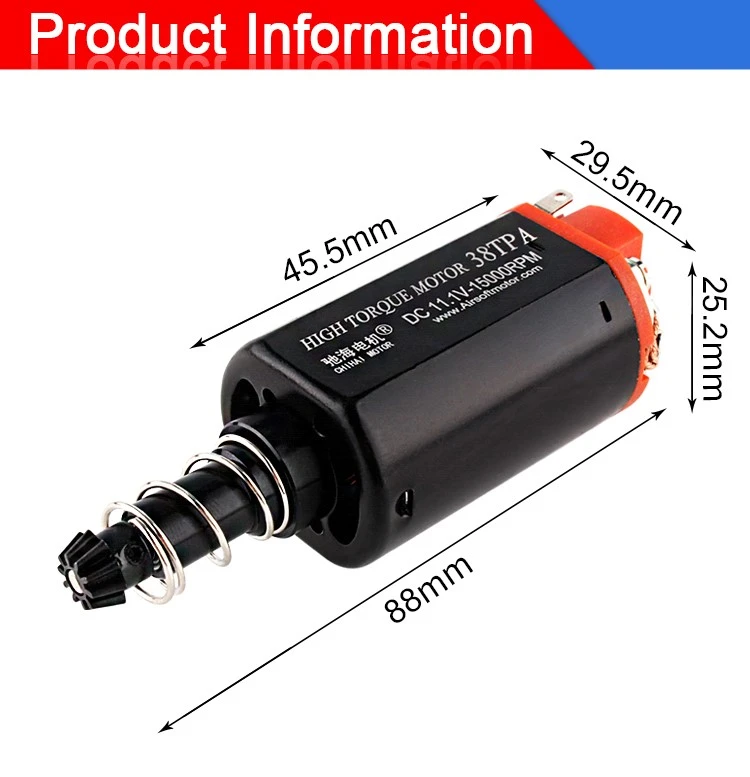

Detailed Images
Product Parameters
| Model： CHF-480WA-5038 T |
| Voltage: DC 11.1V |
| No load speed | No load current | At stall torque | At stall current |
| 15000 rpm | 1.50 A | 230.9524 mN.m | 33.6428 A |
AT MAX EFFICIENCY
| Speed | Current | Torque | Output Powe | Efficiency |
| 12385 rpm | 7.10 A | 40.26 mN.m | 52.3 W | 66.26689 % |
AT MAX OUTPUT POWER
| Speed | Current | Torque | Output Powe | Efficiency |
| 7500 rpm | 17.5714 A | 115.4762 mN.m | 90.7509 W | 46.52 % |
Packing & Delivery

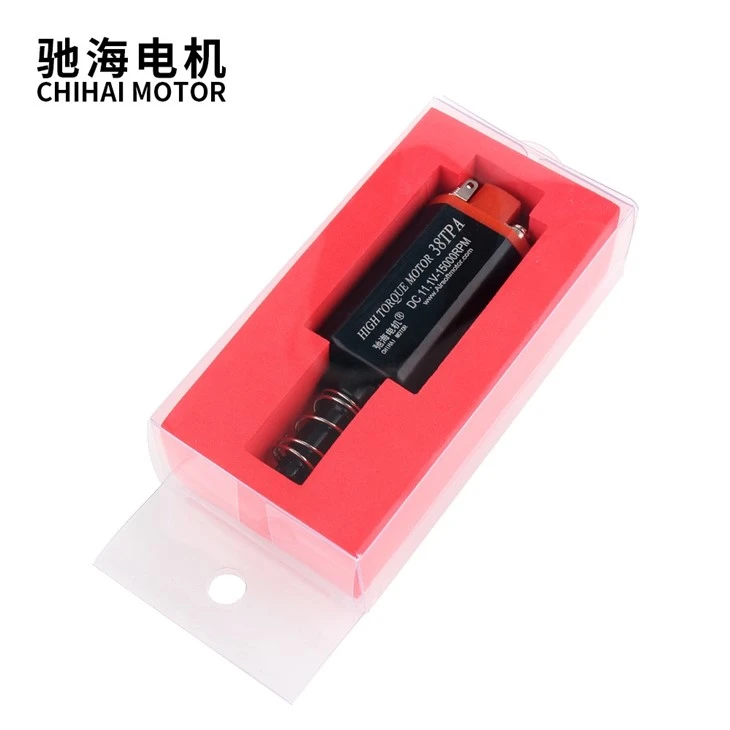

PACKAGE:
Standard export carton packing.
DELIVERY TIME:
3-20 days after confirming order,detail delivery date should be decided according to
production season and order quantity.
ATTENTION:
If special customs clearance documents are required, please contact us in advance for confirmation.
