Medium Speed High Torque Low Heating Torque Motor
Product Description
| Product Type | CHF-480WA HIGH Torque Motor M160 |

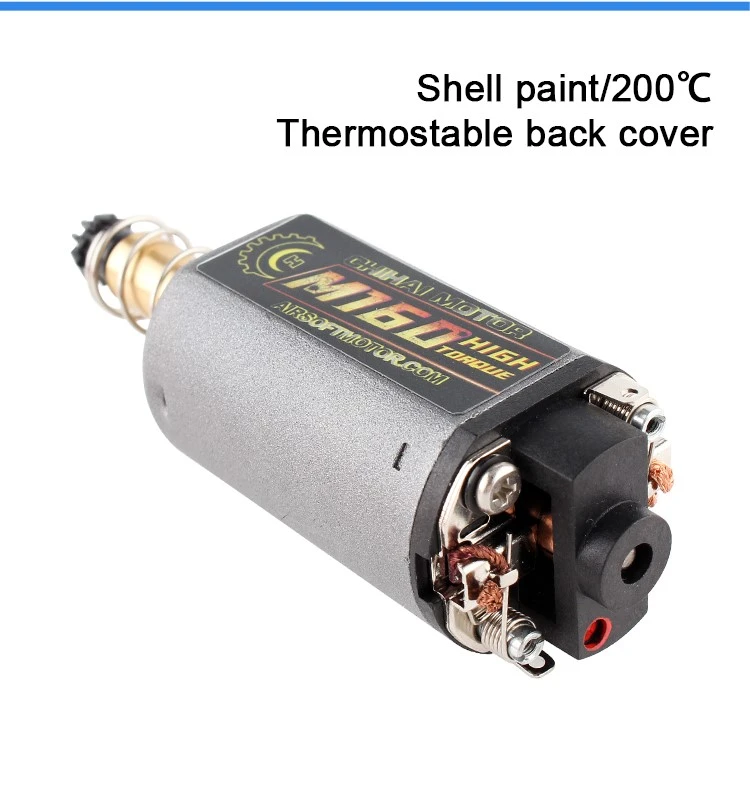

| Appearance | Shell paint/200℃ Thermostable back cover |

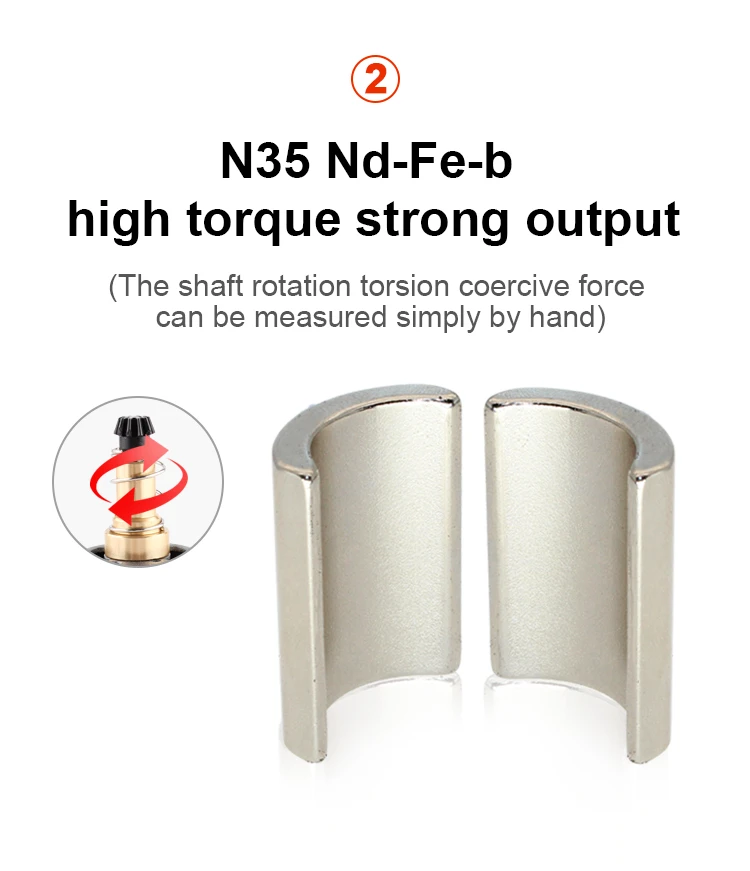

| Magnetic materials | N35 Nd-Fe-b high torque strong output |
| DC11.1V SPEED | 25000 rpm |
| weight | About 154g |
| Adaptation type |
Ver.2 gearbox box Airsoft gun JIN MING M4A1-J9 ACR-J10 Wavebox upgrade 480 motor insertion Special wave box type: WARINTEREST JIQU HK416D / KUBLAI BD556 JINGJI SLR / NEW WELL M4 FB WAVE BOX FIGHTING BRO |
Features：
1-N35H Neodymium Magnet
2- Nylon low thermal conductivity rear cover

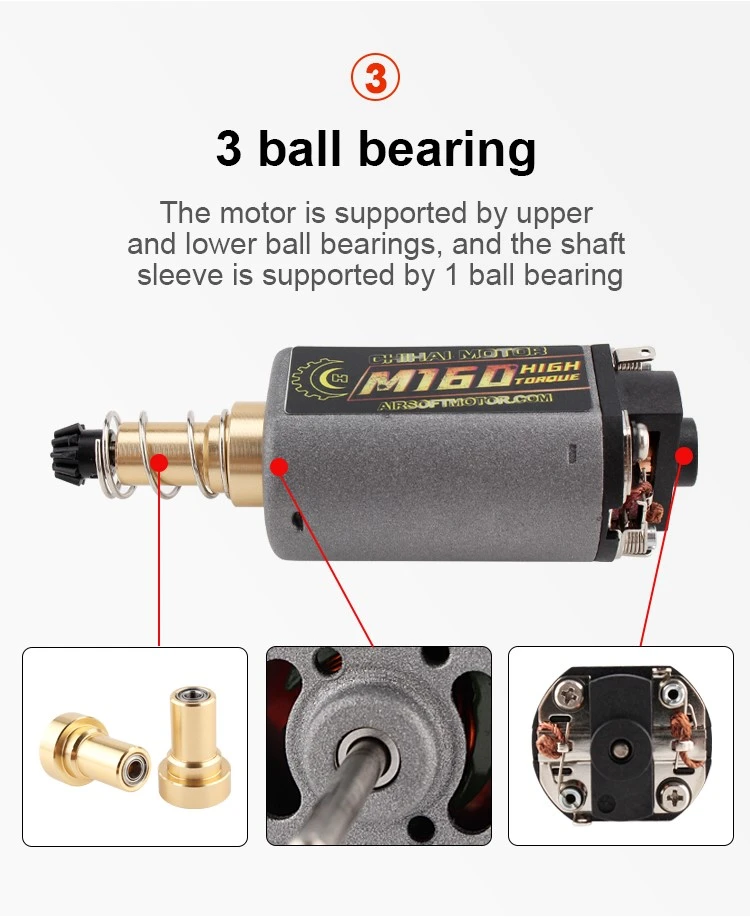

3-Ball bearing construction

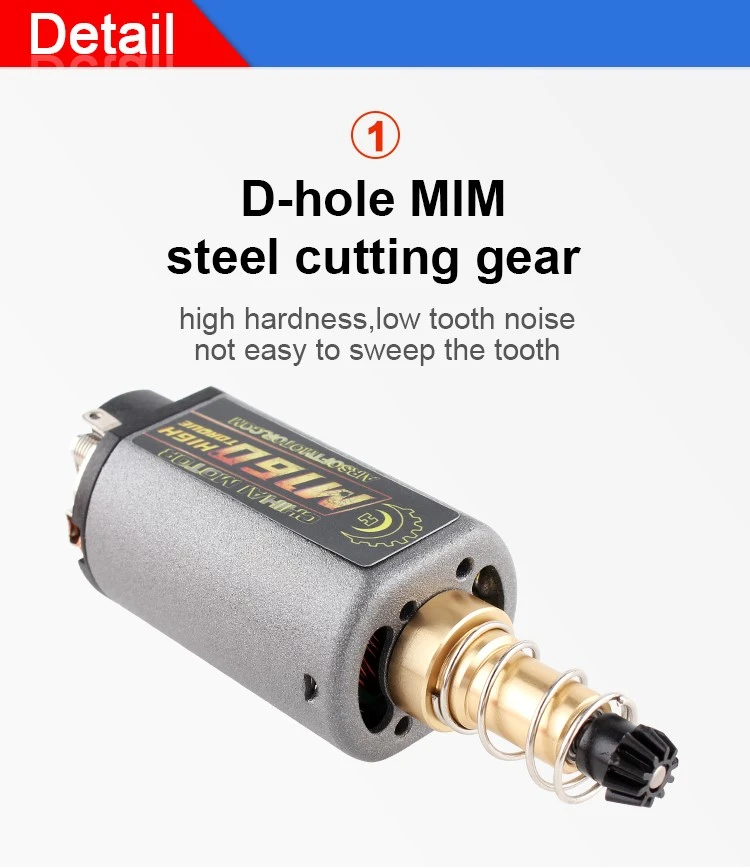

4-extra strong powder metallurgy pinion gear
5-Closed paint shell
6-High performance wear-resistant carbon brush
7-Armature Dynamic Balancing
8-Support fire control chip control
High torque motor is a kind of electric machine that can output more torque and is widely used in various types of mechanical equipment. The powerful rotation force can help the machine to complete various tasks more efficiently, while also reducing labor costs and improving work efficiency.
With the continuous progress of science and technology, the performance of high-torque motors is also constantly improving. The motor can better adapt to a variety of harsh environments and working conditions, including high loads, high speeds and high temperatures. It is widely used in various fields such as industrial production, energy, transportation and electronic equipment.
In addition, high torque motors also have very high stability and reliability. It is not prone to failure, has a long life, and can even work normally in extreme environments.

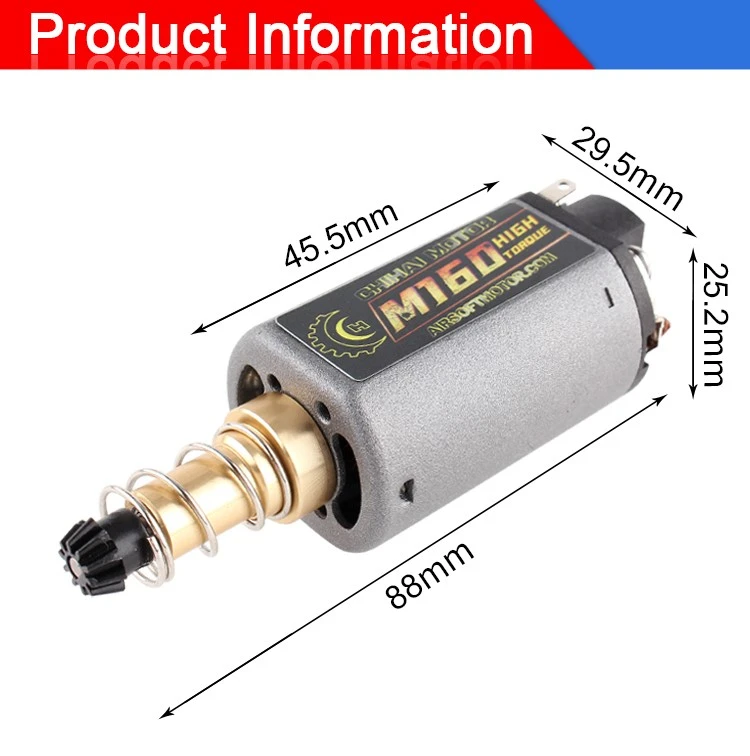

Detailed Images
Product Parameters
| Model：CHF-480WA-M160 |
| Voltage: DC 11.1V |
| No load speed | No load current | At stall torque | At stall current |
| 25000 rpm | 2.5 A | 408.97 mN.m | 95.292 A |
At Max output power
| Speed | Current | Torque | Output Powe |
| 8750 rpm | 55.461 A | 243.62 mN.m | 223.37 W |
Characteristics
| Torque constant | E.M.F.constant | Dynamic resistance | Motor regulation |
| 4.407 mN.m | 4.407 mV/rad/sec | 0.1165 Ohms | 61.05 rpm/mN-m |
At Max Efficiency
| Speed | Current | Torque | Output Powe | Efficiency |
| 21486 rpm | 15.435 A | 57.009 mN.m | 120.32 W | 70.2 % |
Packing & Delivery
PACKAGE:
Standard export carton packing.
DELIVERY TIME:
3-20 days after confirming order,detail delivery date should be decided according to
production season and order quantity.
ATTENTION:
If special customs clearance documents are required, please contact us in advance for confirmation.
