VECTOR-II Medium Speed High Torque Motor

Product Description

Product Type	CHF-480WA VECTOR-II HIGH Torque Motor
Appearance	Shell paint/200℃ Thermostable back cover
Magnetic materials	Nd-Fe-B Magnet
DC11.1V SPEED	31000 rpm
weight	About 148g
Adaptation type	Used for VECTOR dagger Ver.2 launcher upgrade powerful motor



peculiarity：

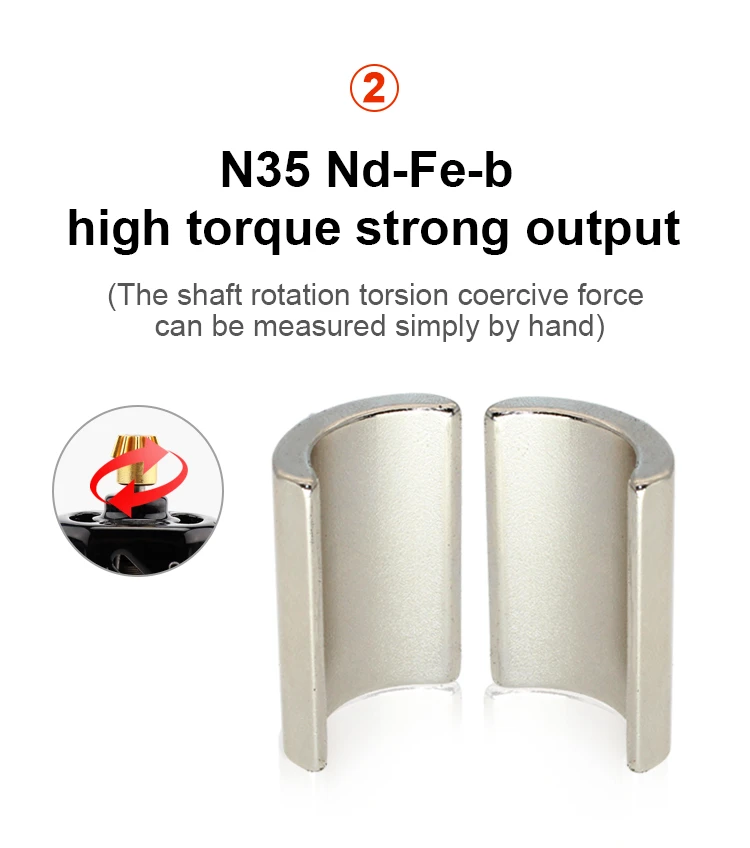

1-N35H Neodymium Magnet



The shaft rotation torsion coercive force can be measured simply by hand.



2- PPS Heat-resistant back cover

High temperature resistance, chemical corrosion resistance, wear resistance, mechanical strength and other performance.

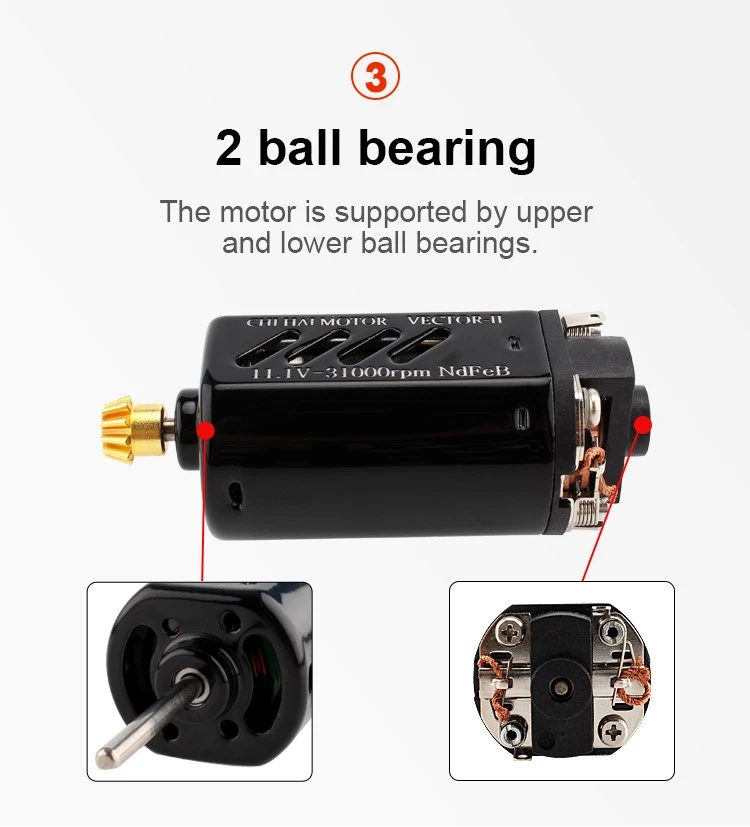

3-ball bearing construction

The motor is supported by upper and lower ball bearings.

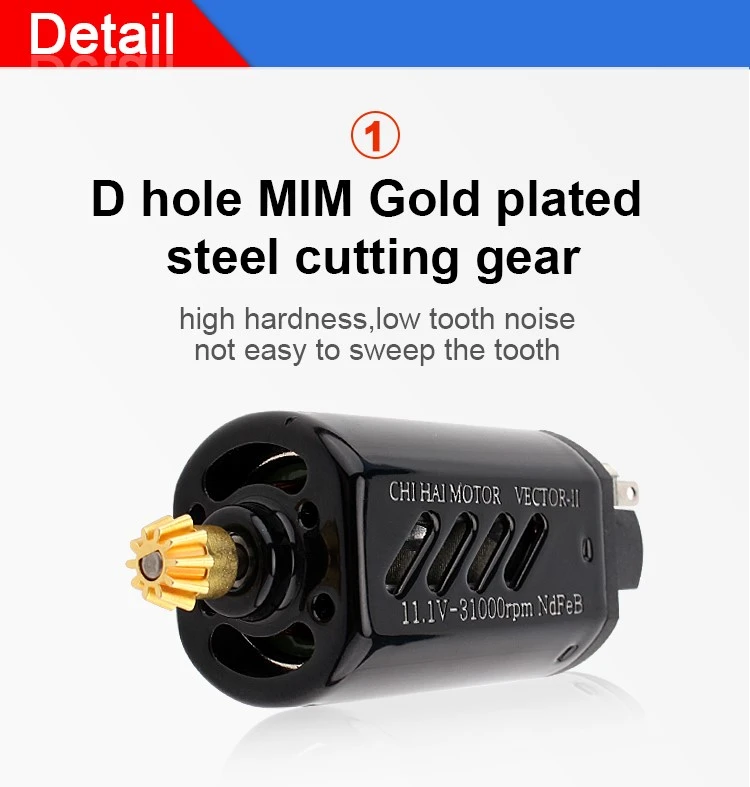

4-MIM gold plated steel pinion gear

high hardness ,low tooth noise not easy to sweep the tooth.



5- High heat dissipation paint case

Effectively improve the heat dissipation performance of the motor and reduce the heat accumulation generated by the motor during the working process. Sufficient heat dissipation can effectively reduce the temperature of the motor, extend the life of the motor, and improve the stability and reliability of the motor.



6- High performance wear-resistant carbon brush

With good stability, long life, low noise and excellent performance, can meet various requirements.



7-Armature Dynamic Balancing

The motor adopts the armature dynamic balance processing technology, which makes the motor run more stable and stable, and gives full play to the efficiency and ability of the motor.





Medium speed high torque motor is an important type of motor, with excellent performance and a wide range of applications. It is characterized by the ability to produce high torque at medium speed.



Medium speed high torque motor is widely used in industrial automation, machinery and equipment, ships, oil drilling, metallurgy, textile, printing, paper and other fields.



At the same time, the medium-speed high-torque motor also has the advantages of low energy consumption and high efficiency.





Detailed Images



Product Parameters

Model：VECTOR-II HIGH Torque Motor

Voltage: DC 11.1V

PERFORMANECE

AT STALL EXTRAPOLATION

No load speed	No load current	Torque	Current
31000 rpm	2.8 A	5134.3 g.cm	167.371 A



AT MAXIMUM EFFICIENCY

Speed	Current	Torque	Output Powe	Efficiency
26700.0 rpm	20.903 A	564.8 g.cm	154.660 W	66.66 %



AT MAXIMUM OUTPUT

Speed	Current	Torque	Output Powe	Efficiency
15000 rpm	85.086 A	2567.1 g.cm	394.945 W	41.82 %





Packing & Delivery

PACKAGE:

Standard export carton packing.

DELIVERY TIME:

3-20 days after confirming order,detail delivery date should be decided according to
production season and order quantity.



ATTENTION:

If special customs clearance documents are required, please contact us in advance for confirmation.
