480SA New Flat Power High Speed Motor
Product Description
| Product Type | CHF-480SA-11340 |
| Appearance | Special PPS high temperature resistant plastic steel rear cove |
| Magnetic materials | Wet pressed magnetic |
| DC 11.1V | 34000rpm |
| weight | about 138g |
| Application |
Adaptation type： Ver.2 gearbox Airsoft gun JIN MING M4A1-J9 ACR-J10 Wavebox upgrade 480 motor insertion（Special motor brackets are required） Special wave box type: WARINTEREST JIQU HK416D / KUBLAI BD556 JINGJI SLR / NEW WELL M4 FB WAVE BOX FIGHTING BRO |
peculiarity

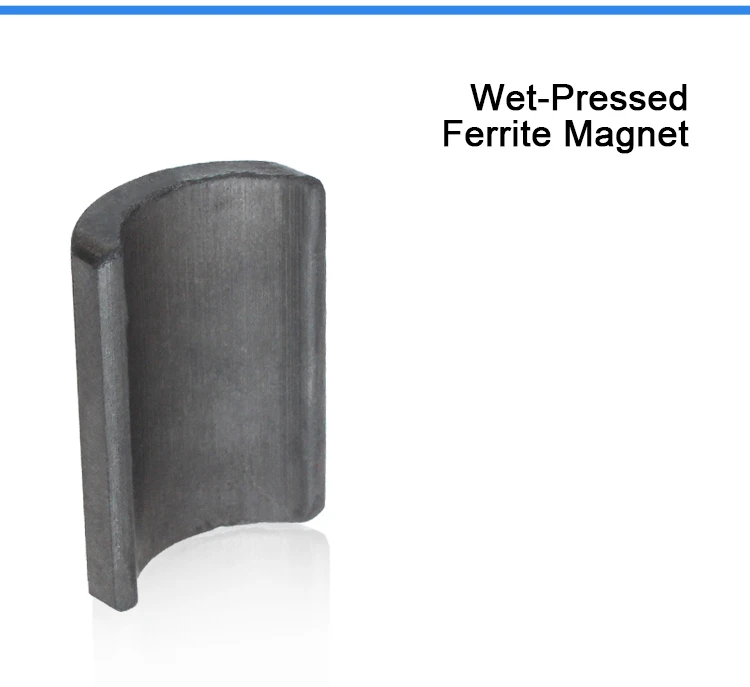

1-Ferrite Wet Pressure Magnets
Ferrite wet pressing magnet has the advantages of high coercivity, high permeability, low hysteresis loss and high weathering resistance. It also has very good heat resistance, corrosion resistance, plasticity and machinability.
2-Nylon low thermal conductivity rear cover
Nylon has high wear resistance, weather resistance and corrosion resistance, and can show better anti-aging properties.

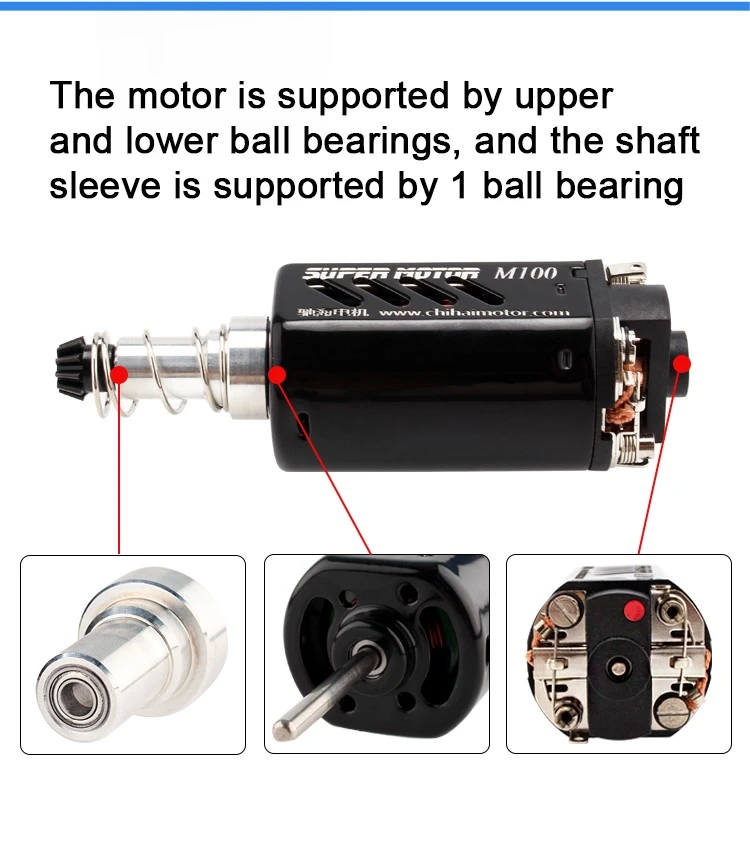

3-Ball bearing construction

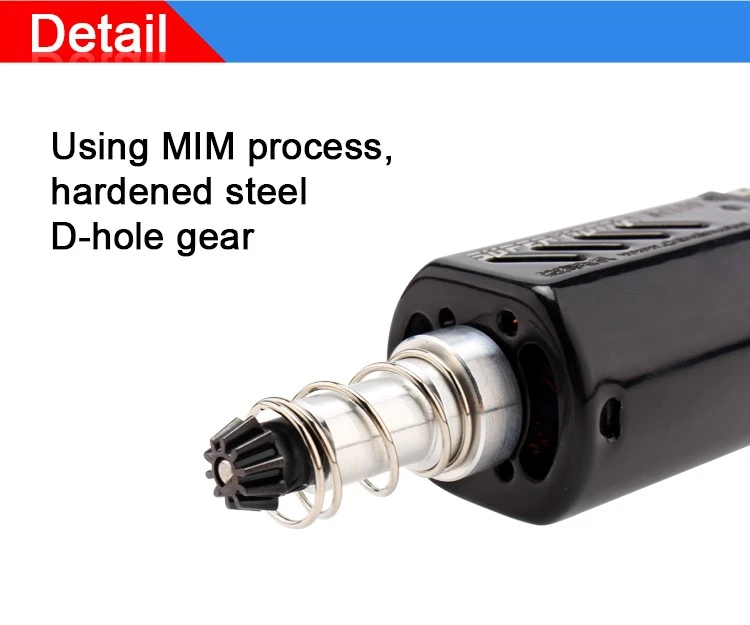

4-MIM gold plated steel pinion gear

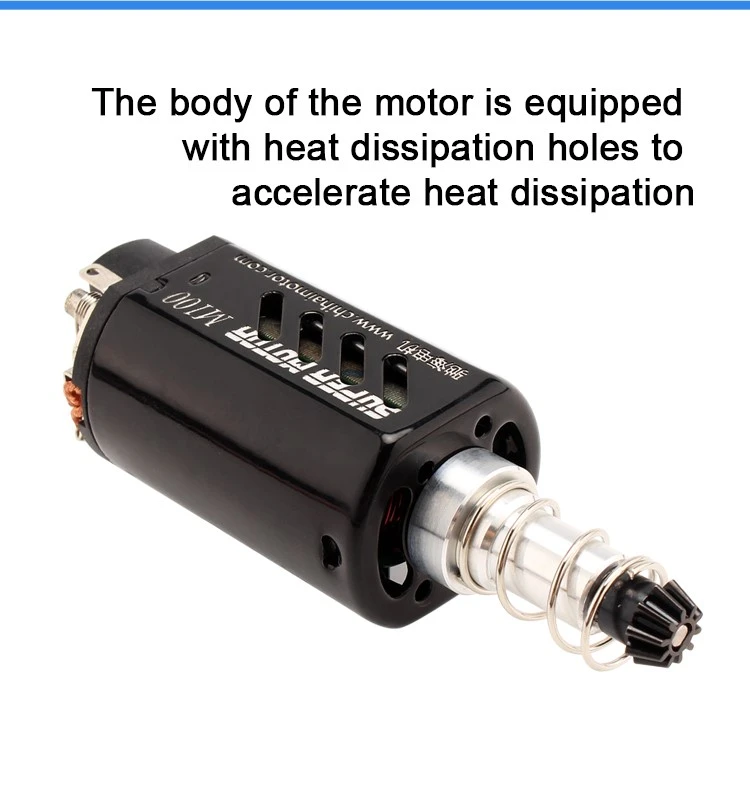

5-High heat dissipation paint case
6-High performance wear-resistant carbon brush
7-Armature Dynamic Balancing
8-Suggest mechanical switch control, reject fire control
Detailed Images
Product Parameters
| Model：CHF-480SA |
| Voltage: DC 11.1V |
| NO LOAD | AT STALL |
| Speed | Current | Torque | Current |
| 34000 rpm | 2.30 A | 272 mN.m | 109.06 A |
AT MAX EFFICIENCY
| Speed | Current | Torque | Output Powe | Efficiency |
| 29689 rpm | 15.84 A | 34.49 mN.m | 107.3 W | 61.03 % |
AT MAX OUTPUT POWER
| Speed | Current | Torque | Output Powe | Efficiency |
| 17000 rpm | 55.68 A | 136 mN.m | 242.26 W | 39.19 % |
Packing & Delivery
PACKAGE:
Standard export carton packing.
DELIVERY TIME:
3-20 days after confirming order,detail delivery date should be decided according to
production season and order quantity.
ATTENTION:
If special customs clearance documents are required, please contact us in advance for confirmation.
