MED Medium Axis HIGH Speed Motor
Product Description
| Product Type | CHF-480SA-MED Medium axis HIGH Speed Motor |

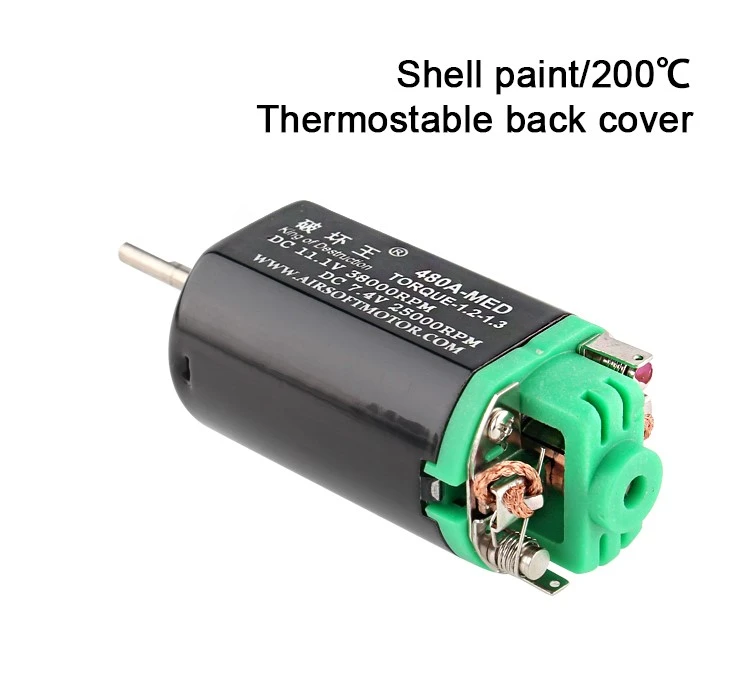

| Appearance | Shell paint/200℃ Thermostable back cover |

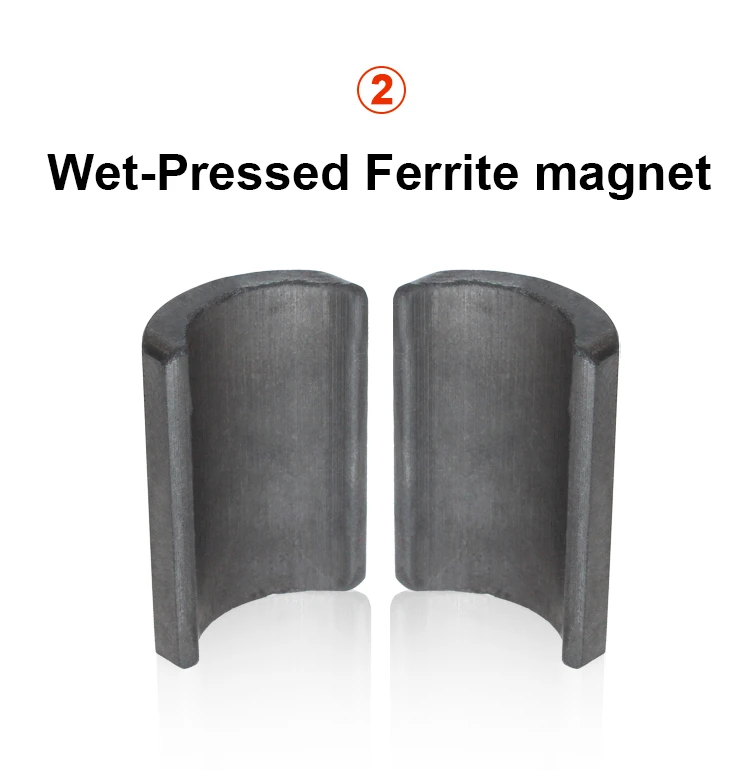

| Magnetic materials | Wet-pressed ferrite magnet |
| DC 11.1V | 38000 rpm |
| weight | About 140g |
Product characteristics

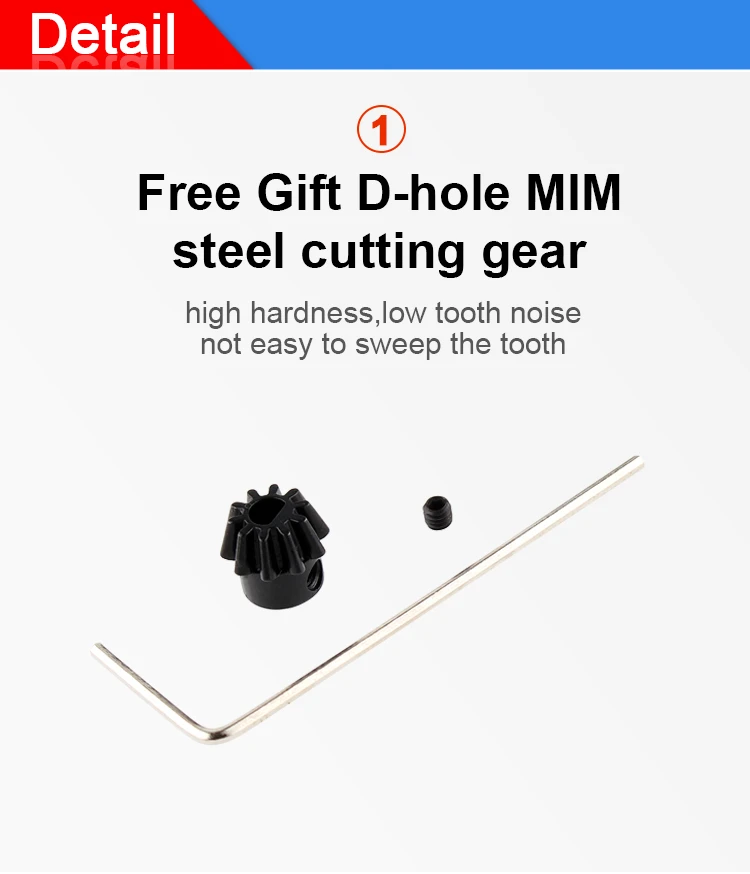

1、D hole with hard modified circular gear, more convenient installationNot easy to slip, enhance the tortuous force
2、The coil adopts new copper wire to ensure the efficient and stable operation of the motor
3、There are two fan-shaped magnets in the motor, which form a strong magnetic fieldThus increase the motor torque
Detailed Images
Product & specifications
| Model: CHF-480SA-MED Medium axis HIGH Speed Motor |
| Voltage: DC 11.1V |
| PERFORMANECE | AT STALL EXTRAPOLATION |
| No load speed | No load current | torque | current |
| 38000 rpm | 2.3 A | 3363.6 g.cm | 135.936 A |
AT MAXIMUM EFFICIENCY
| Speed | Current | Torque | Output Powe | Efficiency |
| 33440.0 rpm | 18.336 A | 403.6 g.cm | 138.437 W | 68.02 % |
AT MAXIMUM OUTPUT
| Speed | Current | Torque | Output Powe | Efficiency |
| 19000 rpm | 69.118 A | 1681.8 g.cm | 327.739 W | 42.72 % |
Packing & Delivery
PACKAGE:
Standard export carton packing.
DELIVERY TIME:
3-20 days after confirming order,detail delivery date should be decided according to
production season and order quantity.
ATTENTION:
If special customs clearance documents are required, please contact us in advance for confirmation.
