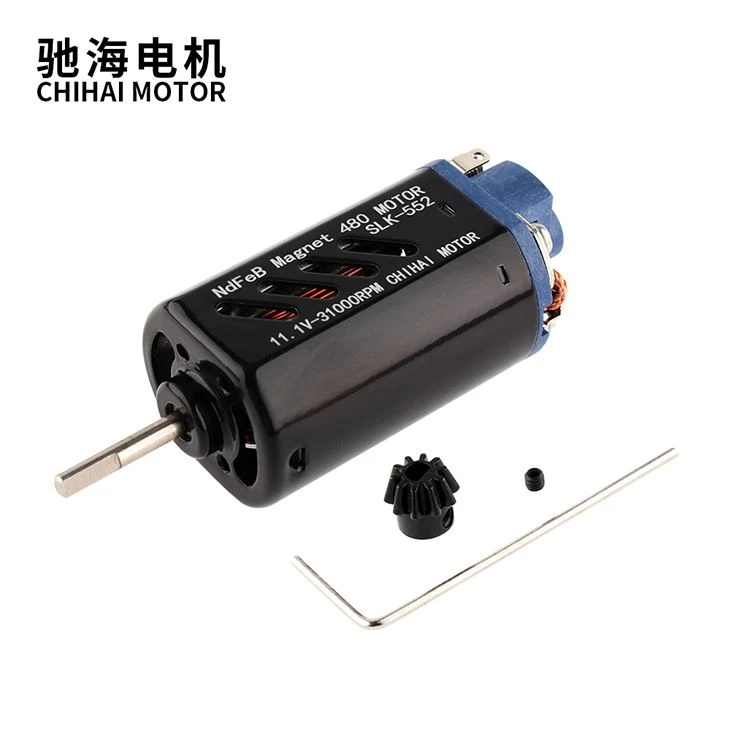

Medium Axis HIGH Torque Motor
Ball bearing structure
Hollow eddy heat dissipation
Thickened chin iron boron strong magnet
Send Inquiry
Product Description
| Product Type | CHF-480WA Medium axis HIGH Torque Motor |
| Appearance | Shell paint/200℃ Thermostable back cover |
| Magnetic materials | N35 Nd-Fe-b magnet |
| DC 11.1V | 31000 rpm |
| weight | About 145g |
Appearance features: shell paint process temperature resistant 200℃ plastic back cover
All ball bearing construction：Motor up and down ball bearing support
N35 thickened Chin Iron Boron magnet
Output bevel gear：D-hole MIM steel gear cutting wheel, high hardness, low noise and not easy to sweep teeth
Detailed Images
Product & specifications
| Model：CHF-480WA Medium axis HIGH Torque Motor |
| Voltage: DC 11.1V |
| PERFORMANECE | AT STALL EXTRAPOLATION |
| No load speed | No load current | torque | current |
| 31000 rpm | 2.8 A | 5134.3 g.cm | 167.371 A |
AT MAXIMUM EFFICIENCY
| Speed | Current | Torque | Output Powe | Efficiency |
| 26700.0 rpm | 20.903 A | 564.8 g.cm | 154.660 W | 66.66 % |
AT MAXIMUM OUTPUT
| Speed | Current | Torque | Output Powe | Efficiency |
| 15000 rpm | 85.086 A | 2567.1 g.cm | 394.945 W | 41.82 % |
