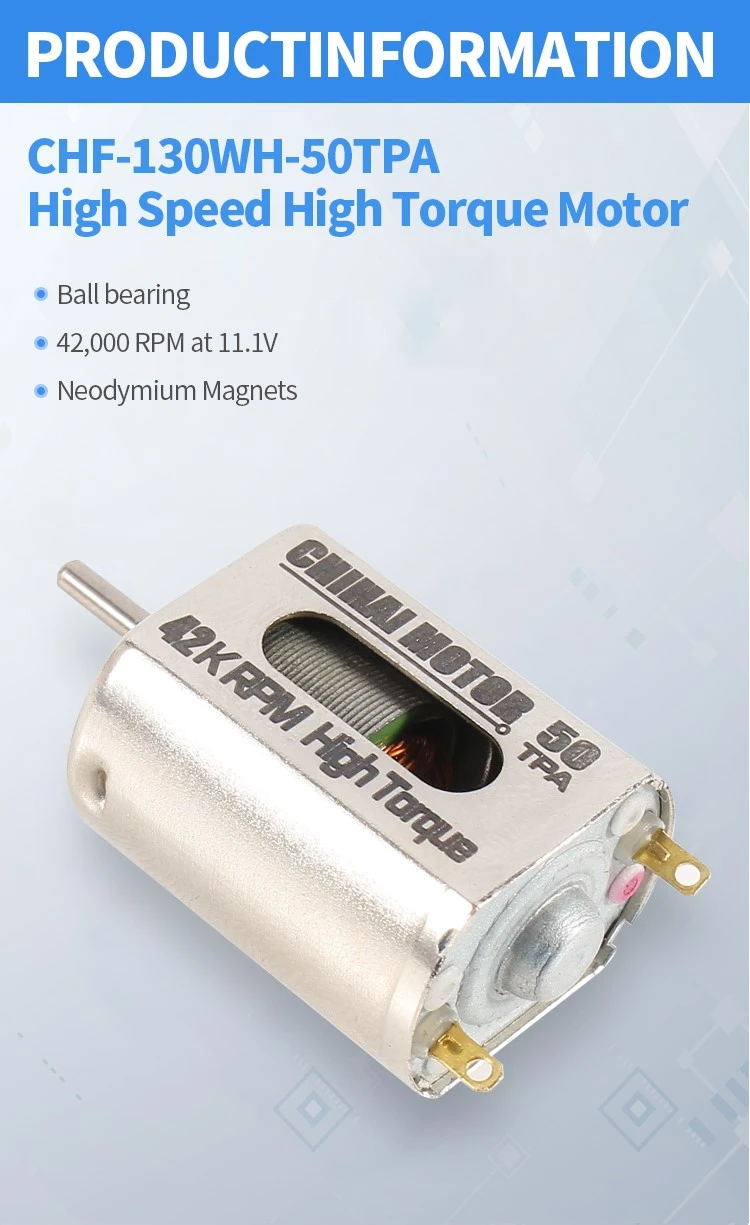

CHF-130WH-50TPA High Speed High Torque Motor DC11.1V 42000 Rpm
Product Description
| Brand | CHIHAI MOTOR |
| Product Type | CHF-130WH-50TPA High Speed High Torque Motor |
| weight | 25g |
| Magnets | N35SH High performance magnetic with temperature resistance of 150℃ |
| Voltage | DC11.1V SPEED 42000 rpm |
| Application |
foam dart gun motor ； its for flywheel application； Used for high-speed high-speed motorcycles, four-wheel drive vehicles, toys, etc. |
1-Nickel-plated shell appearance
Corrosion resistance；rust prevention；beautiful and durable

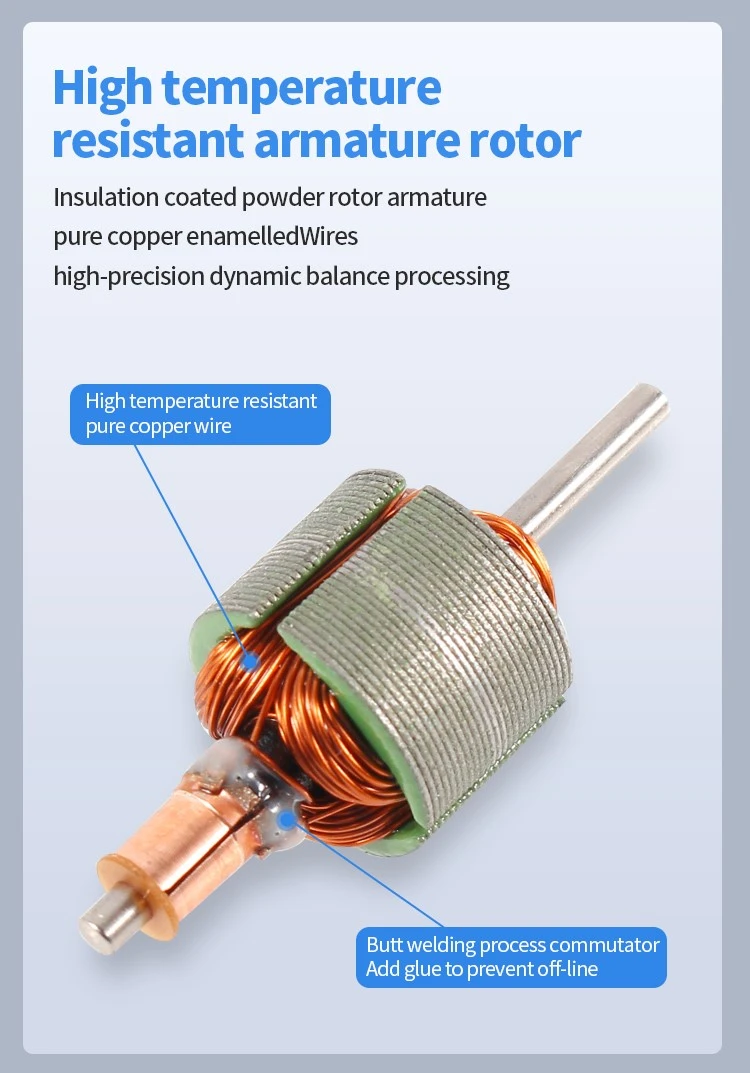

2- High temperature resistant armature rotor
Insulation coated powder rotor armature
pure copper enamelledWires
high-precision dynamic balance processing
3- N35SH High performance magnetic with temperature resistance of 150℃
4- Ball bearing positioning
Front and rear 2 ball bearing positioningGood concentricity and precise positioning

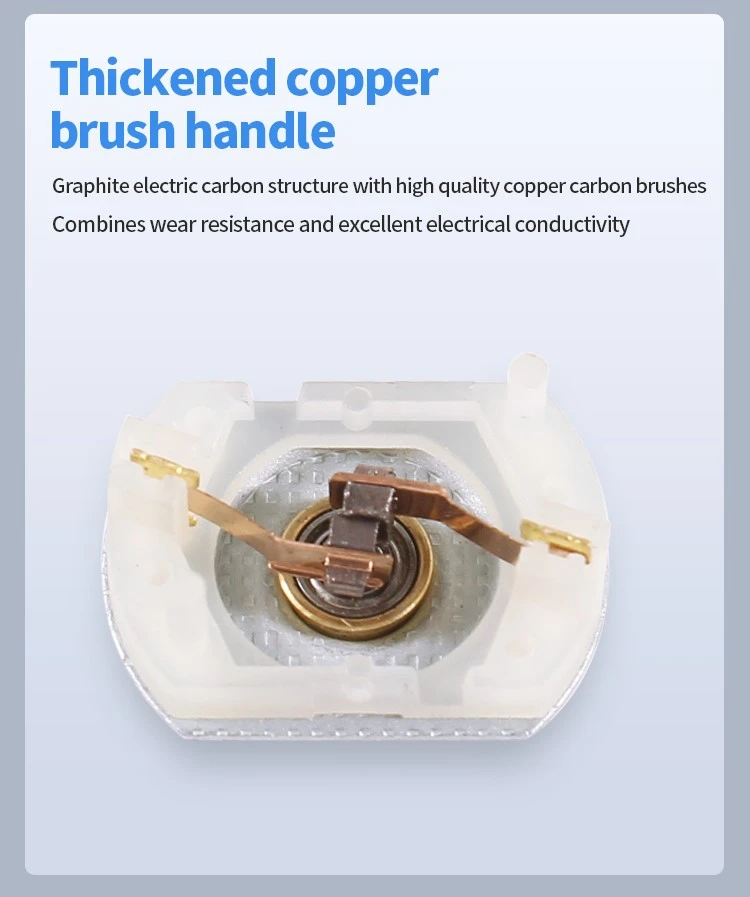

5-Thickened copper brush handle
Graphite electric carbon structure with high quality copper carbon brushes
Combines wear resistance and excellent electrical conductivity
6-N35SH Nd-Fe-B Magnet
The shaft rotation torsion coercive force can be measured simply by hand
Product Parameters
| Model：CHF-130WH-50TPA High pulley motor |
| Voltage：DC 11.1V CCW |
| No Ioad speed | No Ioad current | At stall torque | At stall current |
| 42000 rpm | 0.90 A | 66.27 mN.m | 27.23 A |
| AT MAXIMUM EFFICIENCY |
| EFF | Torque | speed | current | Dutput |
| 69.07 % | 10.19 mN.m | 35540 rpm | 4.95 A | 38.0 W |
| AT MAXIMUM OUTPUT |
| EFF | Torque | speed | current | Dutput |
| 46.69 % | 33.13 mN.m | 21000 rpm | 14.06 A | 72.91 W |
Packing & Delivery
PACKAGE:
Standard export carton packing.
DELIVERY TIME:
3-20 days after confirming order,detail delivery date should be decided according to
production season and order quantity.
ATTENTION:
If special customs clearance documents are required, please contact us in advance for confirmation.
