High Speed High Torque DC Motor M160
Product Description
| Product Type |
CHF-480WA HIGH Torque Motor M160 |
| Appearance |

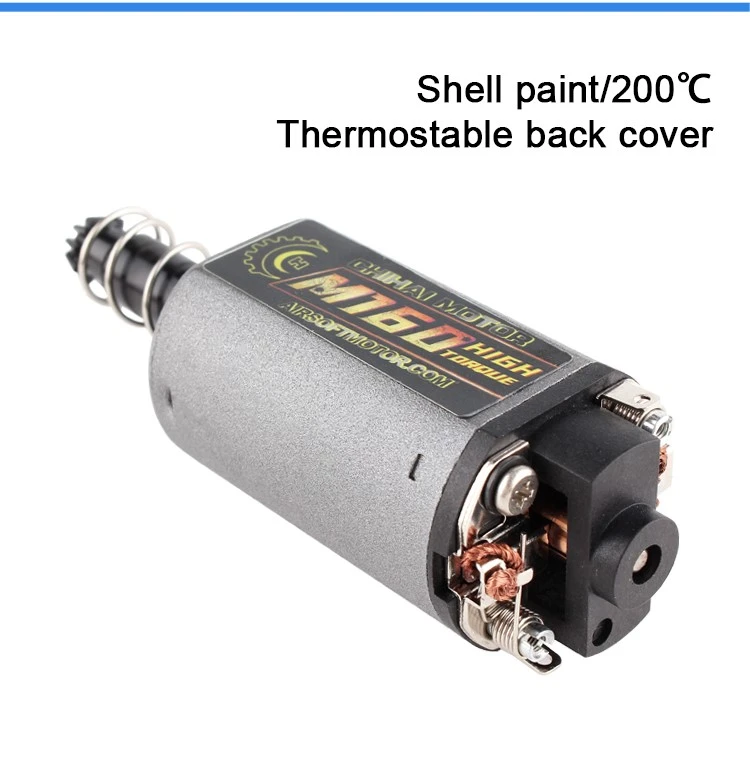

Shell paint/200℃ Thermostable back cover |
| Magnetic materials |

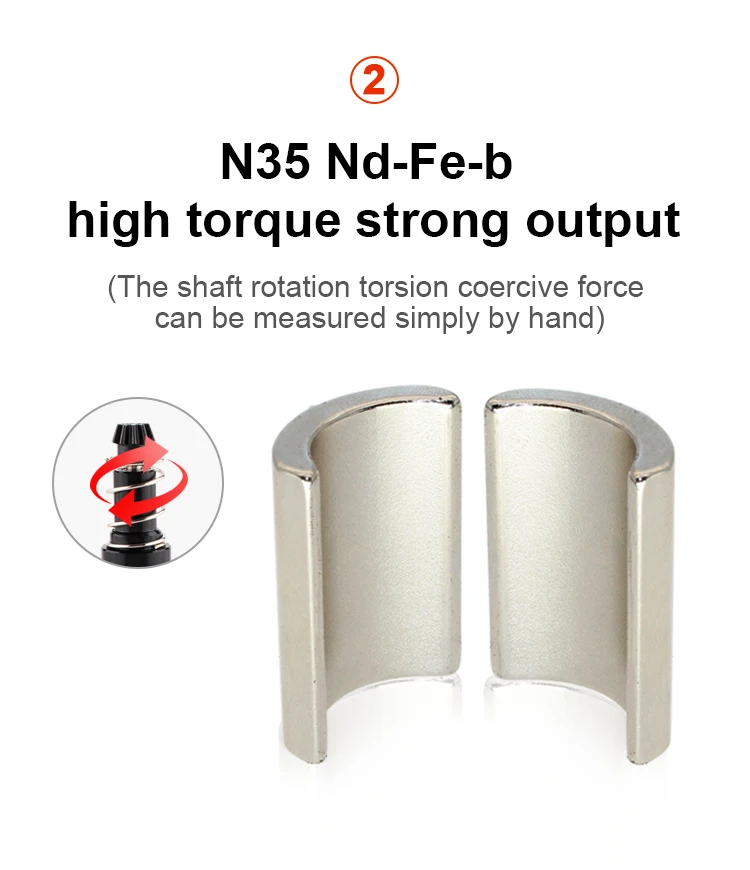

N35 Nd-Fe-b high torque strong output |
| DC11.1V SPEED | 31000 rpm |
| weight | About 154g |
| Application |
Ver.2 gearbox Airsoft gun JIN MING M4A1-J9 ACR-J10 Wavebox upgrade 480 motor insertion Special wave box type: WARINTEREST JIQU HK416D / KUBLAI BD556 JINGJI SLR / NEW WELL M4 FB WAVE BOX FIGHTING BRO |
1-N35H Neodymium Magnet
2- PPS Heat-resistant back cover

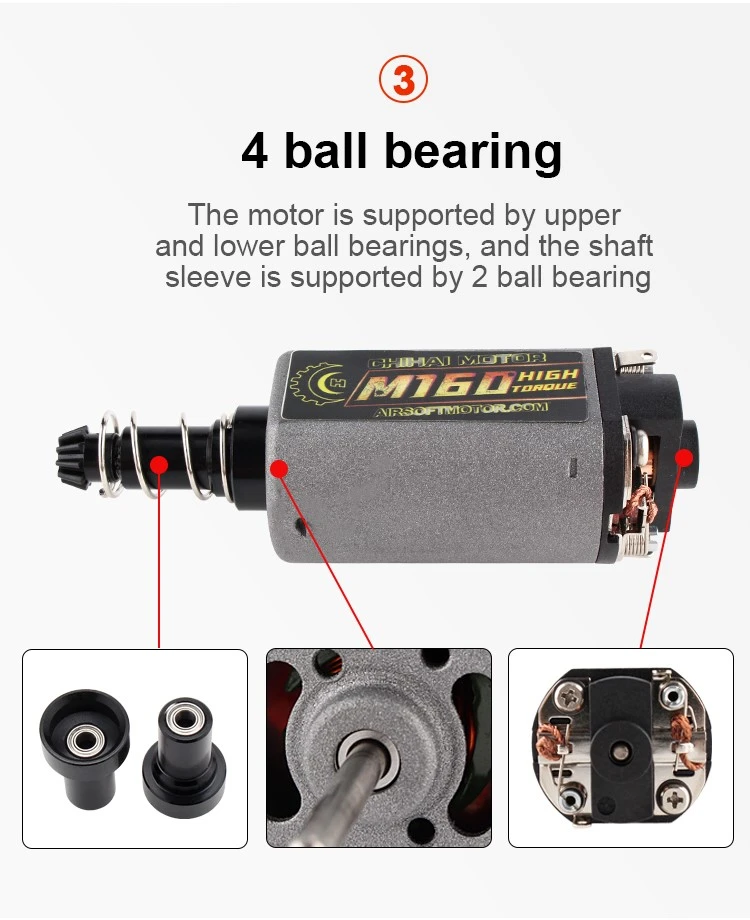

3-Ball bearing construction

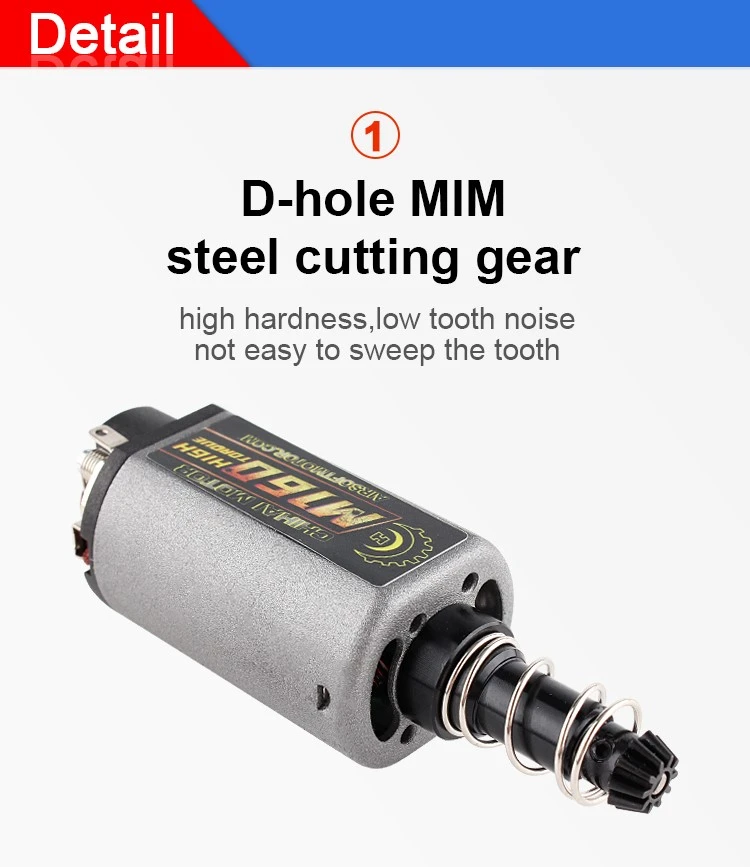

4-MIM steel pinion gear
5-Closed paint shell
6-High performance wear-resistant carbon brush
7-Armature Dynamic Balancing
8-Support fire control chip control
Dc high torque motor is a very advanced motor technology, compared with the traditional AC motor, DC high torque motor has higher efficiency, more stable operation and lower noise. It is used in a variety of different fields and applications, such as industrial machinery, transportation, air conditioning equipment, medical machinery and household appliances.
For industrial production, DC high-torque motors can significantly improve production efficiency and quality, reduce energy consumption and operating costs. In machining and production lines, DC high-torque motors can take over more tasks while reducing the number of failures caused by operator error or carelessness. In the field of rail transit and Marine transportation, DC high-torque motors can bring higher travel speed and more stable operation through higher speed and power output.
Detailed Images
Product Parameters
| Model：CHF-480WA HIGH Torque Motor M160 |
| Voltage: DC 11.1V |
| PERFORMANECE | AT STALL EXTRAPOLATION |
| At no load speed | At No load current | torque | current |
| 31000 rpm | 2.8 A | 5134.3 g.cm | 167.371 A |
AT MAXIMUM EFFICIENCY
| Speed | Current | Torque | Output Powe | Efficiency |
| 26700.0 rpm | 20.903 A | 564.8 g.cm | 154.660 W | 66.66 % |
AT MAXIMUM OUTPUT
| Speed | Current | Torque | Output Powe | Efficiency |
| 15000 rpm | 85.086 A | 2567.1 g.cm | 394.945 W | 41.82 % |
Packing & Delivery
PACKAGE:
Standard export carton packing.
DELIVERY TIME:
3-20 days after confirming order,detail delivery date should be decided according to
production season and order quantity.
ATTENTION:
If special customs clearance documents are required, please contact us in advance for confirmation.
