Medium Speed Medium Torque Long-axis Motor
Product Description
| Product Type | CHF-480VA-7019T high speed motor |
| Appearance |

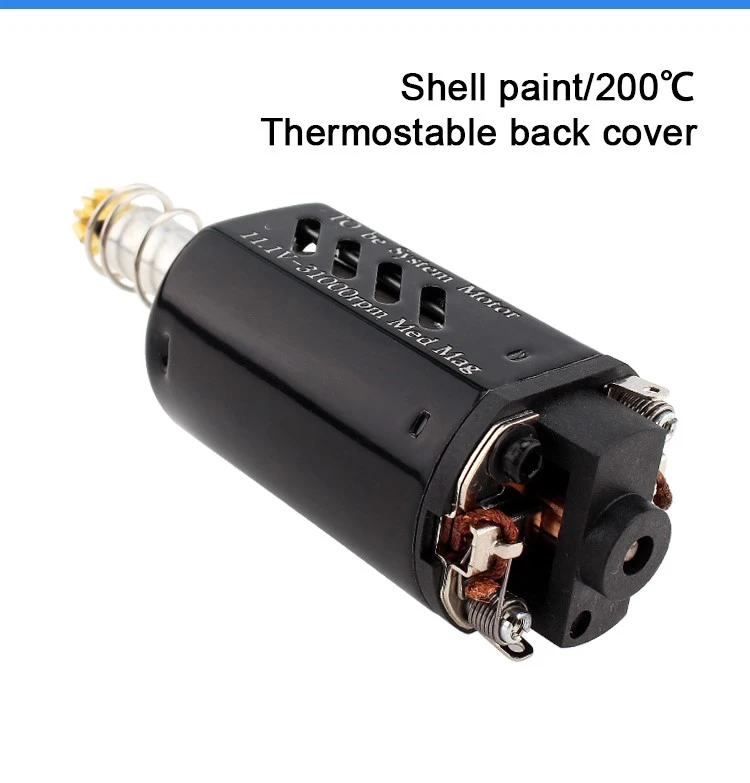

Shell paint/200℃ Thermostable back cover |

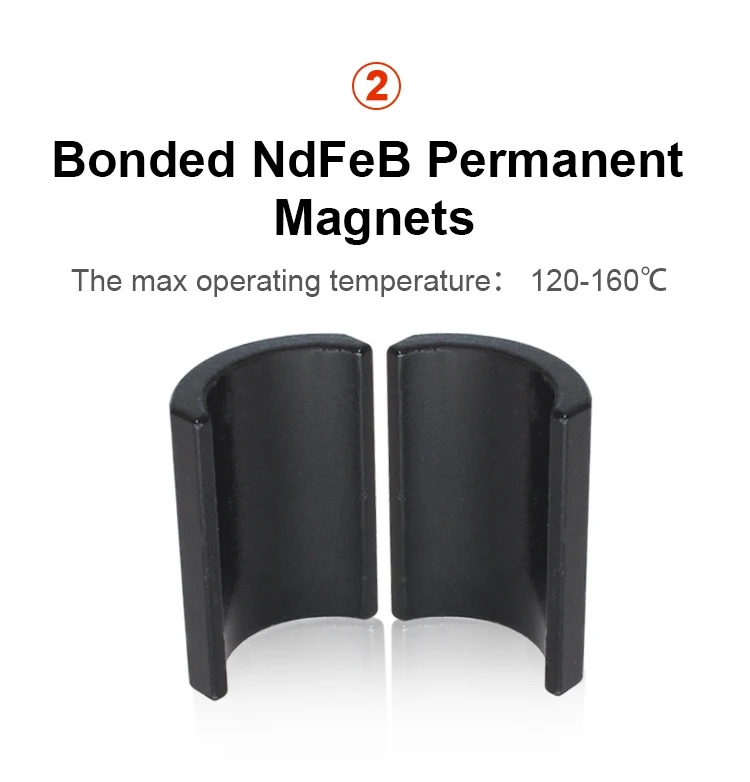

| Magnetic materials | Bonded NdFeB Permanent Magnets |
| DC11.1V SPEED |
31000 rpm |
| weight | About 147g |
| Application |
Adaptation type： Ver.2 gearbox Airsoft gun JIN MING M4A1-J9 ACR-J10 Wavebox upgrade 480 motor insertion Special wave box type: WARINTEREST JIQU HK416D / KUBLAI BD556 JINGJI SLR / NEW WELL M4 FB WAVE BOX FIGHTING BRO |
1-N10 bonded Neodymium Magnet
2-PPS Heat-resistant back cover

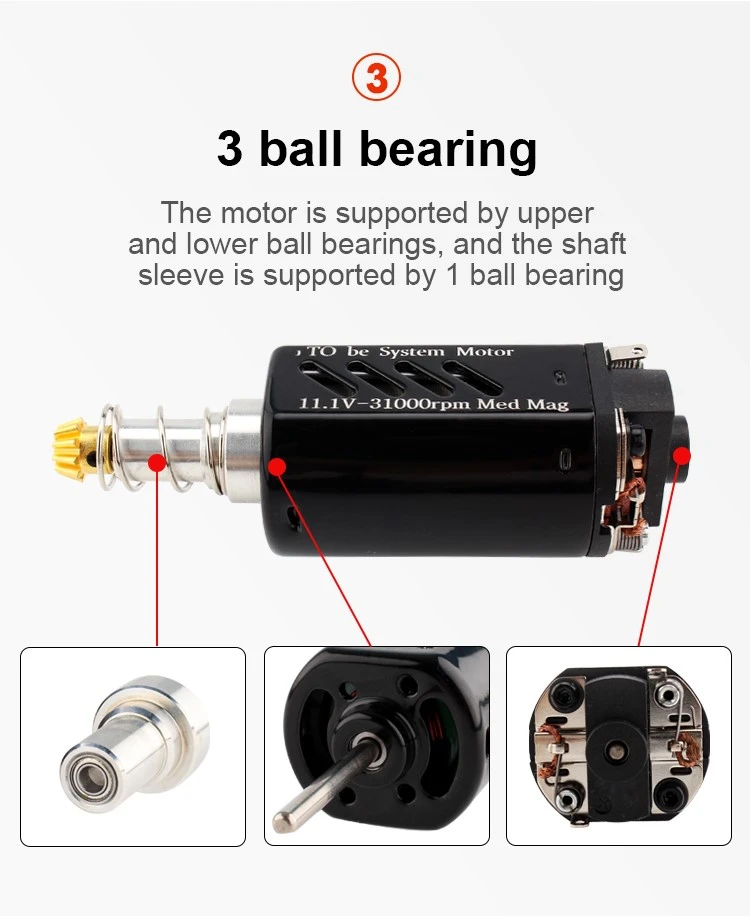

3-Ball bearing construction

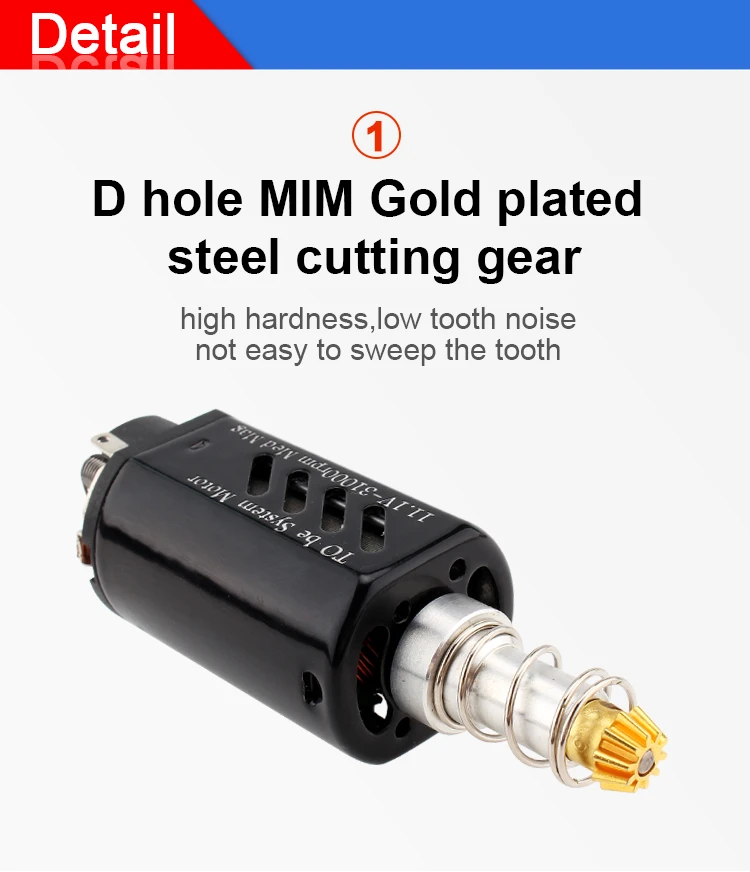

4-MIM steel pinion gear
5- High heat dissipation paint case
6-High performance wear-resistant carbon brush
7-Armature Dynamic Balancing
8-Support fire control chip control

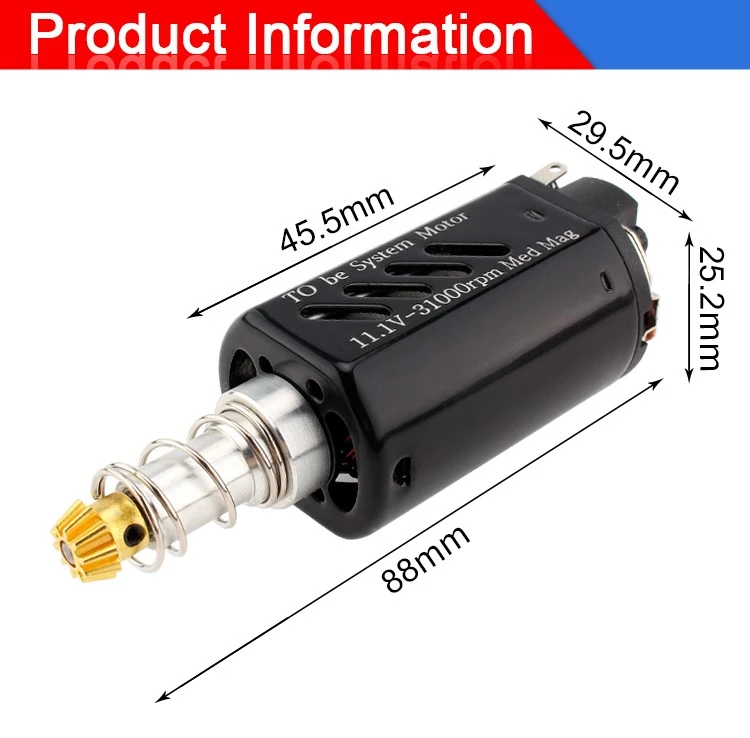

Detailed Images
Product Parameters
| Model：CHF-480VA-7019T |
| Voltage: DC 11.1V |
| No load speed | No load current | At stall torque | At stall current |
| 31000 rpm | 2.90 A | 344.4444 mN.m | 110.3666 A |
AT MAX EFFICIENCY
| Speed | Current | Torque | Output Powe | Efficiency |
| 26676 rpm | 17.89 A | 48.05 mN.m | 134.3 W | 67.62873% |
AT MAX OUTPUT POWER
| Speed | Current | Torque | Output Powe | Efficiency |
| 15500 rpm | 56.6333 A | 172.2222mN.m | 279.7166 W | 44.49 % |
Packing & Delivery
PACKAGE:
Standard export carton packing.
DELIVERY TIME:
3-20 days after confirming order,detail delivery date should be decided according to
production season and order quantity.
ATTENTION:
If special customs clearance documents are required, please contact us in advance for confirmation.
FAQ
Q:1.What kind of motors you can provide?
A: For now, We mainly provide micro motor and a series of dc deceleration motor, including straight tooth deceleration motor, planetary deceleration motor, worm deceleration motor.At present, our company focuses on developing various types of motors with voltage between 1VDC and 30VDC and motor diameter between 8 and 51mm.
Q:2. Can you send me a price list?
A: For all of our motors, they are customized based on different requirements like lifetime, noise, voltage, and shaft etc. The price also varies according to annual quantity. So it's really difficult for us to provide a price list. If you can share your detailed requirements and annual quantity, we'll see what offer we can provide.
Q:3. What's the lead time for regular order?
A: For orders, the standard lead time is 3-25 days and this time can be shorter or longer based on different model, period and quantity.
Q:4. Is it possible for you to develop new motors if we can provide tooling cost?
A: Yes. Please kindly share the detailed requirements like performance, size, annual quantity, target price etc. Then we'll make our evaluation to see if we can arrange or not.
Q:5.Could you send me free samples?
Yes,also we can return your samples fee back when you place order.
