Brushless 480 Motor Long Motor Shat
| Brand |
|
||||
| Product Type | CHF-BL480-No.2 | ||||
| Magnetic materials | UH grade high performance NdFeB | ||||
| No Load (RPM) | DC: 11.1V-No Load (RPM): 48000 | ||||
| Weight | about 140g | ||||
| Features | Hall Sensory Drive /STM32 driver chip/Anti-positive and negative misconnection protection/ Frequently start protection/Multi-type operation protection/ Peak 120A MosFET/CNC all-aluminum alloy body-lightweight Full precision ball bearings-4 pieces/Dynamic Balancing of Center Shaft Cores/6-slot 4-pole inner rotor structure/ UH grade high performance NdFeB |
||||
| Application | Long shaft for M4/M16/MP5/G3/P90 series and other long motors Airsoft AEG | ||||

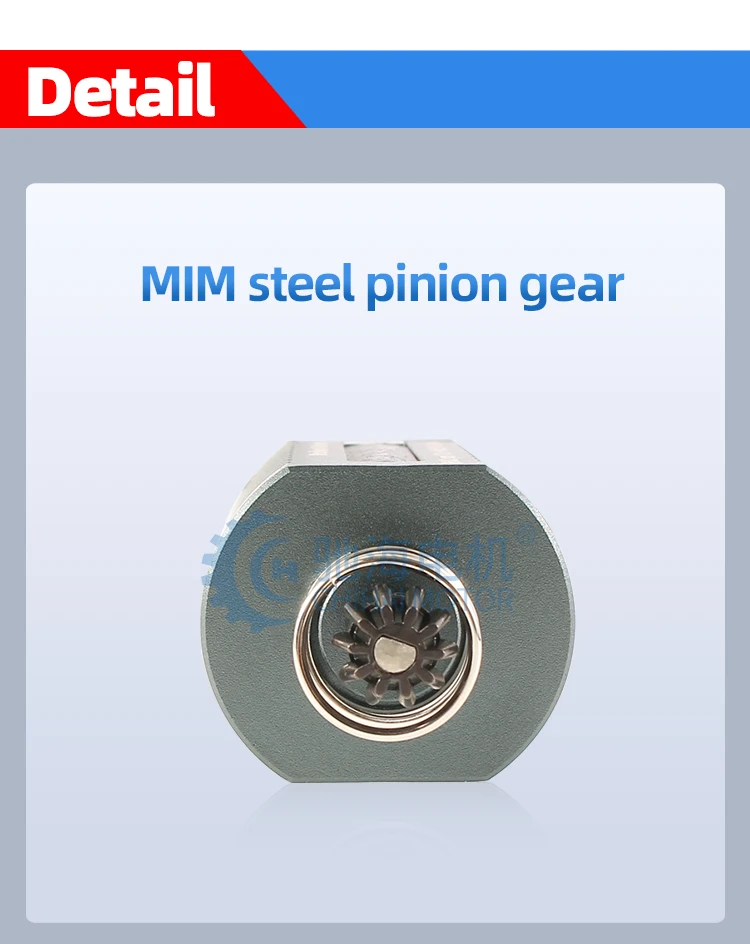

MIM steel pinion gear：
High hardness low tooth noise not easy to sweep teeth
Full precision ball bearings-4 pieces：
Motor supported by upper support and lower ball bearing and shaft sleeve supported by 4 ball bearings
Dynamic Balancing of Center Shaft Cores：
High temperature resistant multi-core coils, low skin effect. Custom molds for ultra-high slot fullness.
Adoption of center rotating axis magnetic core moving, Finite element simulation optimizes the magnetic circuit design to Achieve maximum torque to current ratio.

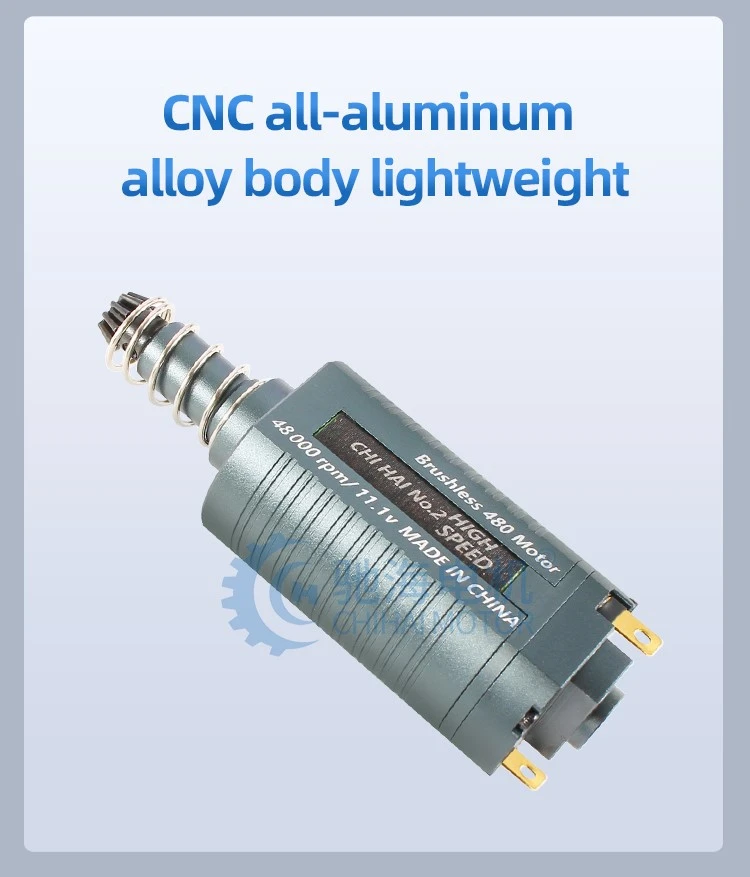

CNC all-aluminum alloy body lightweight：
Anodizing process, CNC high-precision specifications, escorted
All-aluminum shell for better heat dissipation, rigidity and durability

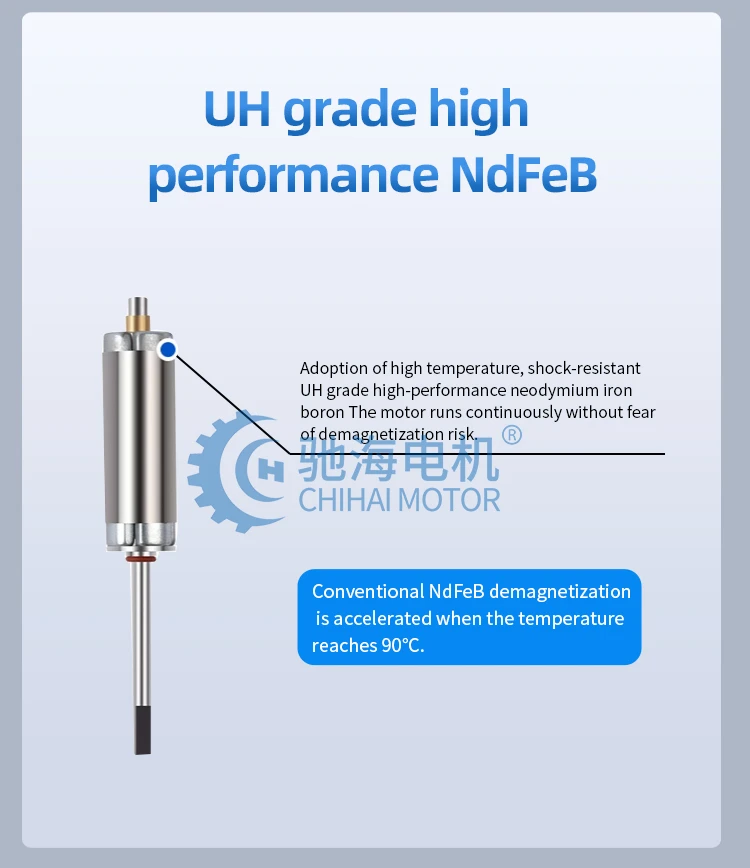

UH grade high performance NdFeB：
Adoption of high temperature, shock-resistant UH grade high-performance neodymium iron boron The motor runs continuously without fear of demagnetization risk.
Conventional NdFeB demagnetization is accelerated when the temperature reaches 90°C.
