CHF-480WA HIGH SPEED HIGH Torque Motor

Product Description

Product Type	CHF-480SA/VA/WA HIGH SPEED HIGH Torque Motor
Appearance	Shell paint/200℃ Thermostable back cover
Magnetic materials	Wet-pressed ferrite magnet / Bonded NdFeB Permanent Magnets / N35 Nd-Fe-b
DC11.1V SPEED	A: 30000 rpm, B:34000 rpm, C: 30000 rpm, D: 46000 rpm
weight	About 150g
Adaptation type	Ver.2 gearbox Airsoft gun JIN MING M4A1-J9 ACR-J10 Wavebox upgrade 480 motor insertion Special wave box type: WARINTEREST JIQU HK416D / KUBLAI BD556 JINGJI SLR / NEW WELL M4 FB WAVE BOX FIGHTING BRO



High-speed high-torque motor is a very advanced motor product, which can provide strong power output during high-speed operation, and is widely used in the operation of various industrial equipment and machinery. Small size, light weight, high efficiency, smooth operation and other advantages.



The application range of high-speed high-torque motor is very wide, including industrial production, transportation, municipal construction and other fields



Detailed Images

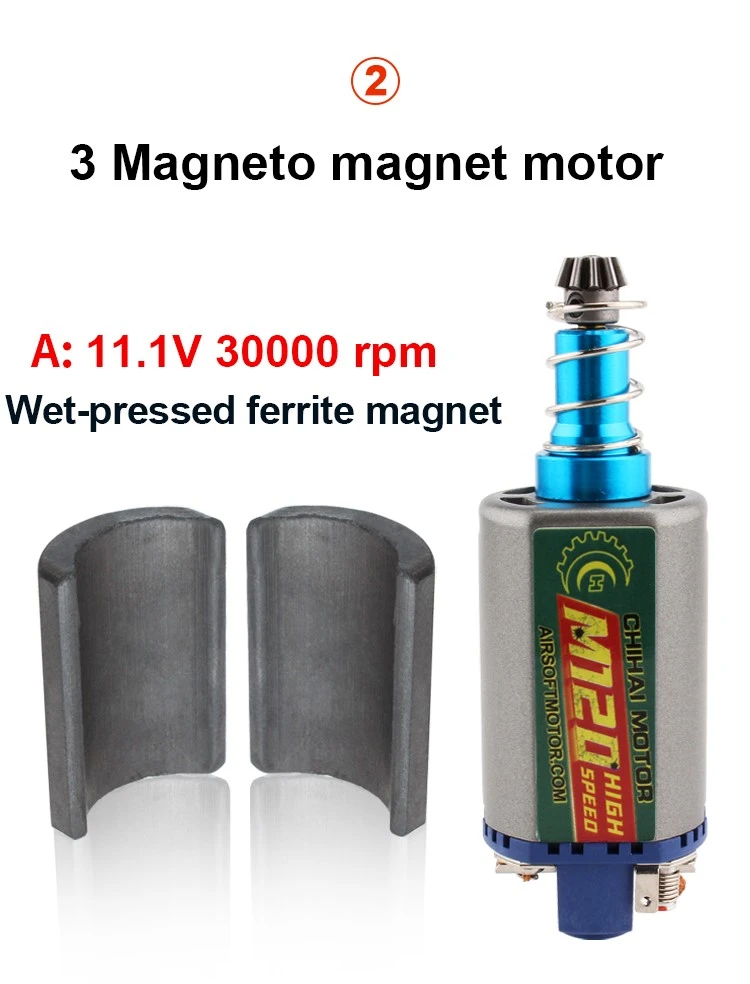

Model：CHF-480SA M120

Voltage: DC 11.1V

No load speed	No load current	At stall torque	At stall current
30000 rpm	1.40 A	141.82 mN.m	86.193 A



AT MAX EFFICIENCY

Speed	Current	Torque	Output Powe	Efficiency
26609 rpm	10.99 A	16.03 mN.m	44.7 W	36.657%



AT MAX OUTPUT POWER

Speed	Current	Torque	Output Powe	Efficiency
15000 rpm	43.797 A	70.909 mN.m	111.45 W	22.92%



Features：

1-Ferrite Wet Pressure Magnets

2- Nylon low thermal conductivity rear cover

3-Ball bearing construction

4-extra strong powder metallurgy pinion gear

5-Closed paint shell

6-High performance wear-resistant carbon brush

7-Armature Dynamic Balancing

8-Suggest mechanical switch control reject fire control

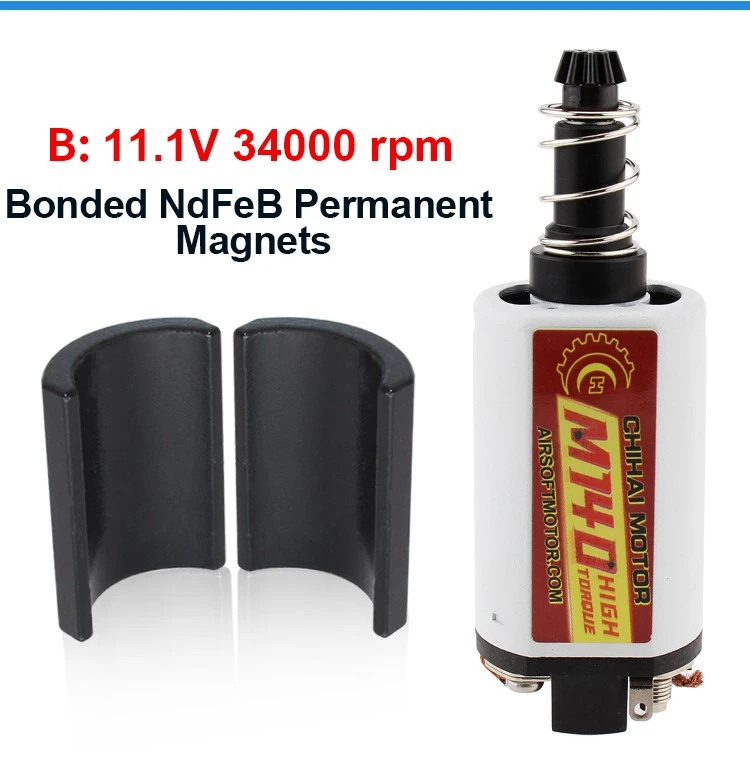

Model： CHF-480VA-7516G-87.5D High Torque Motor

Voltage: DC 11.1V

No load speed	No load current	At stall torque	At stall current
34000 rpm	3.30 A	333.3333 mN.m	109.3 A



AT MAX EFFICIENCY

Speed	Current	Torque	Output Powe	Efficiency
28967 rpm	18.99 A	49.35 mN.m	149.8 W	71.04839%



AT MAX OUTPUT POWER

Speed	Current	Torque	Output Powe	Efficiency
17000 rpm	56.3 A	166.6667mN.m	296.8897 W	47.5 %



Features：

1-N10 bonded Neodymium Magnet

2- Nylon low thermal conductivity rear cover

3-Ball bearing construction

4-MIM steel pinion gear

5-Closed paint shell

6-High performance wear-resistant carbon brush

7-Armature Dynamic Balancing

8-Support fire control chip control







Model：CHF-480WA M140 HIGH Torque Motor

Voltage: DC 11.1V

PERFORMANECE

AT STALL EXTRAPOLATION

No load speed	No load current	torque	current
30000 rpm	2.8 A	5134.3 g.cm	167.371 A



AT MAXIMUM EFFICIENCY

Speed	Current	Torque	Output Powe	Efficiency
26700.0 rpm	20.903 A	564.8 g.cm	154.660 W	66.66 %



AT MAXIMUM OUTPUT

Speed	Current	Torque	Output Powe	Efficiency
15000 rpm	85.086 A	2567.1 g.cm	394.945 W	41.82 %



Features：

1-N10 bonded Neodymium Magnet

2- Nylon low thermal conductivity rear cover

3-Ball bearing construction

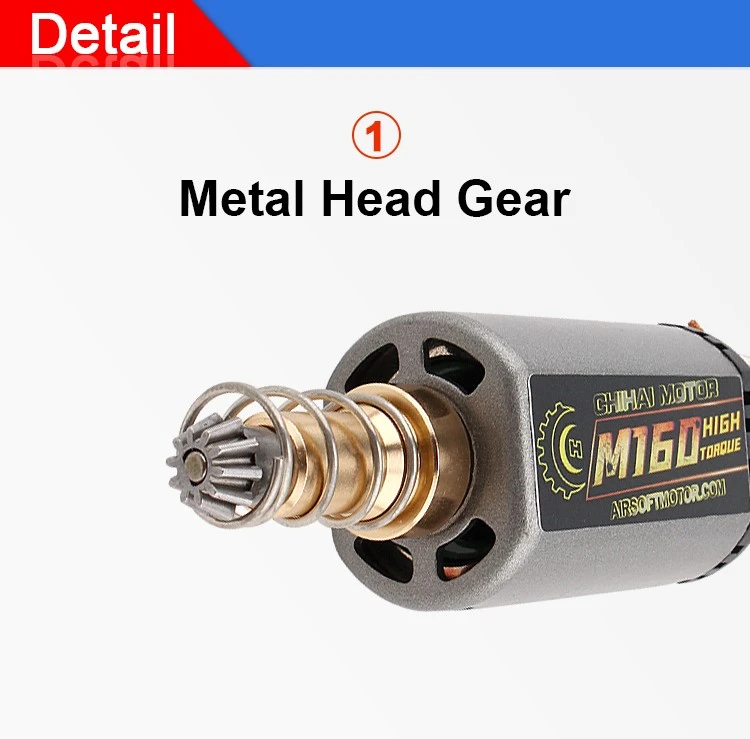

4-extra strong powder metallurgy pinion gear

5-Closed paint shell

6-High performance wear-resistant carbon brush

7-Armature Dynamic Balancing

8-Support fire control chip control

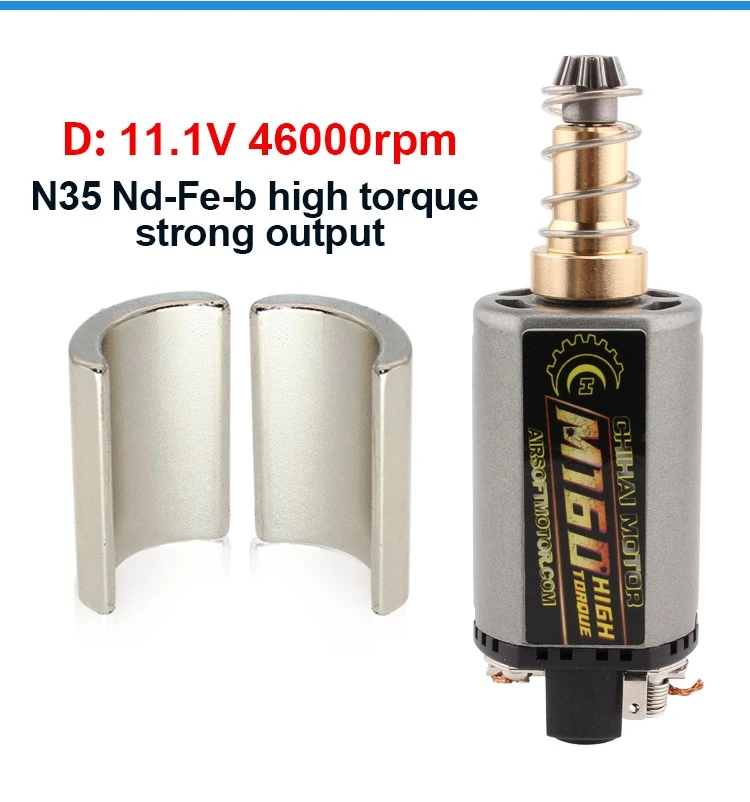

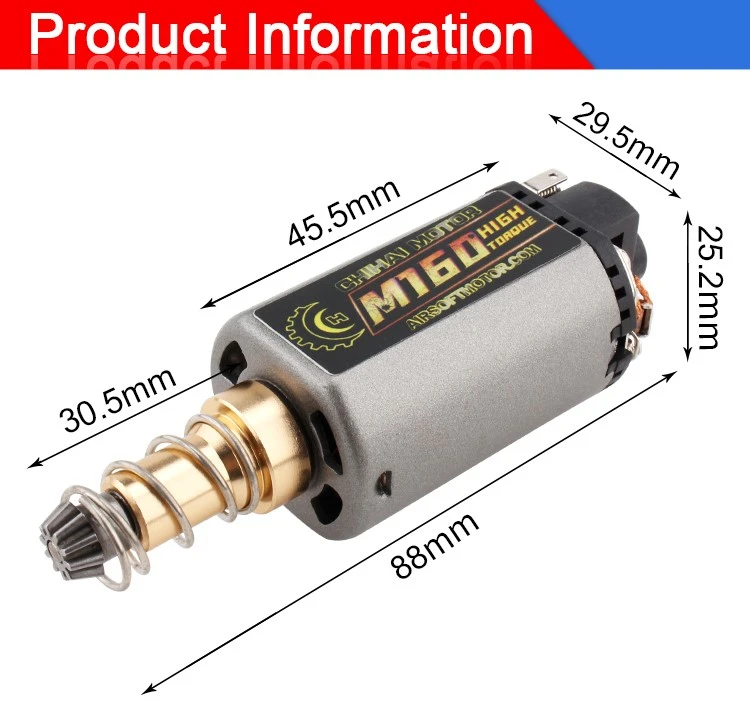

Model：CHF-480WA M160 HIGH Torque Motor

Voltage: DC 11.1V

Voltage: DC 11.1V

AT STALL EXTRAPOLATION

No load speed	No load current	torque	current
46000 rpm	6 A	4140.0 g.cm	228.333 A



AT MAXIMUM EFFICIENCY

Speed	Current	Torque	Output Powe	Efficiency
39560.0 rpm	37.127 A	579.6 g.cm	235.169 W	57.07 %



AT MAXIMUM OUTPUT

Speed	Current	Torque	Output Powe	Efficiency
23000 rpm	117.167 A	2070.0 g.cm	488.308 W	37.55 %



Features：

1-N10 bonded Neodymium Magnet

2- Nylon low thermal conductivity rear cover

3-Ball bearing construction

4-extra strong powder metallurgy pinion gear

5-Closed paint shell

6-High performance wear-resistant carbon brush

7-Armature Dynamic Balancing

8-Support fire control chip control







Packing & Delivery

PACKAGE:

Standard export carton packing.

DELIVERY TIME:

3-20 days after confirming order,detail delivery date should be decided according to
production season and order quantity.



ATTENTION:

If special customs clearance documents are required, please contact us in advance for confirmation.
