Dc Brushless Stepper Secondary Variable Speed Motor 2-phase 4-wire
Product Description
| Product Type |
CHS-GM29-10BY dc brushless stepper secondary variable speed motor |
| Fuselage Length | 51mm |
| Fuselage thickness | 11.65mm |
| Weight | About 43 g |
| Out axis | Hollow heterosexual bonding axis (see figure for details) |
| Applications |
Home and office Automation Miniature platform and camera system Medical instruments and positioning instruments Intelligent lock and intelligent lighting system |
The secondary deceleration uses a bevel gear transmission structure to change
the output direction, Increase the reduction ratio, increase the torque,
reduce the output speed, and change the overall output space
positioning design.
The basic reduction structure adopts a tower-type reduction structure.

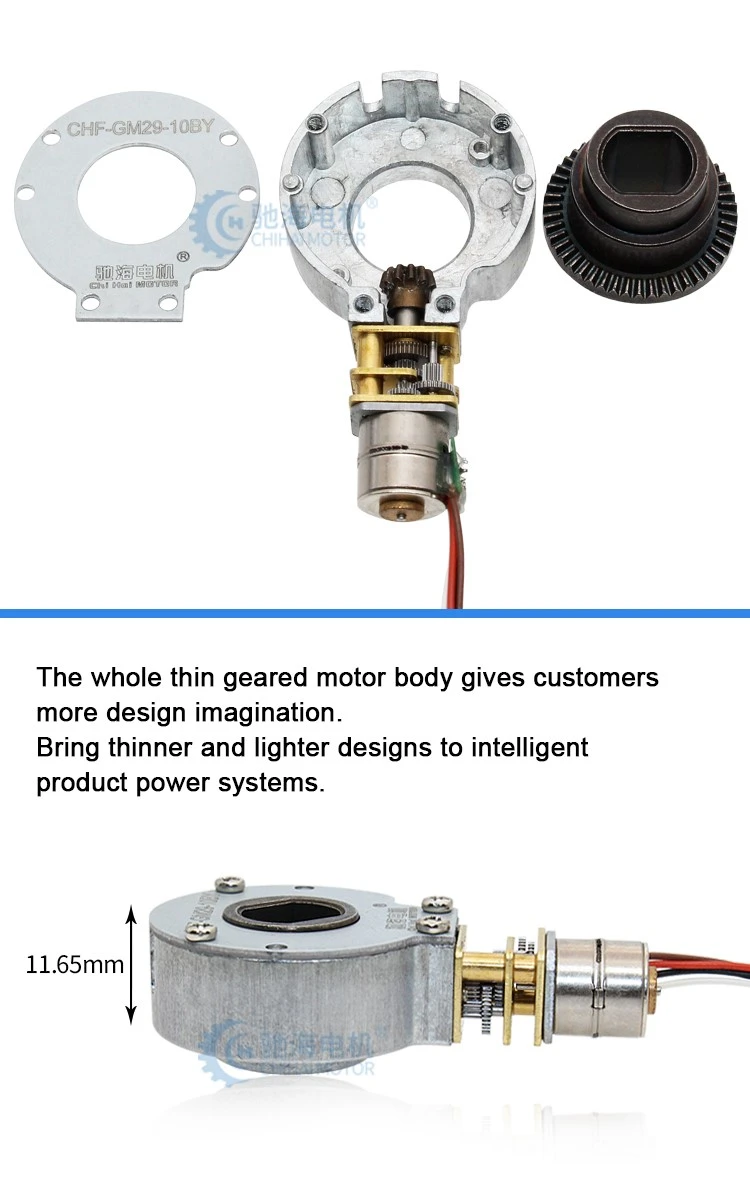

The whole thin geared motor body gives customers more design imagination.
Bring thinner and lighter designs to intelligent product power systems.
Detailed Images
Input stepper motor parameters
| MODEL | CHS-10BY-M1055 |
| RATED VOLTAGE | 5 V DC (DrIVER IC:l6219) | CURRENT PER PHASE | 128mA / PHASE |
| COIL RESISTANCE | 39±7% ohm / PHASE | NO.OF PHASES | 2 PHASES |
| STEP ANGLE | 18° / STEP | EXCITATION METHOD | 2 PHASES EXCITATION |
| DRIVE MODE | BIPOLAR DRIVE | COIL INDUCTANCE | 14.3 mH / PHASE |
| PULL-OUT TORQUE | MORE THAN 3.5 gf-cm AT 500 pps |
HOLDING TORQUE | MORE THAN 13 gf-cm AT 0 pps |
| MAX RESPONSE FREQUENCY | MORE THAN 1200 pps | MAX STARTING FREQUENCY | MORE THAN 900 pps |
| INSULATION CLASS | CLASS E FOR COILS | INSULATION STRENGTH | 100 V AC FOR ONE SECOND |
| INSULATION RESISTANCE | 50MΩ DC 500V | OPERATING TEMPERATURE | -0 ～ +55℃ |
| Model：CHF-GM29-10BY dc brushless stepper secondary variable speed motor |
| Voltage: DC 5V |
| Reduction ratio | STEP ANGLE (STEP) |
No-load speed 1000PPS(rpm) |
Holding torque （kg.cm) |
Pull-out torque （kg.cm) |
| 1：5.58×4 | 0.80645 | 134 | ≥0.15 | ≥0.06 |
| 1：9.68×4 | 0.46488 | 77.5 | ≥0.35 | ≥0.12 |
| 1：20.50×4 | 0.21951 | 36.6 | ≥0.7 | ≥0.23 |
| 1：29.12×4 | 0.15453 | 25.8 | ≥0.9 | ≥0.38 |
| 1：49.99×4 | 0.09002 | 15 | ≥1.7 | ≥0.65 |
| 1：99.00×4 | 0.04545 | 7.6 | ≥3.5 | ≥1.2 |
| 1：151.55×4 | 0.02969 | 4.95 | Can't exceed 4.0kg.cm | ≥1.9 |
| 1：210.59×4 | 0.02137 | 3.56 | ≥2.6 | |
| 1：297.92×4 | 0.0151 | 2.51 | ≥3.8 | |
| 1：379.17×4 | 0.01187 | 1.98 | ≥4.5 |
Packing & Delivery
PACKAGE:
Standard export carton packing.
DELIVERY TIME:
3-20 days after confirming order,detail delivery date should be decided according to
production season and order quantity.
ATTENTION:
If special customs clearance documents are required, please contact us in advance for confirmation.
