DC12V 6RPM Worm Gear Brushless 2838 Motor For Robots

DC12V 6RPM Worm Gear Brushless 2838 Motor For Robots

【ALL-METAL GEARS】: High-temperature resistance, high abrasion resistance, strong load capacity, sturdy and durable, effectively protect the turbo worm gear box motor body. 【PURE COPPER WIRE CORE ROTOR】: With precision winding technology, the turbo worm geared motor power instant increased by 30%. 【GEAR DC MOTOR with MICRO-TURBINE WORM】: You can change the wiring-connection to change motor rotation. Low noise and high torque.
Send Inquiry

Product Description

Model

CHW-GW4632-BL2838  brushless worm gear motor

axle length

18.5mm

axle diameter

6mm  D thick 5.4mm

voltage

DC12V-24V

weight

about 180g

Application

 Robots, electronic locks, automatic rotation equipment, gimbals, etc.

  • VOLTAGE 12V/24V: The Brushless Worm Motor can be powered by easy-to-access 12V or 24V power source. WIDE

  • APPLICATION: The gear motor is suitable for electronic locks, robots, cradle heads. The gear motor has large torsion to meet your needs.

  •  PREMIUM MATERIAL: This product is made of all-metal material, it is more wear-resistant and does not rust and prolongs service life.
  • BALL ACCURATE GEARS: Superior performance than ordinary metal gears, resistant to stalling, no teething stuck.
  • MEET YOUR DIFFERENT NEEDS: There are 14 kinds of gear motor optional of different speed range from 6~370RPM.



Detailed Images

H0a2751f1670c48ceb4229e4f4f8142a3A

H7392d6cde55f46dfb268525d7664127bP

H2672f0efc6e24e94b843f41bb4f724b7J

Haae2d00e32d14f7c9a8ff83b7da6032bJ

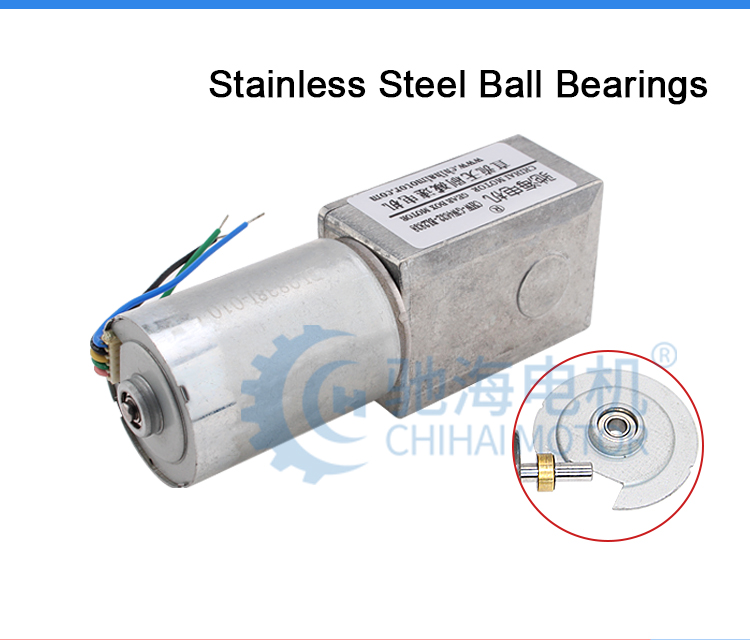

Hea5f4ad63aa04e37bde36c694b89dff8x

H366374d0529141eda5e909beaeb80198W

H94dee97518e54baba6c6d6e787240261s

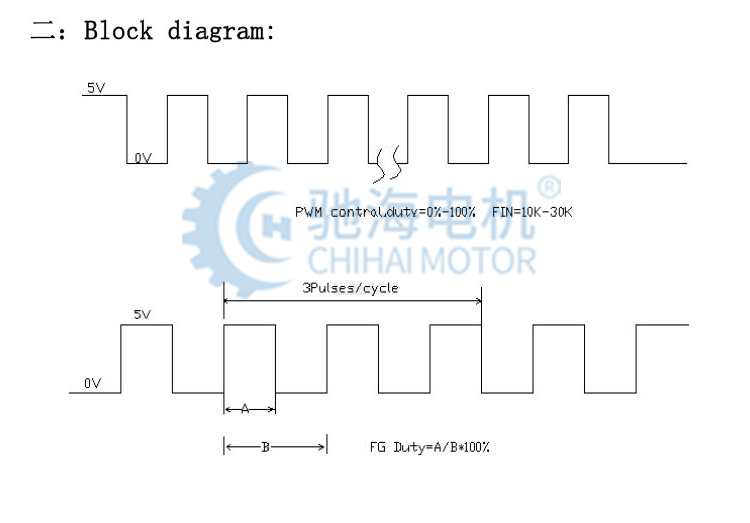

Hb7d5a76250414433ba7153a8454fd2601

He75eec2705704d33b71111bc68ba4e63j

He58b31234d8a4c43acdcb609025f457d4

Product Paramenters

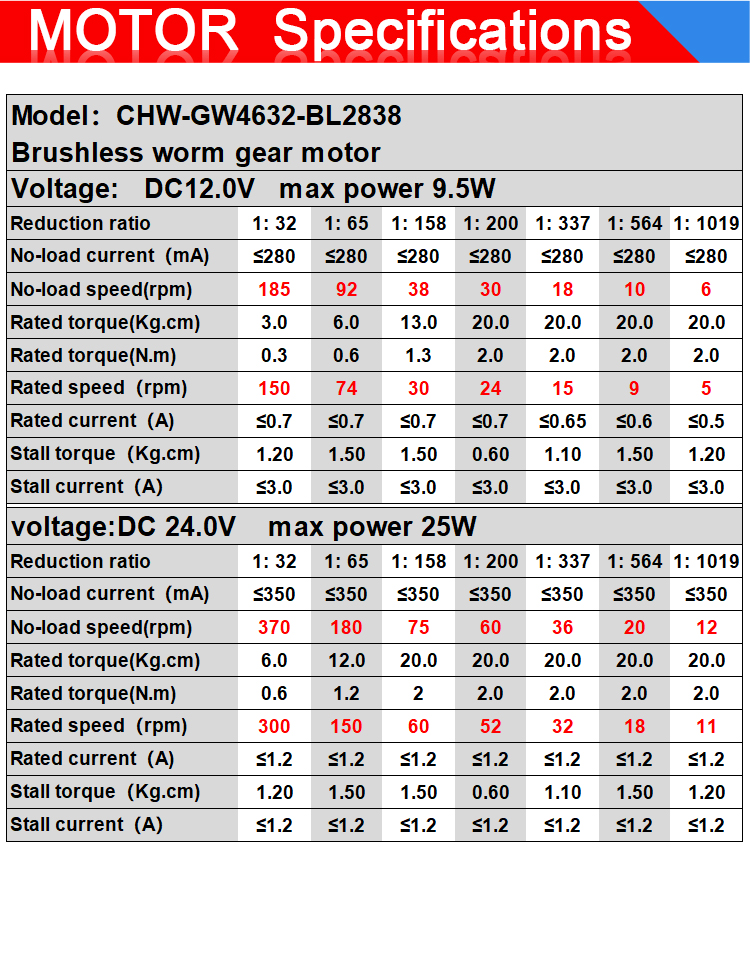

H5ccfa2dfe03b4e18bcf5059e4f892c87C

H10826078c11947c4a0e8f5f2f3403dbbz

Hff1493809a7e4ee5827a0bae58724292Z

H54776141e3c242a9a33f45107fc999f1i

Hbd9e556508524993b81919f97e51b7fb8

Ha9d6711f080145f4baf1c344be75aaf77

Application

Hae088e1cd2bd439fb3a5c4d11b39d30eI

Certifications

Hc1a2e59314a84801af38f0ca8d453459o

Company Profile

H21d5761fb83840608575f41aabbcc2e5b

Hca4d73ffa73e4dd9b818a74f8964f3d03
