12v 24v Brushless DC Gear 3525 Motor With Built-in Drive
Voltage range: DC12- 24.0V
weight: about 160g
Product Description

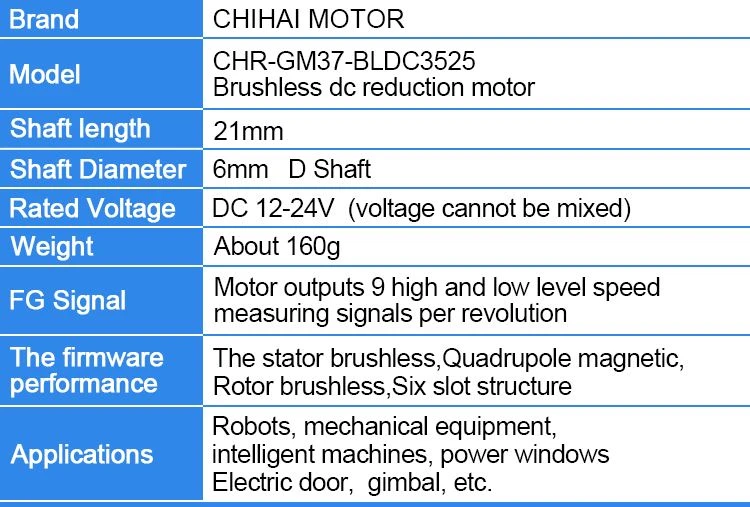

Brand: | chihai motor |
Product Type: | CHR-GM37-BLDC3525 permanent magnet brushless DC motor |
shaft length: | 21mm |
Shaft diameter: | 6mm-D |
Voltage range: | DC12- 24.0V |
weight: | about 160g |
FG signal: | The motor outputs 9 high and low level speed measurement signals per revolution |
The firmware performance: | the stator brushless, quadrupole magnetic, rotor brushless, six slot structure |
Application: | Robots, mechanical equipment, intelligent machines, power windows, power doors, automatic rotation equipment, PTZ, etc. |
DC 12V Gear Motor 107RPM Brushless Gear Reduction Motor
● Motor Features: low noise,long life,adjustable speed,with brake, with speed feedback signal

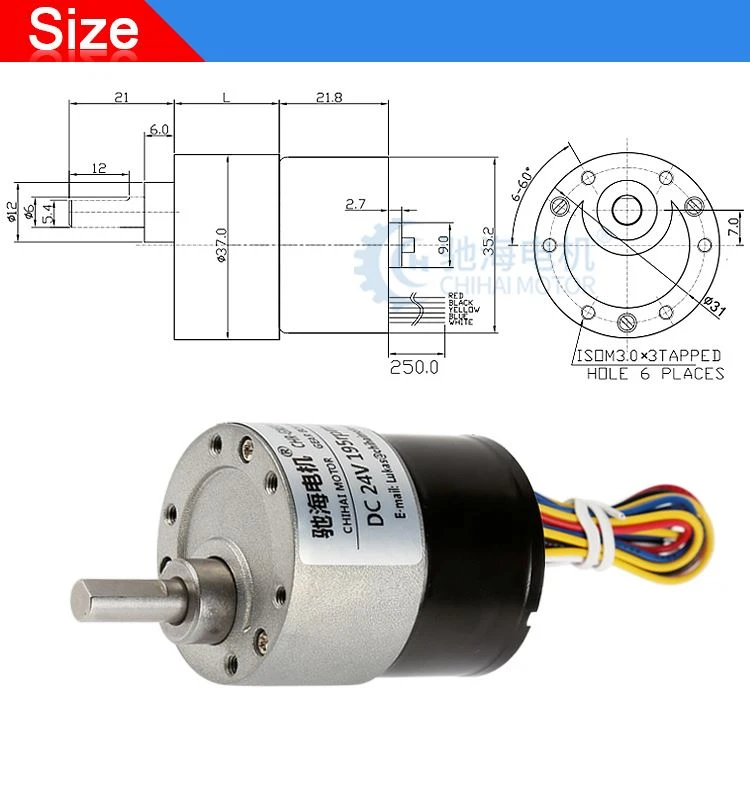

● Motor Diameter: about 37mm
● Motor Body Length: 25mm

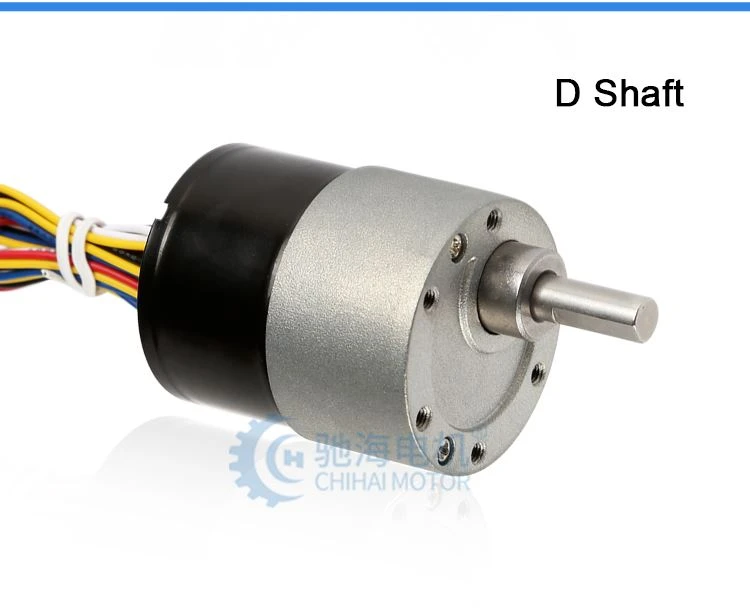

● Output Shaft Diameter: 6mm(D-Type)
● Output Shaft Length: 12mm

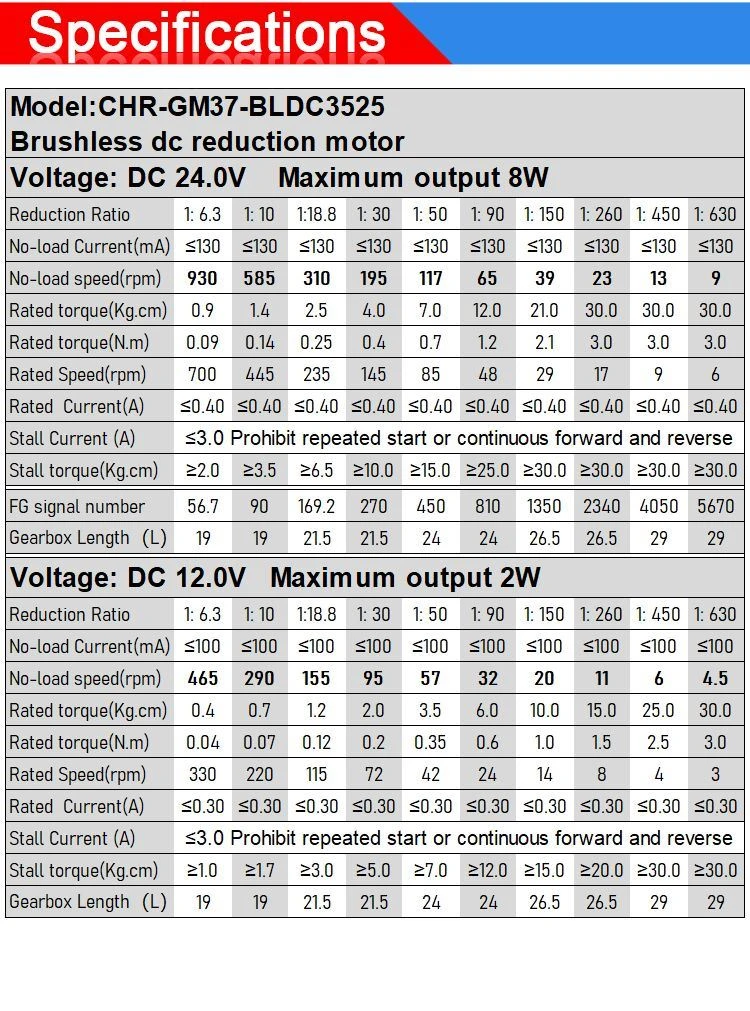

● Gearbox Length: see the table

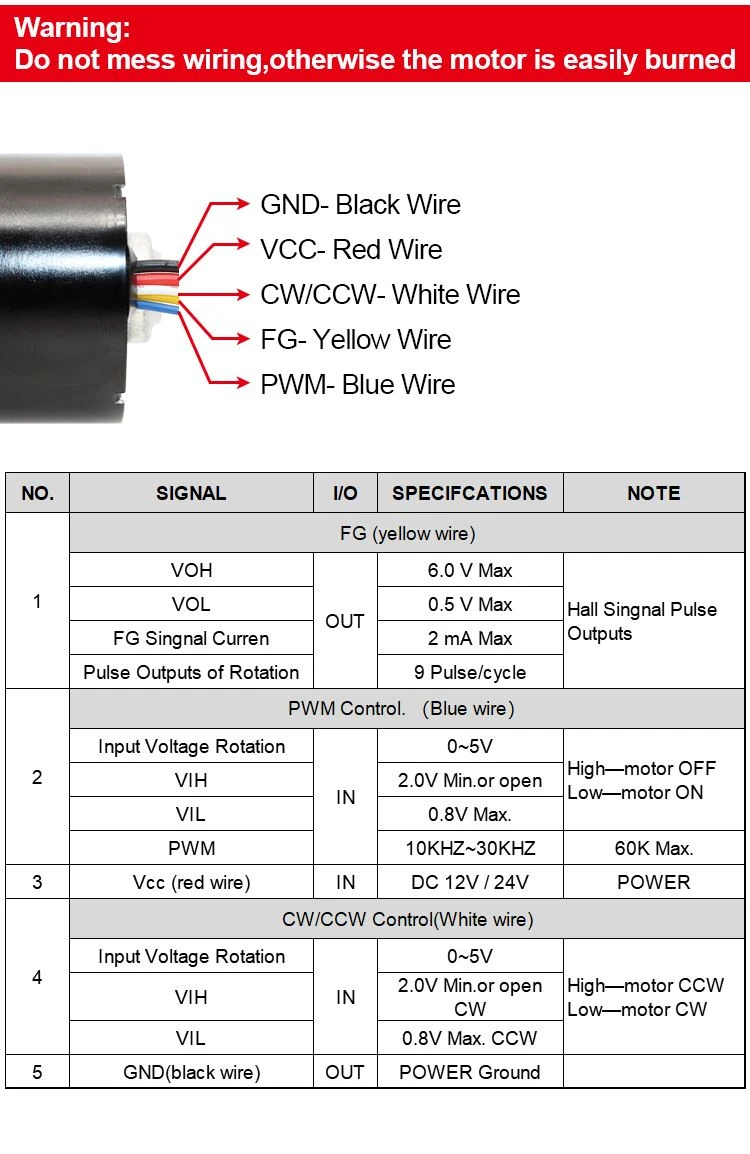

3525 Five-wire Control Wiring Mode:
- Black wire: connect to power negative -
- Red line: connected to motor positive pole +
- White line: CW/CCW reversing line. Connect the white line to the black line to change the direction
- Yellow line: FG signal line outputs Hall signal, one signal per turn of base pulse

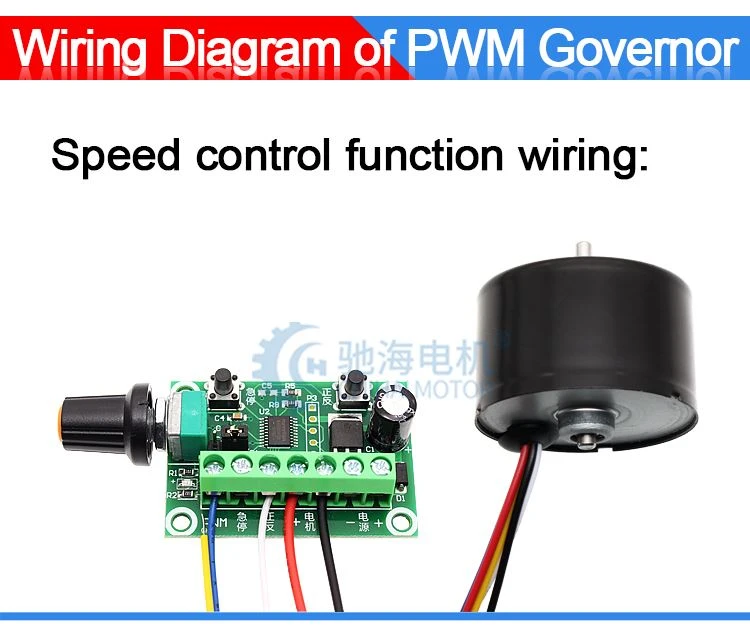

- Blue line: PWM pulse width speed control line can be connected to 0-5V pulse width governor

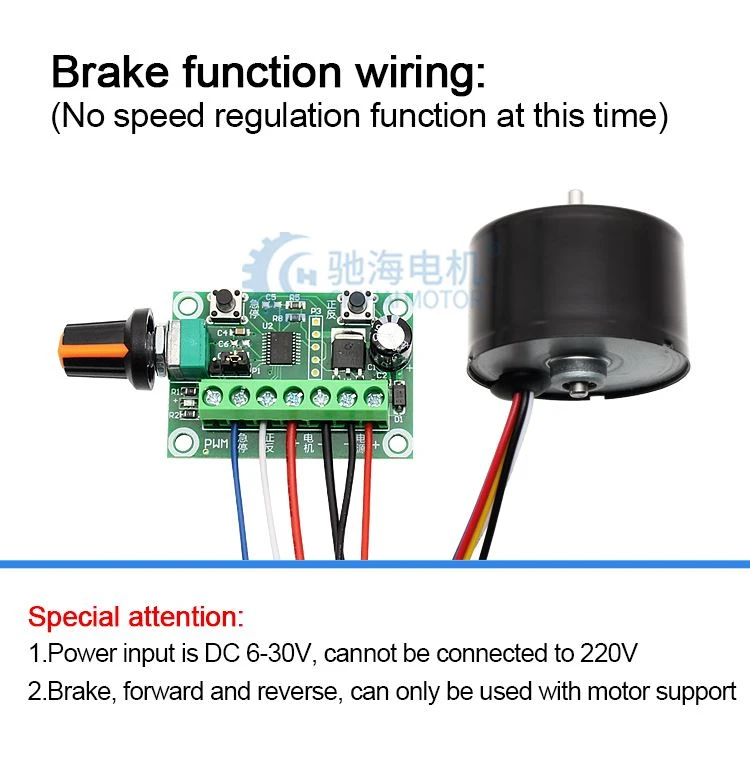

(Connect the blue line to the negative motor and brake immediately)
Features:

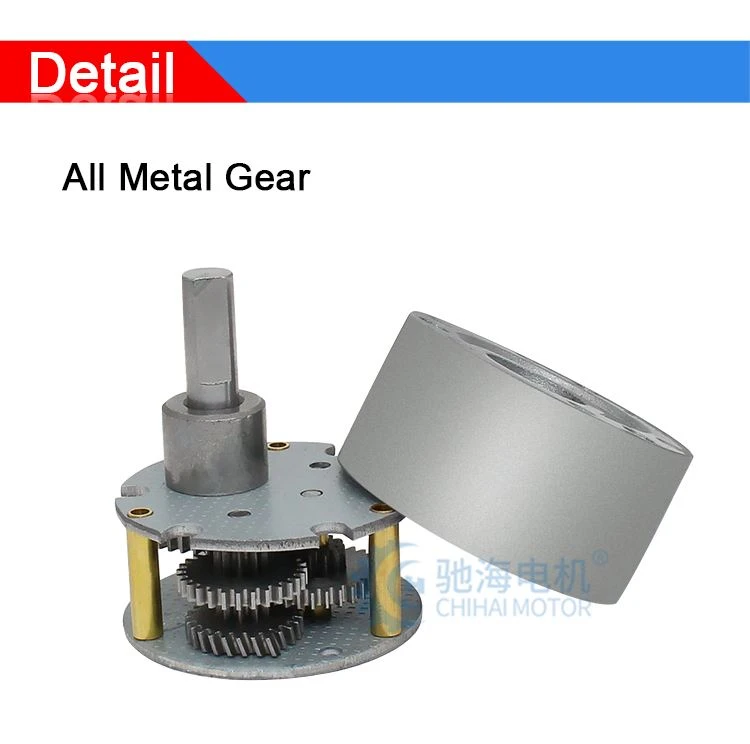

- Small volume, torsion big, all metal gear, durable, not easy to wear.
- Application for Boat,Car,Electric Bicycle,Fan,Home Appliance.

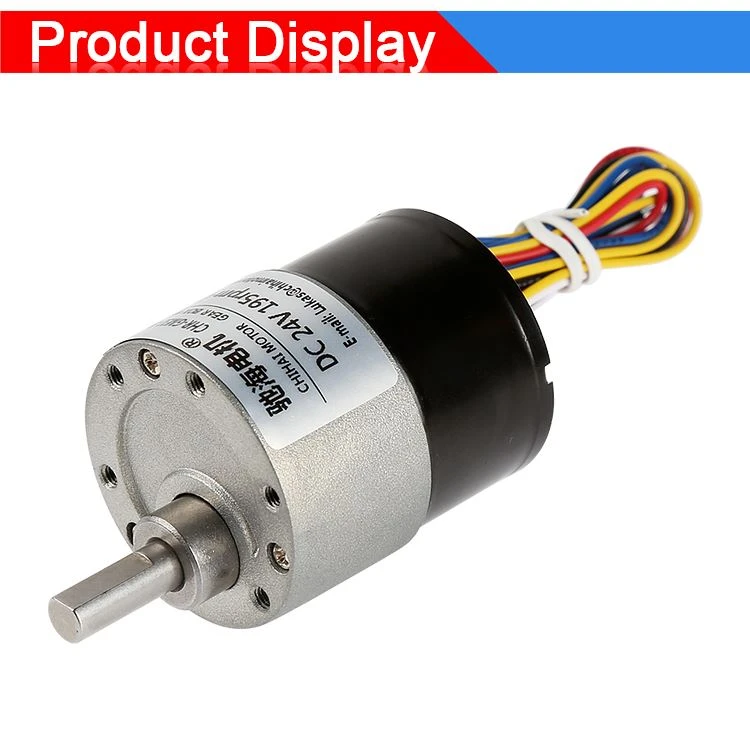

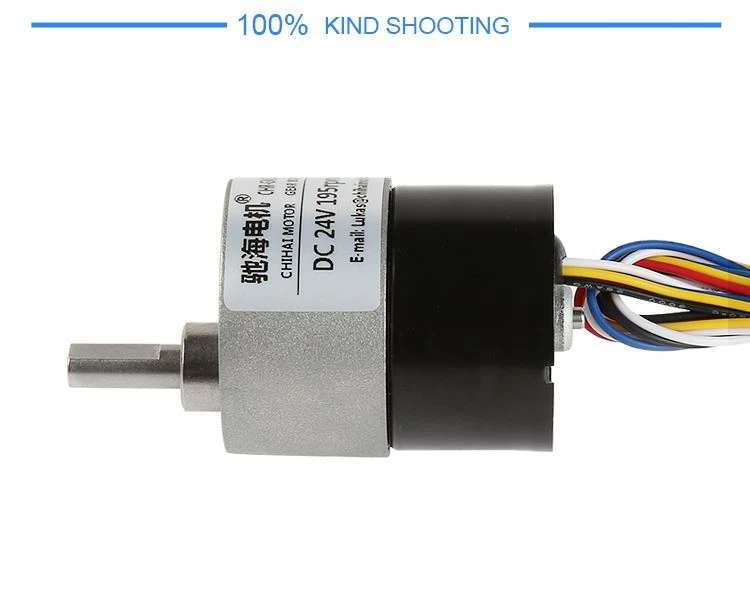

Detailed Images
Product Paramet
Packing & Delivery
PACKAGE:
Standard export carton packing.
DELIVERY TIME:
3-20 days after confirming order,detail delivery date should be decided according to
production season and order quantity.
ATTENTION:
If special customs clearance documents are required, please contact us in advance for confirmation.
FAQ
Q:1.What kind of motors you can provide?
A: For now, We mainly provide micro motor and a series of dc deceleration motor, including straight tooth deceleration motor, planetary deceleration motor, worm deceleration motor.At present, our company focuses on developing various types of motors with voltage between 1VDC and 30VDC and motor diameter between 8 and 51mm.
Q:2. Can you send me a price list?
A: For all of our motors, they are customized based on different requirements like lifetime, noise, voltage, and shaft etc. The price also varies according to annual quantity. So it's really difficult for us to provide a price list. If you can share your detailed requirements and annual quantity, we'll see what offer we can provide.
Q:3. What's the lead time for regular order?
A: For orders, the standard lead time is 3-25 days and this time can be shorter or longer based on different model, period and quantity.
Q:4. Is it possible for you to develop new motors if we can provide tooling cost?
A: Yes. Please kindly share the detailed requirements like performance, size, annual quantity, target price etc. Then we'll make our evaluation to see if we can arrange or not.
Q:5.Could you send me free samples?
Yes,also we can return your samples fee back when you place order.
