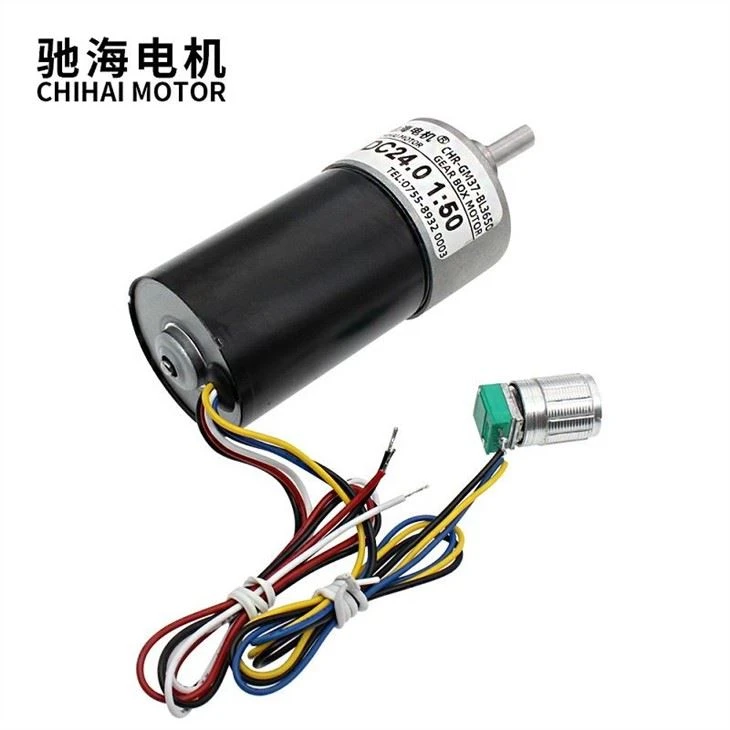

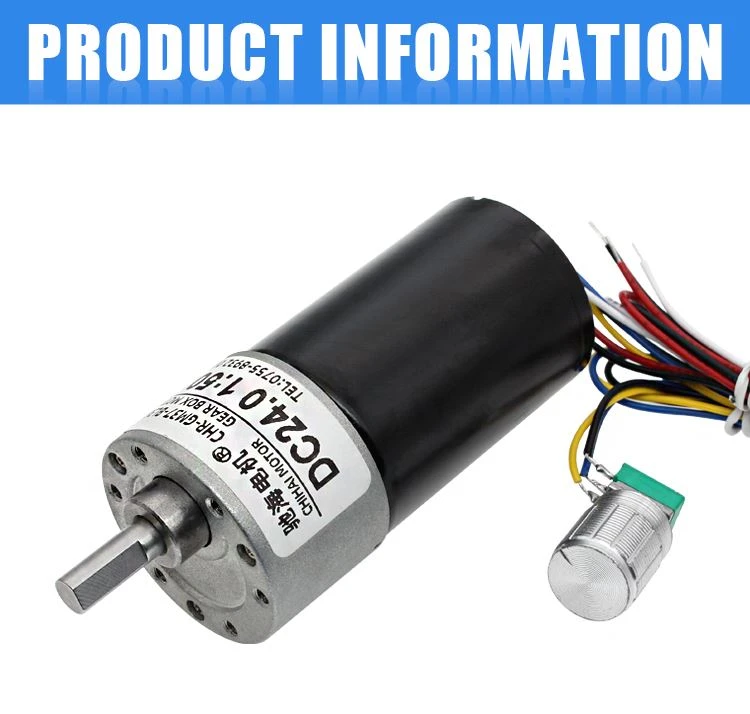

37mm High Torque Low Speed DC Brushless Geared Motor
Shaft length: length 21mm
Weight: about 290g
Product Description
Product Type: | CHR-GM37-BLDC3650 high torque low speed mini brushless motor DC brushless geared motor with stepless speed regulation knob |

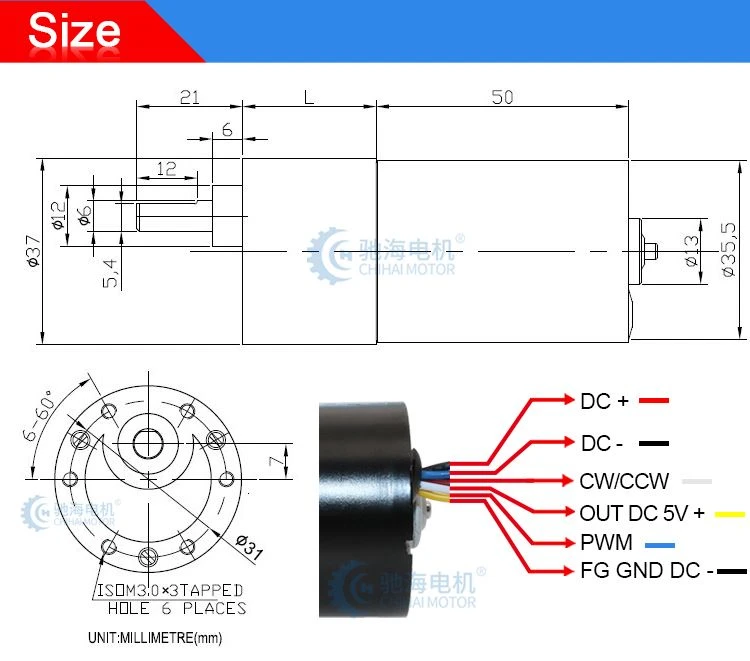

Size: | Diameter 35mm X L mm |
Shaft diameter: | 6mm D |
Shaft length: | length 21mm |
Weight: | about 290g |
Application: | aircraft model, intelligent robot, electric vehicle, power tool, security equipment, home appliances, automation equipment, stage |

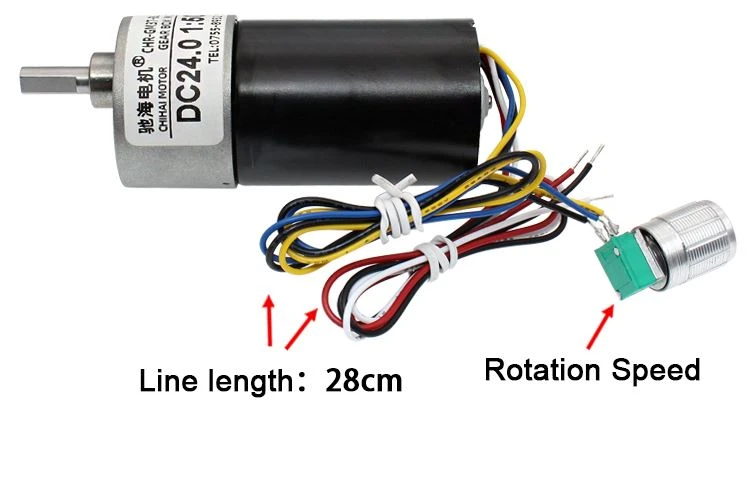

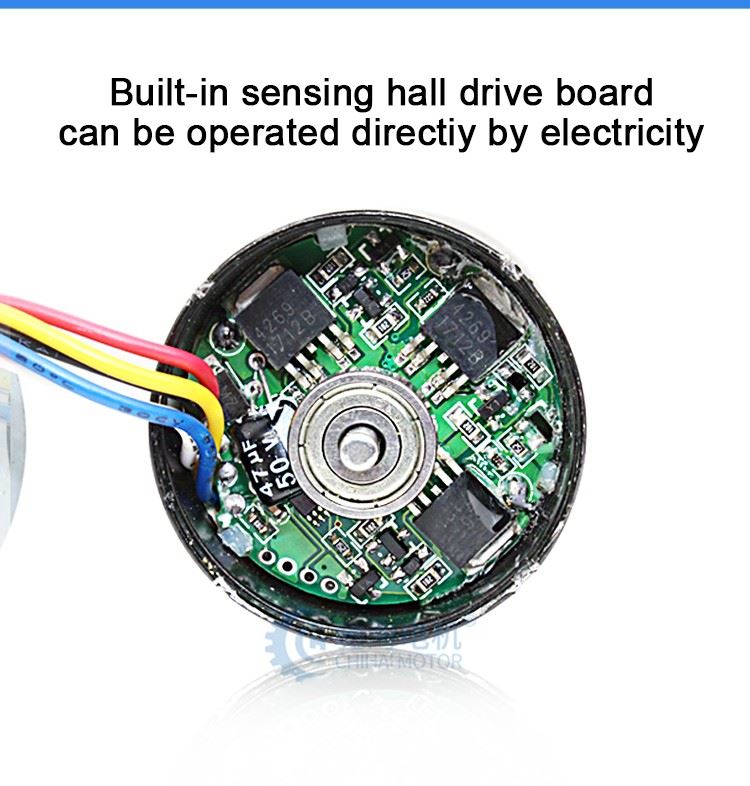

Remark: | This product has its own PWM control, which supports the speed control range duty ratio of 10%~100% (the motor supports the governor within 10-50k), the customer can also change to other governors according to the wiring! Please note! Because the built-in drive of the motor adds an external speed regulation function, the original signal output function is cancelled. This motor does not have an FG speed signal output. |
Permanent magnet dc brushless gear reducer motor,Built-in non-polar speed regulating knob DC12V 24V

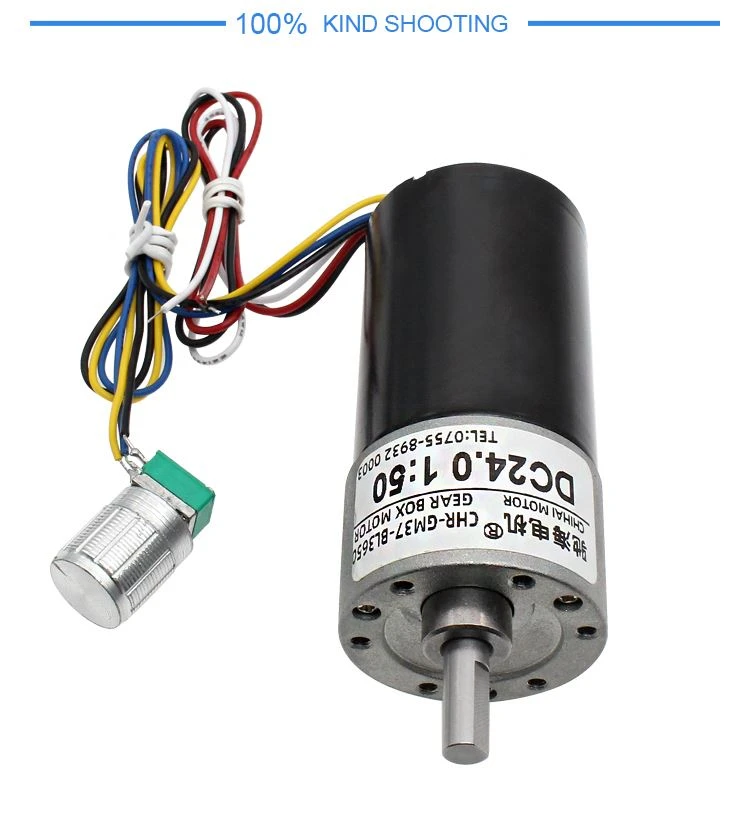

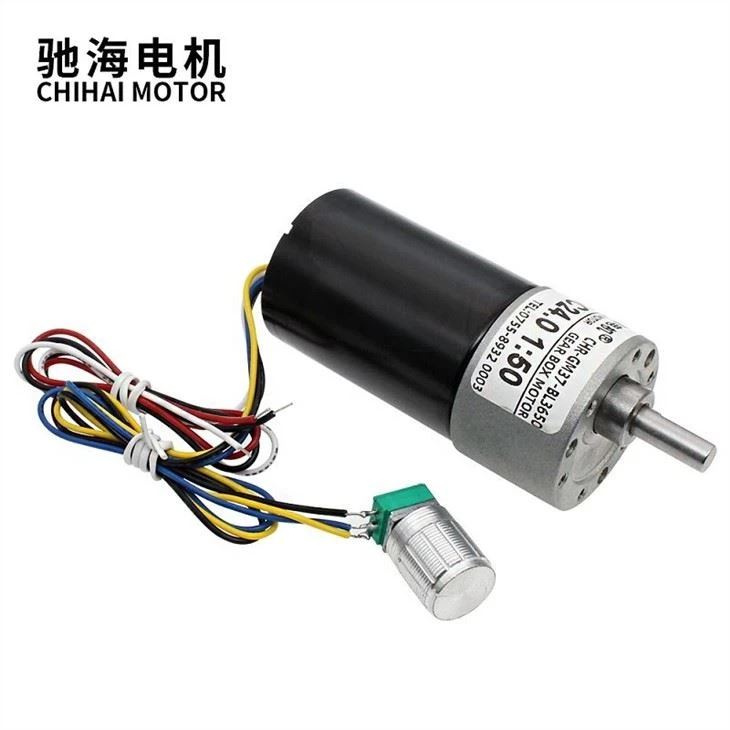

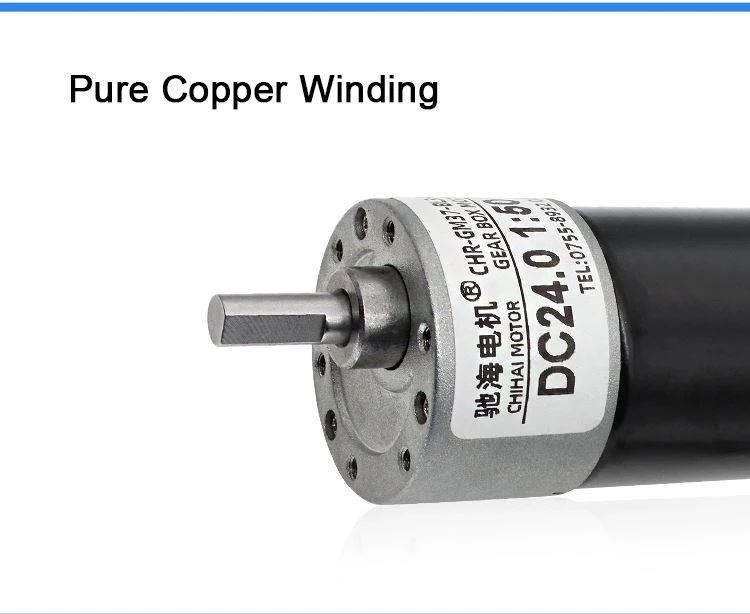

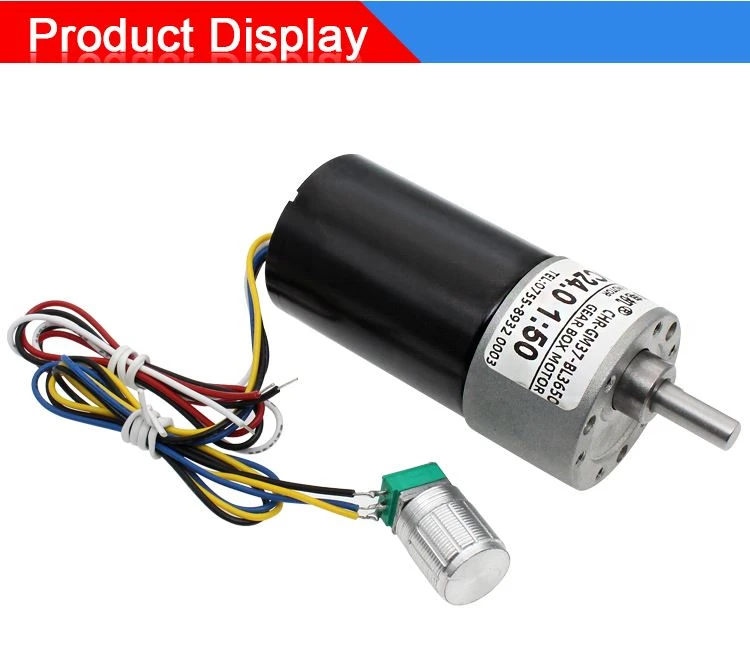

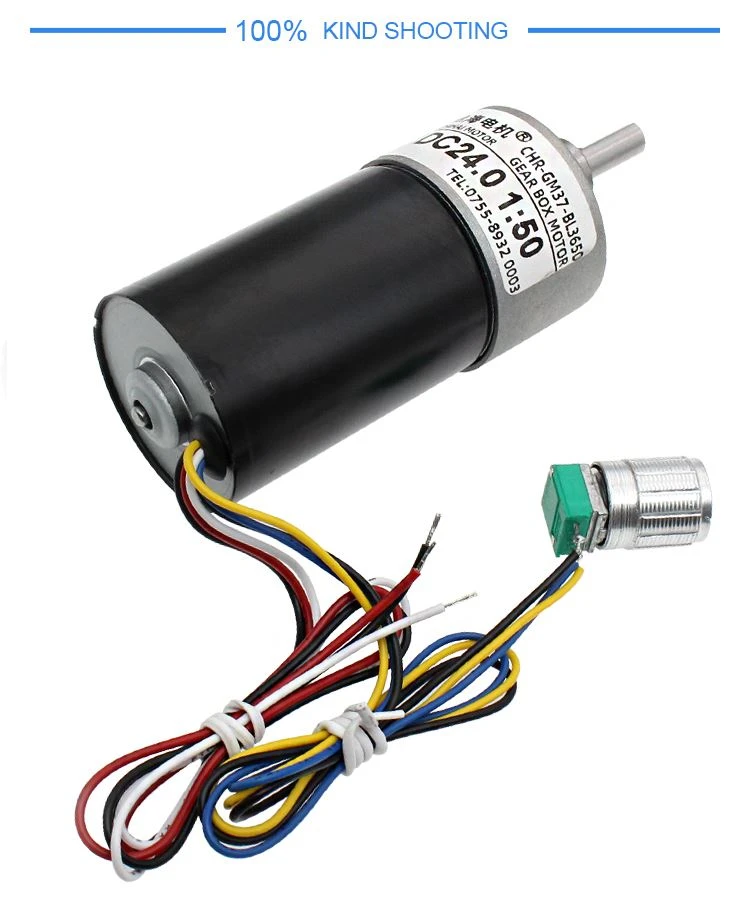

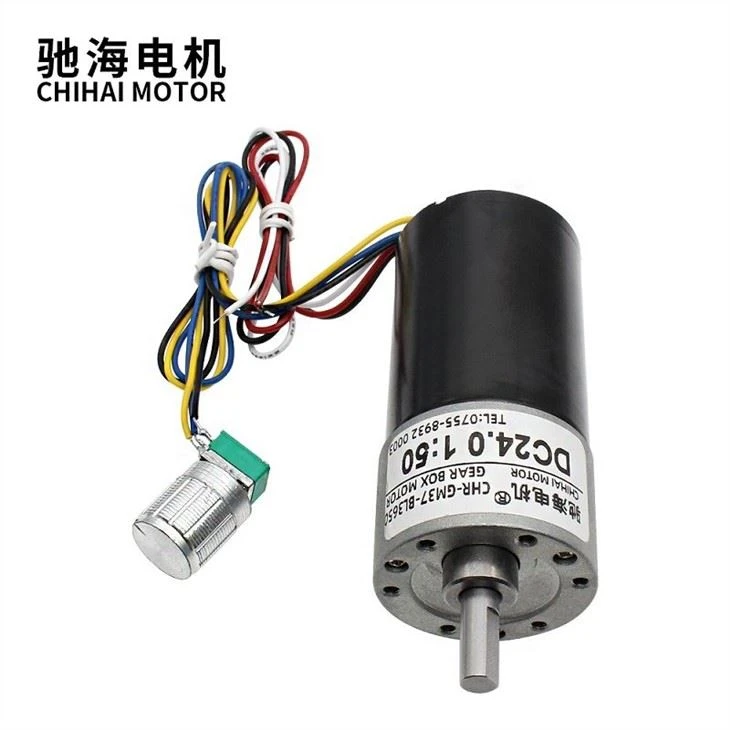

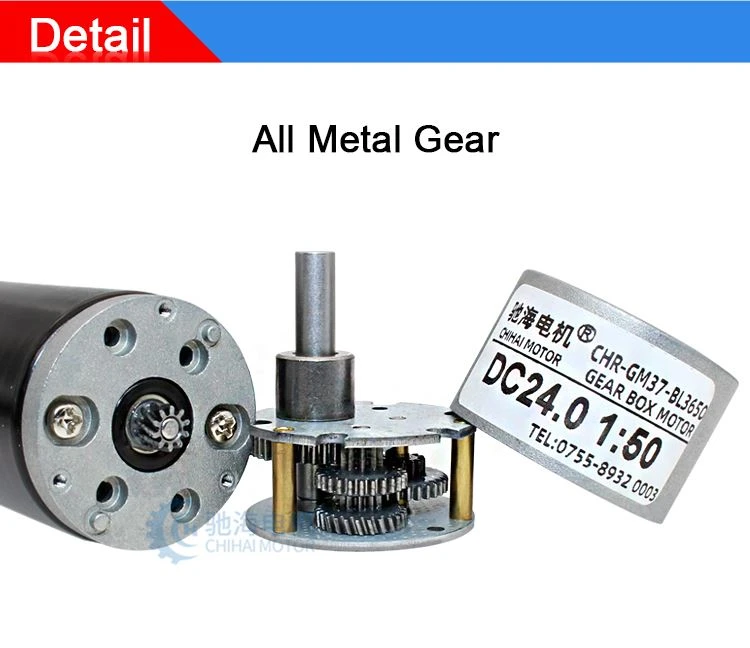

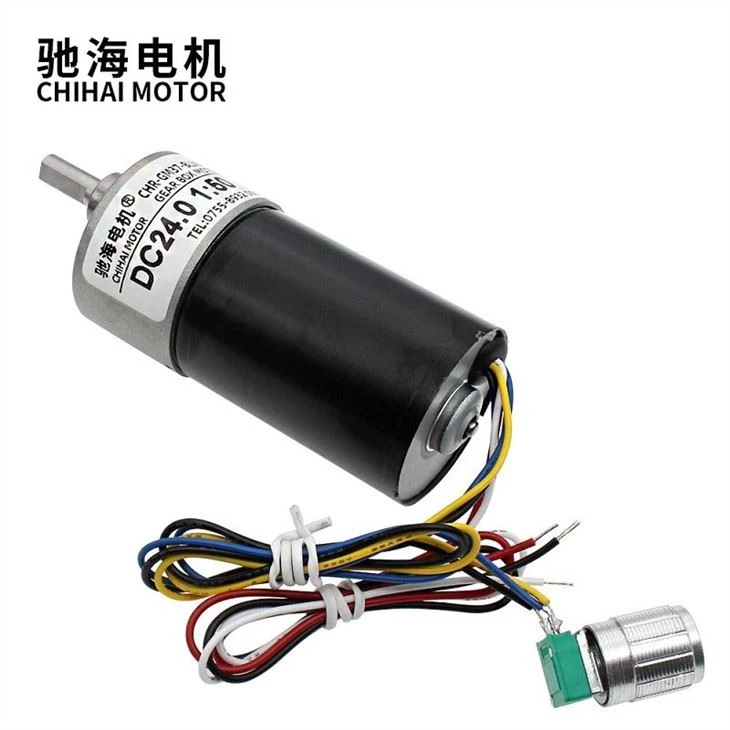

Detailed Images

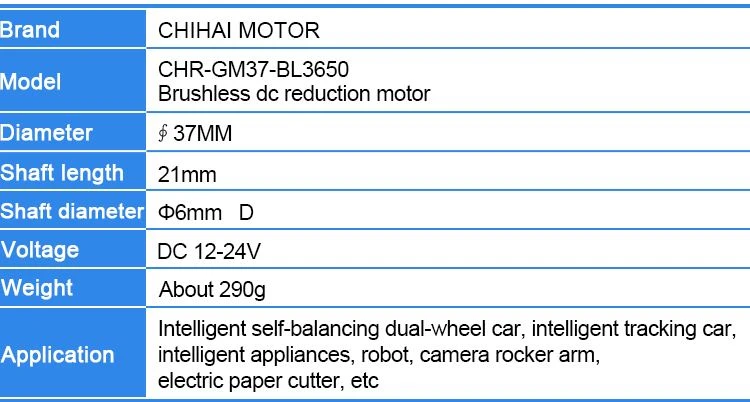

Product Paramet
Packing & Delivery
PACKAGE:
Standard export carton packing.
DELIVERY TIME:
3-20 days after confirming order,detail delivery date should be decided according to
production season and order quantity.
ATTENTION:
If special customs clearance documents are required, please contact us in advance for confirmation.
FAQ
Q:1.What kind of motors you can provide?
A: For now, We mainly provide micro motor and a series of dc deceleration motor, including straight tooth deceleration motor, planetary deceleration motor, worm deceleration motor.At present, our company focuses on developing various types of motors with voltage between 1VDC and 30VDC and motor diameter between 8 and 51mm.
Q:2. Can you send me a price list?
A: For all of our motors, they are customized based on different requirements like lifetime, noise, voltage, and shaft etc. The price also varies according to annual quantity. So it's really difficult for us to provide a price list. If you can share your detailed requirements and annual quantity, we'll see what offer we can provide.
Q:3. What's the lead time for regular order?
A: For orders, the standard lead time is 3-25 days and this time can be shorter or longer based on different model, period and quantity.
Q:4. Is it possible for you to develop new motors if we can provide tooling cost?
A: Yes. Please kindly share the detailed requirements like performance, size, annual quantity, target price etc. Then we'll make our evaluation to see if we can arrange or not.
Q:5.Could you send me free samples?
Yes,also we can return your samples fee back when you place order.
