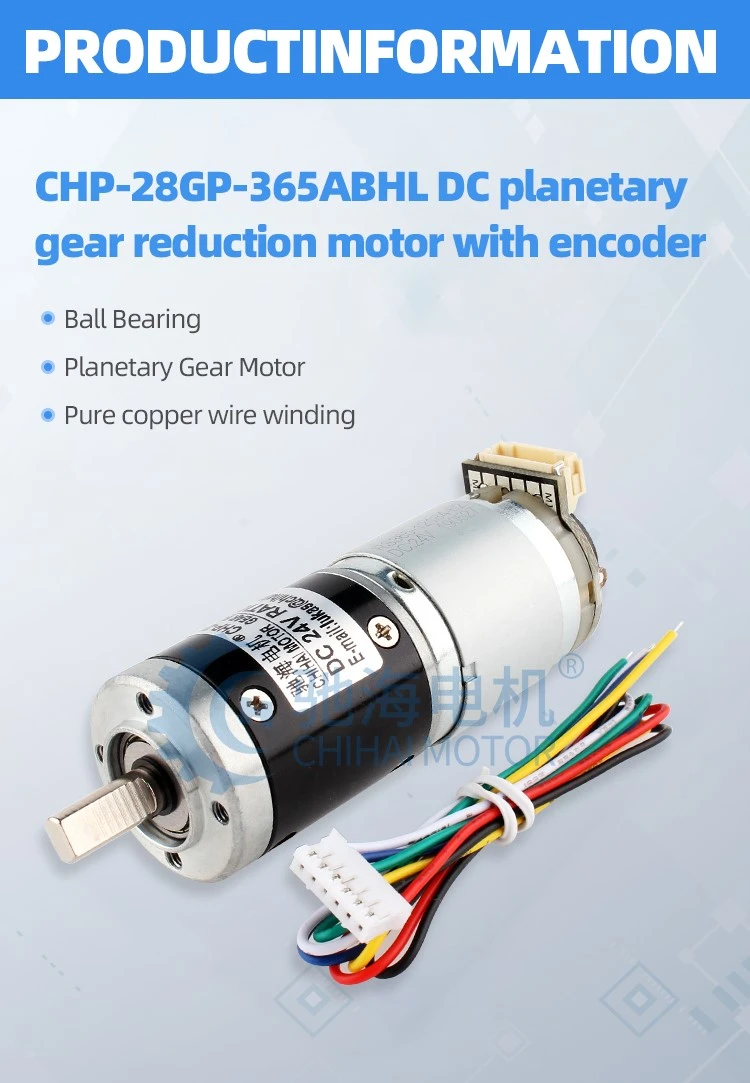

DC Planetary Gear Reduction Motor With Encoder
Product Description
| Brand | CHIHAI MOTOR |
| Model | CHP-28GP-365S DC planetary gear reduction motor with encoder |

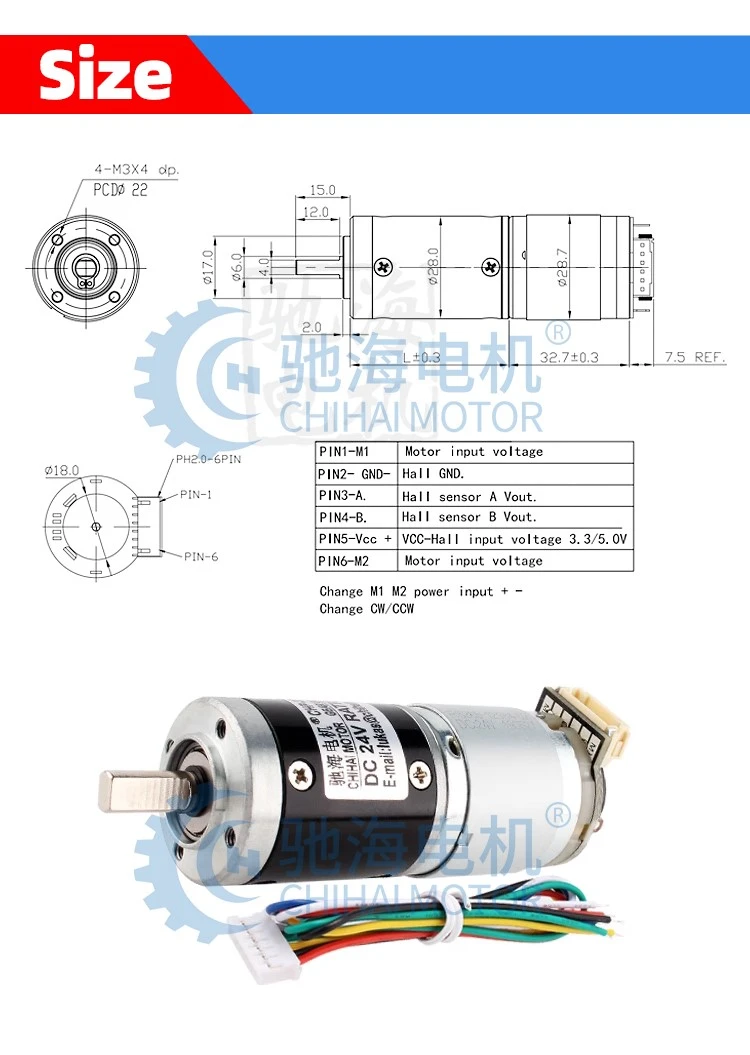

| Motor size | Diameter 28mm |
| Axle length | 15mm |
| Axle diameter | 6mm flat shaft, thick 4mm, long 12mm |
| Voltage | DC 12-24V |
| Weight | About 230g |
Ball bearing construction：
Low friction resistance, low noise and long life Heat dissipation fast composite ability
Pure Copper Winding：
The rotor part adopts pure copper group, small resistance and strong conductivity, and the motor torque is increased
Planetary Gear Motor：
All metal gear material is used to make it more wear-resistant and extend its service life.
The planetary coding motor is an efficient, precise and stable motor, which has a smaller volume, higher speed and higher accuracy than the traditional motor. Planetary coding motors are widely used in the control systems of various mechanical equipment, such as robotic arms, automated production lines, machine tools, etc.
The planetary-coded motor uses a planetary-geared drive system for higher transmission efficiency and lower noise, as well as greater load capacity and a higher deceleration ratio, enabling greater torque output in the smallest space. Planetary coding motors feature a new coding system for higher accuracy, faster speed and more stable performance.
Planetary coding motors have become one of the core components of various mechanical equipment. Widely used in production, processing, transportation, medical and other fields, bringing efficient, accurate and reliable control solutions, so as to effectively improve work efficiency and production benefits. It can also reduce mechanical failure and extend the service life of the equipment.
Detailed Images
Product & specifications
| Model: CHP-28GP-365 DC planetary gear reduction motor |
| Voltage: DC12.0V |
| Ratio | 1:3.7 | 1:5.2 | 1:14 | 1:19 | 1:27 | 1:51 | 1:71 | 1:100 | 1:139 | 1:264 | 1:369 | 1:515 |
| No load Current(mA) | ≤150 | ≤150 | ≤150 | ≤150 | ≤150 | ≤150 | ≤150 | ≤150 | ≤150 | ≤150 | ≤150 | ≤150 |
| No load Speed(rpm) | 1200 | 860 | 320 | 235 | 165 | 88 | 63 | 45 | 32 | 17 | 12 | 8.7 |
| Rated torque(kg.cm) | 0.10 | 0.14 | 0.35 | 0.50 | 0.65 | 1.20 | 1.70 | 2.50 | 3.50 | 6.50 | 9.0 | 12.0 |
| Rated Speed(rpm) | 890 | 600 | 235 | 170 | 120 | 64 | 46 | 33 | 23 | 12 | 8 | 6 |
| Rated Current(A) | ≤0.25 | ≤0.25 | ≤0.25 | ≤0.25 | ≤0.25 | ≤0.25 | ≤0.25 | ≤0.25 | ≤0.25 | ≤0.25 | ≤0.25 | ≤0.25 |
| Stall Torque(kg.cm) | ≥0.3 | ≥0.4 | ≥1.0 | ≥1.3 | ≥1.8 | ≥2.2 | ≥4.5 | ≥9.0 | ≥10.0 | ≥20.0 | ≥28.0 | ≥40.0 |
| Stall Current (A) | ≤0.7 | ≤0.7 | ≤0.7 | ≤0.7 | ≤0.7 | ≤0.7 | ≤0.7 | ≤0.7 | ≤0.7 | ≤0.7 | ≤0.7 | ≤0.7 |
| Retarder length (L) | 27.5mm | 35.5mm | 43.5mm | 51.5mm | ||||||||
| Voltage: DC24.0V |
| Ratio | 1:3.7 | 1:5.2 | 1:14 | 1:19 | 1:27 | 1:51 | 1:71 | 1:100 | 1:139 | 1:264 | 1:369 | 1:515 |
| No load Current(mA) | ≤200 | ≤200 | ≤200 | ≤200 | ≤200 | ≤200 | ≤200 | ≤200 | ≤200 | ≤200 | ≤200 | ≤200 |
| No load Speed(rpm) | 2350 | 1700 | 640 | 470 | 330 | 176 | 125 | 90 | 64 | 34 | 24 | 17 |
| Rated torque(kg.cm) | 0.20 | 0.26 | 0.70 | 1.00 | 1.30 | 2.40 | 3.40 | 5.00 | 7.0 | 13.0 | 18.0 | 24.0 |
| Rated Speed(rpm) | 1780 | 1200 | 470 | 340 | 240 | 128 | 90 | 66 | 46 | 24 | 16 | 12 |
| Rated Current(A) | ≤0.50 | ≤0.50 | ≤0.50 | ≤0.50 | ≤0.50 | ≤0.50 | ≤0.50 | ≤0.50 | ≤0.50 | ≤0.50 | ≤0.50 | ≤0.50 |
| Stall Torque(kg.cm) | ≥0.5 | ≥0.8 | ≥2.0 | ≥2.5 | ≥3.5 | ≥4.3 | ≥9.0 | ≥20.0 | ≥35.0 | can't exceed 40 kg.cm | ||
| Stall Current (A) | ≤1.4 | ≤1.4 | ≤1.4 | ≤1.4 | ≤1.4 | ≤1.4 | ≤1.4 | ≤1.4 | ≤1.4 | ≤1.4 | ≤1.4 | ≤1.4 |
Packing & Delivery
PACKAGE:
Standard export carton packing.
DELIVERY TIME:
3-20 days after confirming order,detail delivery date should be decided according to
production season and order quantity.
ATTENTION:
If special customs clearance documents are required, please contact us in advance for confirmation.
