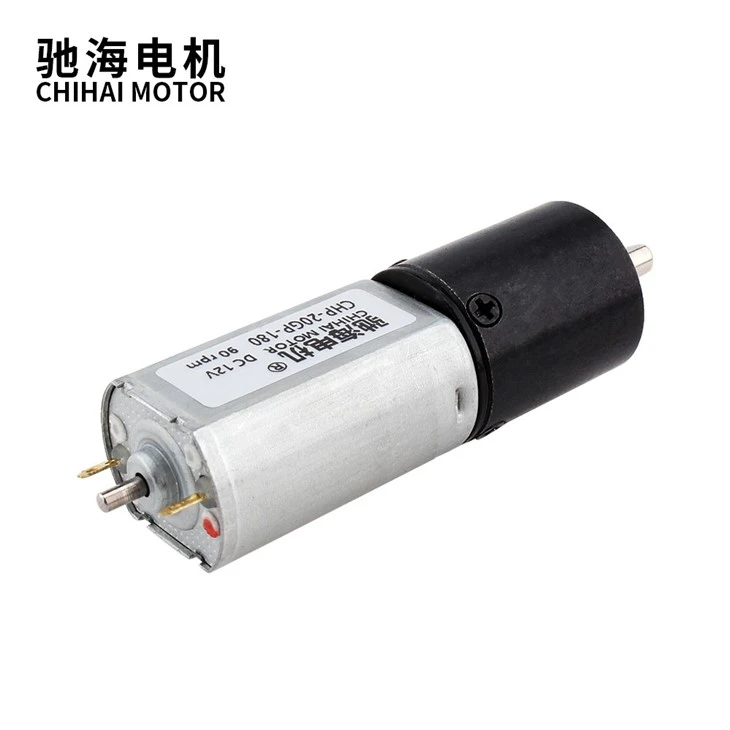

CHP-20GP-180 Dc Planetary Gear Motor
Product Description
| Product Type | CHP-20GP-180 dc planetary gear motor |
| Shaft length | 10mm |
| Shaft Dianeter | Φ 4mm D thick 3.5mm |
| Voltage | DC 6-12V |
| Weight | About 80g |
| Application |
Intelligent robot, electric curtain, intelligent balancing car, Intelligent manipulator, etc. |

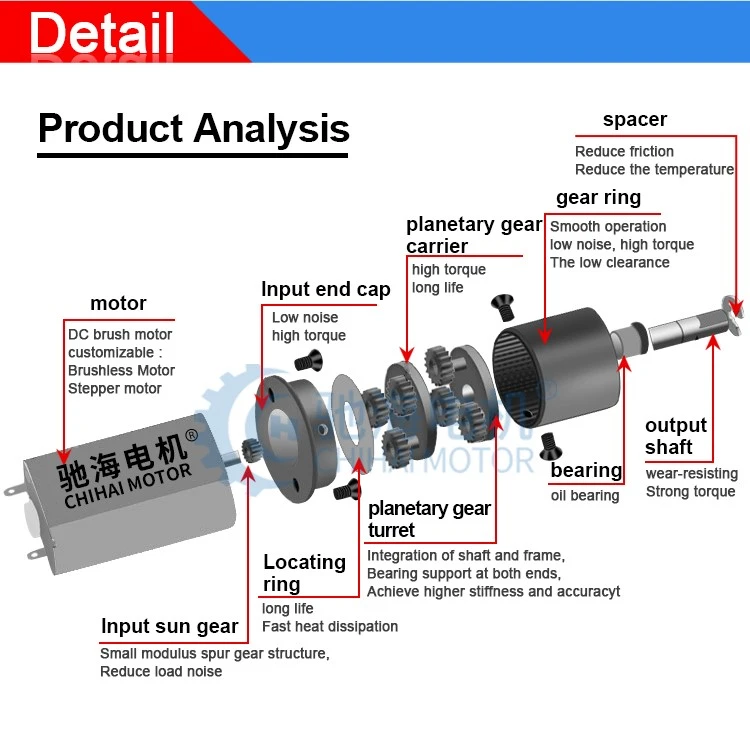

Dc planetary gear motor is a kind of high efficiency and high performance motor, which is widely used in mechanical equipment, industrial robots, automatic control systems and other industries. It is composed of synchronous motor, planetary gear drive, encoder and other components, and has the advantages of small volume, large torque and fast response speed.
First of all, the DC planetary gear motor has an irreplaceable important role in mechanical manufacturing. Adopting gear transmission technology, the high-speed rotation of the motor can be converted into the output of low speed and high torque, thus achieving efficient power transmission. This kind of motor can also be driven by external power supply or battery, simple and easy to use. And small size, can be adapted to a variety of compact equipment.
Secondly, the DC planetary gear motor is widely used in the field of industrial robots. In the automatic control system, the accurate movement, rapid response and accurate positioning of the robot are very important factors. The DC planetary gear motor has the characteristics of fast response, and can complete the positioning, rotation, grasping and other actions of the robot arm in a short time. Closed-loop control can also be achieved through encoder feedback technology to achieve more accurate position control.
Detailed Images
Product & specifications
| Model：CHP-20GP-180 DC Planetary gear motor |
| Voltage:DC12.0V |
| RATIO | 1:5.4 | 1:19 | 1:29 | 1:84 | 1:128 | 1:157 | 1:370 | 1:560 | 1:850 |
| No-load current(mA) | ≤280 | ≤280 | ≤280 | ≤280 | ≤280 | ≤280 | ≤280 | ≤280 | ≤280 |
| No-load speed(rpm) | 2750 | 780 | 515 | 175 | 115 | 95 | 40 | 26 | 17 |
| Rated torque(Kg.cm) | 0.1 | 0.40 | 0.65 | 1.8 | 2.8 | 3.5 | 8.0 | 10.0 | 10.0 |
| Rated speed(rpm) | 2400 | 680 | 445 | 154 | 101 | 82 | 35 | 23 | 15 |
| Rated current(mA) | ≤550 | ≤550 | ≤550 | ≤550 | ≤550 | ≤550 | ≤550 | ≤550 | ≤550 |
| Stall current(A） | ≤2.7 | ≤2.7 | ≤2.7 | ≤2.7 | ≤2.7 | ≤2.7 | ≤2.7 | ≤2.7 | ≤2.7 |
| Stall torque(kg.cm) | ≥0.7 | ≥2.0 | ≥3.0 | ≥8.0 | ≥12.0 | ≥15.0 | ≥15.0 | ≥15.0 | ≥15.0 |
| Planetary drive poles | 1 | 2 | 2 | 3 | 3 | 3 | 4 | 4 | 4 |

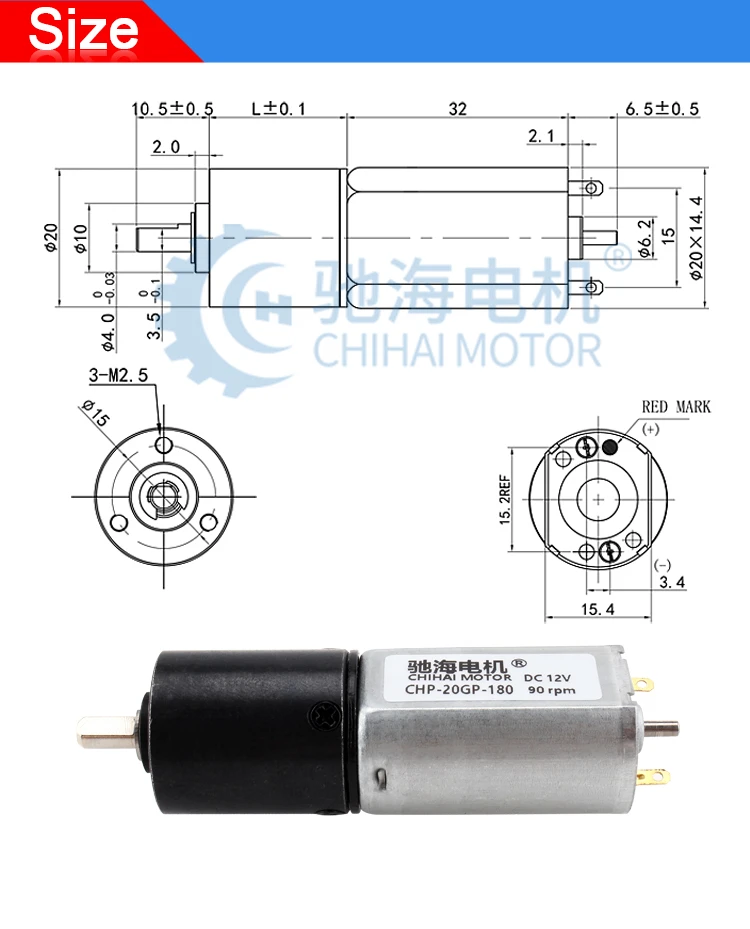

| length of gearbox(L) | 17.3 | 21.5 | 21.5 | 24.7 | 24.7 | 24.7 | 29.9 | 29.9 | 29.9 |
| Voltage:DC 6.0V |
| RATIO | 1:5.4 | 1:19 | 1:29 |
1:84 |
1:128 | 1:157 | 1:370 | 1:560 | 1:850 |
| No-load current(mA) | ≤230 | ≤230 | ≤230 | ≤230 | ≤230 | ≤230 | ≤230 | ≤230 | ≤230 |
| No-load speed(rpm) | 1350 | 390 | 250 | 90 | 58 | 47 | 20 | 13 | 9 |
| Rated torque(Kg.cm) | 0.09 | 0.30 | 0.5 | 1.5 | 2.3 | 2.8 | 6.5 | 10.0 | 10.0 |
| Rated speed(rpm) | 1140 | 325 | 210 | 73 | 48 | 39 | 16 | 11 | 7 |
| Rated current(mA) | ≤450 | ≤450 | ≤450 | ≤450 | ≤450 | ≤450 | ≤450 | ≤450 | ≤450 |
| Stall current(A） | ≤1.5 | ≤1.5 | ≤1.5 | ≤1.5 | ≤1.5 | ≤1.5 | ≤1.5 | ≤1.5 | ≤1.5 |
| Stall torque(kg.cm) | ≥0.4 | ≥1.3 | ≥1.7 | ≥6.0 | ≥9.0 | ≥11.0 | ≥15.0 | ≥15.0 | ≥15.0 |
| Planetary drive poles | 1 | 2 | 2 | 3 | 3 | 3 | 4 | 4 | 4 |
| length of gearbox(L) | 17.3 | 21.5 | 21.5 | 24.7 | 24.7 | 24.7 | 29.9 | 29.9 | 29.9 |
Packing & Delivery
PACKAGE:
Standard export carton packing.
DELIVERY TIME:
3-20 days after confirming order,detail delivery date should be decided according to
production season and order quantity.
ATTENTION:
If special customs clearance documents are required, please contact us in advance for confirmation.
