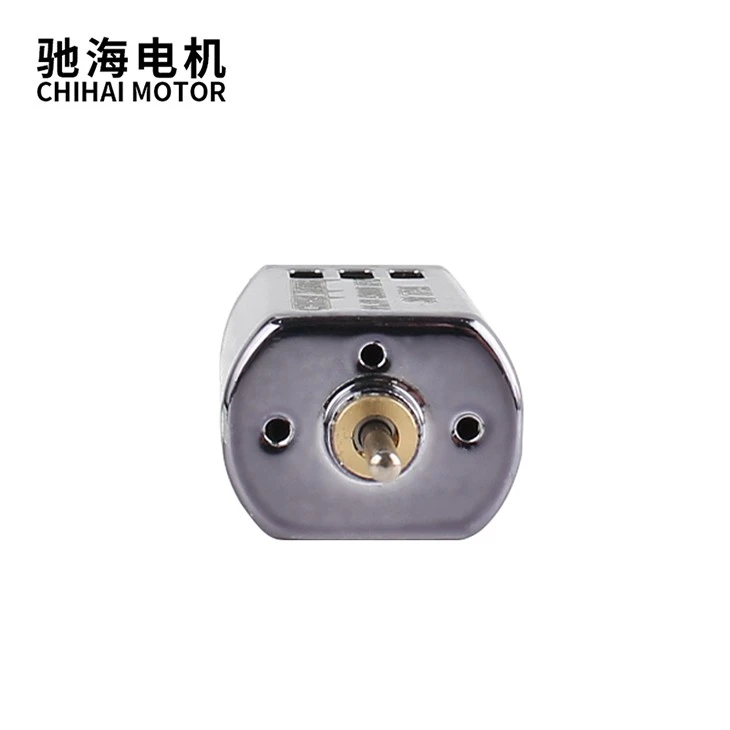

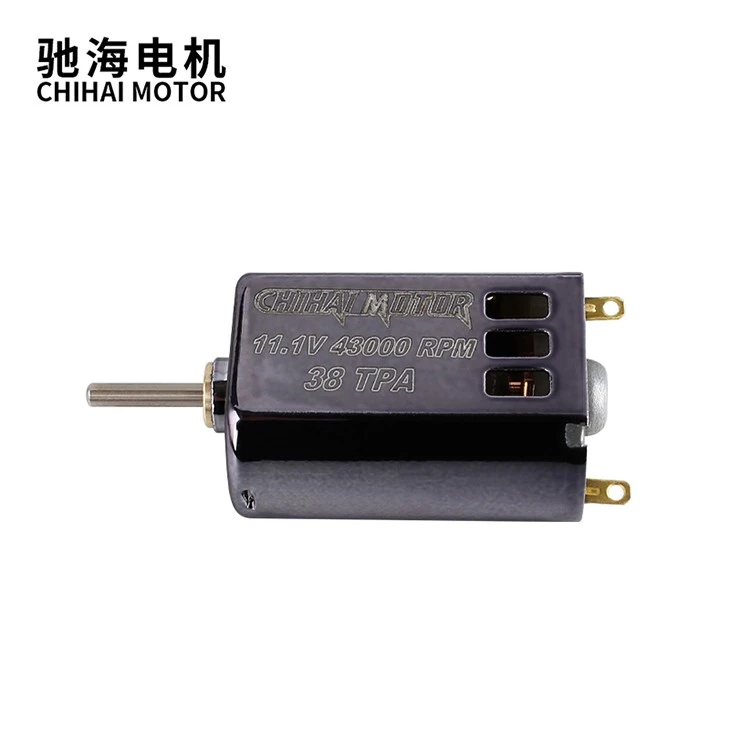

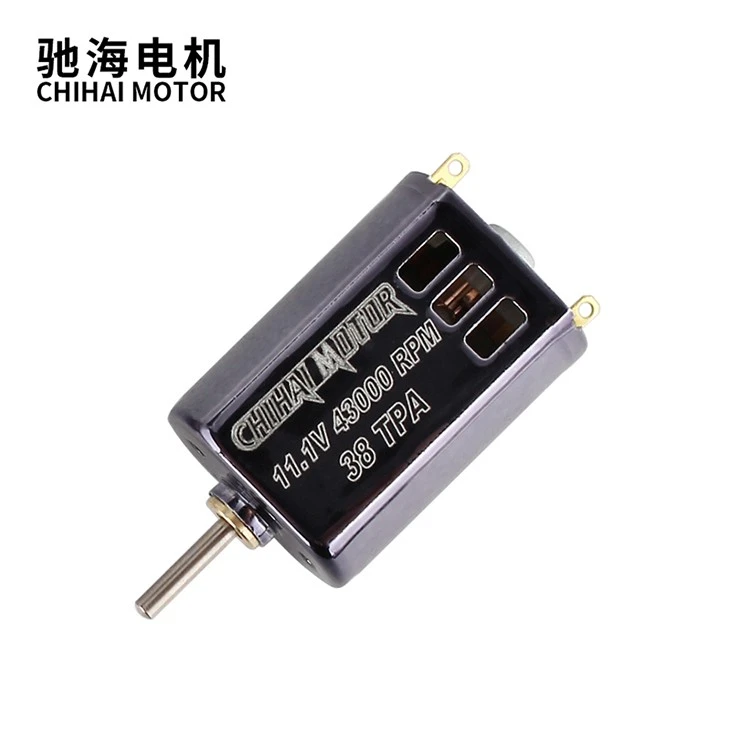

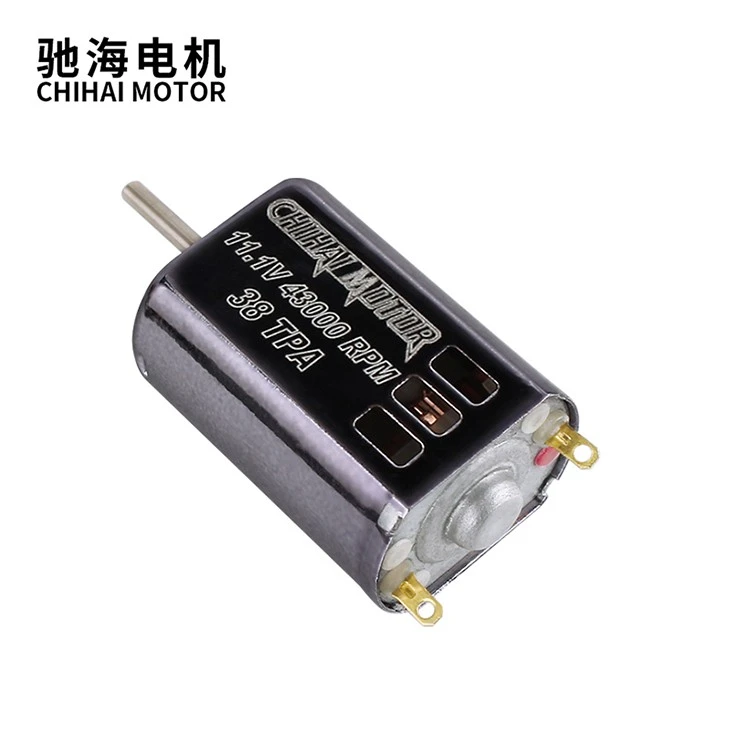

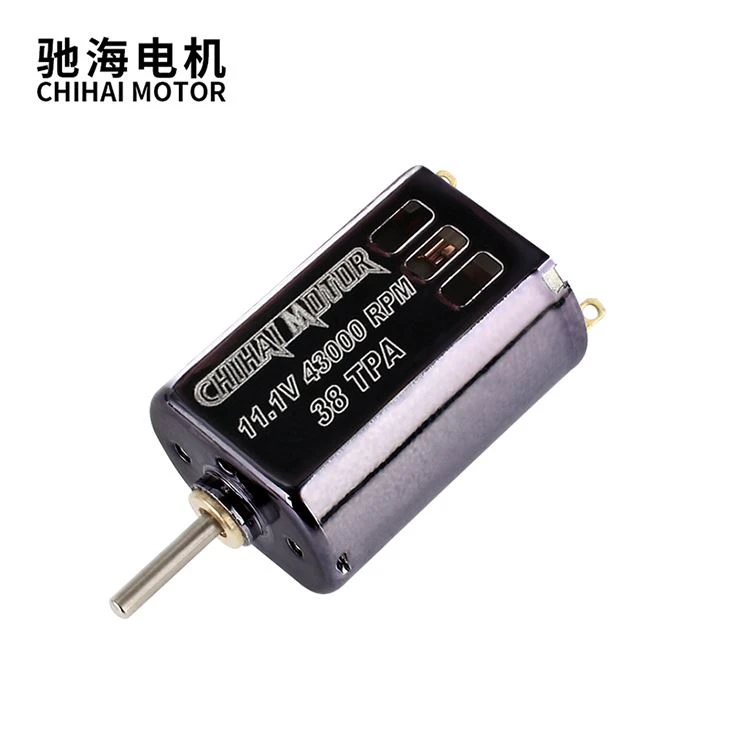

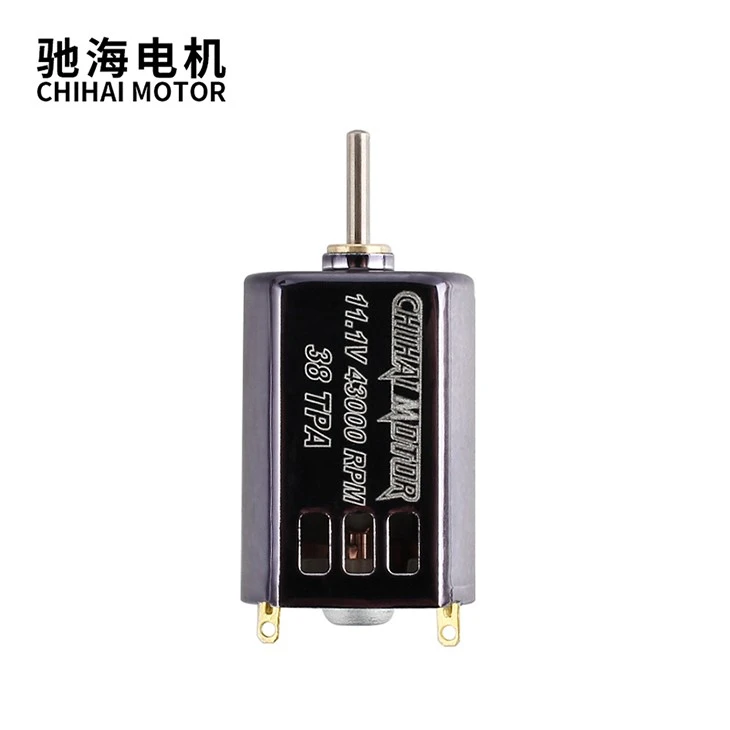

38TPT 43000rpm High Speed High Torque Motor
Product Description：
| Brand | chihai motor |
| Model | CFK-132WH-38TPA High Speed High Torque Motor |
| Shaft length | 12.8mm |
| Shaft Dianeter | 2mm |
| Voltage | DC 11.1V 43000rpm |
| Weight | About 32g |
| application | foam dart gun motor ; its for flywheel application; Used for high-speed high-speed motorcycles, four-wheel drive vehicles, toys, etc. |

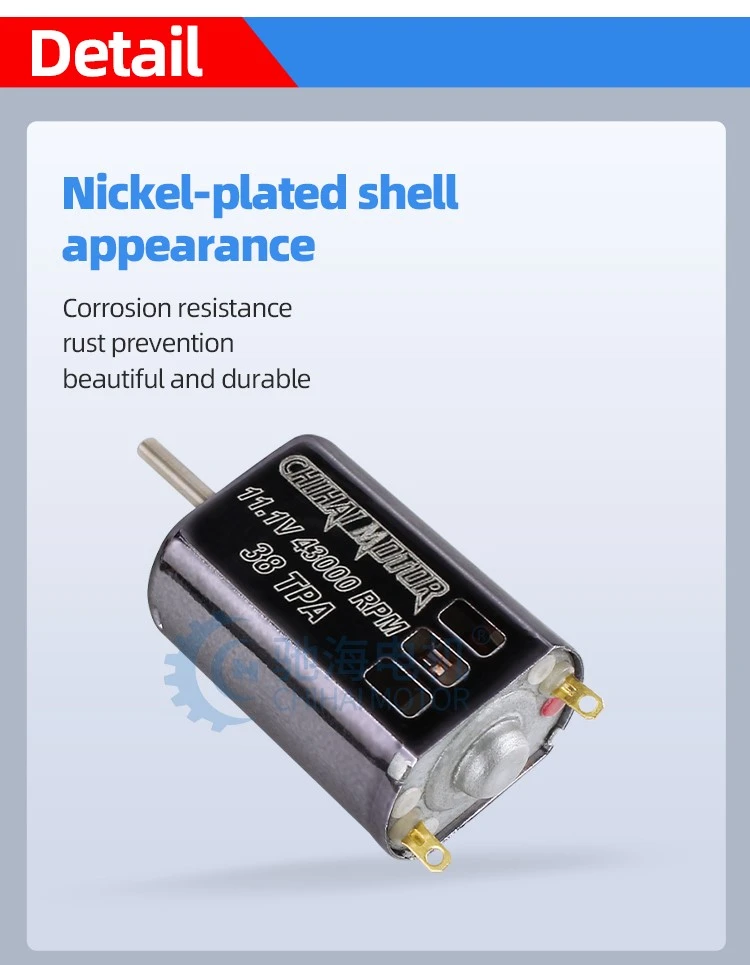

Nickel-plated shell appearance：
Corrosion resistance rust prevention beautiful and durable

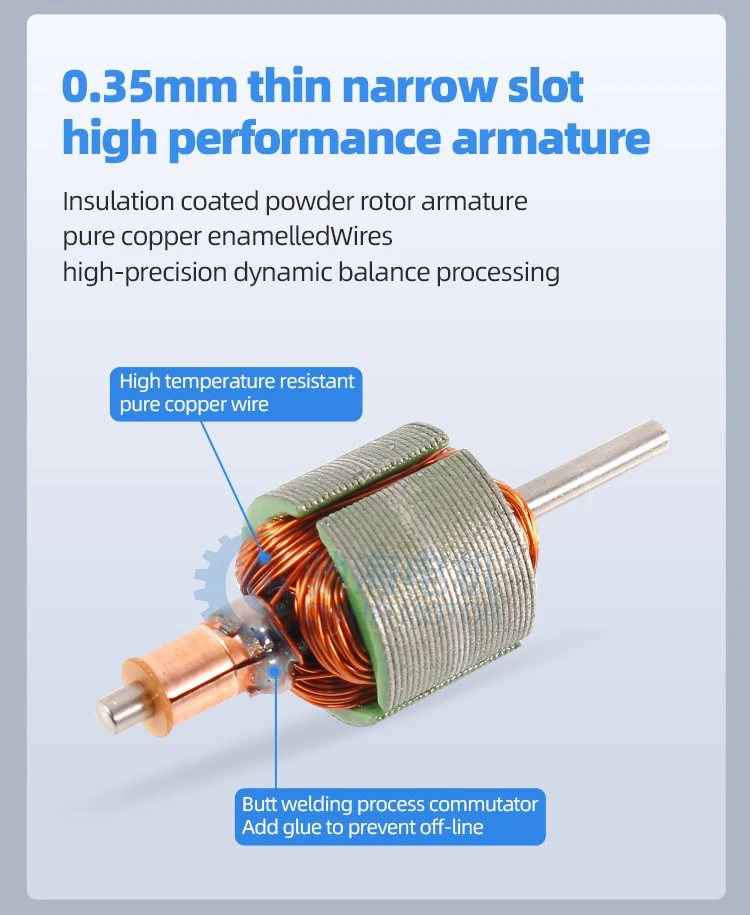

0.35mm thin narrow slot high performance armature：
Insulation coated powder rotor armature pure copper enamelledWires high-precision dynamic balance processing
High temperature resistant pure copper wire
Butt welding process commutator Add glue to prevent off-line

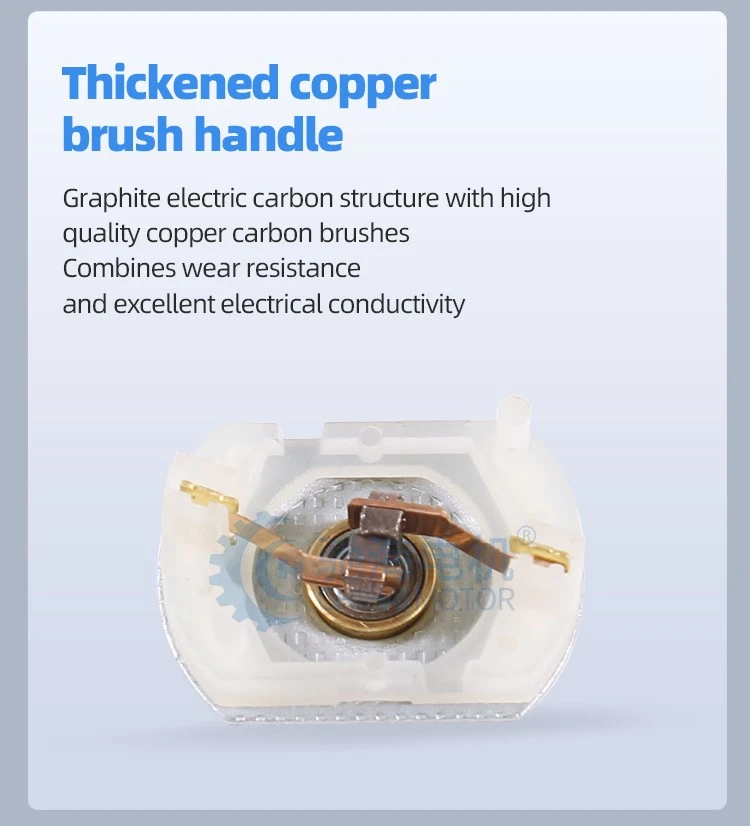

Thickened copper brush handle：
Graphite electric carbon structure with high quality copper carbon brushes Combines wear resistance and excellent electrical conductivity

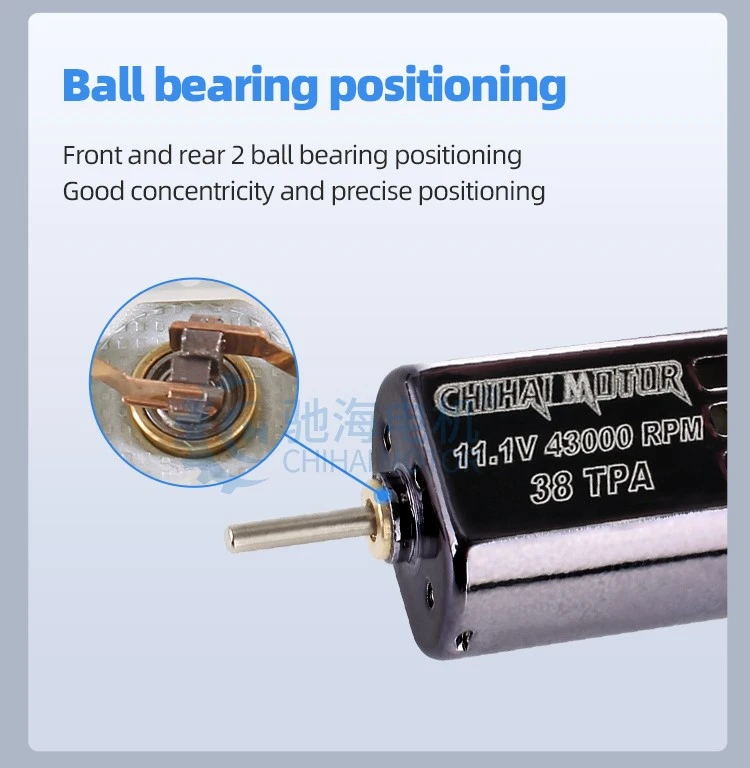

Ball bearing positioning：
Front and rear 2 ball bearing positioning Good concentricity and precise positioning
N35SH Nd-Fe-B Magnet：
N35SH High performance magnetic with temperature resistance of 150℃
Detailed Images：

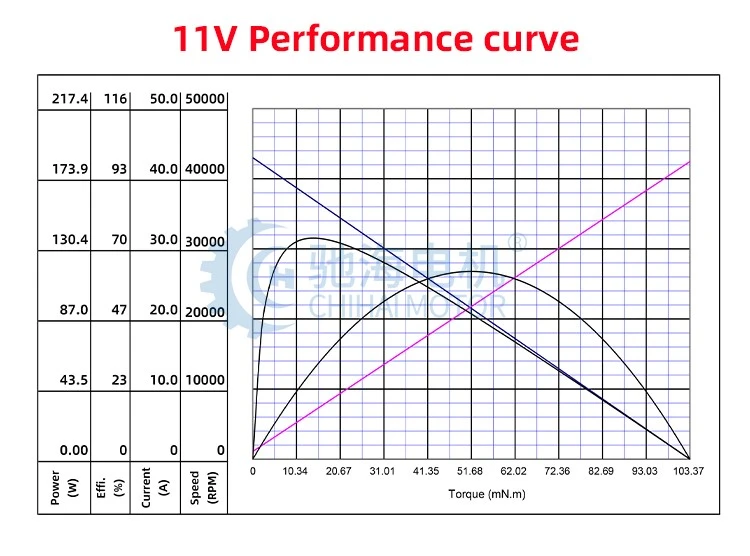

| Model：CFK-132WH-38TPA High Speed High Torque Motor | |||
| Voltage：DC 11V | |||
| No Ioad speed | No Ioad current | At stall torque | At stall current |
| 43000 rpm | 1.10 A | 103.36 mN.m | 42.44 A |
At max efficiency
| Effi | Torque | Speed | Current | Output Powe |
| 73.33 % | 14.33 mN.m | 37038 rpm | 6.83 A | 55.6 W |
At max output power
| Effi | Torque | Speed | Current | Output Powe |
| 48.17 % | 51.68 mN.m | 21500 rpm | 21.77 A | 116.43 W |
