DC High Speed Motor 11V 25000rpm
Product Description：
| Brand | chihai motor |
| Model | CHF-480WA-26TPA(RED&BLACK) |
| Appearance | Shell paint/200℃ Thermostable back cover |
| Magnetic materials | Sintered Nd-Fe-B Magnets |
| DC11.1V SPEED | 25000 rpm |
| DC7.4V SPEED | 16500 rpm |
| weight | About 145 g |
| Adaptation type |
No. 2 wave box Airsoft gun M90-M140 JIN MING M4A1-J9 ACR-J10 Wavebox upgrade 480 motor insertion(Special motor brackets arerequired) Special wave box type: WARINTEREST JIQU HK416D / KUBLAI BD556 JINGJI SLR / NEW WELL M4 FB WAVE BOX FIGHTING BRO |

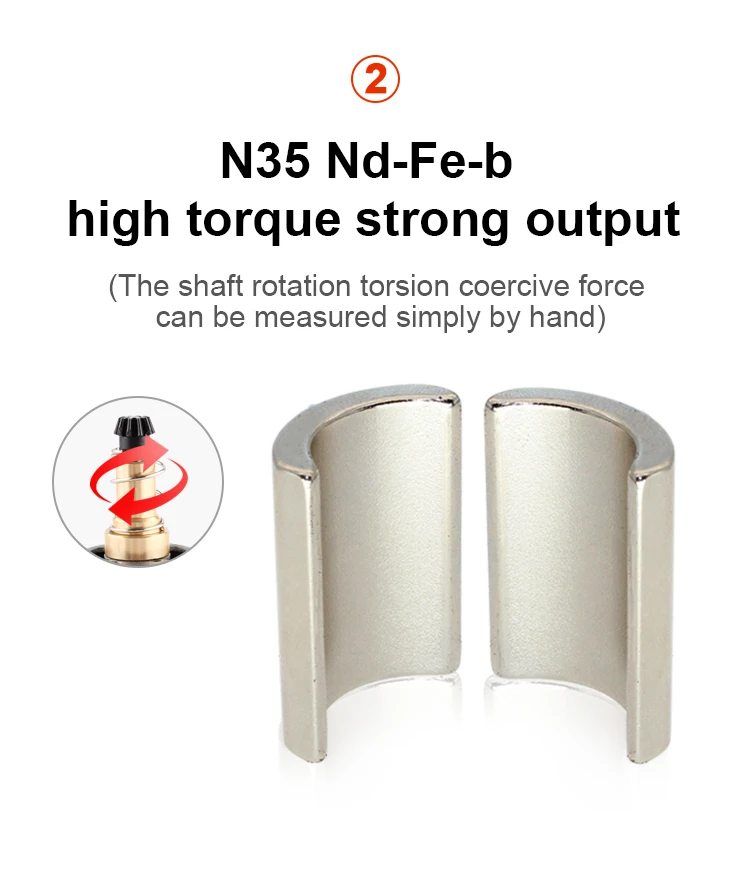

1-N35H Neodymium Magnet
2-PPS Heat-resistant back cover

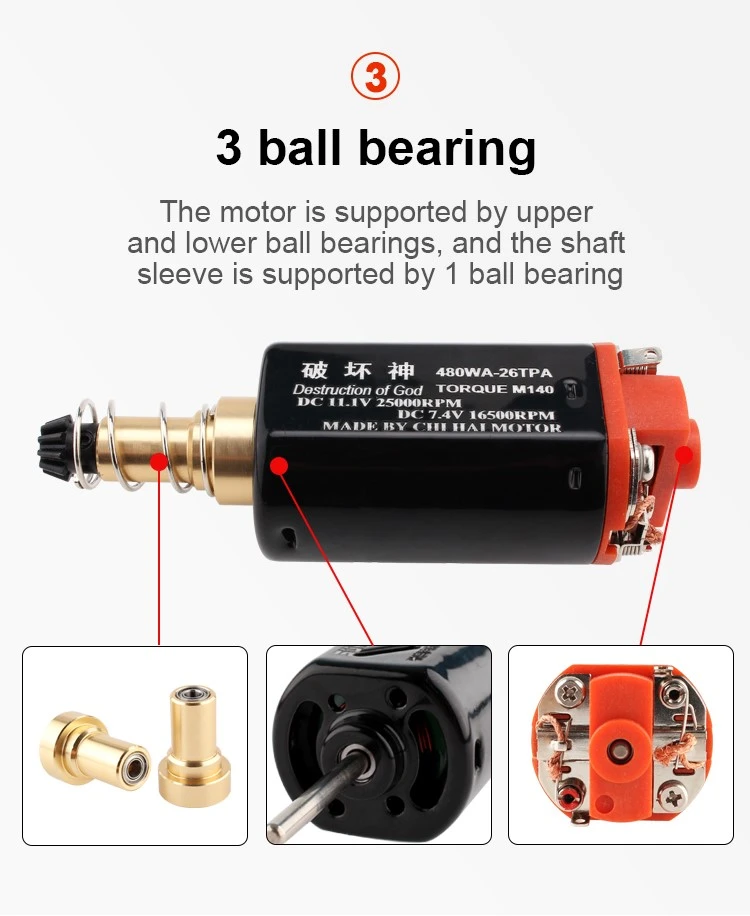

3-Ball bearing construction
4-MIM steel pinion gear
5-Closed paint shell
6-High performance wear-resistant carbon brush
7-Armature Dynamic Balancing
8-Support fire control chip
Features: Medium speed-high torque-low heat motor
The daily choice of experienced players
Heating Slow heat and high torque
Single accurate, moderate speed, cost-effective choice
Detailed Images：
Product & specifications:
| Model: CHF-480WA-84175-M140 | |||
| Voltage: DC 8.4V | |||
| No load speed | No load current | At stall torque | At stall current |
| 17500 rpm | 2.50 A | 487.24 mN.m | 108.42 A |
At Max Efficiency
| Speed | Current | Torque | Output Powe | Efficiency |
| 15193 rpm | 16.46 A |
64.23 mN.m |
102.3 W | 73.942 % |
At Max output power
| Speed | Current | Torque | Output Powe | Efficiency |
| 8750 rpm | 55.461 A | 243.62 mN.m | 223.37 W | 47.94 % |
