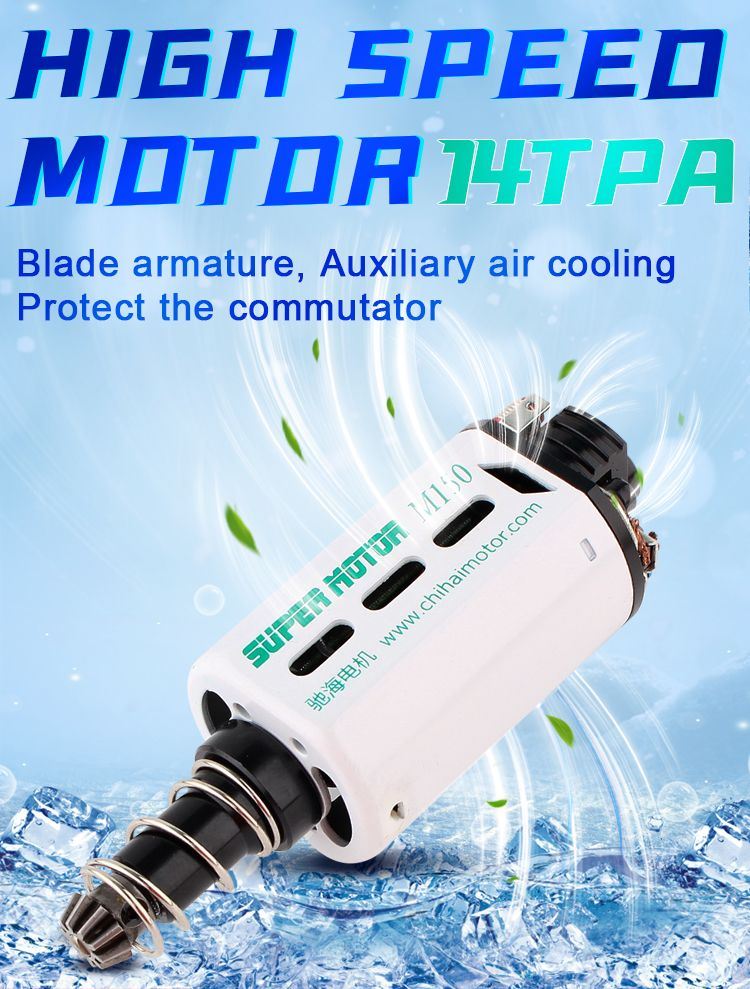

High Speed 14TPA Long Type AEG Motor With Vented Case Fan
New Ultra Custom Series from ChiHai Motor
Magnum High Torque Motor/Ultra Custom Motor is design for Ultra Power Upgraded Airsoft AEG.
Product Description
Product Type: | CHF-480WAC-8514T 14TPA Nd-Fe-B high speed motor with a vented case |
Features:: | * Aluminum CNC machined shaft guide with integrated bearing. * high-quality CNC-machined shell * Built-in fan helps keep your motor cool during heavy use *Protect the commutator |
Magnetic materials: | Nd-Fe-B Magnets |
Weight: | About 156 grams |
Application： | Long type for M4, M16, MP5, G3, M14 and P90 AEG. |
Features:

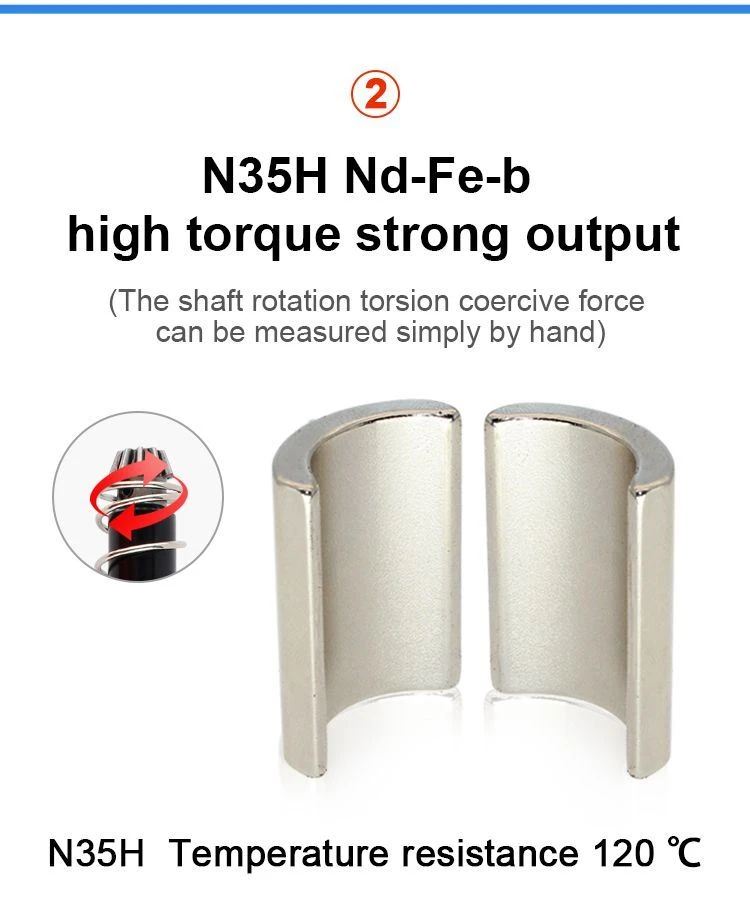

1-N35H Neodymium Magnet
2-CNC machined High thermal back cover
3-Ball bearing construction

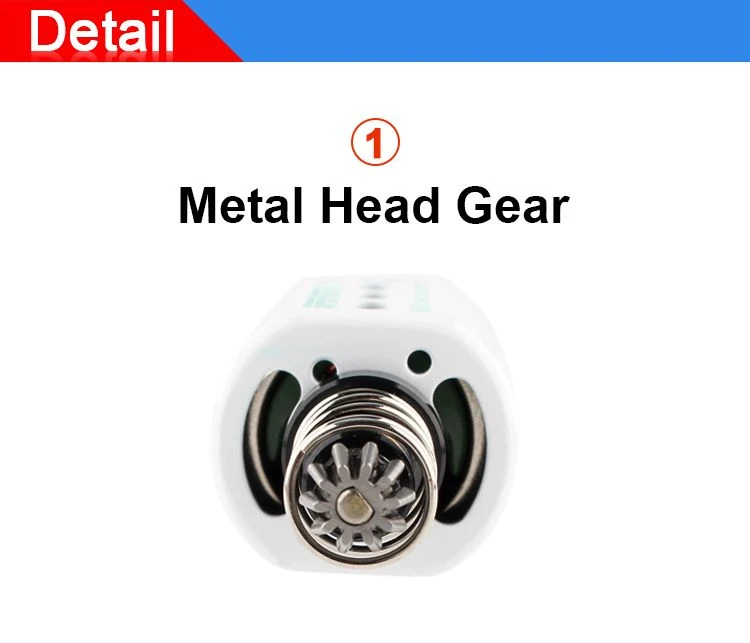

4-MIM steel pinion gear
5-High heat dissipation paint case
6-High performance wear-resistant carbon brush
7-Armature Dynamic Balancing
8-Suggest mechanical switch control, reject fire control

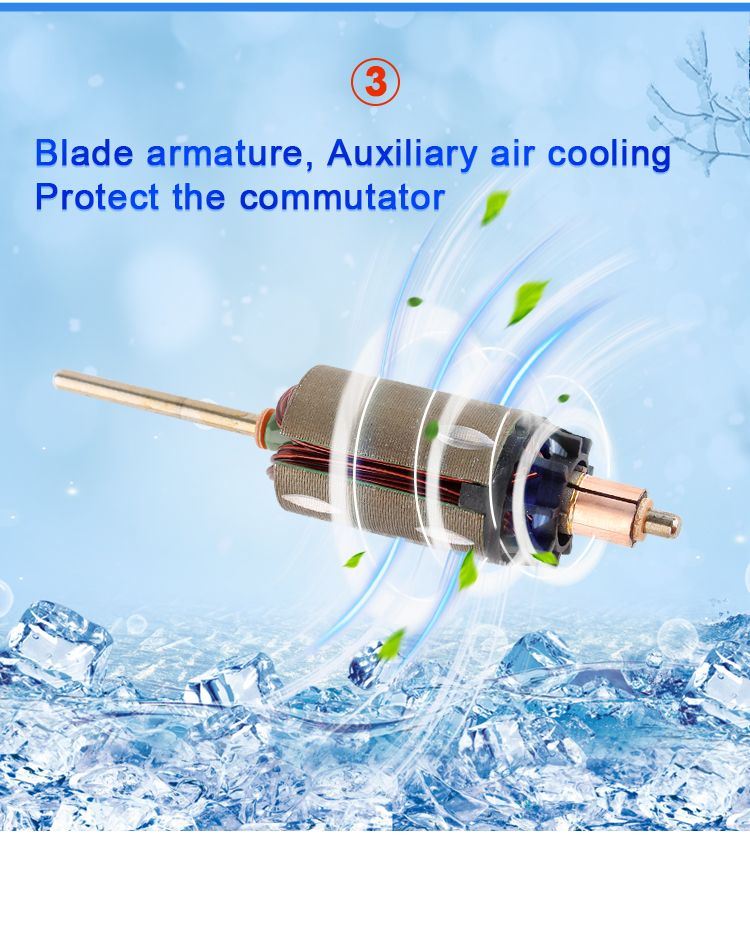

9-Armature with fan blades air cooling
High speed,high torque
High rate of fire powered support
Suggestion：
1. Wire sets over 1 square (silver plated wire better)
2.XT30 interface
with air cooling and heat dissipation,Heat up slowly
Dc high-torque long-axis motor is a kind of motor widely used in modern industry. It has the advantages of high torque, long axis and high efficiency, so it has been widely used in various industrial equipment.
Dc high-torque long-axis motor also has the advantages of fast response speed, wide speed range, flexible speed regulation, etc., which is widely used in industry and transportation fields. The motor can be seen in automobiles, ships, mines, robots and other fields.

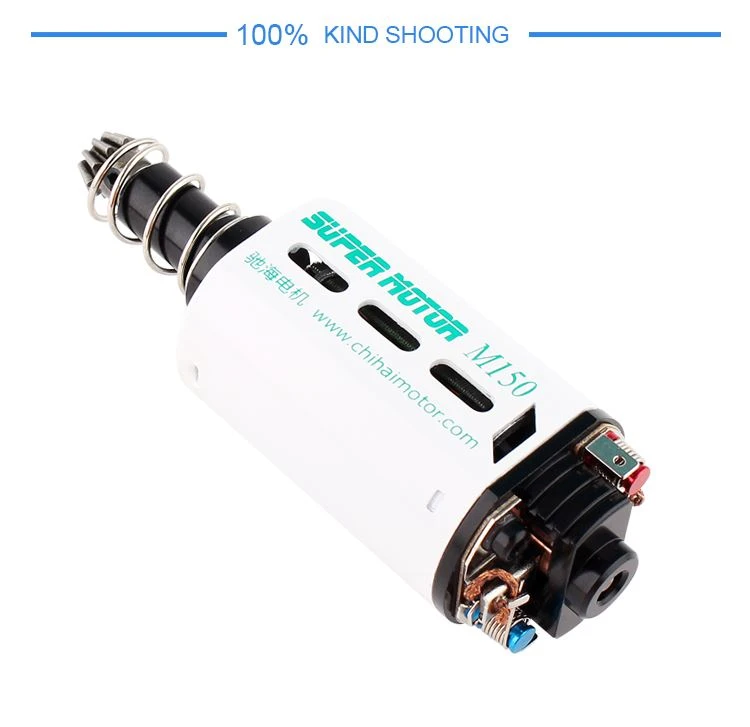

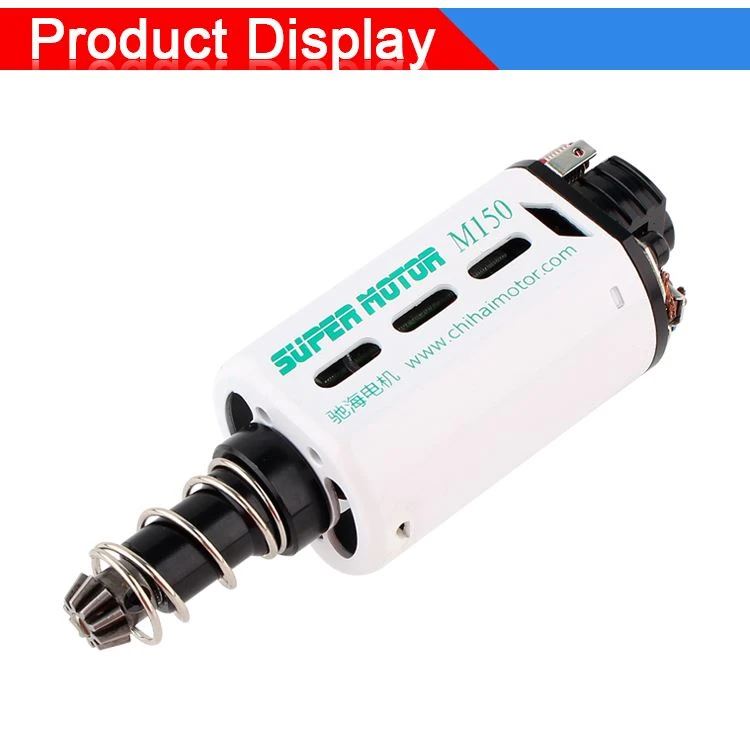

Detailed Images

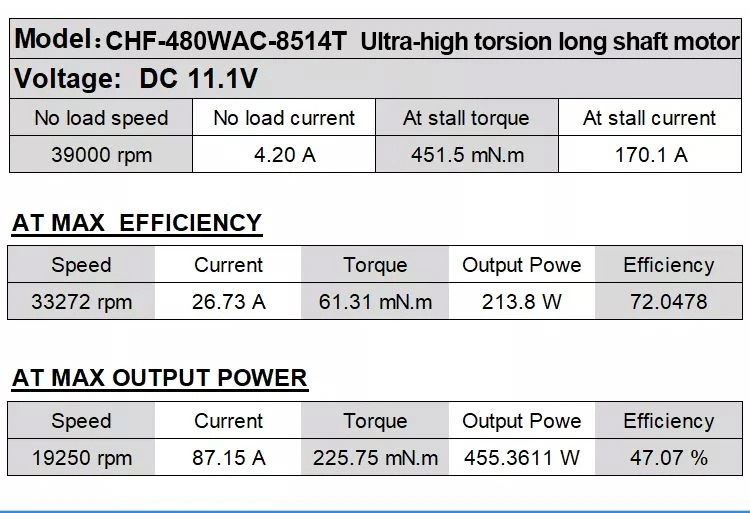

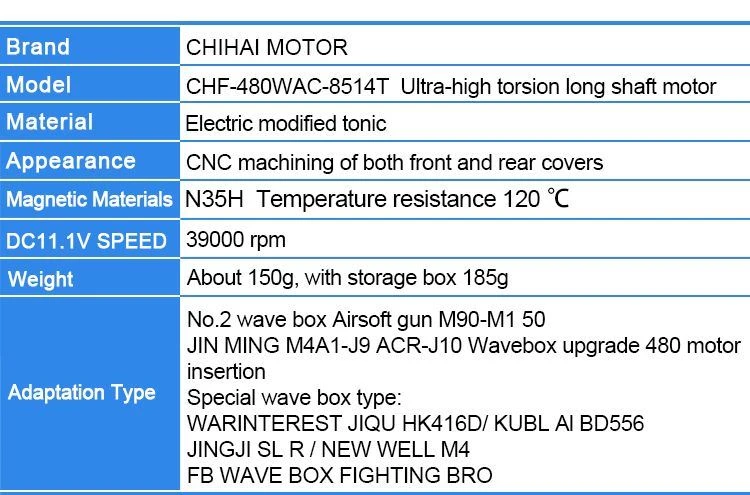

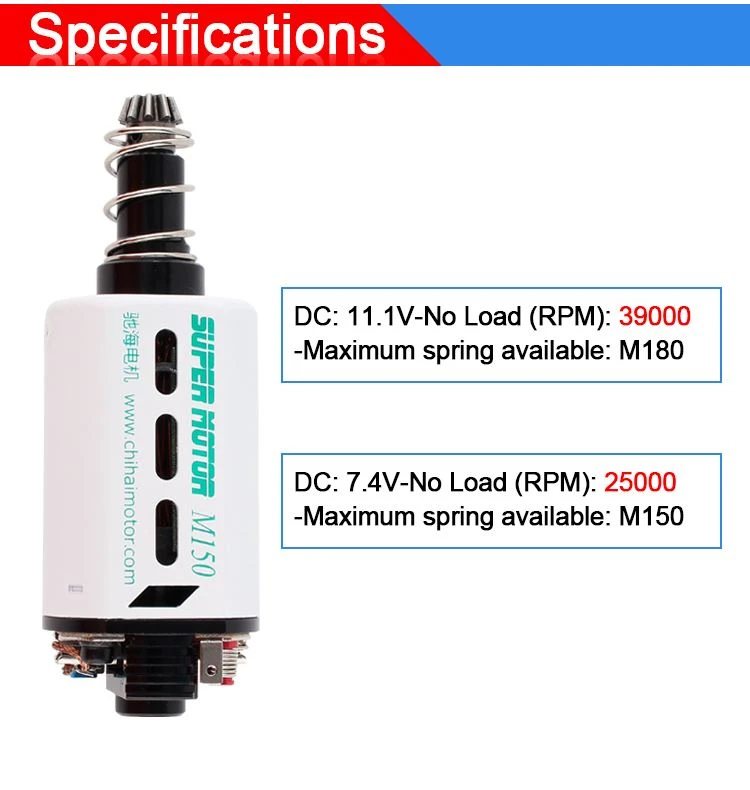

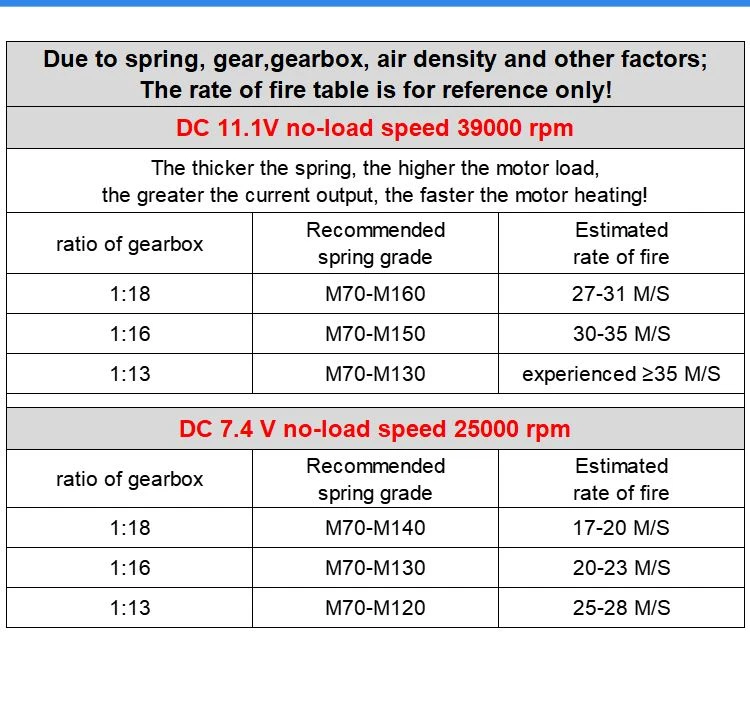

Product Parameters
Packing & Delivery
PACKAGE:
Standard export carton packing.
DELIVERY TIME:
3-20 days after confirming order,detail delivery date should be decided according to
production season and order quantity.
ATTENTION:
If special customs clearance documents are required, please contact us in advance for confirmation.
FAQ
Q:1.What kind of motors you can provide?
A: For now, We mainly provide micro motor and a series of dc deceleration motor, including straight tooth deceleration motor, planetary deceleration motor, worm deceleration motor.At present, our company focuses on developing various types of motors with voltage between 1VDC and 30VDC and motor diameter between 8 and 51mm.
Q:2. Can you send me a price list?
A: For all of our motors, they are customized based on different requirements like lifetime, noise, voltage, and shaft etc. The price also varies according to annual quantity. So it's really difficult for us to provide a price list. If you can share your detailed requirements and annual quantity, we'll see what offer we can provide.
Q:3. What's the lead time for regular order?
A: For orders, the standard lead time is 3-25 days and this time can be shorter or longer based on different model, period and quantity.
Q:4. Is it possible for you to develop new motors if we can provide tooling cost?
A: Yes. Please kindly share the detailed requirements like performance, size, annual quantity, target price etc. Then we'll make our evaluation to see if we can arrange or not.
Q:5.Could you send me free samples?
Yes,also we can return your samples fee back when you place order.
