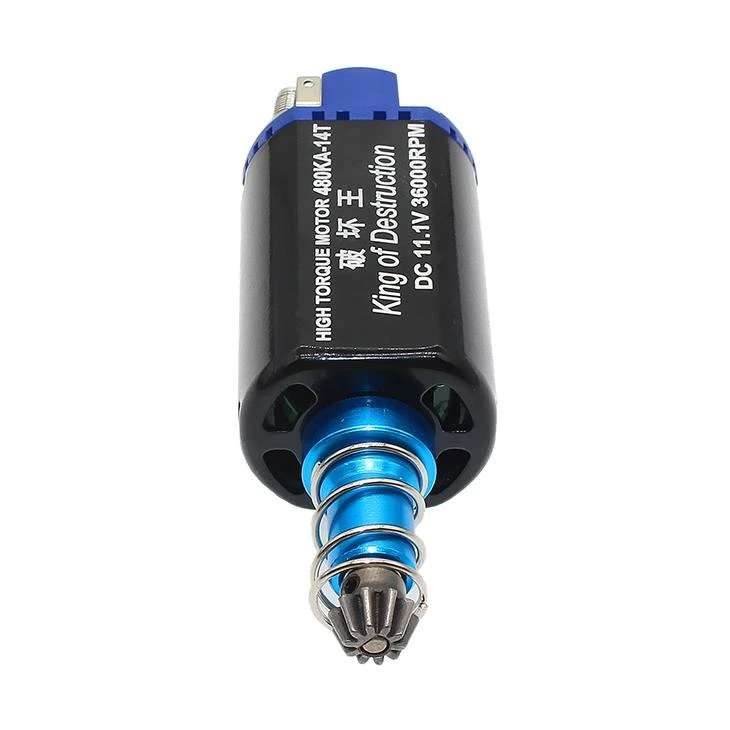

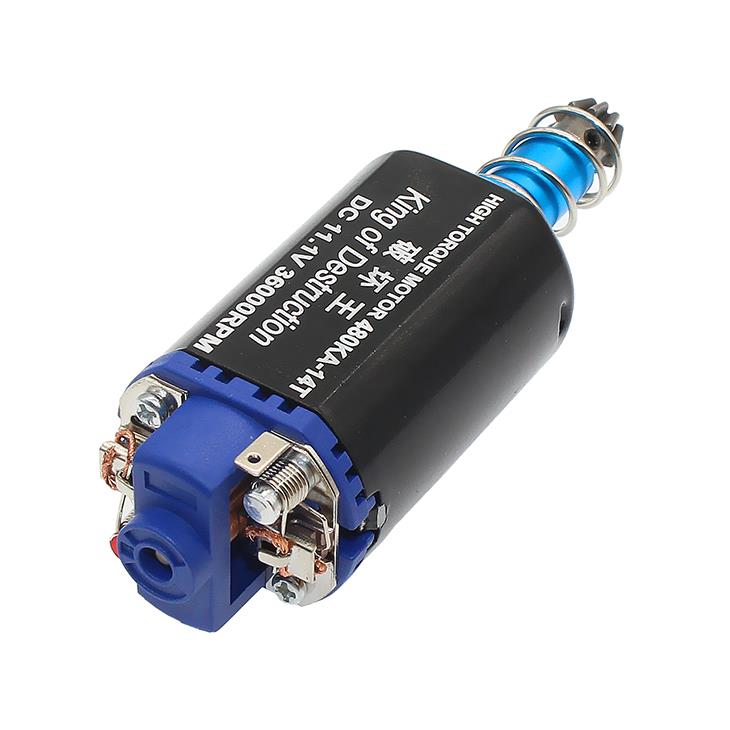

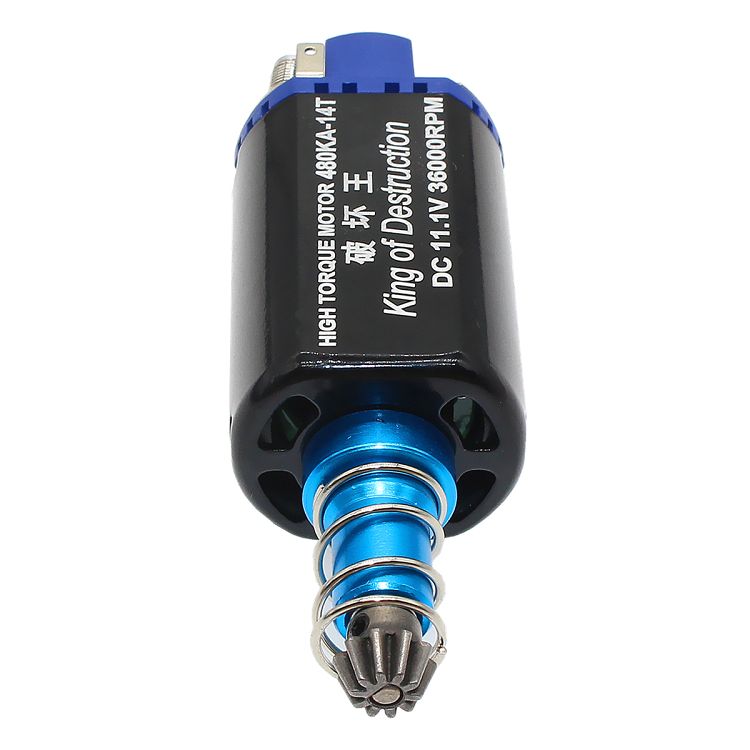

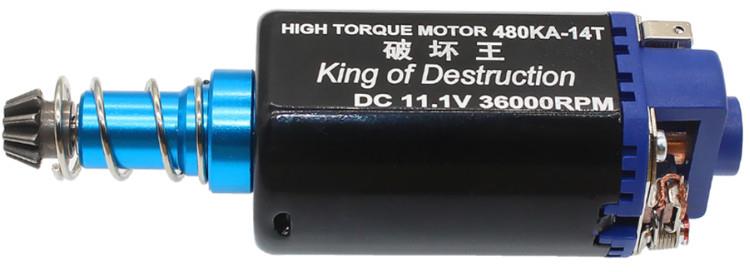

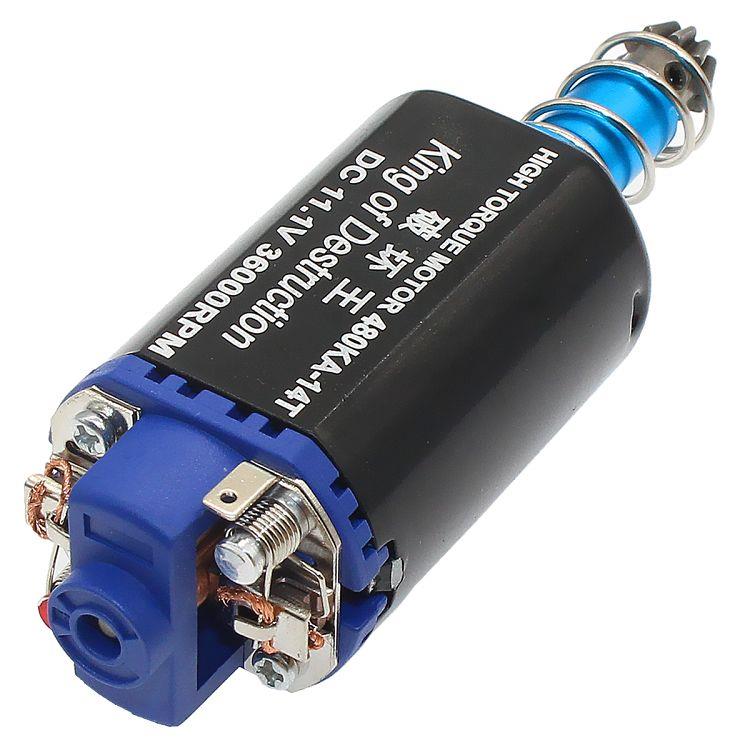

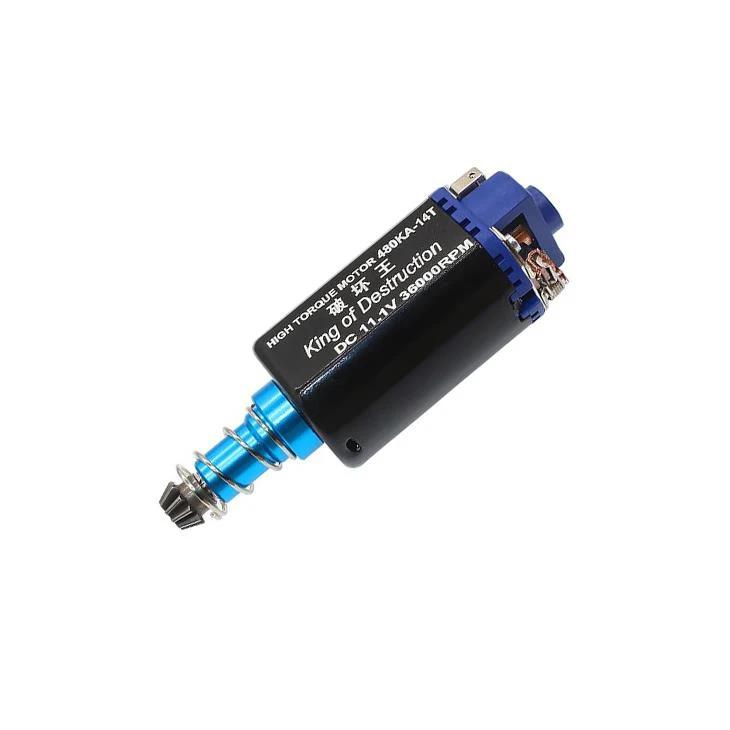

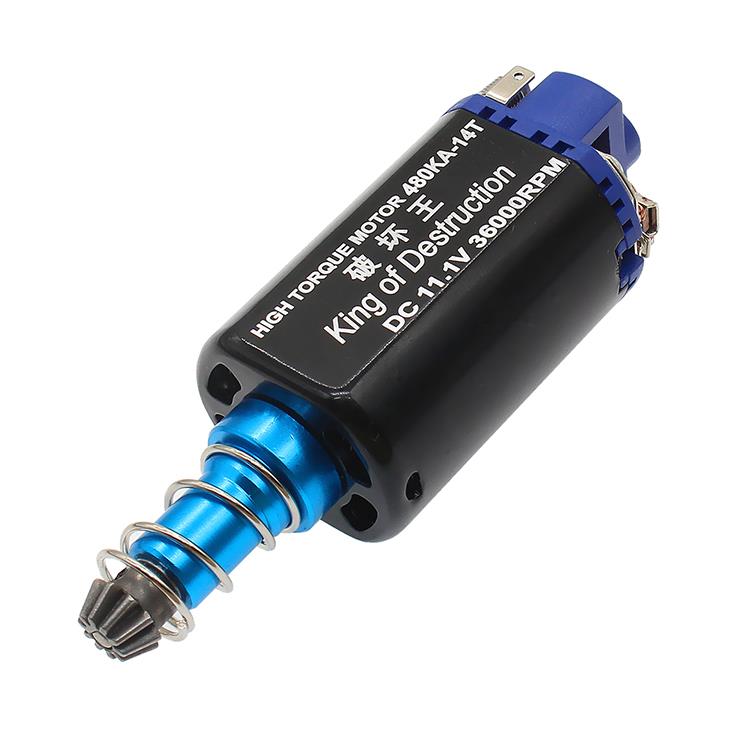

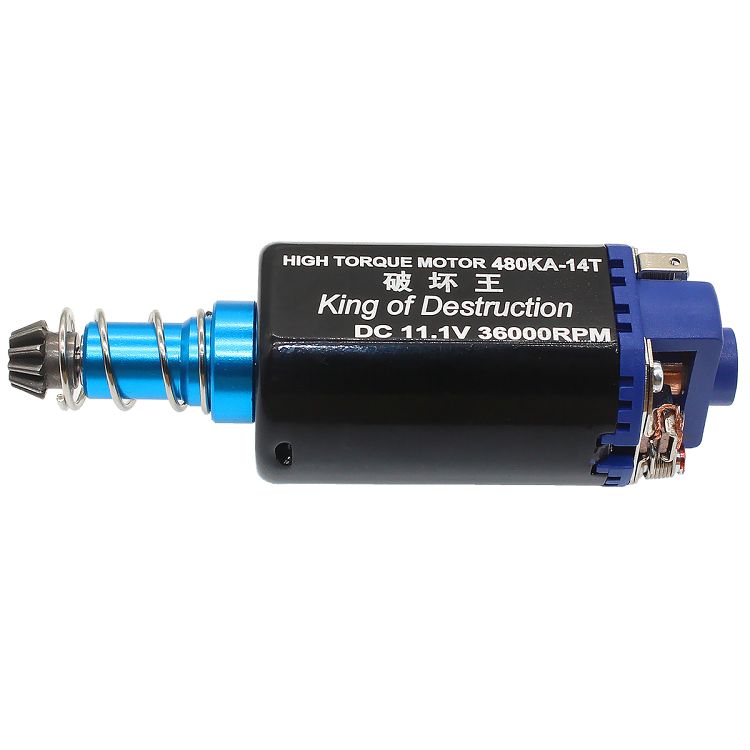

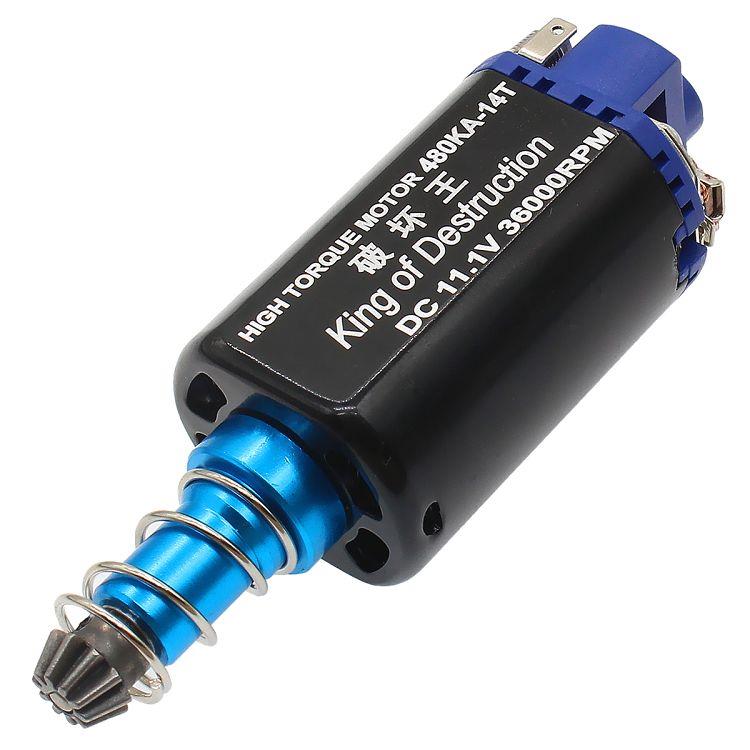

High Speed Carbon Brush Motor for Airsoft
The rotor coil: 0.85mm High temperature resistant copper wire-14T
Bonding rare earth internal magnetic strength: about 1700Gs
Model: CHF-480KA-8014（ BLACK+blue)

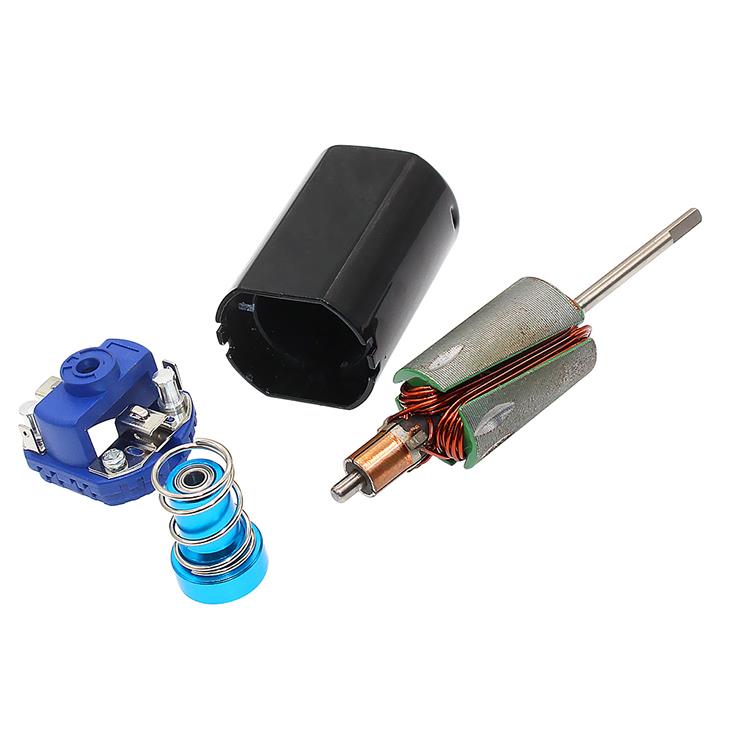

Product Description
Roduct Model | CHIHAI MOTOR CHF-480KA-8014（ BLACK+blue) |
The rotor coil | 0.85mm High temperature resistant copper wire-14T |
Bonding rare earth internal magnetic strength | about 1700Gs |
Case and back cover | contains two ball bearings |
alloy sleeve | contains a ball bearing |
Limit the spring | Manganese steel 1.0 wire diameter |
Metal bevel gear | D bore, side lock screw |
Motor housing surface | Black plating process |
DC11.1V | speed 36000 rpm |
Product Parameters
CHF-480KA-8014 | Product configuration | ||||
Voltage | DC 11.1V | The rotor coil:0.85mm High temperature resistant copper wire-14T | |||
No-load Speed | 36000±10% rpm | Bonding rare earth internal magnetic strength:about 1700Gs | |||
No-load Current | ≤5.0 A | alloy sleeve:contains a ball bearing | |||
Rated load | 500 g.cm | Case and back cover:contains two ball bearings | |||
Rated speed | 30000±10%rpm | Limit the spring:Manganese steel 1.0 wire diameter | |||
Rated Current | 25 A MAX | Metal bevel gear:D bore, side lock screw | |||
Rated Power | 160 W (Max 260w) | Motor housing surface:Black plating process | |||
STALL Torque | ≥ 2600 g.cm | ||||
STALL Current | ≤120 A | ||||
Motor weight | about 150 grams. | ||||
Product outline drawings | |||||
| |||||
Packing & Delivery
PACKAGE:
Standard export carton packing.
DELIVERY TIME:
3-20 days after confirming order,detail delivery date should be decided according to
production season and order quantity.
ATTENTION:
If special customs clearance documents are required, please contact us in advance for confirmation.
