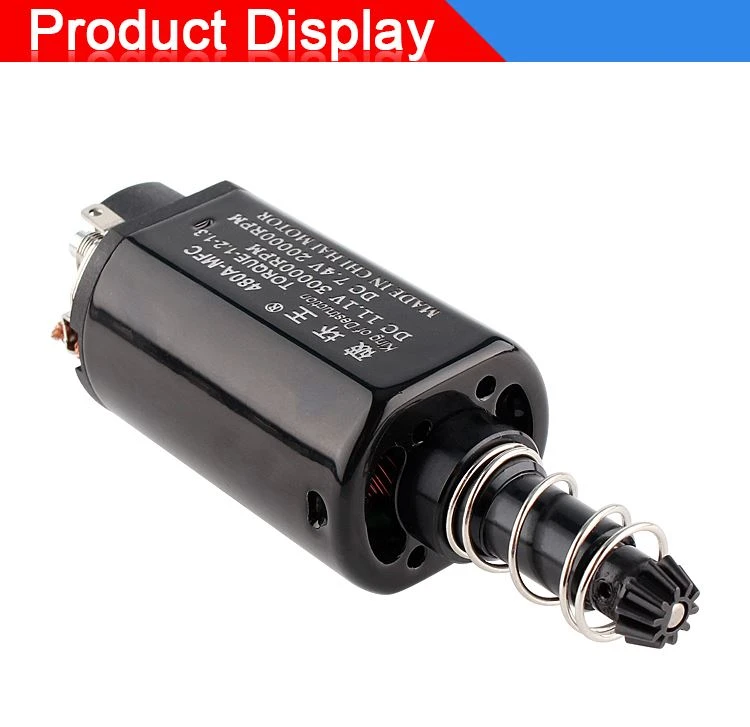

Long-shaft 30000rpm High Speed DC AEG Motor
Outer diameter: 29.6mm x 25mm * 88.5mm (with shaft and gear).
Output bevel gear: 10 teeth D hole hardened and hardened gear

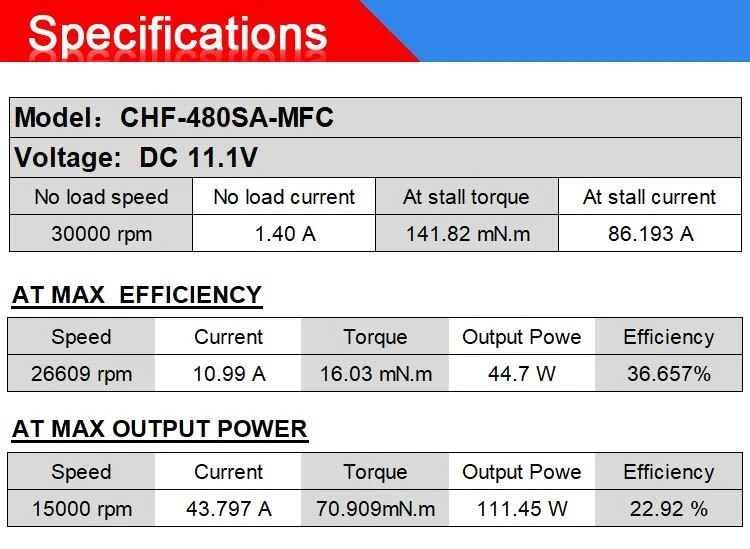

Product Description
Product Type: | CHF-480SA-MFC high speed DC AEG motor |
Operating voltage: | DC 7.4-12V |
Performance: | DC 7.4V 20000rpm DC 11.1V 30000rpm |
Axle length: | length 30.5mm (batch customizable) |
Outer diameter: | 29.6mm x 25mm * 88.5mm (with shaft and gear). |
Output bevel gear: | 10 teeth D hole hardened and hardened gear |
Weight: | about 140g |
Application | No. 2 wave box Airsoft gun M90-M120 JIN MING M4A1-J9 ACR-J10 Wavebox upgrade 480 motor insertion（Special motor brackets are |
Detailed Images
Product Paramet
Packing & Delivery
PACKAGE:
Standard export carton packing.
DELIVERY TIME:
3-20 days after confirming order,detail delivery date should be decided according to
production season and order quantity.
ATTENTION:
If special customs clearance documents are required, please contact us in advance for confirmation.
FAQ
Q:1.What kind of motors you can provide?
A: For now, We mainly provide micro motor and a series of dc deceleration motor, including straight tooth deceleration motor, planetary deceleration motor, worm deceleration motor.At present, our company focuses on developing various types of motors with voltage between 1VDC and 30VDC and motor diameter between 8 and 51mm.
Q:2. Can you send me a price list?
A: For all of our motors, they are customized based on different requirements like lifetime, noise, voltage, and shaft etc. The price also varies according to annual quantity. So it's really difficult for us to provide a price list. If you can share your detailed requirements and annual quantity, we'll see what offer we can provide.
Q:3. What's the lead time for regular order?
A: For orders, the standard lead time is 3-25 days and this time can be shorter or longer based on different model, period and quantity.
Q:4. Is it possible for you to develop new motors if we can provide tooling cost?
A: Yes. Please kindly share the detailed requirements like performance, size, annual quantity, target price etc. Then we'll make our evaluation to see if we can arrange or not.
Q:5.Could you send me free samples?
Yes,also we can return your samples fee back when you place order.
Hot Tags: long-shaft 30000rpm high speed dc aeg motor, China, manufacturers, factory, customized, wholesale, bulk, in stock, Gear Motor For Airsoft BBgun, Long Axle High Torque Motor, Long Shaft High Torque AEG Motor, Long Shaft High Speed Torque Motor, Long Shaft High Speed Airsoft Motor, G P Long Shaft Airsoft Motor
