2847 Brushless DC MOTOR WITH 28MM PLANETARY GEARBOX
Weight:About 230g
Application:Home and office Automation,Banking and Medical Equipment, Industrial Automation Equipment and Intelligent Instruments
Product Description
Brand: | chihai motor |
Model: | CHP-28GP-BLDC2847 Brushless DC planetary gear reduction motor |
Diameter: | ∮28mm |
Shaft length: | 15mm |
Voltage: | DC 6~24V |
Weight: | About 230g |
Application: | Home and office Automation,Banking and Medical Equipment, Industrial Automation Equipment and Intelligent Instruments |
Features:
Combine with 28mm brushless dc motor
Shaft can be custom made such as threaded shaft
Special customized gears available
Oil-impregnated bearing or ball bearing
28mm high precision metal planetary gearbox
Built-in driver (built-in driver Controller with hall sensor)
PWM pulse wide speed range
Clockwise/counter-clockwise rotation
FG speed feedback signal
Low EMC
Low noise
Long life: 20000hrs Min.
Over-current protection
Over-voltage protection
Under-voltage protection
OEM and ODM orders are welcome
The design can be customized

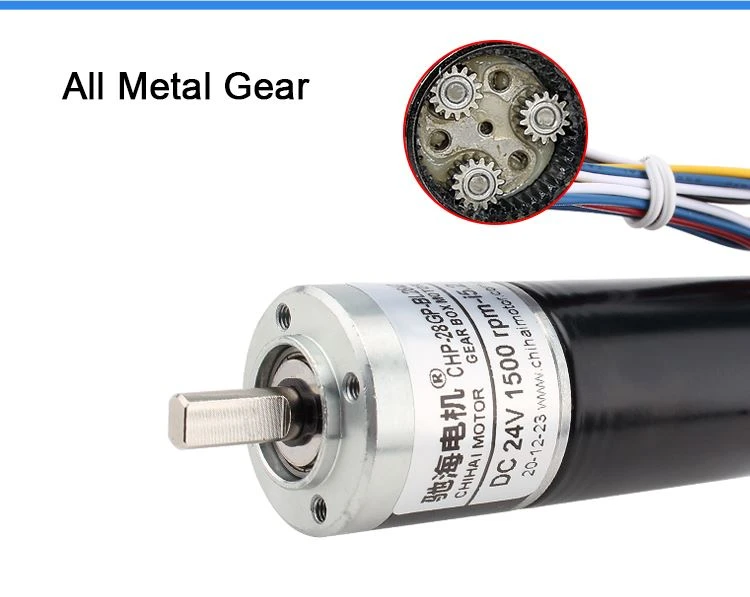

Detailed Images

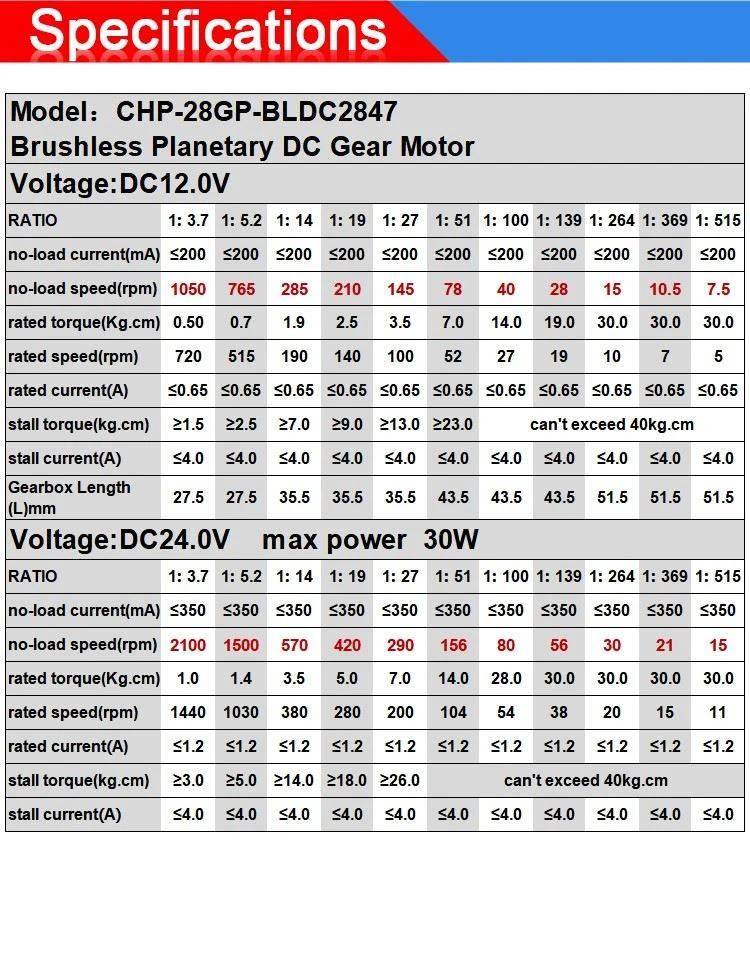

Product Paramet
Packing & Delivery
PACKAGE:
Standard export carton packing.
DELIVERY TIME:
3-20 days after confirming order,detail delivery date should be decided according to
production season and order quantity.
ATTENTION:
If special customs clearance documents are required, please contact us in advance for confirmation.
FAQ
Q:1.What kind of motors you can provide?
A: For now, We mainly provide micro motor and a series of dc deceleration motor, including straight tooth deceleration motor, planetary deceleration motor, worm deceleration motor.At present, our company focuses on developing various types of motors with voltage between 1VDC and 30VDC and motor diameter between 8 and 51mm.
Q:2. Can you send me a price list?
A: For all of our motors, they are customized based on different requirements like lifetime, noise, voltage, and shaft etc. The price also varies according to annual quantity. So it's really difficult for us to provide a price list. If you can share your detailed requirements and annual quantity, we'll see what offer we can provide.
Q:3. What's the lead time for regular order?
A: For orders, the standard lead time is 3-25 days and this time can be shorter or longer based on different model, period and quantity.
Q:4. Is it possible for you to develop new motors if we can provide tooling cost?
A: Yes. Please kindly share the detailed requirements like performance, size, annual quantity, target price etc. Then we'll make our evaluation to see if we can arrange or not.
Q:5.Could you send me free samples?
Yes,also we can return your samples fee back when you place order.
