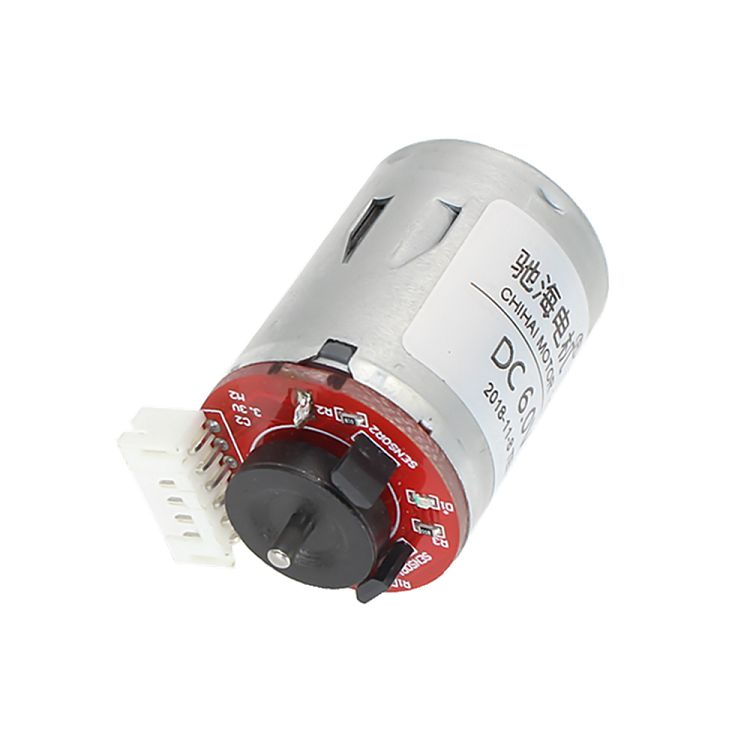

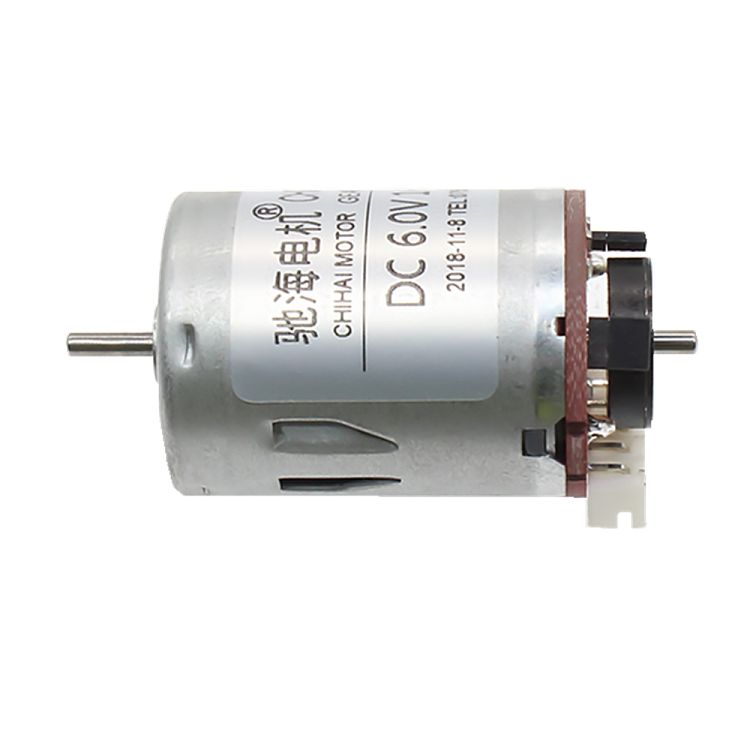

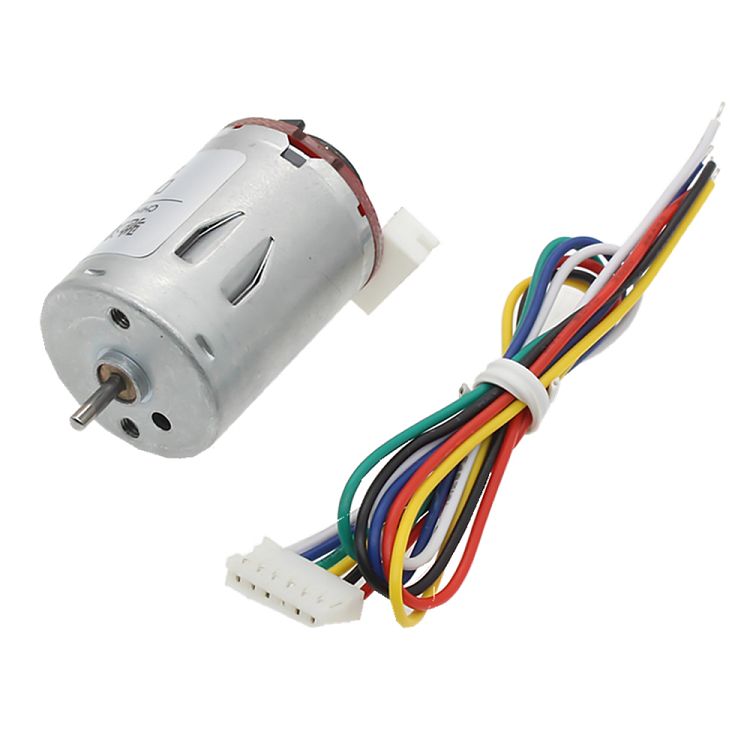

370 Mini Encoder Motor for Toy Robot
2.D type shaft: more convenient to install,not easy to skid,save installation time.
Model: CHR-370K ABHL
Product Description
Product Type： | CHR-370K dc encoder motor |
Output shaft ： | D |
Shaft diameter： | 2mm |
Voltage range： | DC6- 24.0V |
Weight： | About 53 g |
1.Pure copper winding:The rotor part is made of pure copper, with small resistance and strong electrical conductivity, which increases the motor torque.
2.D type shaft: more convenient to install,not easy to skid,save installation time.
3.Extended carbon brush:tool extended carbon brush,replaceable
Product Parameters
Specifications | ||||||
Model: CHR-GM25-370ABHL Holzer Encoder DC Motor | ||||||
Reduction Ratio | 1:10 | 1:20 | 1:34 | 1:34 | 1:75 | |
No load Speed(rpm) | 600 | 300 | 210 | 165 | 100 | |
No load Current(mA) | ≤60 | ≤100 | ≤130 | ≤130 | ≤130 | |
Rated Torque(kg.cm) | 0.90 | 1.80 | 5.20 | 2.90 | 7.00 | |
Rated Torque(N.m) | 0.09 | 0.177 | 0.5 | 0.28 | 0.69 | |
Rated Speed(rpm) | 310 | 160 | 110 | 90 | 55 | |
Rated Current(A) | ≤0.8 | ≤0.8 | ≤1.1 | ≤1.1 | ≤1.5 | |
Stall Torque(kg.cm) | 1.8 | 3.6 | 10.0 | 6.0 | 10.0 | |
Stall Current (A) | ≤2.7 | ≤2.7 | ≤3.5 | ≤3.0 | ≤3.5 | |

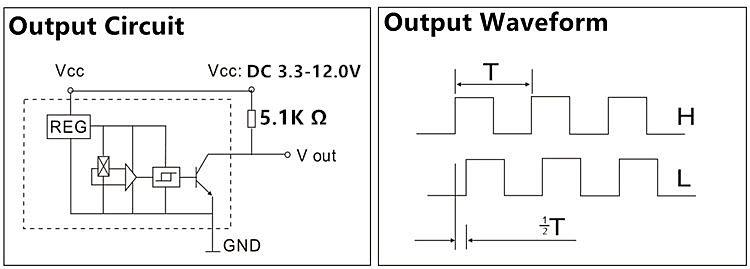

Hall resolution(PPR) | 102.3 | 224.5 | 341.2 | 341.2 | 823.1 | |
Length of gearbox | 19.0 | 19.0 | 21.0 | 21.0 | 23.0 | |
Voltage:12V |
|
|
|
|
|
|
Reduction Ratio | 1:4.4 | 1:10 | 1:20 | 1:34 | 1:20 | 1:45 |
No load Speed(rpm) | 2700 | 1290 | 600 | 350 | 220 | 140 |
No load Current(mA) | ≤200 | ≤200 | ≤200 | ≤200 | ≤130 | ≤150 |
Rated Torque(kg.cm) | 0.8 | 1.7 | 3.5 | 5.8 | 2.9 | 4.3 |
Rated Torque(N.m) | 0.08 | 0.17 | 0.34 | 0.57 | 0.28 | 0.42 |
Rated Speed(rpm) | 1600 | 700 | 350 | 180 | 130 | 70 |
Rated Current(A) | ≤1.5 | ≤1.5 | ≤1.5 | ≤1.7 | ≤1.0 | ≤0.8 |
Stall Torque(kg.cm) | 1.8 | 3.5 | 7.0 | 12.0 | 5.0 | 8.5 |
Stall Current (A) | ≤5.6 | ≤5.6 | ≤5.6 | ≤5.6 | ≤2.5 | ≤2.5 |
Hall resolution(PPR) | 44 | 102.3 | 224.5 | 341.2 | 224.5 | 493.9 |
Length of gearbox | 19 | 19 | 19 | 21 | 19 | 21 |
Voltage:24V |
|
|
|
|
|
|
Reduction Ratio | 1:4.4 | 1:10 | 1:20 | 1:34 | 1:45 | 1:24 |
No load Speed(rpm) | 2700 | 1290 | 600 | 350 | 265 | 180 |
No load Current(mA) | ≤150 | ≤150 | ≤150 | ≤150 | ≤150 | ≤100 |
Rated Torque(kg.cm) | 0.6 | 1.4 | 2.8 | 5.0 | 6.5 | 3.0 |
Rated Torque(N.m) | 0.059 | 0.14 | 0.27 | 0.49 | 0.64 | 0.29 |
Rated Speed(rpm) | 1200 | 580 | 300 | 170 | 130 | 110 |
Rated Current(A) | ≤2.4 | ≤2.4 | ≤2.4 | ≤2.4 | ≤2.4 | ≤1.3 |
Stall Torque(kg.cm) | 1.0 | 2.2 | 4.5 | 8.0 | 10.0 | 6.0 |
Stall Current (A) | ≤5.0 | ≤5.0 | ≤5.0 | ≤5.0 | ≤5.0 | ≤2.5 |
Hall resolution(PPR) | 44.0 | 102.3 | 224.5 | 341.2 | 493.9 | 341.2 |
Length of gearbox | 19 | 19 | 19 | 21 | 21 | 21 |
Packing & Delivery
PACKAGE:
Standard export carton packing.
DELIVERY TIME:
3-20 days after confirming order,detail delivery date should be decided according to
production season and order quantity.
ATTENTION:
If special customs clearance documents are required, please contact us in advance for confirmation.
