5840-3162 D Shaft Dc 12V 24V Powerful Torque Turbo Worm Geared Coding Motor
Product Description
Product Type: | CHW-GW4058-3162ABHL a single output shaft. DC6v 12V 24V Powerful Torque Turbo Worm Geared Motor Type-D Shaft High Power Reversed Low Speed Big Worm Gear Motor with encoder | |||
Shaft length: | 15mm (can be customized for bidirectional output shaft) | |||
shaft diameter: | 8mm D | |||
Voltage range: | DC6- 24.0V | |||
Weight: | about 350g | |||
Application: | Intelligent self-balancing dual-wheel car, intelligent tracking car, intelligent appliances, robot, camera rocker arm, electric paper cutter, etc | |||
1.Direction of rotation of the motor: CW Or CCW, Support Reversed; Control the clockwise or counterclockwise rotation of the motor by changing the way the positive and negative electrodes are connected
2.Gear material: Metal gears make the motor last longer

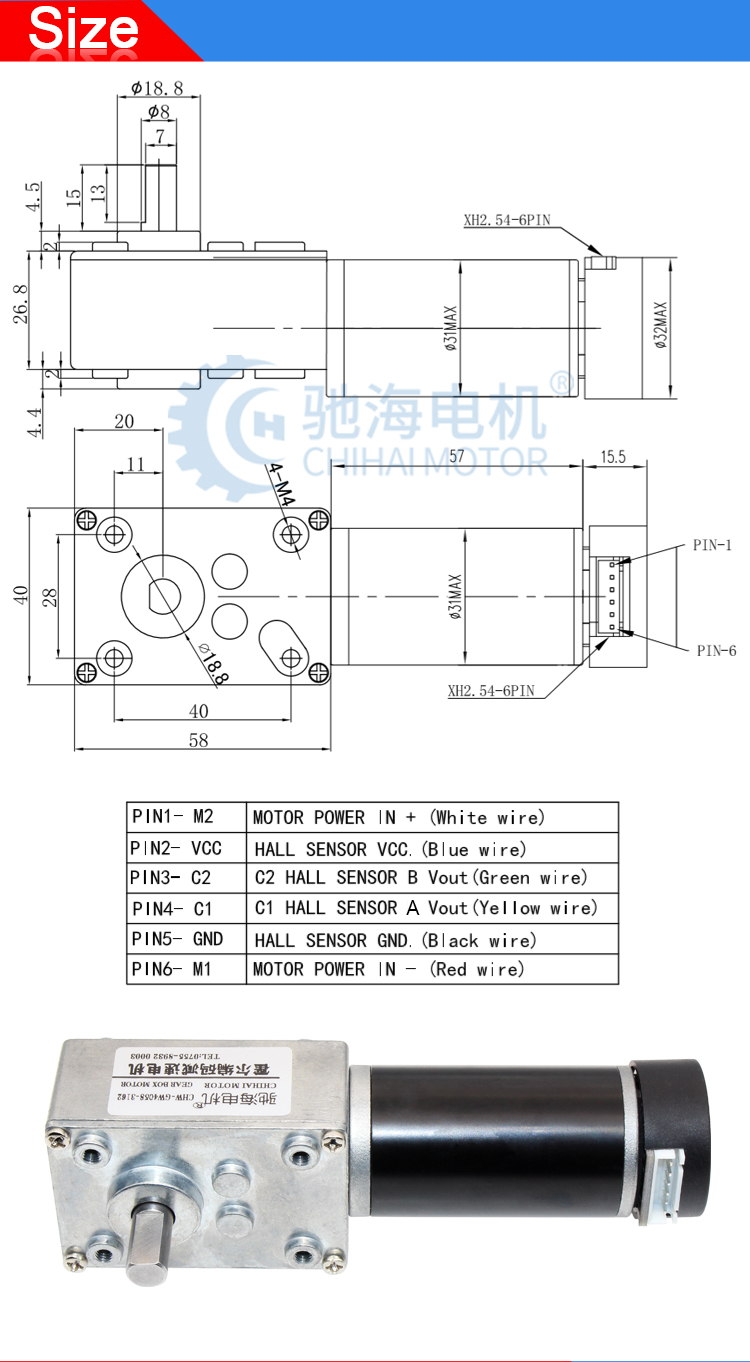

3.The shaft shape of the motor : D Shaft, please refer to the size chart below for all dimensions of the motor.
Detailed Images
Product Paramenters
Application
Certifications
Company Profile
Packing & Delivery
PACKAGE:
Standard export carton packing.
DELIVERY TIME:
3-20 days after confirming order,detail delivery date should be decided according to production season and order quantity.
ATTENTION:
If special customs clearance documents are required, please contact us in advance for confirmation.
FAQ
Q:1.What kind of motors you can provide?
A: For now, We mainly provide micro motor and a series of dc deceleration motor, including straight tooth deceleration motor, planetary deceleration motor, worm deceleration motor.At present, our company focuses on developing various types of motors with voltage between 1VDC and 30VDC and motor diameter between 8 and 51mm.
Q:2. Can you send me a price list?
A: For all of our motors, they are customized based on different requirements like lifetime, noise, voltage, and shaft etc. The price also varies according to annual quantity. So it's really difficult for us to provide a price list. If you can share your detailed requirements and annual quantity, we'll see what offer we can provide.
Q:3. What's the lead time for regular order?
A: For orders, the standard lead time is 3-25 days and this time can be shorter or longer based on different model, period and quantity.
Q:4. Is it possible for you to develop new motors if we can provide tooling cost?
A: Yes. Please kindly share the detailed requirements like performance, size, annual quantity, target price etc. Then we'll make our evaluation to see if we can arrange or not.
Q:5.Could you send me free samples?
Yes,also we can return your samples fee back when you place order.
