M6 Scraw Shaft 545 Motor With 37mm Gearbox For Car Parts
Shaft length: 58mm

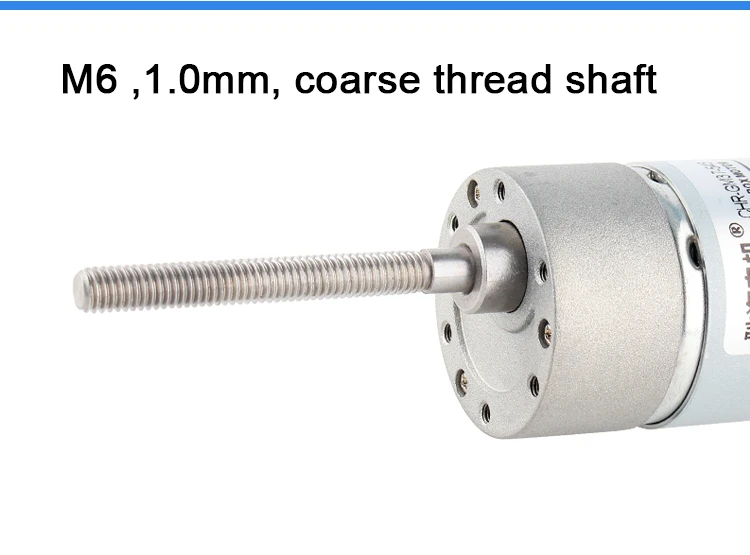

Shaft Dianeter: M6 pitch, 1.0mm, coarse thread shaft
Product Description
Product Type: | CHR-GM37-545 DC gear motor |
Size： | Φ37mm |
Shaft length： | 58mm |
Shaft Dianeter: | M6 pitch, 1.0mm, coarse thread shaft |
Voltage: | DC 12-24V |
Weight： | About 267g |
Application: | Intelligent self-balancing two-wheeled car, intelligent tracking car, intelligent home appliancesRobot, camera rocker arm, electric paper cutting machine, etc |
Feature:
Gearhead motor
High quality
With metal cover
Heavy duty design

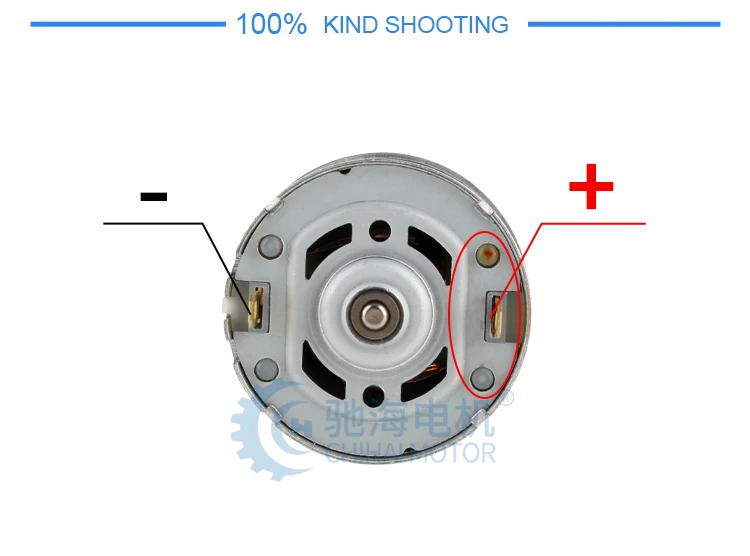

Runs in either direction by reversing power supply polarity
Benefiting from high torque and low noise, this motor is solidly constructed and ready to install in numerous applications
Typical application: Valve, Vending machine, Safe box dc motor, Robotics, Power tools, Sliding gate, Solar system, Dispenser motors
9. Customized service: Motor's performance parameter, Shaft type, Wires and connectors, Encoders

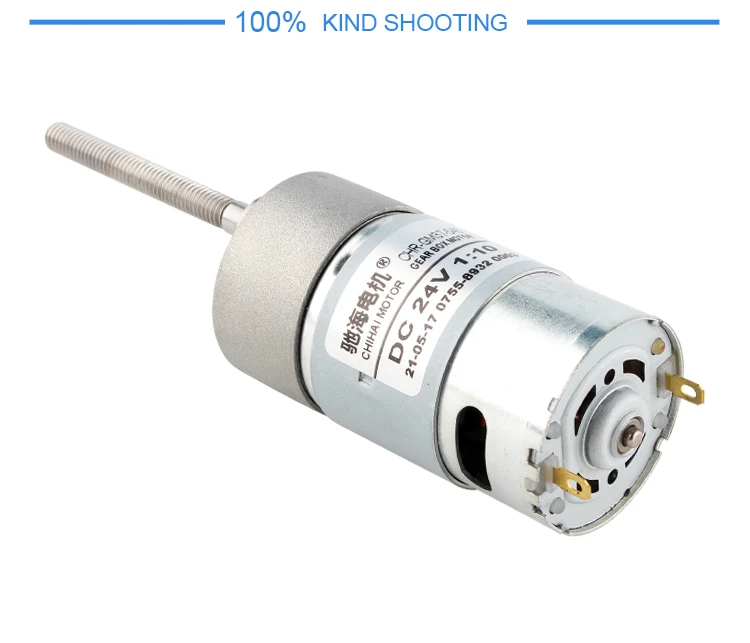

Detailed Images
Product & specifications
Model: CHR-GM37-545 DC gear motor | ||
Voltage | 24.0V | 12.0V |
No-load Current | 0.35 A | 0.25 A |
No-load speed | 720 rpm | 350 rpm |
RATIO 1: 10 | ||
MAX EFF.OUTPUT | 6.9 W | 2.0 W |
MAX EFF.TORQUE | 1.0 kg.cm | 0.6 kg.cm |
MAX EFF.CURRENT | 1.4 A | 0.83 A |
MAX EFF.SPEED | 600 rpm | 280 rpm |
M6 pitch, 1.0mm, coarse thread shaft | ||
MAX EFF.OUTPUT | 13 W | 3.1 W |
MAX EFF.TORQUE | 3.5 g.cm | 1.7 g.cm |
MAX EFF.CURRENT | 3.75 A | 1.8 A |
MAX EFF.SPEED | 360 rpm | 170 rpm |
STALL TORQUE | ≥6.5 kg.cm | ≥3.0 kg.cm |
STALL CURRENT | ≤7.5 A | ≤3.8 A |

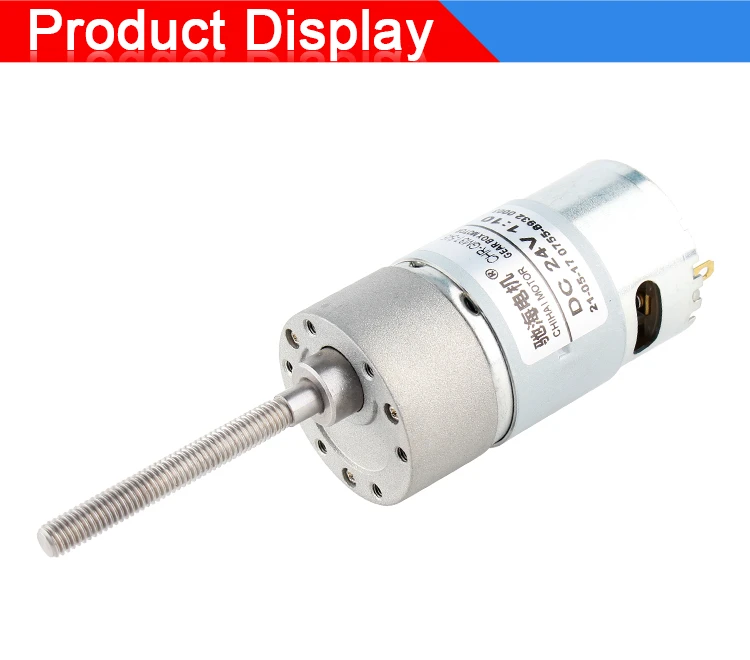

Product &display
Packing & Delivery
PACKAGE:
Standard export carton packing.
DELIVERY TIME:
3-20 days after confirming order,detail delivery date should be decided according to
production season and order quantity.
ATTENTION:
If special customs clearance documents are required, please contact us in advance for confirmation.
FAQ
Q:1.What kind of motors you can provide?
A: For now, We mainly provide micro motor and a series of dc deceleration motor, including straight tooth deceleration motor, planetary deceleration motor, worm deceleration motor.At present, our company focuses on developing various types of motors with voltage between 1VDC and 30VDC and motor diameter between 8 and 51mm.
Q:2. Can you send me a price list?
A: For all of our motors, they are customized based on different requirements like lifetime, noise, voltage, and shaft etc. The price also varies according to annual quantity. So it's really difficult for us to provide a price list. If you can share your detailed requirements and annual quantity, we'll see what offer we can provide.
Q:3. What's the lead time for regular order?
A: For orders, the standard lead time is 3-25 days and this time can be shorter or longer based on different model, period and quantity.
Q:4. Is it possible for you to develop new motors if we can provide tooling cost?
A: Yes. Please kindly share the detailed requirements like performance, size, annual quantity, target price etc. Then we'll make our evaluation to see if we can arrange or not.
Q:5.Could you send me free samples?
Yes,also we can return your samples fee back when you place order.
