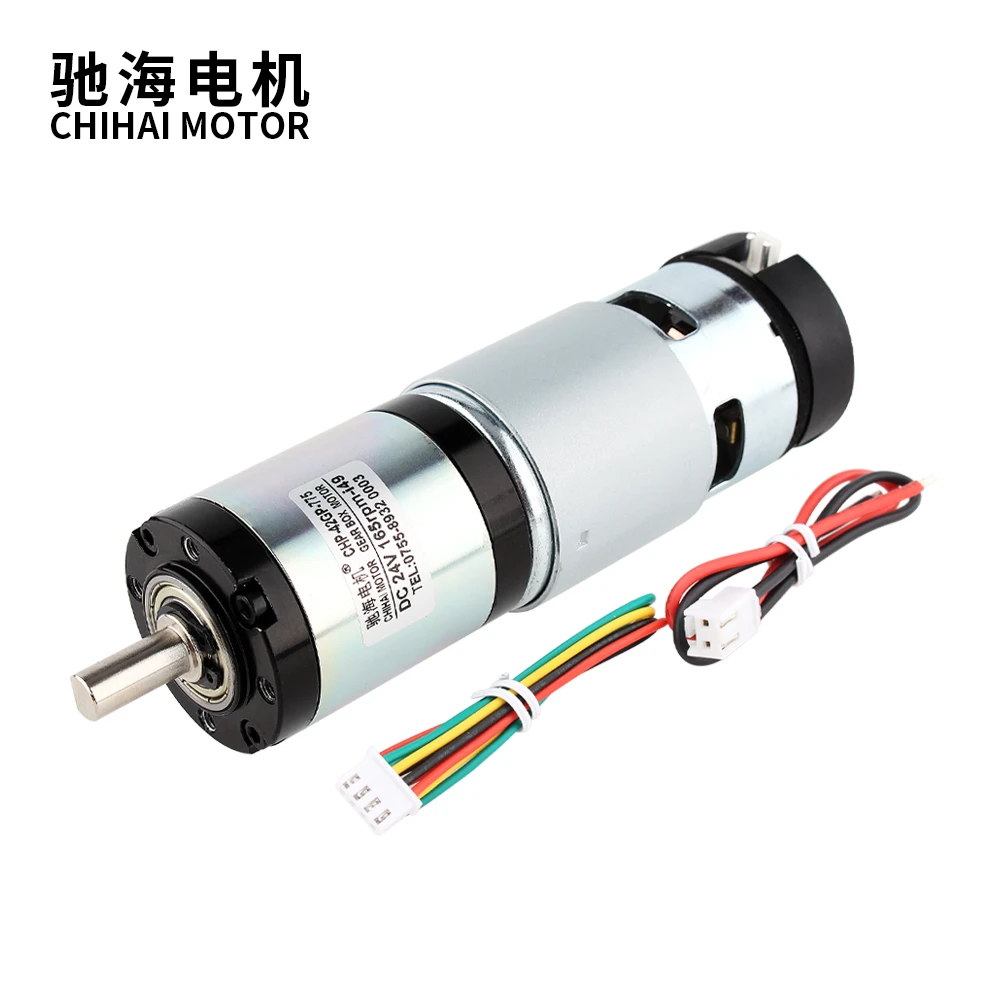

42GP Permanent Magnet Dc Planetary Reduction Motor
Product Description
| Product Type |
CHP-42GP-775-ABHL Permanent magnet dc planetary reduction motor |

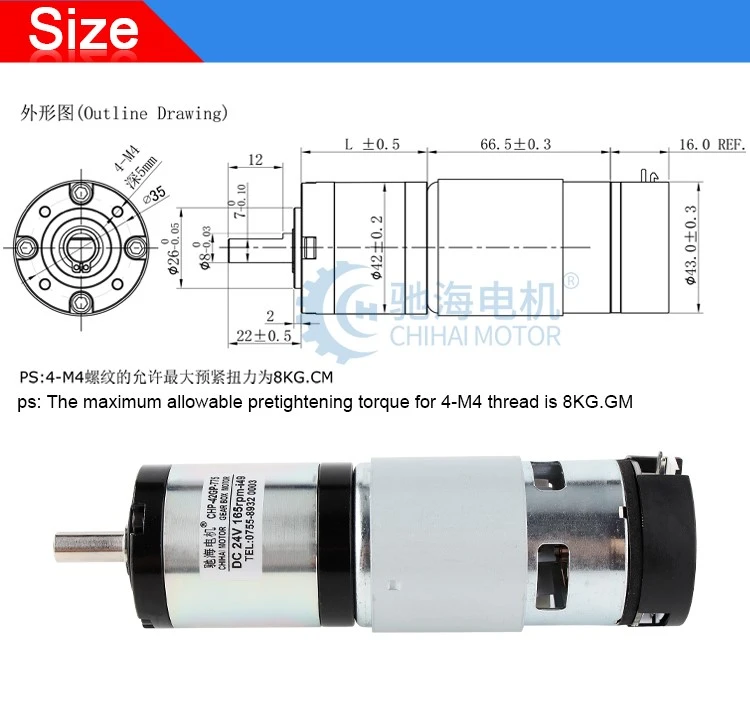

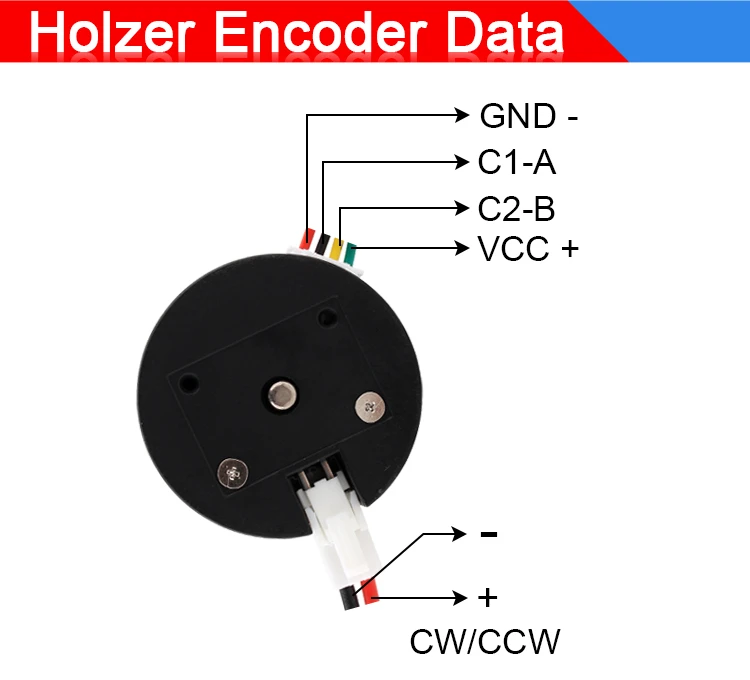

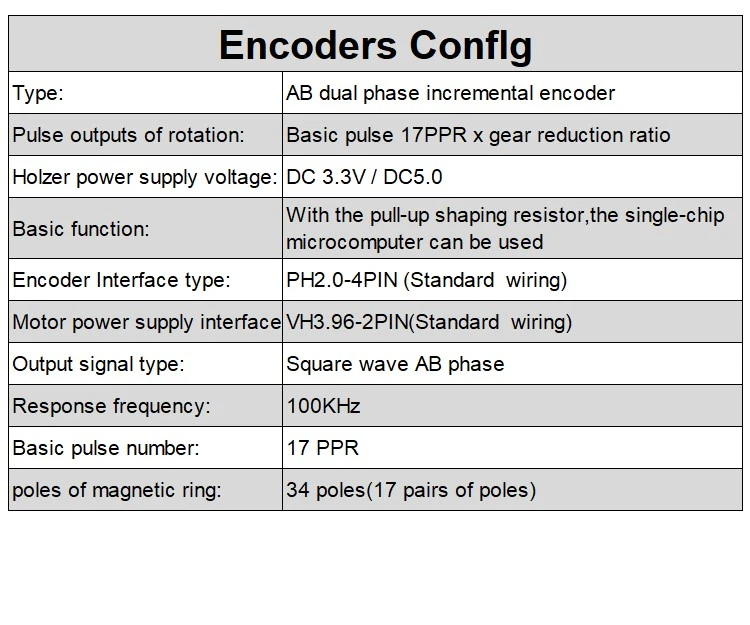

| external diameter | Φ42mm |
| Shaft length | 22mm. D length 12mm |
| Shaft Dianeter | 8mm D |
| Voltage | DC 12-24V |
| Weight | About 795g |
| Wiring specification | PH2.0-4PIN Standard connection terminal line,wire length 200mm |
| Specifications | VH3.96-2PIN Standard wiring wire length 200mm |
Planetary gear motor is a very advanced mechanical equipment with powerful driving force and reliable performance. It is widely used in a variety of mechanical equipment, such as industrial machinery and automation equipment.
Planetary geared motors have a variety of advantages, such as high efficiency, stable performance and durability. One of the most important advantages is that their driving force is so powerful that they can withstand a large number of loads and at the same time will not malfunction due to prolonged operation. In addition, planetary geared motors have excellent speed control performance, which can be adjusted according to the actual need to adapt to a variety of different needs.
In addition, planetary geared motors are also compact, small and lightweight!

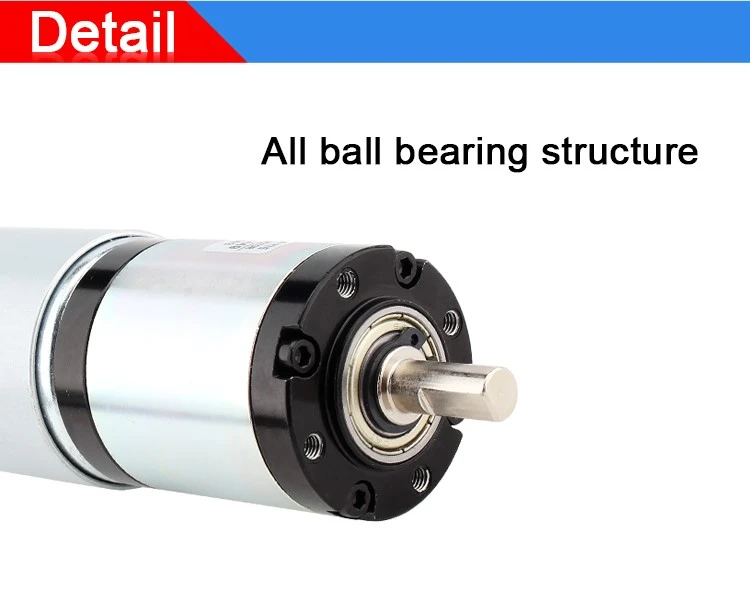

Detailed Images
Product & specifications
| Model：CHP-42GP-775ABHL DC Planetary gear motor |
| Voltage:DC12.0V max power 35 W |
| Special note: due to the high power and current of the motor, the power supply must be above 10A, and the lithium battery should be powered 25C |
| RATIO | 1: 3.7 | 1: 5 | 1: 13 | 1: 18 | 1: 25 | 1: 49 | 1: 67 | 1: 92 | 1: 125 | 1: 181 | 1: 246 | 1: 336 | 1: 458 | 1: 625 |
| Number of stages | 1 | 1 | 2 | 2 | 2 | 3 | 3 | 3 | 3 | 4 | 4 | 4 | 4 | 4 |
| No-load current(mA) | ≤500 | ≤500 | ≤500 | ≤500 | ≤500 | ≤500 | ≤500 | ≤500 | ≤500 | ≤500 | ≤500 | ≤500 | ≤500 | ≤500 |
| No-load speed(rpm) | 1100 | 820 | 315 | 228 | 165 | 83 | 60 | 45 | 32 | 22 | 16.5 | 12 | 9 | 6.5 |
| Rated torque(Kg.cm) | 5.50 | 7.5 | 20.0 | 20.0 | 20.0 | 30.0 | 30.0 | 40.0 | 40.0 | 50.0 | 70.0 | 70.0 | 70.0 | 70.0 |
| Rated torque(N.m) | 0.53 | 0.7 | 2.0 | 2.0 | 2.0 | 3.0 | 3.0 | 4.0 | 4.0 | 5.0 | 7.0 | 7.0 | 7.0 | 7.0 |
| Rated speed(rpm) | 550 | 410 | 150 | 140 | 110 | 60 | 50 | 37 | 27 | 19 | 15 | 11 | 8 | 5.8 |
| Rated current(A) | ≤6.0 | ≤6.0 | ≤6.0 | ≤4.5 | ≤4.0 | ≤3.5 | ≤2.8 | ≤2.5 | ≤2.0 | ≤2.0 | ≤2.0 | ≤2.0 | ≤2.0 | ≤1.5 |
| Rtall current(A） | 12.0 | 12.0 | 12.0 | 12.0 | 12.0 | 12.0 | 12.0 | 12.0 | 12.0 | 12.0 | 12.0 | 12.0 | 12.0 | 12.0 |
| Length of gearbox | 33.5 | 33.5 | 43.5 | 43.5 | 43.5 | 53.5 | 53.5 | 53.5 | 53.5 | 63.5 | 63.5 | 63.5 | 63.5 | 63.5 |
| Voltage:DC24.0V max power 150W |
| RATIO | 1: 3.7 | 1: 5 | 1: 13 | 1: 18 | 1: 25 | 1: 49 | 1: 67 | 1: 92 | 1: 125 | 1: 181 | 1: 246 | 1: 336 | 1: 458 | 1: 625 |
| Number of stages | 1 | 1 | 2 | 2 | 2 | 3 | 3 | 3 | 3 | 4 | 4 | 4 | 4 | 4 |
| No-load current(mA) | ≤700 | ≤700 | ≤700 | ≤700 | ≤700 | ≤700 | ≤700 | ≤700 | ≤700 | ≤700 | ≤700 | ≤700 | ≤700 | ≤700 |
| No-load speed(rpm) | 2200 | 1640 | 630 | 450 | 330 | 165 | 120 | 90 | 64 | 44 | 33 | 24 | 18 | 13 |
| Rated torque(Kg.cm) | 11.00 | 15.00 | 30.00 | 30.0 | 30.0 | 40.0 | 50.0 | 60.0 | 60.0 | 70.0 | 90.0 | 90.0 | 90.0 | 90.0 |
| Rated torque(N.m) | 1.20 | 1.30 | 3.0 | 3.0 | 3.0 | 4.0 | 5.0 |
6.0 |
6.0 | 7.0 | 9.0 | 9.0 | 9.0 | 9.0 |
| Rated speed(rpm) | 1100 | 820 | 300 | 300 | 250 | 130 | 105 | 80 | 55 | 40 | 30 | 22 | 16 | 12 |
| Rated current(A) | ≤13.0 | ≤13.0 | ≤13.0 | ≤10 | ≤9.0 | ≤7.0 | ≤6.0 | ≤5.0 |
≤4.0 |
≤4.0 | ≤4.0 | ≤4.0 | ≤4.0 | ≤3.0 |
| Rtall current(A） | 24.5 | 24.5 | 24.5 | 24.5 | 24.5 | 24.5 | 24.5 | 24.5 | 24.5 | 24.5 | 24.5 | 24.5 | 24.5 | 24.5 |
| Length of gearbox | 33.5 | 33.5 | 43.5 | 43.5 | 43.5 | 53.5 | 53.5 | 53.5 | 53.5 | 63.5 | 63.5 | 63.5 | 63.5 | 63.5 |
Packing & Delivery
PACKAGE:
Standard export carton packing.
DELIVERY TIME:
3-20 days after confirming order,detail delivery date should be decided according to
production season and order quantity.
ATTENTION:
If special customs clearance documents are required, please contact us in advance for confirmation.
