610 Micro Vibrating Vibration Coreless
High transmission efficiency, high torque
610 Micro Vibrating Vibration Coreless
Product Description
Product Type: | CHP-6GP-L610 Hollow cup planetary reduction motor |

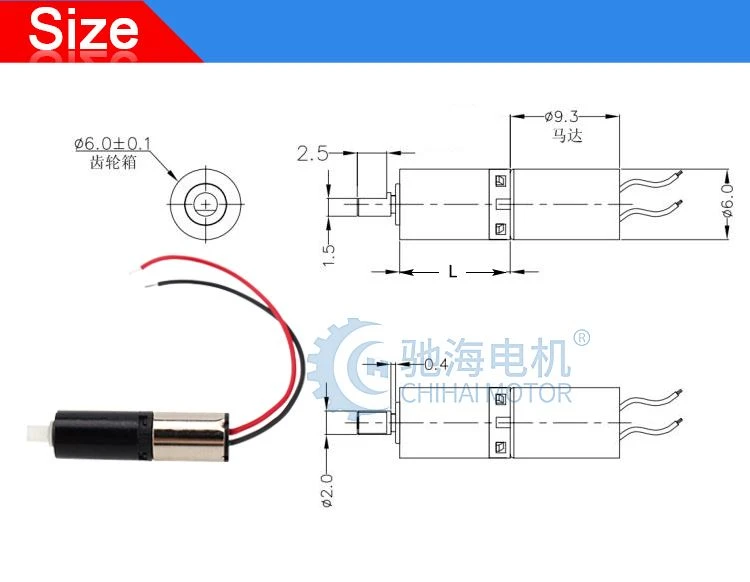

Size： | 6mmXLmm |
Shaft Dianeter: | 2mm D thickness 1.5mm length 2.5mm |
Voltage: | DC 1.5-3V |
Weight： | About 1.5g |
Characteristic: | Micro - mini planetary deceleration, high transmission efficiency, high torque |
Application: | Smart fingerprint lock, luggage lock,robot,Financial machinery,armarium,massager, High precision equipment etc. |
Hollow cup planetary gear motor is a new type of deceleration transmission device, which uses the combination of planetary gear transmission and internal meshing deceleration, so as to achieve high precision, high torque, high efficiency, low noise and other technical indicators at the same time to meet the advantages. This kind of gear motor has been widely used in industrial manufacturing, robotics, intelligent equipment, medical equipment and other fields.
The high precision of the hollow cup planetary gear motor is one of its key advantages, which is mainly reflected in the design of the speed reduction ratio. The reason for its high precision is that it uses the transmission structure of the planetary gear, so it can effectively avoid the transmission error, back backlash and other factors affecting the transmission accuracy, so as to achieve the effect of planetary gear transmission accuracy is higher than other reduction transmission methods.
The high torque of the hollow cup planetary reducer is also an important advantage, which is mainly due to the advantages brought by its planetary gear reduction structure. Because the internal meshing deceleration generally adopts the mode of multi-stage gear transmission, the total transmission ratio brought by it is larger than that of single-stage gear transmission.
The high efficiency and low noise of the hollow cup planetary gear motor are also its highly respected advantages. In traditional gear reduction, the friction and mechanical noise of gear meshing are often restricted factors. However, the hollow cup planetary gear motor is designed with internal meshing, reducing the impact of friction and noise on it, which enables the motor to greatly reduce energy consumption and noise, and extend the life of the machine.
Hollow cup planetary gear motor, as a new type of gear reducer, has many excellent technical characteristics and is used in many fields.

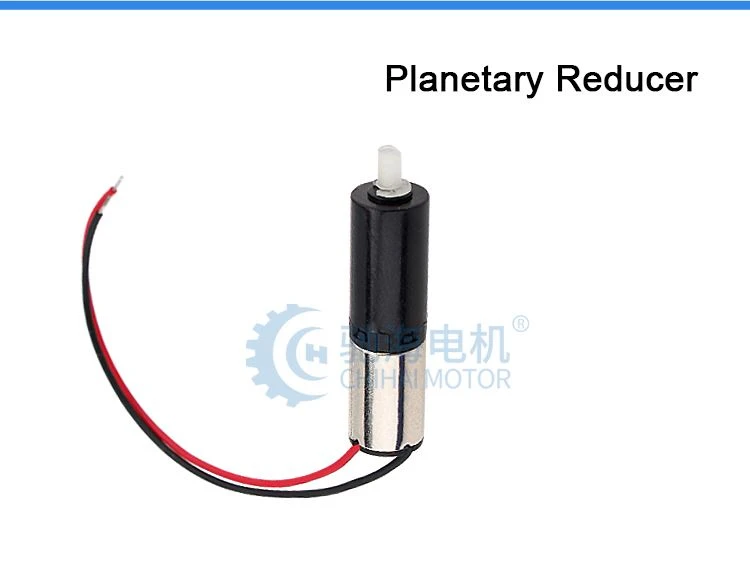

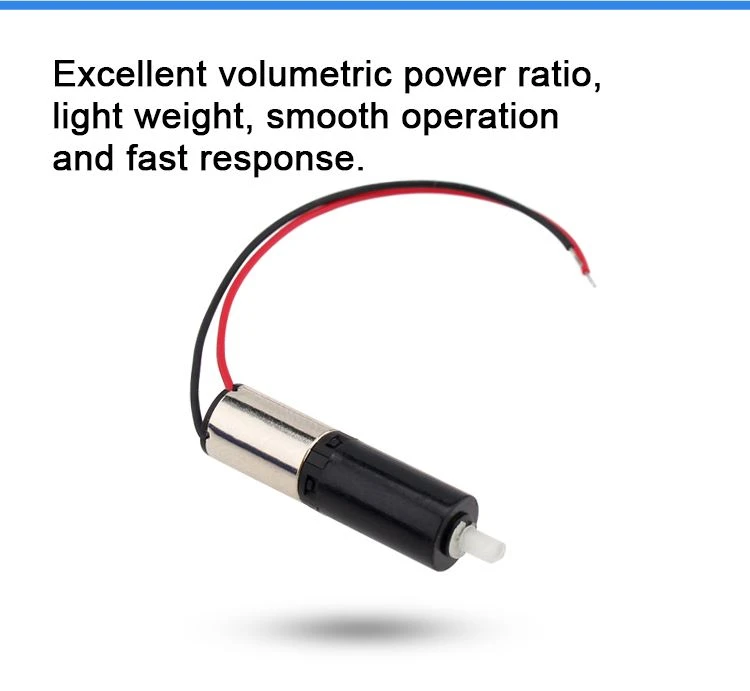

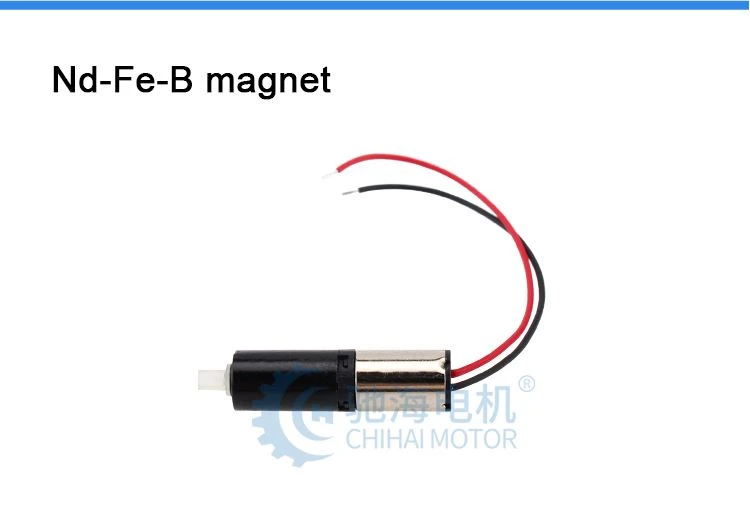

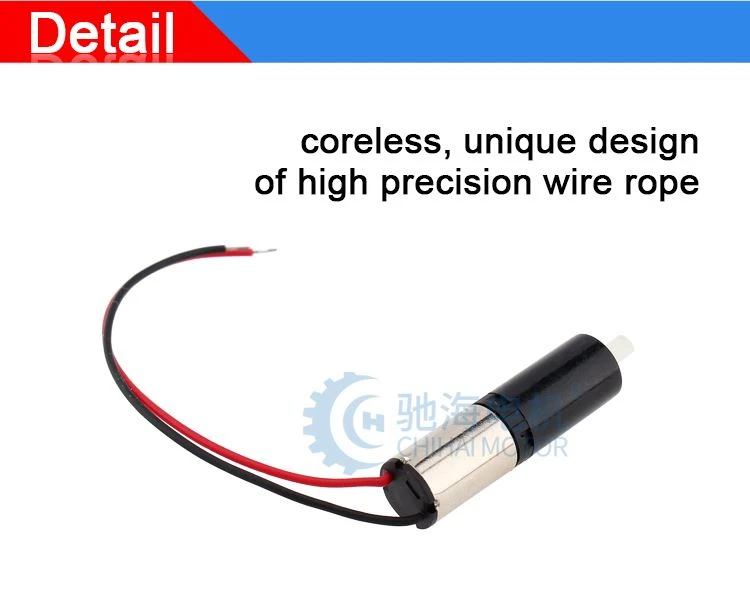

Detailed Images
Product & specifications
Model：CHP-6GP-L610 | ||||
Voltage: DC3.0V | ||||
RATIO | 1:5 | 1:26 | 1:136 | 1:699 |
No-load current(mA) | ≤60 | ≤60 | ≤60 | ≤60 |
No-load speed(rpm) | 6400 | 1200 | 240 | 47 |
Rated torque(g.cm) | 5.0 | 28.0 | 140.0 | 220.0 |
Rated speed(rpm) | 3800 | 7200 | 145 | 28 |
Rated current（A) | ≤0.15 | ≤0.15 | ≤0.15 | ≤0.15 |
Stall current（A） | ≤0.25 | ≤0.25 | ≤0.25 | ≤0.25 |
Stall torque(g.cm) | ≥14.0 | ≥70 | ≥300 | ≥300 |
Number of Stages | 1stages | 2stages | 3stages | 4stages |
Gearbox Length-L | 5.8mm | 7.05mm | 9.4mm | 11.75mm |
Voltage:DC1.5V | ||||
RATIO | 1:5 | 1:26 | 1:136 | 1:699 |
No-load current(mA) | ≤35 | ≤35 | ≤35 | ≤35 |
No-load speed(rpm) | 3200 | 600 | 120 | 23 |
Rated torque(g.cm) | 2.5 | 14.0 | 70.0 | 110.0 |
Rated speed(rpm) | 1900 | 360 | 72 | 14 |
Rated current（A) | ≤0.07 | ≤0.07 | ≤0.07 | ≤0.07 |
Stall current（A） | ≤0.12 | ≤0.12 | ≤0.12 | ≤0.12 |
Stall torque(g.cm) | ≥7.0 | ≥35 | ≥150 | ≥300 |

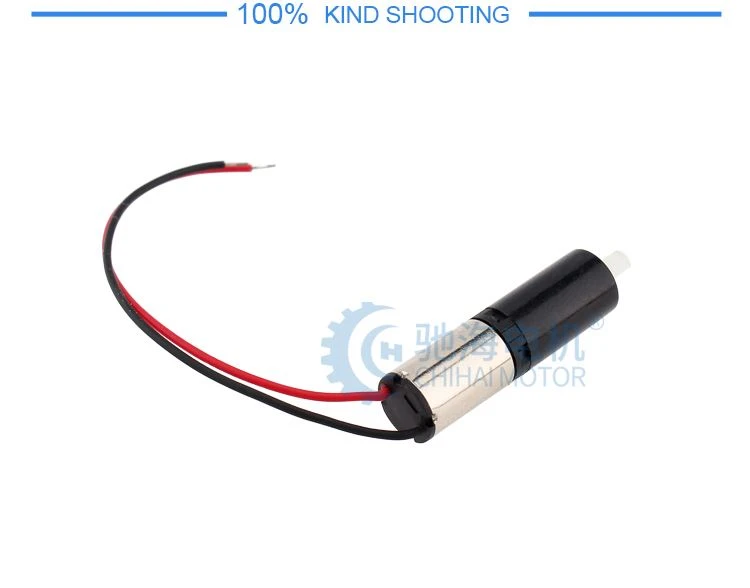

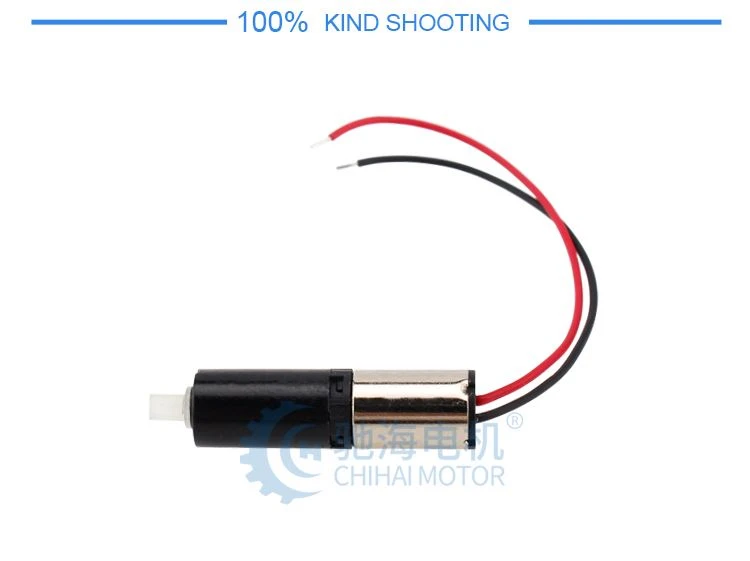

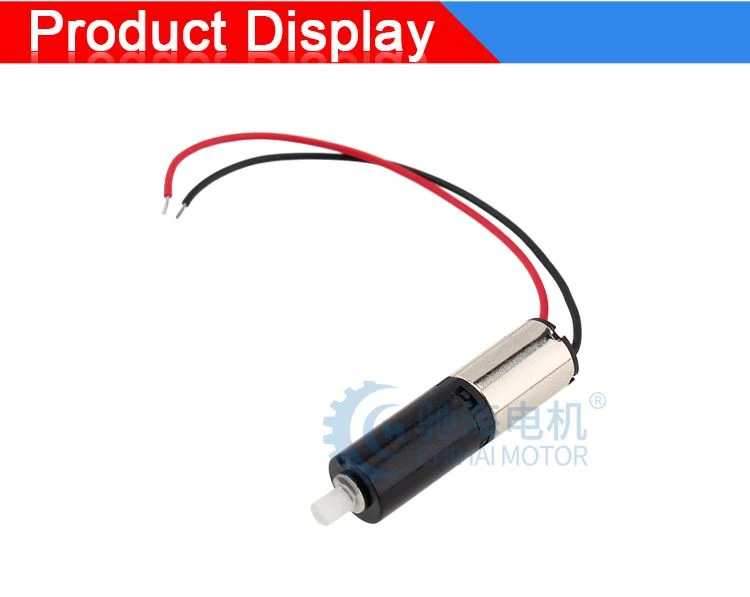

Product &display
Packing & Delivery
PACKAGE:
Standard export carton packing.
DELIVERY TIME:
3-20 days after confirming order,detail delivery date should be decided according to
production season and order quantity.
ATTENTION:
If special customs clearance documents are required, please contact us in advance for confirmation.
