Dc Hall-coded Planetary Gear Motor
Product Description
| Product Type | CHP-36GP-3162ABHL DC planetary Encoder Motor |
| Shaft length | 20mm D length15 |
| Shaft Dianeter | Φ 8mm, D thick7mm |
| Voltage | DC12 -24V |
| Weight | About 420g |
| Wiring specification | XH2.54-6PIN terminal connector Encoder |
| Specifications |

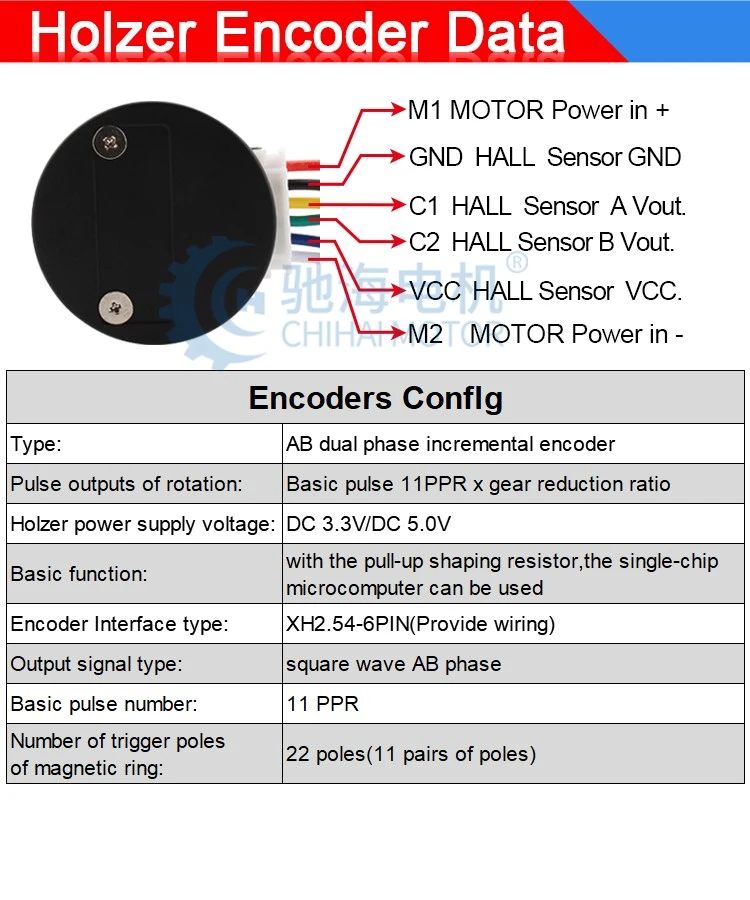

AB dual phase encoder 11 line basic signal voltage 3.3V or 5.0V |
| Application |
Intelligent self-balancing two-wheel car, intelligent tracking car, intelligent home appliancesRobot, camera rocker arm, electric tape cutter, etc |
Dc Hall-coded planetary gear motor：
Dc Hall-coded planetary gear motor is a kind of motor with high precision, high efficiency, low noise and low vibration. It uses Hall coding technology to achieve accurate position detection,Able to operate stably in harsh working environments.
The planetary reducer is partially driven by a planetary frame, which can increase the output torque and reduce the volume, while reducing the axial load. The planetarium is designed with a hard tooth surface and has a higher profileDrive efficiency and longer service life.
Motors are widely used in machine tools, medical equipment, automated production lines and other areas that require high-precision and high-reliability motors.
All metal gear construction：
The all-metal gear material reduces the wear loss of the gear during use, so it has higher wear resistance.
High wear resistance and load bearing capacity extend service life and reduce maintenance and replacement costs.

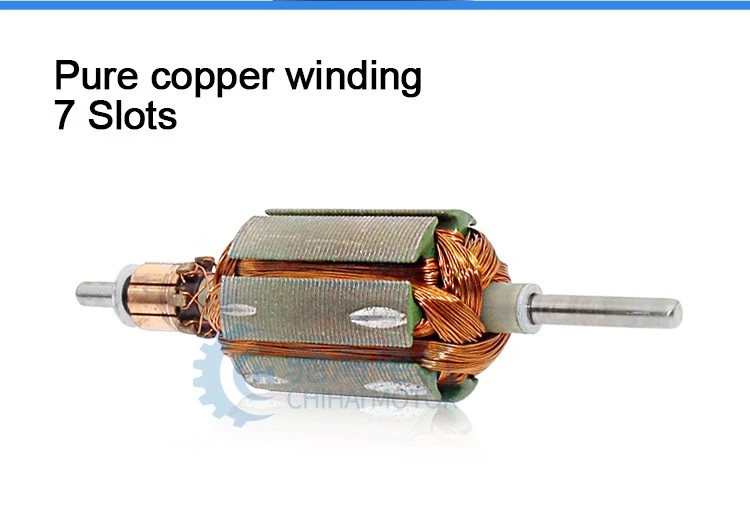

Pure copper wire winding:
Rotor de-balanced correction, 7 slot high density armature rotor
Pure copper wire winding has excellent electrical and thermal conductivity, which can effectively improve the motor or transformer
Efficiency and performance, while also extending service life.
Full ball bearing structure:
It has small friction resistance, reduce friction loss and surface wear, low noise, long service life, fast heat dissipation, high rotation accuracy and strong composite ability.

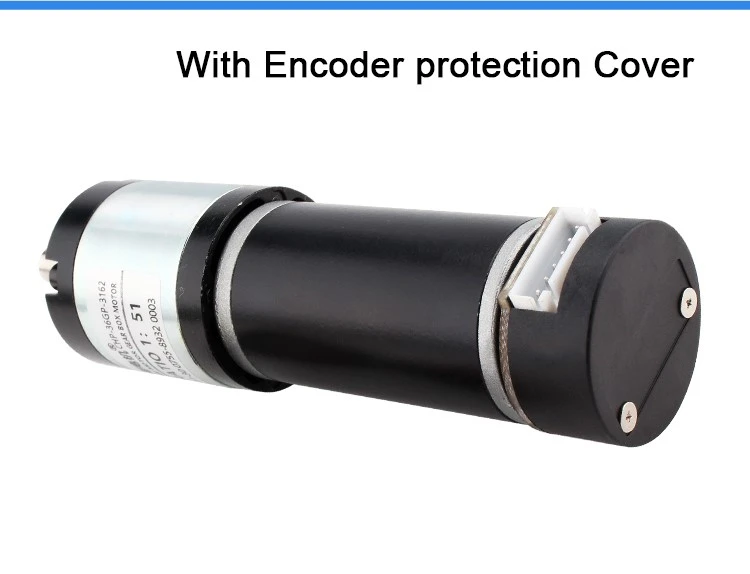

With encoder protective cover:
Hall coding device with dust protection cover, reduce the encoder from dust, oil, debris and other damage,
And extend the service life. At the same time, it can also improve work efficiency and safety.
Detailed Images
Product & specifications

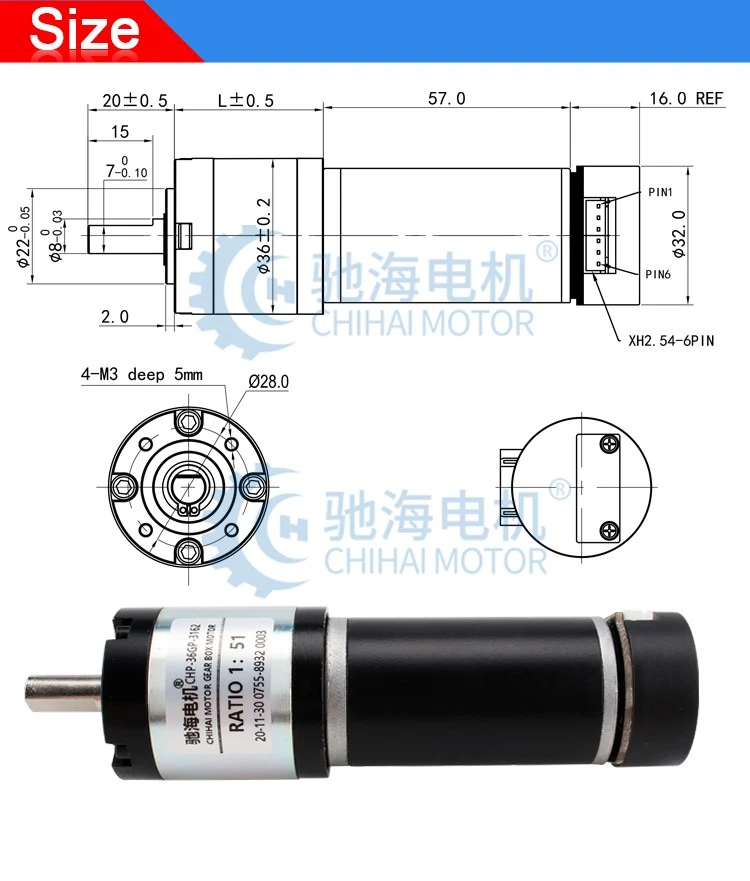

| Model：CHP-36GP-3162 ABHL Planetary Geared Motor with encoder |
| Voltage: DC24.0V |
| RATIO | 1:5.2 | 1:14 | 1:19 | 1:27 | 1:51 | 1:100 | 1:139 | 1:264 | 1:515 |
| No-load current(mA) | ≤350 | ≤350 | ≤350 | ≤350 | ≤350 | ≤350 | ≤350 | ≤350 | ≤350 |
| No-load speed(rpm) | 1900 | 710 | 525 | 370 | 195 | 100 | 72 | 37 | 19 |
| Rated torque(Kg.cm) | 2.0 | 5.0 | 7.0 | 10.0 | 18.0 | 35.0 | 45.0 | 50.0 | 50.0 |
| Rated speed(rpm) | 805 | 299 | 220 | 155 | 82 | 42 | 30 | 16 | 8 |
| Rated current（A) | ≤2.0 | ≤2.0 | ≤2.0 | ≤2.0 | ≤2.0 | ≤2.0 | ≤2.0 | ≤2.0 | ≤2.0 |
| Stall current（A） | ≤10.0 | ≤10.0 | ≤10.0 | ≤10.0 | ≤10.0 | ≤10.0 | ≤10.0 | ≤10.0 | ≤10.0 |
| Stall torque(Kg.cm) | ≥10.0 | ≥25.0 | ≥30.0 | ≥45.0 | ≥50.0 | ≥60.0 | ≥60.0 | ≥60.0 | ≥60.0 |
| Number of Stages | 1stages | 2stages | 3stages | 4stages |
| Gearbox Length-L | 26.5mm | 34.5mm | 34.5mm | 34.5mm | 42.5mm | 42.5mm | 42.5mm | 50.5mm | 50.5mm |
| Hall signal | 56.98 | 150.7 | 211.2 | 295.24 | 559.35 | 1094.5 | 1530.43 | 2898.83 | 5672.15 |
| Voltage:DC12.0V |
| RATIO | 1:5.2 | 1:14 | 1:19 | 1:27 | 1:51 | 1:100 | 1:139 | 1:264 | 1:515 |
| No-load current(mA) | ≤280 | ≤280 | ≤280 | ≤280 | ≤280 | ≤280 | ≤280 | ≤280 | ≤280 |
| No-load speed(rpm) | 960 | 355 | 260 | 185 | 98 | 50 | 36 | 19 | 9.7 |
| Rated torque(Kg.cm) | 1.3 | 3.5 | 4.5 | 6.5 | 12.0 | 25.0 | 30.0 | 50.0 | 50.0 |
| Rated speed(rpm) | 750 | 280 | 200 | 145 | 78 | 40 | 28 | 16 | 8 |
| Rated current（A) | ≤1.10 | ≤1.10 | ≤1.10 | ≤1.10 | ≤1.10 | ≤1.10 | ≤1.10 | ≤1.10 | ≤1.10 |
| Stall current（A） | ≤4.7 | ≤4.7 | ≤4.7 | ≤4.7 | ≤4.7 | ≤4.7 | ≤4.7 | ≤4.7 | ≤4.7 |
| Stall torque(Kg.cm) | ≥6.0 | ≥6.0 | ≥6.0 | ≥6.0 | ≥6.0 | ≥6.0 | ≥6.0 | ≥6.0 | ≥6.0 |
Packing & Delivery
PACKAGE:
Standard export carton packing.
DELIVERY TIME:
3-20 days after confirming order,detail delivery date should be decided according to
production season and order quantity.
ATTENTION:
If special customs clearance documents are required, please contact us in advance for confirmation.
