Rotary Telescopic Thrust DC Gear Motor For Sex Toy
Product Description
Product Type: | CHR-24GS-280-1CM telescopic rotary thrust gear motor |

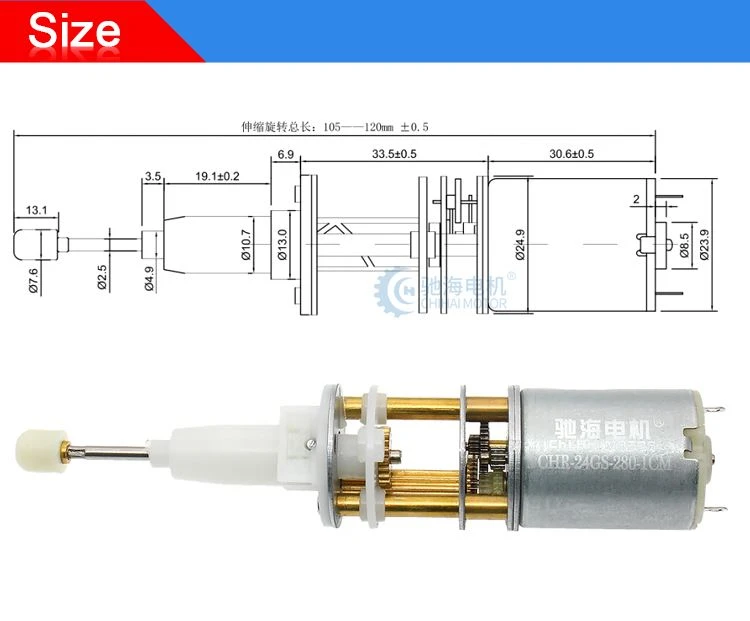

size： | ∅24.0mm*105mm—120mm |
Shaft diameter: | ∅2.5mm circular shaft Or add thrust cap(Custom output head) |
rate of rotation expansion: | Each revolution of the motor is 4 turns, telescopic one round weight:about 73 g |
Application： | Adult products, intelligent home appliance system, intelligent educational toys, etc |

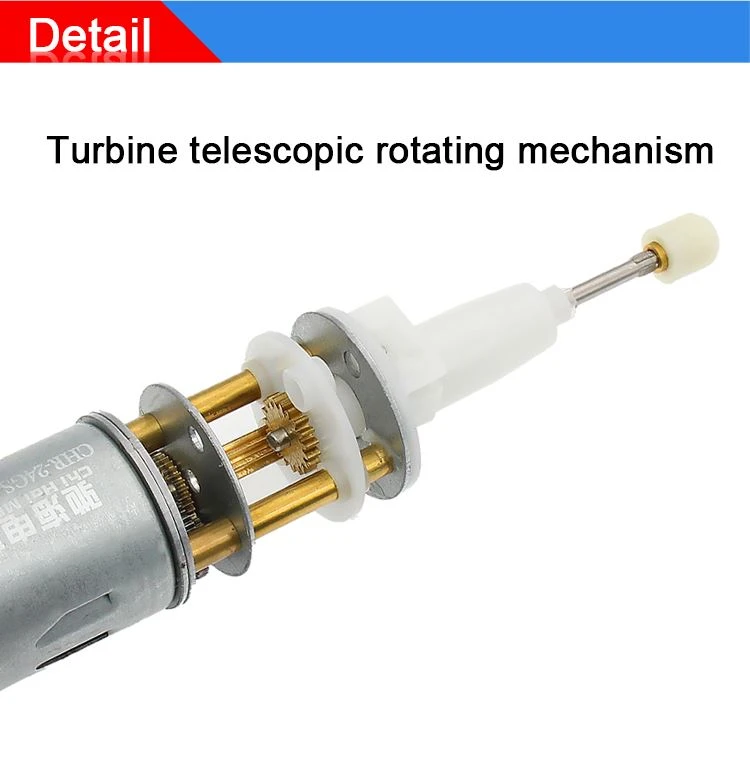

Detailed Images
Product & specifications
Model:CHR-24GS-280-1CM DC gear motor | ||
Voltage: | DC 6.0 V | DC 3.0 V |
Telescopic Rounds: | 70±10% round | 35±10% round |
No-load speed: | 280±10% rpm | 140±10%rpm |
No-load current: | ≤400 mA | ≤250 mA |
Rated torque: | 3.0 Kg.cm | 1.5 Kg.cm |
Rated speed: | 200±10%rpm | 100±10%rpm |
Rated current: | 2.5 A MAX | 1.2 A MAX |
Rated power: | 6 W (max 7.5W) | 1.5 W (max 1.8W) |
Stall torque: | ≥ 10.0 Kg.cm | ≥ 5.0 Kg.cm |
Max Thrust: | ≤200 N | ≤100 N |
Stall current: | ≤8.0 A | ≤ 3.8 A |
Ratio: | 1:50 | |

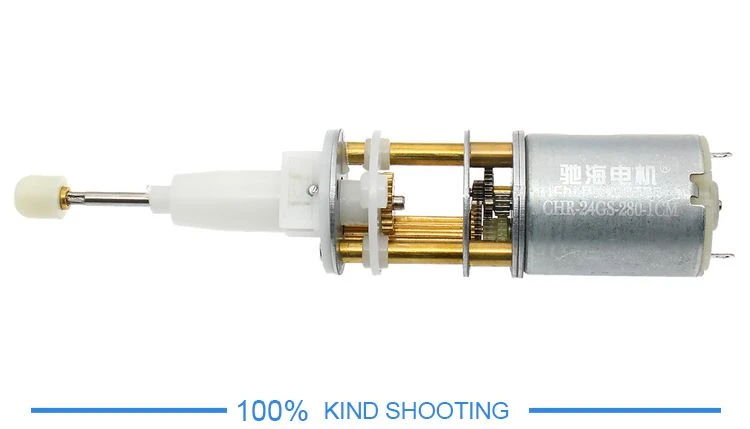

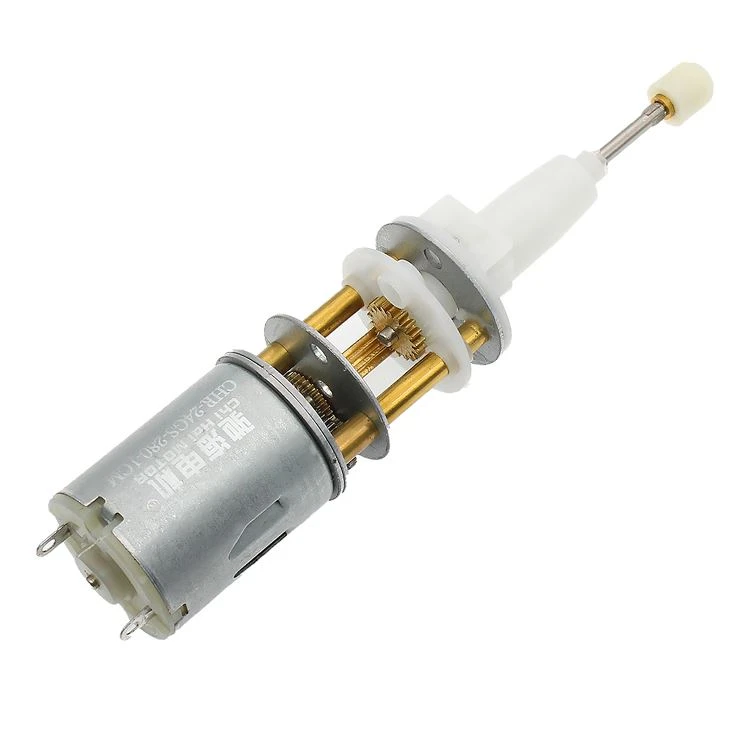

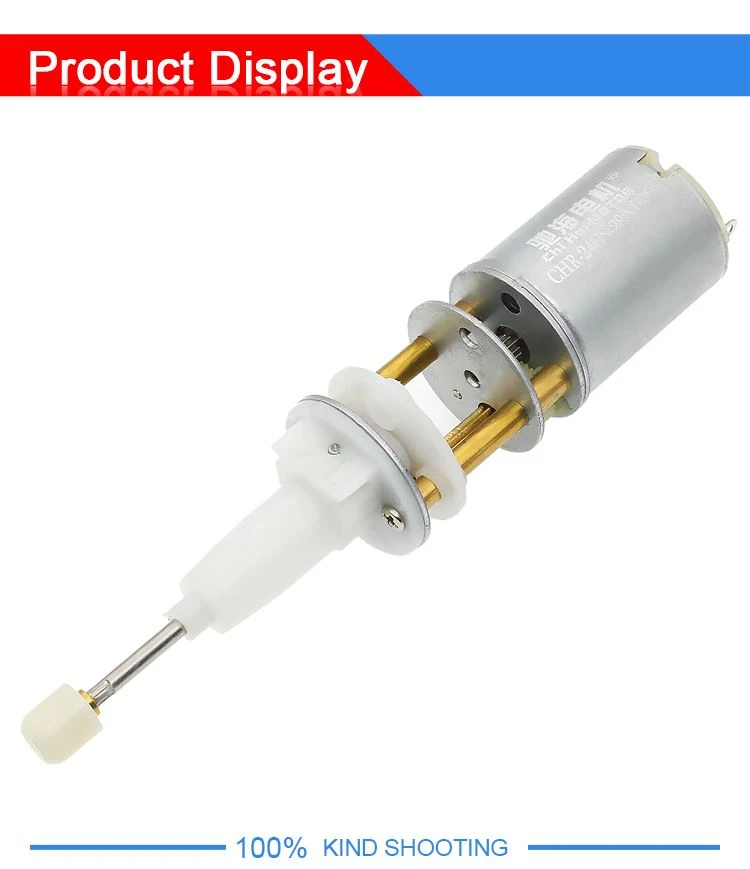

Product &display
Packing & Delivery
PACKAGE:
Standard export carton packing.
DELIVERY TIME:
3-20 days after confirming order,detail delivery date should be decided according to
production season and order quantity.
ATTENTION:
If special customs clearance documents are required, please contact us in advance for confirmation.
FAQ
Q:1.What kind of motors you can provide?
A: For now, We mainly provide micro motor and a series of dc deceleration motor, including straight tooth deceleration motor, planetary deceleration motor, worm deceleration motor.At present, our company focuses on developing various types of motors with voltage between 1VDC and 30VDC and motor diameter between 8 and 51mm.
Q:2. Can you send me a price list?
A: For all of our motors, they are customized based on different requirements like lifetime, noise, voltage, and shaft etc. The price also varies according to annual quantity. So it's really difficult for us to provide a price list. If you can share your detailed requirements and annual quantity, we'll see what offer we can provide.
Q:3. What's the lead time for regular order?
A: For orders, the standard lead time is 3-25 days and this time can be shorter or longer based on different model, period and quantity.
Q:4. Is it possible for you to develop new motors if we can provide tooling cost?
A: Yes. Please kindly share the detailed requirements like performance, size, annual quantity, target price etc. Then we'll make our evaluation to see if we can arrange or not.
Q:5.Could you send me free samples?
Yes,also we can return your samples fee back when you place order.
