37mm Carbon Brush DC Gear Motor

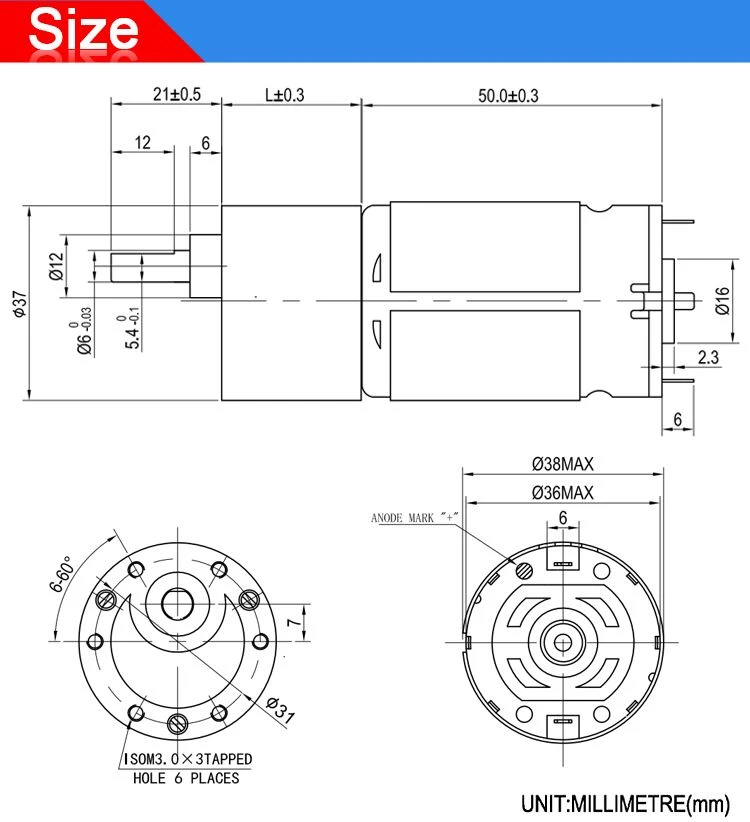

Size:Φ37mm
Shaft length:21mm D 12mm
37mm Carbon Brush DC Gear Motor
Product Description
Product Type: | CHR-GM37-545 DC Gear Mot |
Size: | Φ37mm |
Shaft length: | 21mm D 12mm |

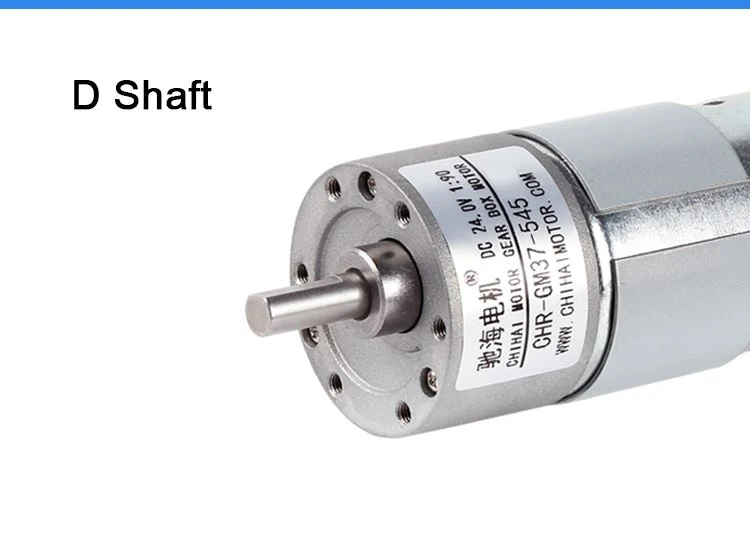

Shaft Dianeter: | Φ6mm D thick 5.4 |
Voltage: | DC 6-24V |
Weight： | About 275 g |
Application： | smart self-balancing two-wheeled cart, smart appliances.Robots, camera jibs, electric paper cutters, etc. |
Dc gear motor is a kind of motor commonly used in modern mechanical transmission. It is composed of direct current motor and reduction gear transmission mechanism. Through the function of gear reduction mechanism, the speed of the output shaft is reduced, and the output torque is increased. Simple structure, high transmission efficiency, low noise, easy maintenance and so on.
Dc gear motors have many applications, the most common of which are in the automation industry, robot manufacturing, medical equipment, security equipment, toy models and other fields. In these areas, the DC gear motor can provide a stable power output to help the mechanical equipment run, thus improving the operating efficiency of the equipment.
The DC gear motor has excellent stability and reliability, and the friction relationship is not involved in the transmission link, which is more durable than other transmission methods. The motor has the characteristics of small size and light weight, which realizes the performance balance in volume, weight, power, efficiency, noise and other indicators, and is suitable for different working environments of various mechanical equipment.

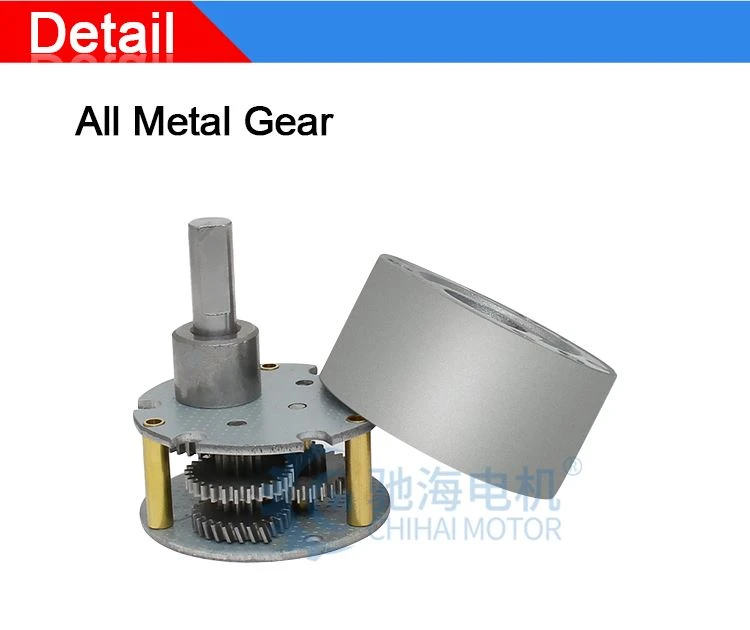

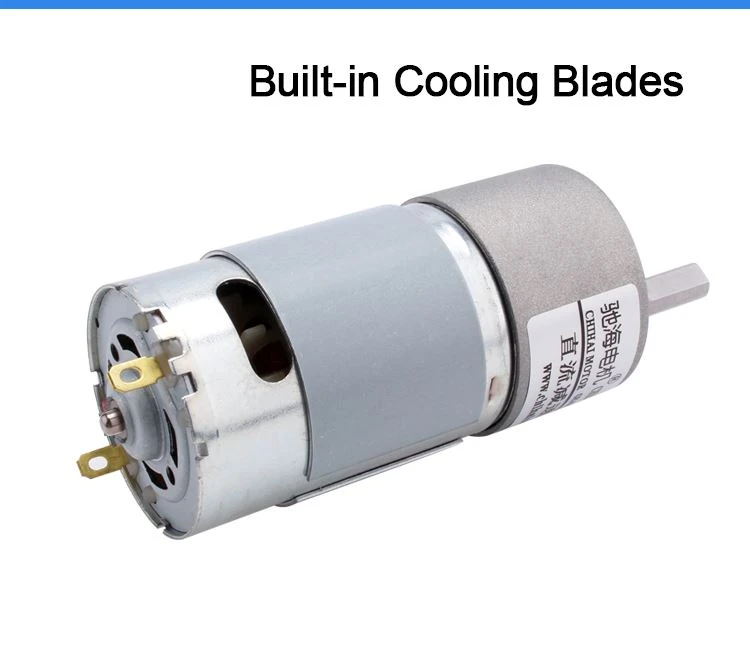

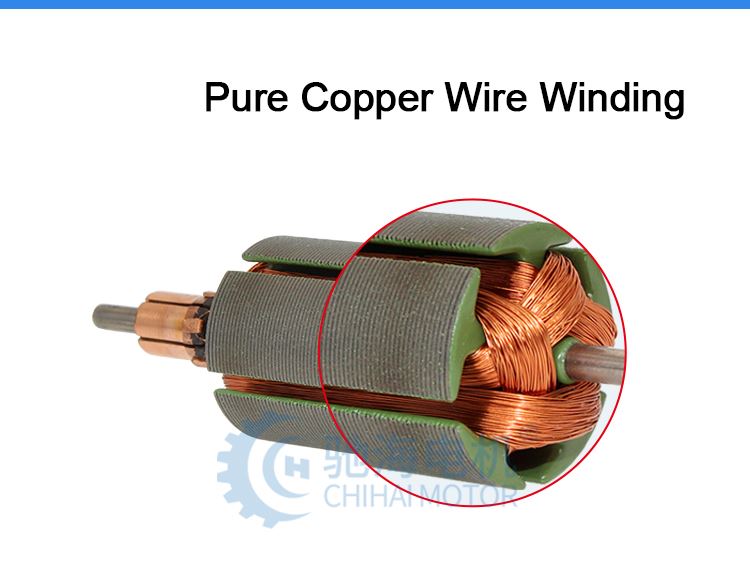

Detailed Images

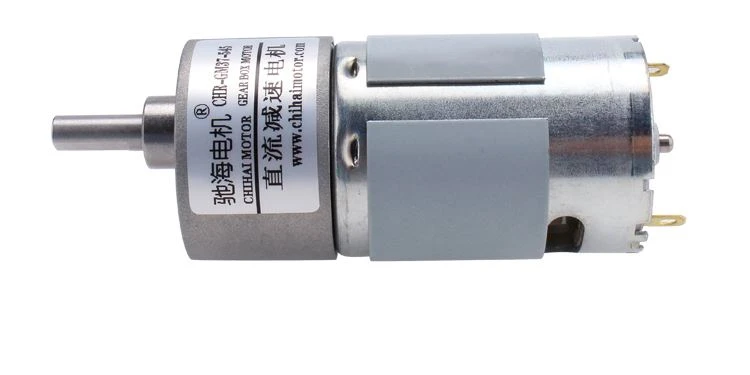

Model：CHR-GM37-545 Carbon Brush DC Gear Motor | ||||||||||
Special note: the motor due to the large power, high current, so customers must be more than 10A power supply | ||||||||||
Voltage: DC 24.0V | ||||||||||
Reduction ratio | 1:6.3 | 1:10 | 1:30 | 1:50 | 1:90 | 1:150 | 1:270 | 1:450 | 1:650 | 1:810 |
No-load current(mA) | ≤150 | ≤150 | ≤150 | ≤150 | ≤150 | ≤150 | ≤150 | ≤150 | ≤150 | ≤150 |
No-load speed(rpm) | 1111 | 700 | 233 | 140 | 78 | 47 | 27 | 16 | 11 | 9 |
Rated torque(Kg.cm) | 0.5 | 0.8 | 2.3 | 3.9 | 6.5 | 11 | 20 | 30 | 30 | 30 |
Rated speed(rpm) | 980 | 617 | 205 | 123 | 69 | 41 | 24 | 14 | 9 | 8 |
Rated current(A) | ≤0.8 | ≤0.8 | ≤0.8 | ≤0.8 | ≤0.8 | ≤0.8 | ≤0.8 | ≤0.8 | ≤0.8 | ≤0.8 |
Rated torque(kg.cm) | 5.0 | 8.0 | 24.0 | can't exceed 35kg.cm | ||||||
Stall current(A) | 7.5 | 7.5 | 7.5 | 7.5 | The above reduction ratio is not allowed to be used in stall | |||||
Gearbox length L | 19.0mm | 22.0mm | 24.0mm | 26.5mm | 29.0mm | |||||
Voltage: DC 12.0V | ||||||||||
Reduction ratio | 1:6.3 | 1:10 | 1:30 | 1:50 | 1:90 | 1:150 | 1:270 | 1:450 | 1:650 | 1:810 |
No-load current(mA) | ≤120 | ≤120 | ≤120 | ≤120 | ≤120 | ≤120 | ≤120 | ≤120 | ≤120 | ≤120 |
No-load speed(rpm) | 550 | 350 | 116.5 | 70 | 39 | 23.5 | 13.5 | 8 | 5.5 | 4.5 |
Rated torque(Kg.cm) | 0.3 | 0.4 | 1.1 | 2.1 | 3.5 | 6.5 | 10 | 18 | 25 | 25 |
Rated speed(rpm) | 490 | 308 | 100 | 60 | 34 | 20 | 11 | 6 | 4 | 3 |
Rated current(A) | ≤0.55 | ≤0.55 | ≤0.55 | ≤0.55 | ≤0.55 | ≤0.55 | ≤0.55 | ≤0.55 | ≤0.55 | ≤0.55 |
Rated torque(kg.cm) | 2.5 | 4 | 12 | 19 | 32 | can't exceed 35kg.cm | ||||
Stall current(A) | 3.6 | 3.6 | 3.6 | 3.6 | 3.6 | The above reduction ratio is not allowed to be used in stall | ||||
Packing & Delivery
PACKAGE:
Standard export carton packing.
DELIVERY TIME:
3-20 days after confirming order,detail delivery date should be decided according to
production season and order quantity.
ATTENTION:
If special customs clearance documents are required, please contact us in advance for confirmation.
FAQ
Q:1.What kind of motors you can provide?
A: For now, We mainly provide micro motor and a series of dc deceleration motor, including straight tooth deceleration motor, planetary deceleration motor, worm deceleration motor.At present, our company focuses on developing various types of motors with voltage between 1VDC and 30VDC and motor diameter between 8 and 51mm.
Q:2. Can you send me a price list?
A: For all of our motors, they are customized based on different requirements like lifetime, noise, voltage, and shaft etc. The price also varies according to annual quantity. So it's really difficult for us to provide a price list. If you can share your detailed requirements and annual quantity, we'll see what offer we can provide.
Q:3. What's the lead time for regular order?
A: For orders, the standard lead time is 3-25 days and this time can be shorter or longer based on different model, period and quantity.
Q:4. Is it possible for you to develop new motors if we can provide tooling cost?
A: Yes. Please kindly share the detailed requirements like performance, size, annual quantity, target price etc. Then we'll make our evaluation to see if we can arrange or not.
Q:5.Could you send me free samples?
Yes,also we can return your samples fee back when you place order.
