Worm Gear Reducer Motor
Product Description

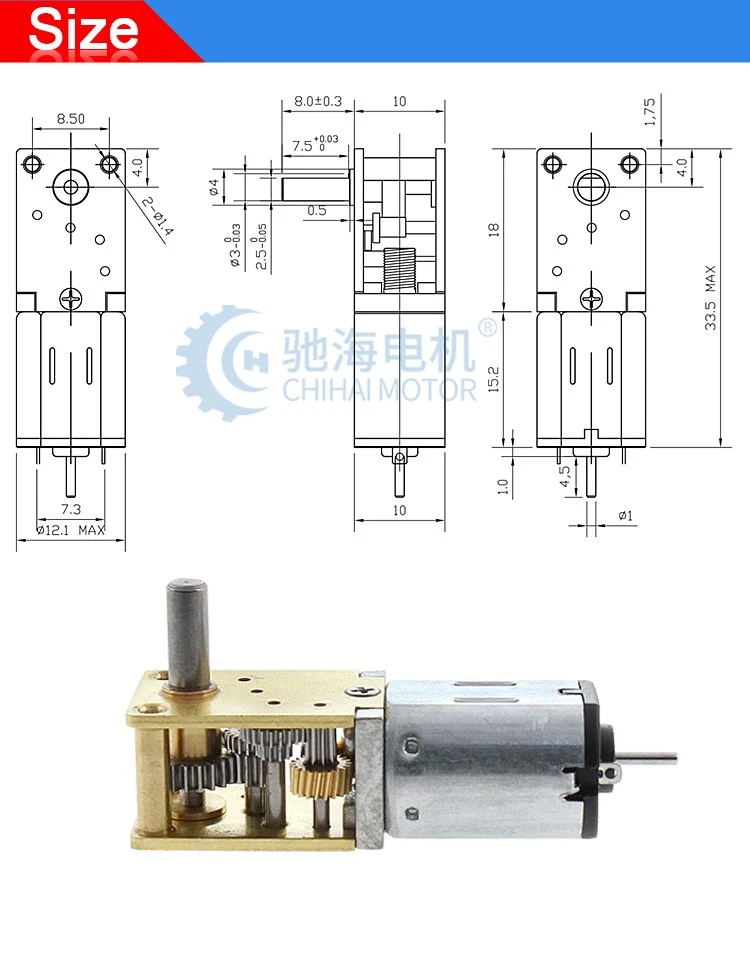

| Product Type | CHF-GW12T-N20VA DC worm gear motor |
| Size | 10*18*34mm (not include the shaft) |
| Shaft length | 8mm D |
| Shaft Dianeter | Φ3mm Thick 2.5 D |
| Voltage | DC 3-12V |
| Weight | About 13g |
| Application |
Intelligent robot, intelligent manipulator, intelligent furnitureIntelligent focusing system, miniature head, etc |
Application cases:
intelligent robot, intelligent manipulator, intelligent furniture, intelligent focusing system, miniature head, etc
All-metal gear：
Wear resistance, torque resistance, long life, fast heat dissipation, strong composite ability

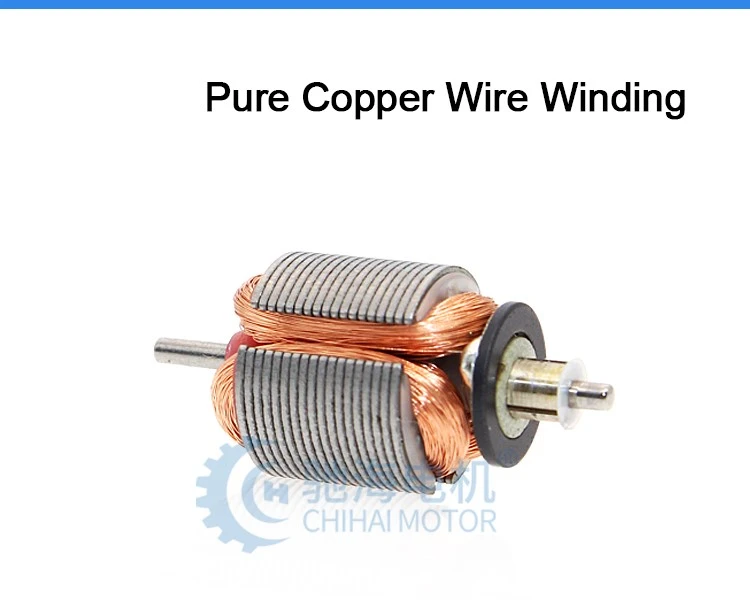

Pure copper wire winding：
The rotor part adopts pure copper group, small resistance and strong conductivity, and the motor torque is increased
Worm gear deceleration：
Increase the transmission ratio, with self-locking function, smooth transmission, compact structure
Detailed Images
| Model: CHF-GW12T-N20VA DC Worm Gear Motor |
| Voltage:DC12.0V power 0.2W（A35# Input the motor） |
| Micro-gear construction, self-locking function is not recommended to use greater than 5.0kg.cm. The continuous rated load should not exceed 2.5kg.cm |
| RATIO | 118 | 238 | 300 | 603 |
| No-load current(mA) | ≤65 | ≤65 | ≤65 | ≤65 |
| No-load speed(rpm) | 200 | 100 | 78 | 39 |
| Rated torque(Kg.cm) | 0.4 | 0.7 | 0.9 | 1.8 |
| Rated torque(N.m) | 0.034 | 0.069 | 0.088 | 0.18 |
| Rated speed（rpm) | 140 | 70 | 55 | 27 |
| Rated current（A) | ≤0.15 | ≤0.15 | ≤0.15 | ≤0.15 |
| stall current（A） | ≤0.4 | ≤0.4 | ≤0.4 | ≤0.4 |
| stall torque(Kg.cm) | ≤1.10 | ≤2.40 | Cant exceed 3.0kg.cm |
| Voltage:DC6.0V power 0.2W （A35# Input the motor） |
| RATIO | 118 | 238 | 300 | 603 |
| No-load current(mA) | ≤35 | ≤35 | ≤35 | ≤35 |
| No-load speed(rpm) | 98 | 49 | 37 | 19 |
| Rated torque(Kg.cm) | 0.15 | 0.3 | 0.4 | 0.8 |
| Rated torque(N.m) | 0.015 | 0.029 | 0.039 | 0.078 |
| Rated speed（rpm) | 70 | 35 | 27 | 13 |
| Rated current（A) | ≤0.08 | ≤0.08 | ≤0.08 | ≤0.08 |
| stall current（A） | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.2 |
| stall torque(Kg.cm) | ≤0.5 | ≤1.0 | ≤1.5 | ≤2.8 |
| Voltage:DC6.0V power 0.6W （B 45# Input the motor） |
| RATIO | 118 | 238 | 300 | 603 |
| No-load current(mA) | ≤35 | ≤35 | ≤35 | ≤35 |
| No-load speed(rpm) | 190 | 94 | 74 | 37 |
| Rated torque(Kg.cm) | 0.30 | 0.60 | 0.75 | 1.5 |
| Rated torque(N.m) | 0.03 | 0.06 | 0.074 | 0.15 |
| Rated speed（rpm) | 140 | 70 | 55 | 27 |
| Rated current（A) | ≤0.20 | ≤0.20 | ≤0.20 | ≤0.20 |
| stall current（A） | ≤0.65 | ≤0.65 | ≤0.65 | ≤0.65 |
| stall torque(Kg.cm) | ≤1.10 | ≤2.40 | Cant exceed 3.0kg.cm |
| Voltage:DC3.0V power 0.15W （B 45# Input the motor） |
| RATIO | 118 | 238 | 300 | 603 |
| No-load current(mA) | ≤35 | ≤35 | ≤35 | ≤35 |
| No-load speed(rpm) | 90 | 45 | 35 | 18 |
| Rated torque(Kg.cm) | 0.15 | 0.30 | 0.40 | 0.80 |
| Rated torque(N.m) | 0.015 | 0.029 | 0.039 | 0.078 |
| Rated speed（rpm) | 65 | 33 | 26 | 13 |
| Rated current（A) | ≤0.15 | ≤0.15 | ≤0.15 | ≤0.15 |
| stall current（A） | ≤0.35 | ≤0.35 | ≤0.35 | ≤0.35 |
| stall torque(Kg.cm) | ≤0.5 | ≤1.0 | ≤1.5 | ≤2.8 |
Packing & Delivery
PACKAGE:
Standard export carton packing.
DELIVERY TIME:
3-20 days after confirming order,detail delivery date should be decided according to
production season and order quantity.
ATTENTION:
If special customs clearance documents are required, please contact us in advance for confirmation.
