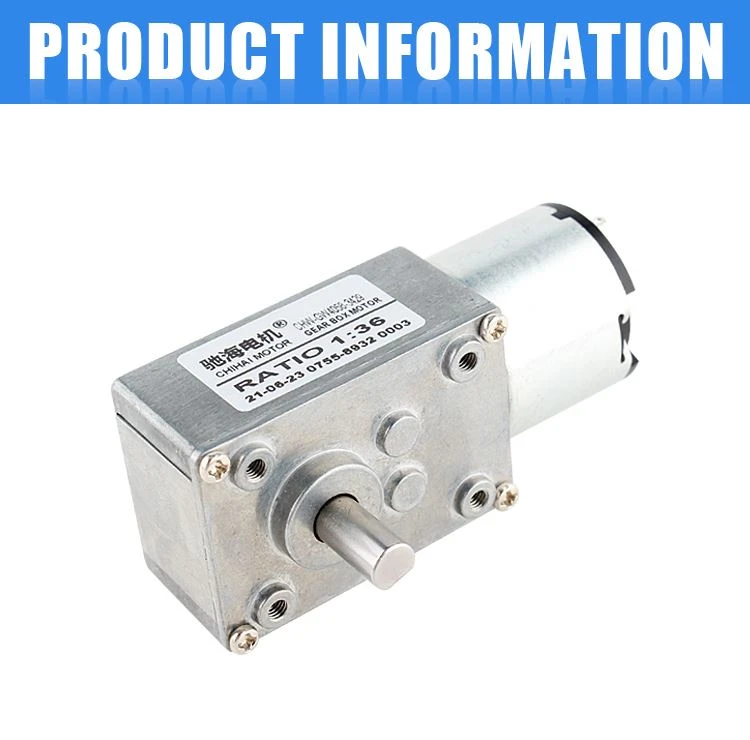

Type-D Shaft Reversed Low Speed High Torque Worm Gear Motor
weight: about 270 grams (different deceleration ratio weight).
Voltage: DC 3-24V
Product Description

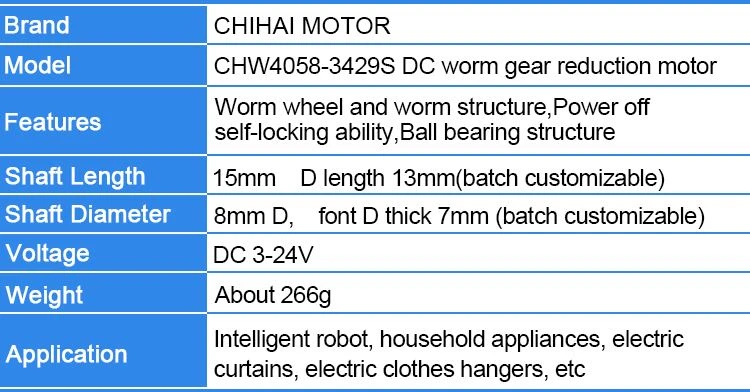

Brand: | Chihai motor |
Product Type: | CHW4058-3429S Permanent magnet dc worm gear reduction motor |
features: | all metal spur gear structure, strong magnetic torque |

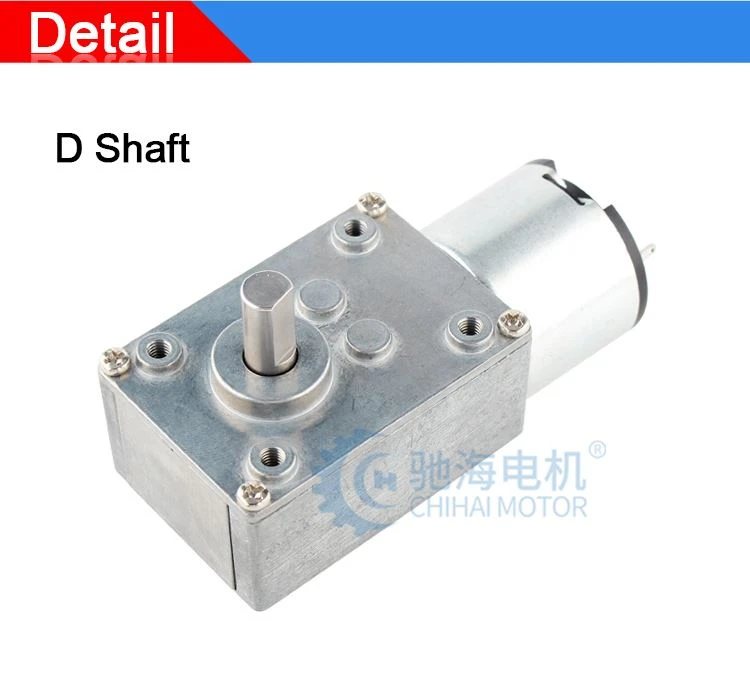

Output shaft length: | length 15mm D length 13mm(batch customizable) |
axle diameter: | out axis diameter 8mm D font D thick 7mm (batch customizable) |
weight: | about 270 grams (different deceleration ratio weight). |
Voltage: | DC 3-24V |
Application case: | Intelligent robot, household appliances, electric curtains, electric clothes hangers, etc |
With the continuous improvement of the industrialization process, motor technology is also increasingly ushered in new developments and challenges. Among the many types of motors, the permanent magnet DC worm gear motor has become a high-profile type of motor.
The permanent magnet DC worm gear motor uses a permanent magnet as the rotor pole, and the armature coil is energized by direct current. During operation, due to the magnetic field interaction between the magnetic poles, magnetic flux is generated, which makes the rotor rotate, thus achieving the required power output effect.
Compared with traditional motor types, permanent magnet DC worm gear motors are more efficient, energy efficient and stable. By adopting the permanent magnet DC worm gear motor, the mechanical conversion of the motor can be better realized, so as to improve the output power of the motor and achieve higher production benefits.
Permanent magnet DC worm gear motor has long service life, strong anti-interference ability, low noise and low maintenance cost.
Permanent magnet DC worm gear reducer is a type of motor with excellent performance, high efficiency and convenience.

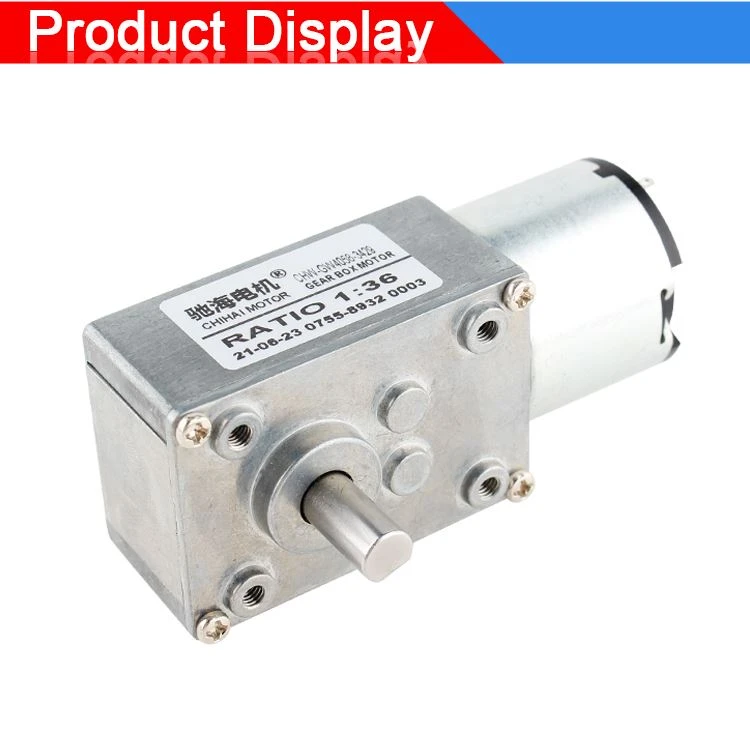

Detailed Images

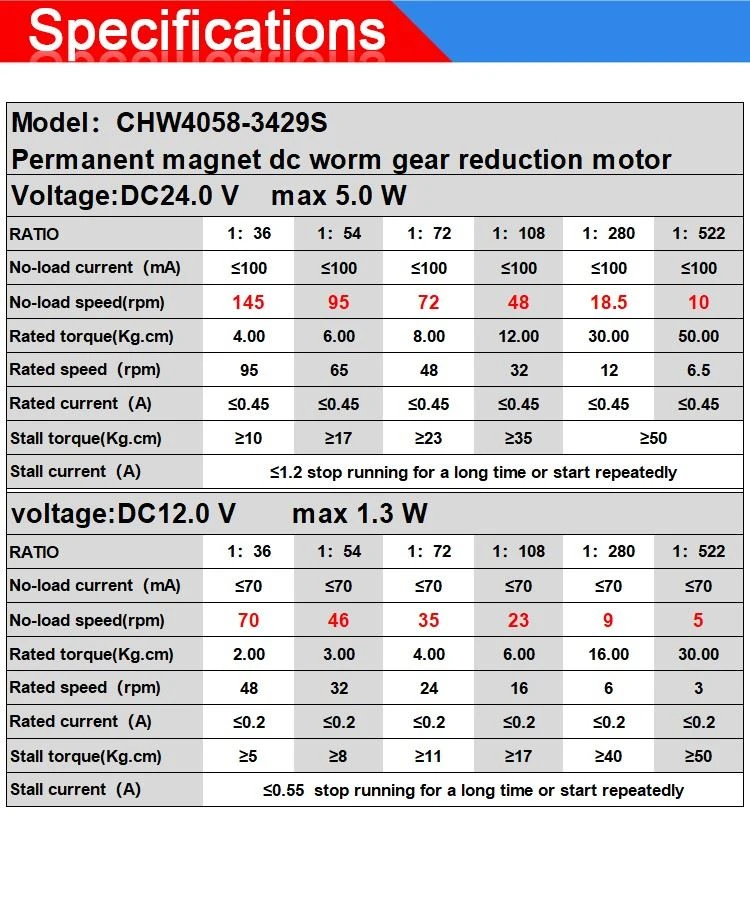

Product Paramet
Packing & Delivery
PACKAGE:
Standard export carton packing.
DELIVERY TIME:
3-20 days after confirming order,detail delivery date should be decided according to
production season and order quantity.
ATTENTION:
If special customs clearance documents are required, please contact us in advance for confirmation.
FAQ
Q:1.What kind of motors you can provide?
A: For now, We mainly provide micro motor and a series of dc deceleration motor, including straight tooth deceleration motor, planetary deceleration motor, worm deceleration motor.At present, our company focuses on developing various types of motors with voltage between 1VDC and 30VDC and motor diameter between 8 and 51mm.
Q:2. Can you send me a price list?
A: For all of our motors, they are customized based on different requirements like lifetime, noise, voltage, and shaft etc. The price also varies according to annual quantity. So it's really difficult for us to provide a price list. If you can share your detailed requirements and annual quantity, we'll see what offer we can provide.
Q:3. What's the lead time for regular order?
A: For orders, the standard lead time is 3-25 days and this time can be shorter or longer based on different model, period and quantity.
Q:4. Is it possible for you to develop new motors if we can provide tooling cost?
A: Yes. Please kindly share the detailed requirements like performance, size, annual quantity, target price etc. Then we'll make our evaluation to see if we can arrange or not.
Q:5.Could you send me free samples?
Yes,also we can return your samples fee back when you place order.
