70 Dc Motor Low Noise Large Flow For Drinking DIY
Service life:10000 times
noise:60DB (30 cm distance measured)
Product Description
Product Type: | 370 Motor Mini water pump |

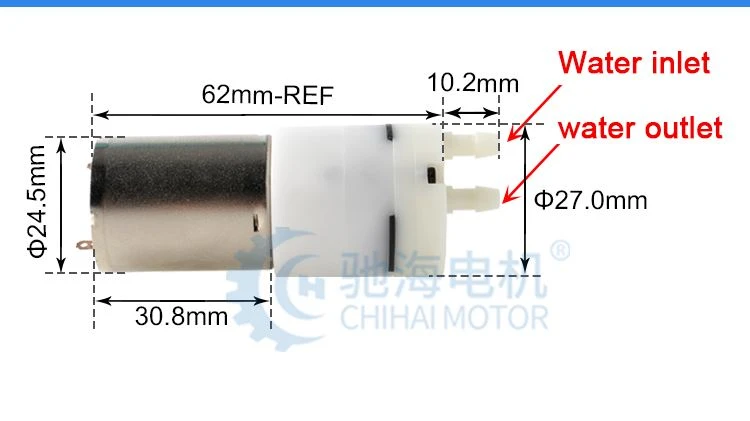

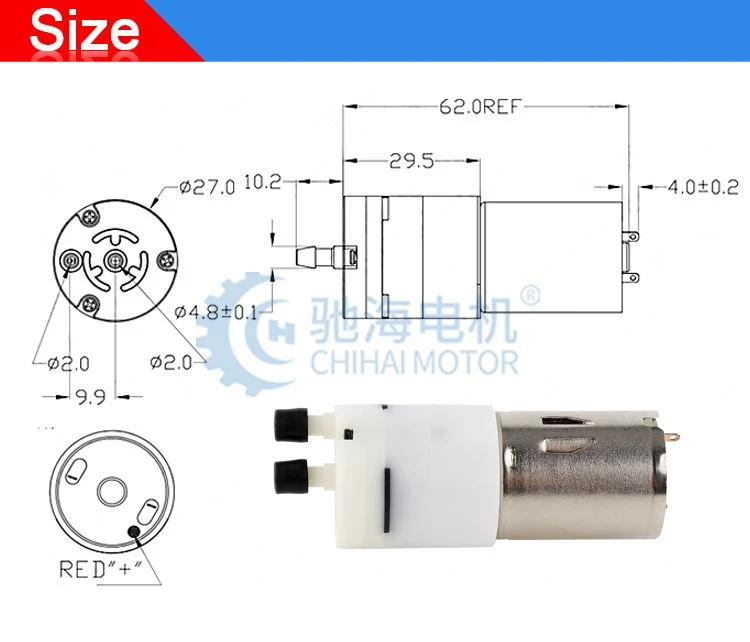

Motor diameter： | Φ25mm |
Silicon tube size: | Internal diameter：3mm Outside diameter：5mm |
Weight: | about 60 g |
Service life： | 10000 times |
noise： | 60DB (30 cm distance measured) |

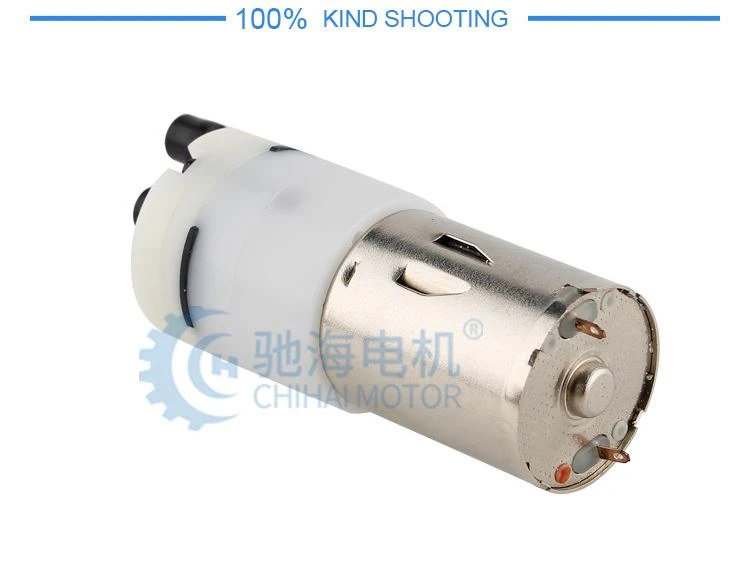

Detailed Images
Product & specifications
Model：R370 Mini Water Pump(gas and liquid) | |
Voltage: DC12.0V | |
Test condition | From 500cc tank |
Rated current | ＜380 mA |

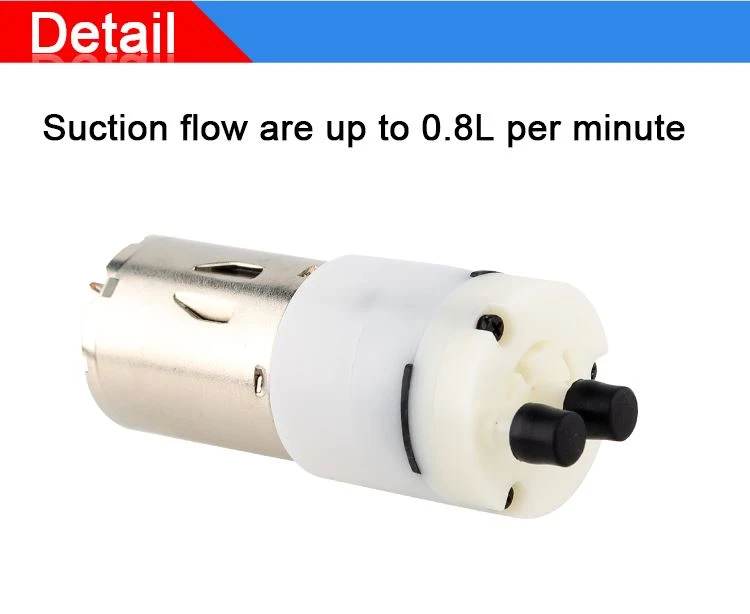

Water flow | 0.5~1.0L/min with no load |
No load flow | ≥1.2L/m |
Pressure | ≤ -40KPA |
Pump Head | ≥ 100 Cm |
Suction Head | ≥ 100 Cm |
Noise | ＜65 dB |
Life test | ＞10000 Times(50s on ,20s off) |
Voltage: DC6.0V | |
Test condition | From 500cc tank |
Rated current | ＜580 mA |
Water flow | 0.5~1.0L/min with no load |
No load flow | ≥1.5L/m |
Pressure | ≤ -40KPA |
Pump Head | ≥ 100 Cm |
Suction Head | ≥ 100 Cm |
Noise | ＜65 dB |
Life test | ＞10000 Times(50s on ,20s off) |

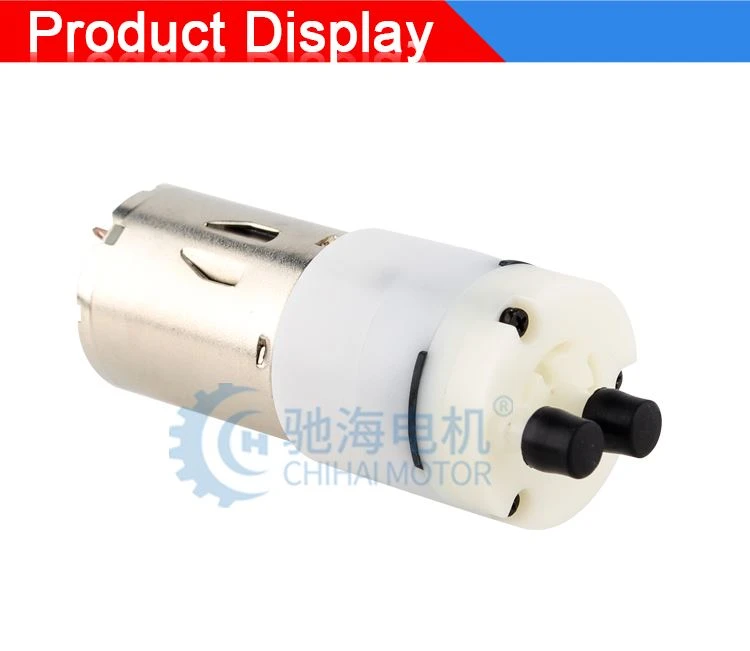

Product &display
Packing & Delivery
PACKAGE:
Standard export carton packing.
DELIVERY TIME:
3-20 days after confirming order,detail delivery date should be decided according to
production season and order quantity.
ATTENTION:
If special customs clearance documents are required, please contact us in advance for confirmation.
FAQ
Q:1.What kind of motors you can provide?
A: For now, We mainly provide micro motor and a series of dc deceleration motor, including straight tooth deceleration motor, planetary deceleration motor, worm deceleration motor.At present, our company focuses on developing various types of motors with voltage between 1VDC and 30VDC and motor diameter between 8 and 51mm.
Q:2. Can you send me a price list?
A: For all of our motors, they are customized based on different requirements like lifetime, noise, voltage, and shaft etc. The price also varies according to annual quantity. So it's really difficult for us to provide a price list. If you can share your detailed requirements and annual quantity, we'll see what offer we can provide.
Q:3. What's the lead time for regular order?
A: For orders, the standard lead time is 3-25 days and this time can be shorter or longer based on different model, period and quantity.
Q:4. Is it possible for you to develop new motors if we can provide tooling cost?
A: Yes. Please kindly share the detailed requirements like performance, size, annual quantity, target price etc. Then we'll make our evaluation to see if we can arrange or not.
Q:5.Could you send me free samples?
Yes,also we can return your samples fee back when you place order.
