Dc Gear Motor Motor With Dust Casing

All metal gear, pure copper wire winding, D-shaped shaft

Send Inquiry

Product Description

brand	Chihai motor
Product Type	CHF-GM12-N20VA Permanent magnet dc gear motor
Shaft length	9mm
Shaft Dianeter	Φ3mm , D thick2.5mm
Voltage	DC 3V ~ 12V
Weight	about 10g

peculiarity：

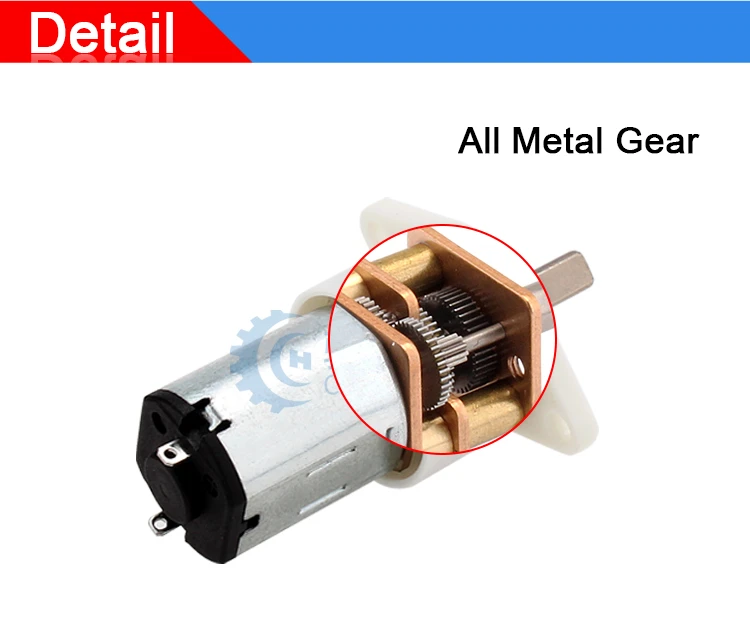

1、The use of all-metal gear material, the use of which is more wear-resistant to extend the service life

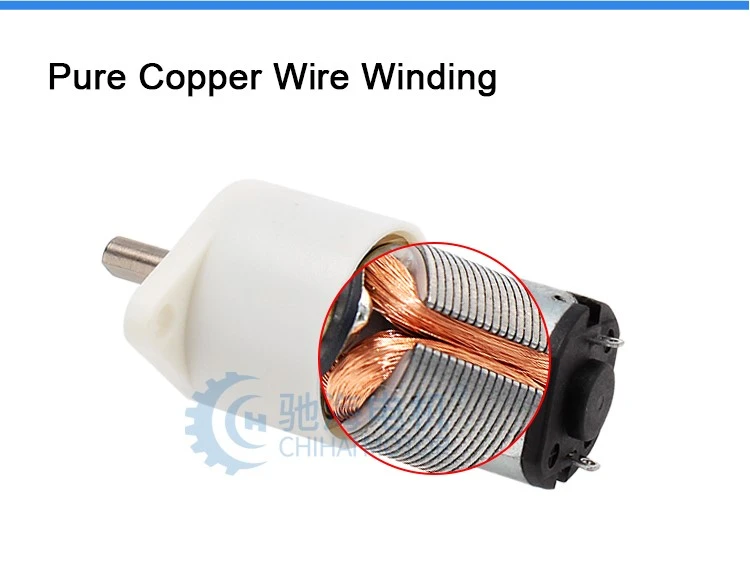

2、The rotor part adopts pure copper group, small resistance, strong conductivity, and the motor torque is increased

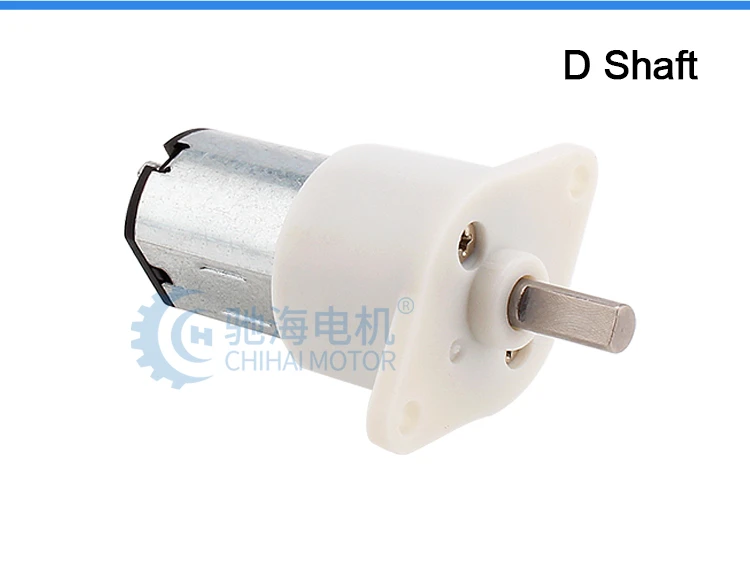

3、D-font shaft, easy to install, not easy to slip, save installation time

Application：

Intelligent robot, electric curtain, intelligent balancing car, Intelligent manipulator, etc.

Detailed Images

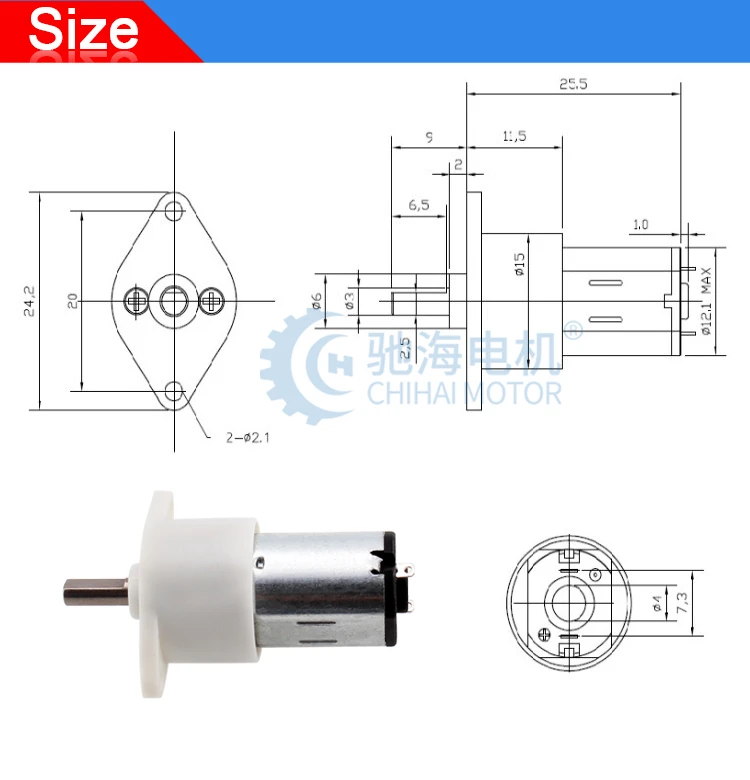

product-750-780

product-750-631

product-750-587

product-750-561

Product Parameters

Model:CHR-GM12-N20VA DC Gear Motor

Voltage: DC3.0V power 0.5W Input motor model 45#

Recution ratio	1: 10	1: 20	1: 30	1: 50	1: 100	1: 150	1: 210	1: 298	1: 380	1: 1000
No-load current(mA)	≤45	≤45	≤45	≤45	≤45	≤45	≤45	≤45	≤45	≤45
No-load speed (rpm)	1200	600	400	240	120	80	57	40	32	32
Rated torque(g.cm)	40	80	120	200	400	600	800	1200	1600	1600
Rated torque(mN.m)	3.9	7.8	11.8	19.6	39.2	58.8	78.4	117.6	156.9	156.9
Rated speed (rpm)	780	390	260	150	80	52	37	26	20	10
Rated current(A)	≤0.27	≤0.27	≤0.27	≤0.27	≤0.27	≤0.27	≤0.27	≤0.27	≤0.27	≤0.27
Stall torque(kg.cm)	0.1	0.2	0.3	0.5	1	1.5	2	3	3.5	3.5
Stall current(A)	≤0.65	≤0.65	≤0.65	≤0.65	≤0.65	≤0.65	≤0.65	≤0.65	≤0.65	≤0.65

Precautions for product use: avoid frequent tight start or frequent positive and reverse rotation,and prohibit the use of locked rotor;
The motor is started and operated with power on. It is not recommended to rotate the shaft with external force in case of non

power on state, so as to avoid damaging the reducer

Voltage: DC3.0V power 0.2W Input motor model 26#

Recution ratio	1: 10	1: 20	1: 30	1: 50	1: 100	1: 150	1: 210	1: 298	1: 380	1: 1000
No-load current（mA)	≤45	≤45	≤45	≤45	≤45	≤45	≤45	≤45	≤45	≤45
No-load speed (rpm)	810	405	270	162	81	54	38	27	21	8
Rated torque(g.cm)	25	100	72	120	250	350	500	1000	1200	1600
Rated torque(mN.m)	2.5	9.8	7.4	11.8	24.5	34.3	49.0	98.0	117.6	156.9
Rated speed (rpm)	460	240	160	90	47	32	23	16	12	5
Rated current（A)	≤0.14	≤0.14	≤0.14	≤0.14	≤0.14	≤0.14	≤0.14	≤0.14	≤0.14	≤0.14
Stall torque(kg.cm)	0.06	0.12	0.15	0.4	0.8	1.0	1.3	1.8	2.0	3.5
Stall current(A)	≤0.75	≤0.75	≤0.75	≤0.75	≤0.75	≤0.75	≤0.75	≤0.75	≤0.75	≤0.75

Voltage: DC6.0V power 0.6W Input motor model 26#

Recution ratio	1: 10	1: 20	1: 30	1: 50	1: 100	1: 150	1: 210	1: 298	1: 380	1: 1000
No-load current(mA)	≤45	≤45	≤45	≤45	≤45	≤45	≤45	≤45	≤45	≤45
No-load speed (rpm)	1650	825	550	330	165	110	78	54	43	16
Rated torque(g.cm)	50	100	150	250	500	750	1000	1500	1900	2500
Rated torque(mN.m)	4.9	9.8	14.7	24.5	49.0	73.5	98.0	147.1	186.3	245.1
Rated speed (rpm)	980	490	326	193	98	65	46	32	25	10
Rated current（A)	≤0.23	≤0.23	≤0.23	≤0.23	≤0.23	≤0.23	≤0.23	≤0.23	≤0.23	≤0.23
Stall torque(kg.cm)	0.11	0.22	0.35	0.6	1.1	1.8	2.5	2.5	2.5	2.5
Stall current(A)	≤0.55	≤0.55	≤0.55	≤0.55	≤0.55	≤0.55	≤0.55	≤0.55	≤0.55	≤0.55

Voltage: DC6.0V power 0.4W Input motor model 35#

Recution ratio	1: 10	1: 20	1: 30	1: 50	1: 100	1: 150	1: 210	1: 298	1: 380	1: 000
No-load current（mA)	≤40	≤40	≤40	≤40	≤40	≤40	≤40	≤40	≤40	≤40
No-load speed (rpm)	1050	525	350	210	105	70	50	35	28	10
Rated torque(g.cm)	20	40	60	100	200	300	400	600	750	2000
Rated torque(mN.m)	2.0	3.9	5.9	9.8	19.6	29.4	39.2	58.8	73.5	196.1
Rated speed (rpm)	750	350	250	150	75	50	35	25	20	7
Rated current（A)	≤0.1	≤0.1	≤0.1	≤0.1	≤0.1	≤0.1	≤0.1	≤0.1	≤0.1	≤0.1
Stall torque(kg.cm)	0.10	0.16	0.24	0.4	0.8	1.2	1.6	2.3	3.0	3.5
Stall current(A)	≤0.3	≤0.3	≤0.3	≤0.3	≤0.3	≤0.3	≤0.3	≤0.3	≤0.3	≤0.3

Voltage: DC12.0V power 0.6W Input motor model 05#

Recution ratio	1: 10	1: 20	1: 30	1: 50	1: 100	1: 150	1: 210	1: 298	1: 380	1: 1000
No-load current（mA)	≤30	≤30	≤30	≤30	≤30	≤30	≤30	≤30	≤30	≤30
No-load speed (rpm)	1500	750	500	300	150	100	71	50	39	15
Rated torque(g.cm)	20	40	60	100	200	300	400	600	750	2000
Rated torque(mN.m)	2.0	3.9	5.9	9.8	19.6	29.4	39.2	58.8	73.5	196.1
Rated speed (rpm)	1200	600	400	240	120	80	57	40	31	12
Rated current（A)	≤0.07	≤0.07	≤0.07	≤0.07	≤0.07	≤0.07	≤0.07	≤0.07	≤0.07	≤0.07
Stall torque(kg.cm)	0.10	0.16	0.24	0.4	0.8	1.2	1.6	2.3	3.0	3.5
Stall current(A)	≤0.3	≤0.3	≤0.3	≤0.3	≤0.3	≤0.3	≤0.3	≤0.3	≤0.3	≤0.3

Voltage: DC12.0V power 1.4W Input motor model 35#

Recution ratio	1: 10	1: 20	1: 30	1: 50	1: 100	1: 150	1: 210	1: 298	1: 380	1: 1000
No-load current（mA)	≤55	≤55	≤55	≤55	≤55	≤55	≤55	≤55	≤55	≤55
No-load speed (rpm)	2150	1075	717	430	215	143	102	72	57	21
Rated torque(g.cm)	50	100	150	250	500	750	1000	1500	1900	3000
Rated torque(mN.m)	4.9	9.8	14.7	24.5	49.0	73.5	98.0	147.1	186.3	294.1
Rated speed (rpm)	1450	720	480	29	145	95	70	48	38	14
Rated current（A)	≤0.2	≤0.2	≤0.2	≤0.2	≤0.2	≤0.2	≤0.2	≤0.2	≤0.2	≤0.2
Stall torque(kg.cm)	0.13	0.26	0.39	0.7	1.3	2.0	2.7	3.0	3.0	3.5
Stall current(A)	≤0.50	≤0.50	≤0.50	≤0.50	≤0.50	≤0.50	≤0.50	≤0.50	≤0.50	≤0.50

Packing & Delivery

PACKAGE:

Standard export carton packing.

DELIVERY TIME:

3-20 days after confirming order,detail delivery date should be decided according to
production season and order quantity.

ATTENTION:

If special customs clearance documents are required, please contact us in advance for confirmation.
