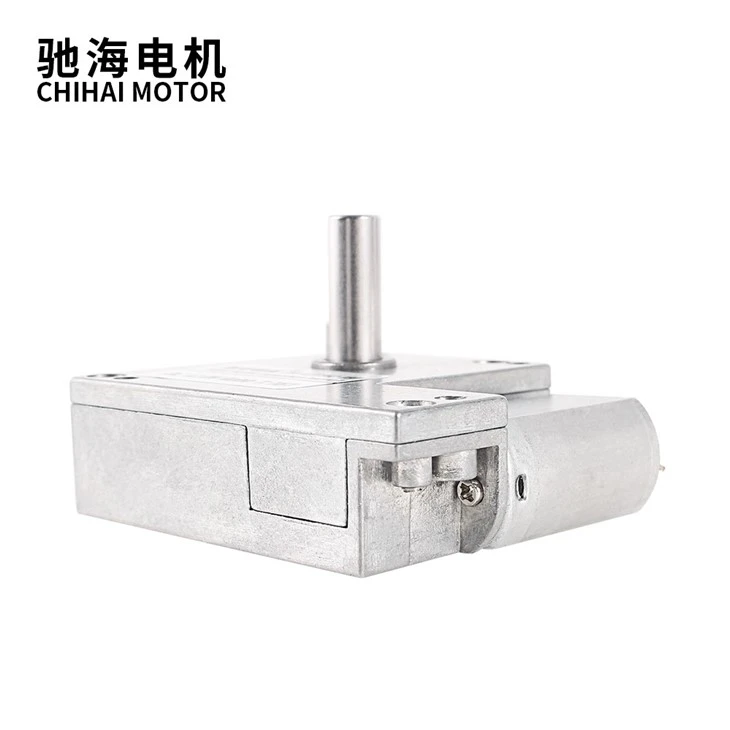

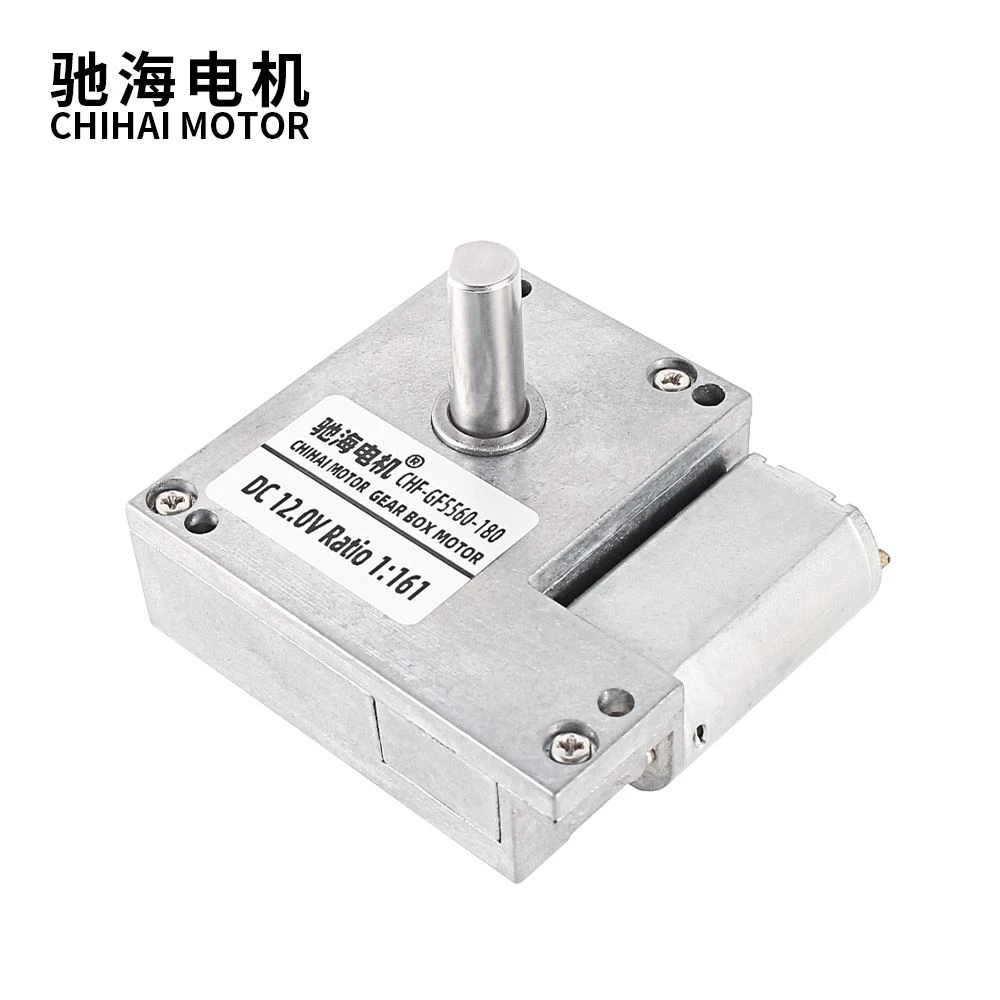

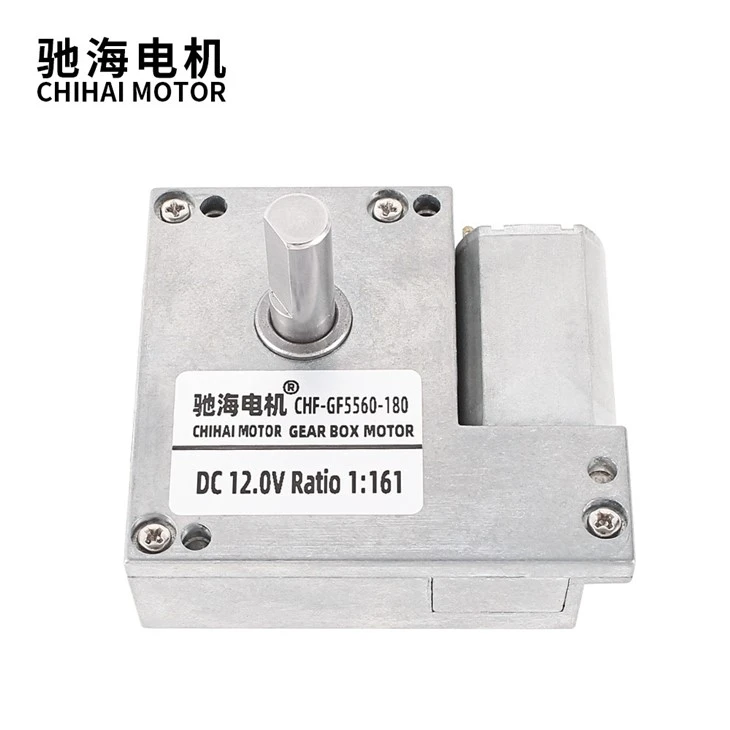

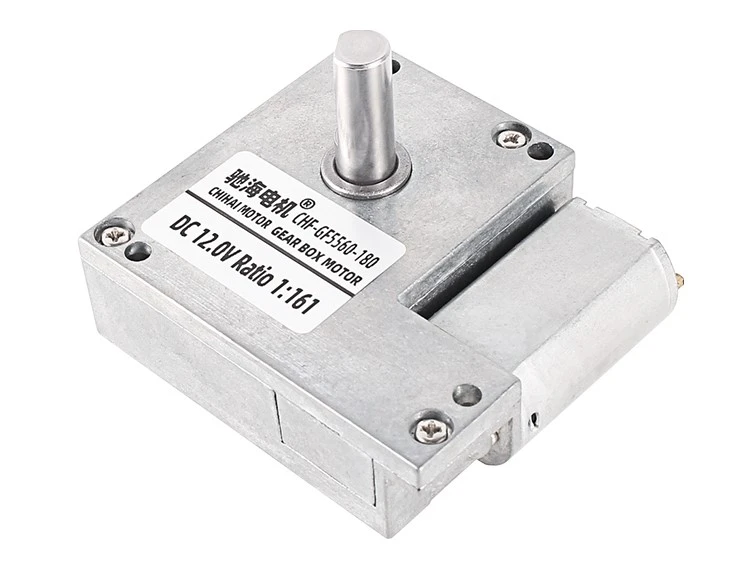

GF5560-180 Dc Turboworm Gear Reduction Motor
Product Description
| Brand | CHIHAI MOTOR |
| Product Type | CHF-GF5560-180 Dc gear motor |
| Shaft Length | 21mm D15mm |
| Shaft Dianeter | φ7mm |
| Voltage | DC 6-12V |
| Weight | About 200g |
| Gear Module | 0.5-0.8m |
| Max Rated Torque(Kg.cm) | 25.0 Kg.cm Max |
| Max Momentary Tolerance Torque(Kg.cm) | 40.0 Kg.cm Max |
| Number Of Gear Stages | 4 |
|
Gear reduction ratio (production type available) |
1:26.9、1:53.8、1:89.6、1:125.4、1:161 1:179.2、1:250.8、1:322、1:388.90、 1:700 1:544.48、1:777.8、1:1088.81、1:1400 |

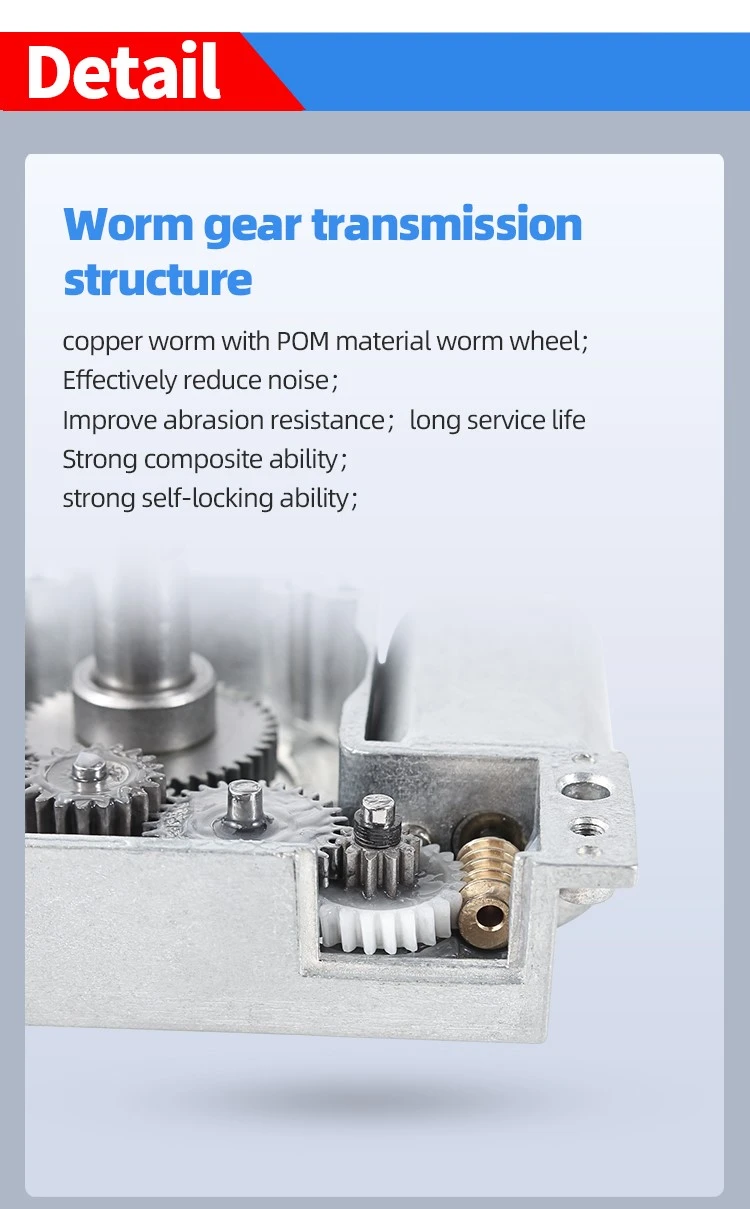

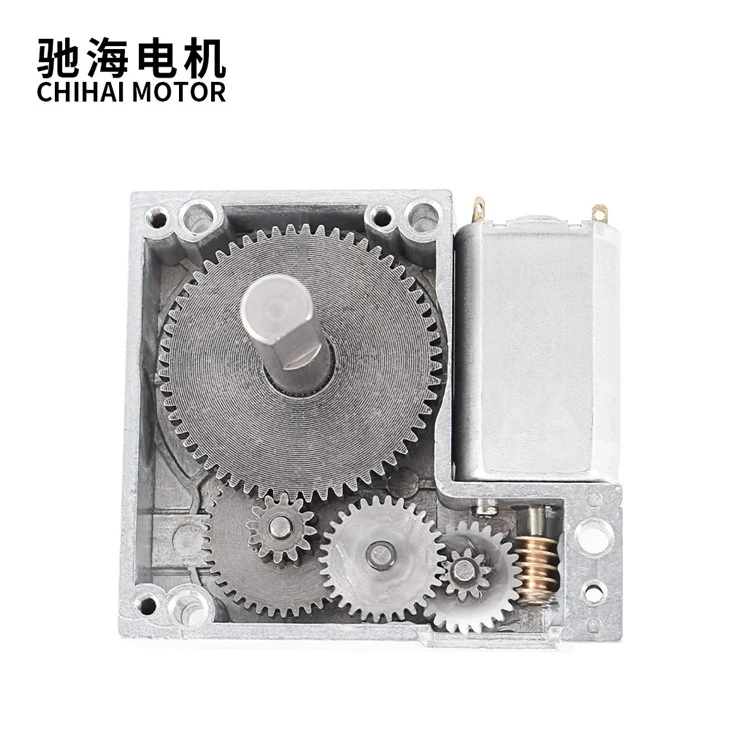

Worm gear transmission structure：
copper worm with POM material worm wheel； Effectively reduce noise； Improve abrasion resistance；long service life Strong composite ability； strong self-locking ability；
Precision machined gears：
The transmission gears in the stress stage are manufactured by machining，Enhancing affordability Wear resistant type， Ensure load capacity under high torque.

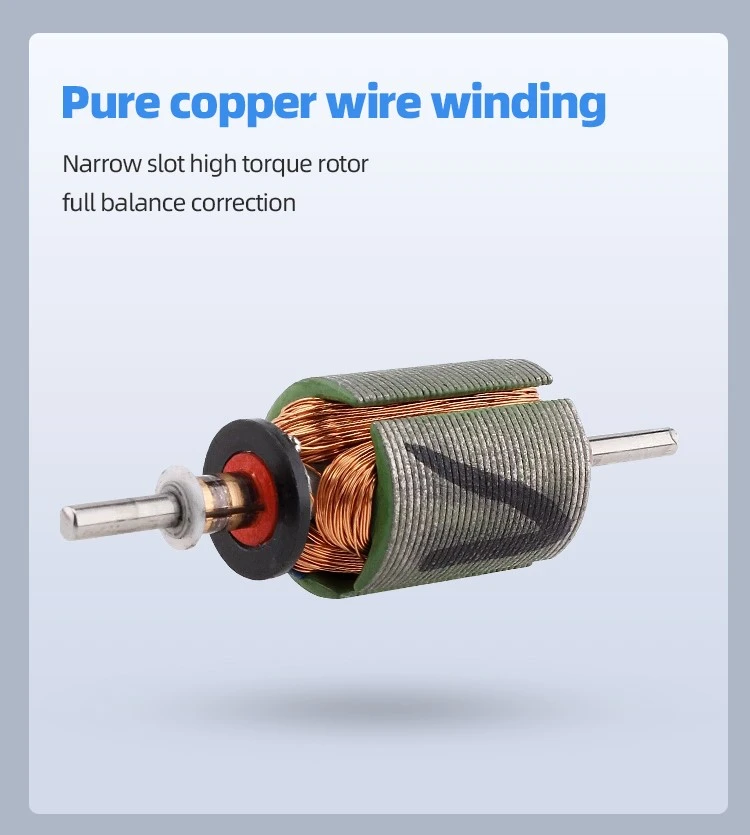

Pure copper wire winding：
Narrow slot high torque rotor full balance correction
Detailed Images

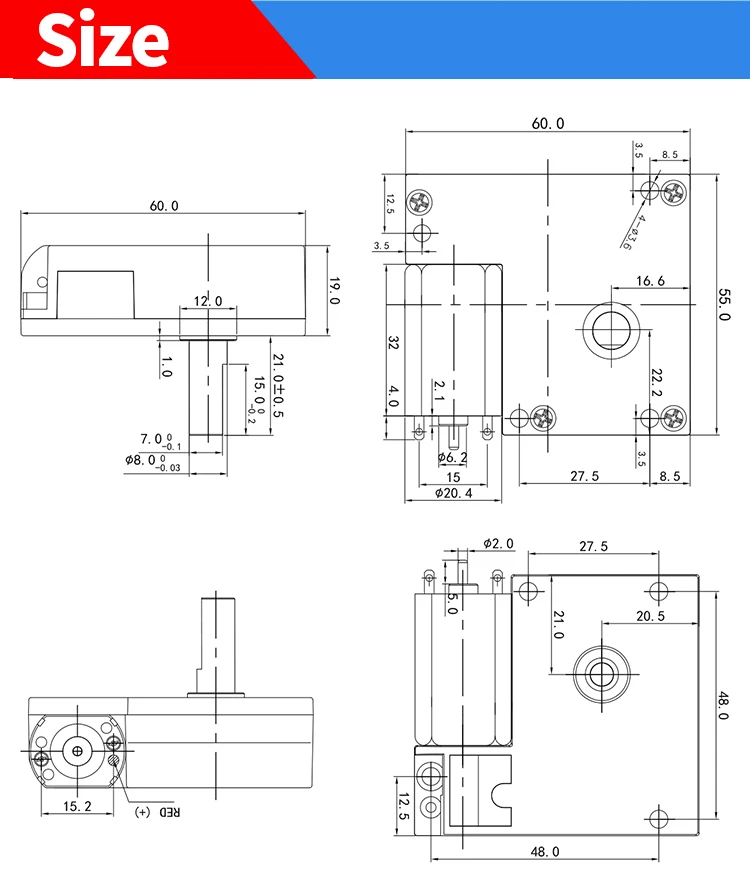

Product & specifications
| Model: CHF-GF5560-180 Dc gear motor |
| Voltage: DC12.0V High torque inout motor: MAX power 4.2 W |
| Ratio | 1: 26.9 | 1: 53.8 | 1: 161 | 1: 322 | 1: 700 | 1: 1400 |
| No load Current(mA) | ≤200 | ≤200 | ≤200 | ≤200 | ≤200 | ≤200 |
| No load Speed(rpm) | 590 | 295 | 100 | 50 | 23 | 11 |
| Rated torque(kg.cm) | 0.5 | 1.0 | 3.0 | 6.0 | 13.0 | 25.0 |
| Rated Torque(N.m) | 0.05 | 0.1 | 0.3 | 0.6 | 1.3 | 2.5 |
| Rated Speed(rpm) | 460 | 230 | 78 | 39 | 18 | 9 |
| Rated Current(A) | ≤0.80 | |||||
| Stall Current (A) | ≤3.30 | |||||
| Stall Torque(kg.cm) | ≥2.0 | ≥4.0 | ≥14.0 | ≥28.0 | ≥40.0 | |
Packing & Delivery
PACKAGE:
Standard export carton packing.
DELIVERY TIME:
3-20 days after confirming order,detail delivery date should be decided according to
production season and order quantity.
ATTENTION:
If special customs clearance documents are required, please contact us in advance for confirmation.
