Micro DC Carbon Brush Motor Water Pump
Product Description
| Product Type | 370 Motor Mini water pump |

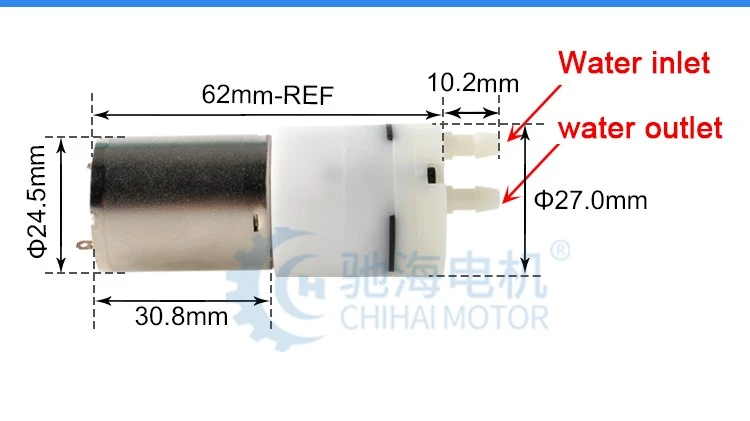

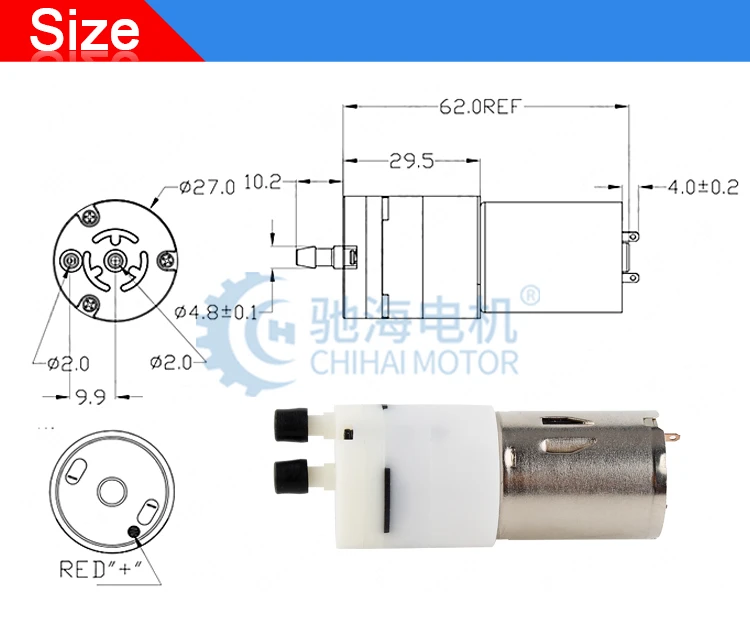

| Motor diameter | Φ25mm |
| Silicon tube size |
Internal diameter：3mm Outside diameter：5mm |
| Weight | about 60 g |
| Service life | 10000 times |
| noise |
60DB (30 cm distance measured) |
characteristic
1, the use of air-tight import and export, can achieve the dual-use of gas and liquid (namely, water pump, but also air pump)
2, easy to carry, palm pump, can be pocket away. Suitable for going out fishing, power outage reserve!
3, a wide range of power supply, two dry batteries, rechargeable battery, charging bank, 6V small battery, solar panels, idle mobile phone charger, etc. all 3-6V power pass kill! 12V needs to use adapters or large capacity batteries!

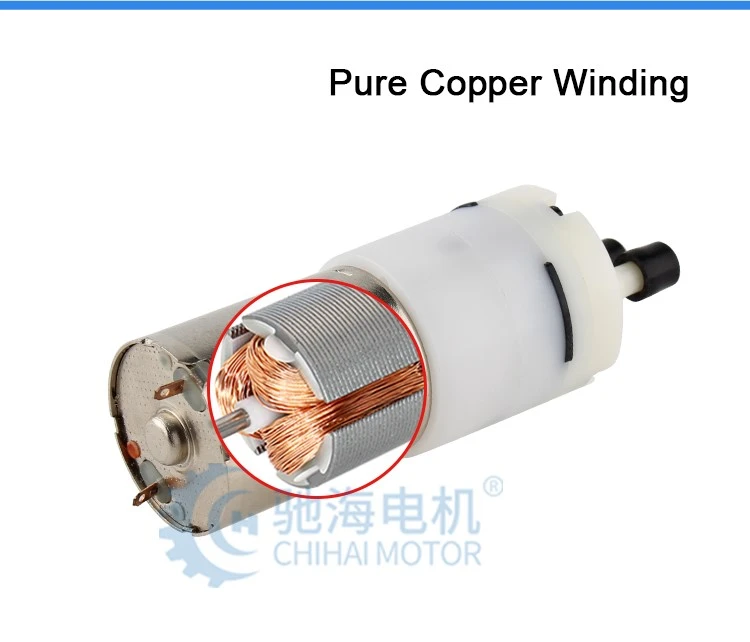

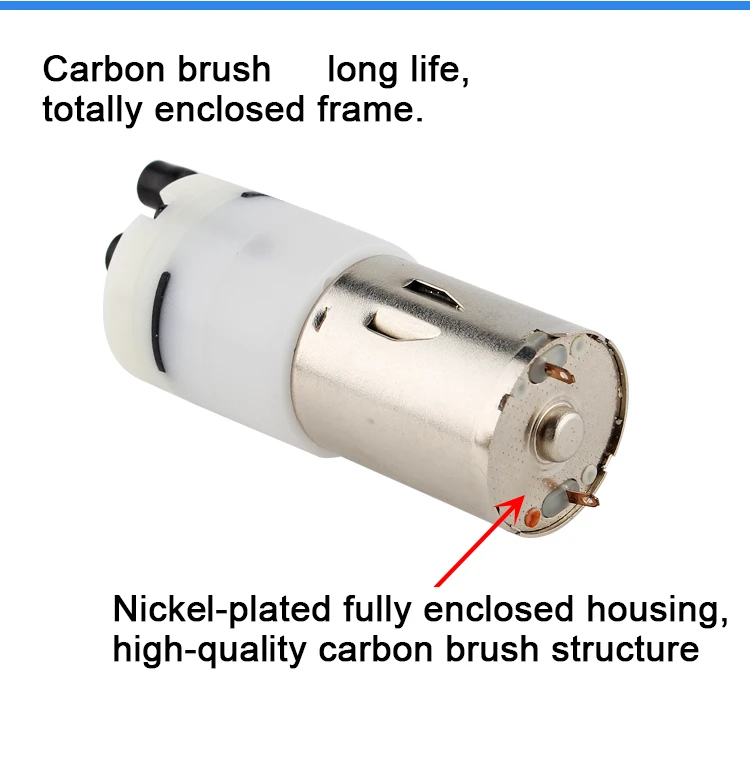

4, the use of strong magnetic carbon brush motor, long life, large torque, the effect is fierce!

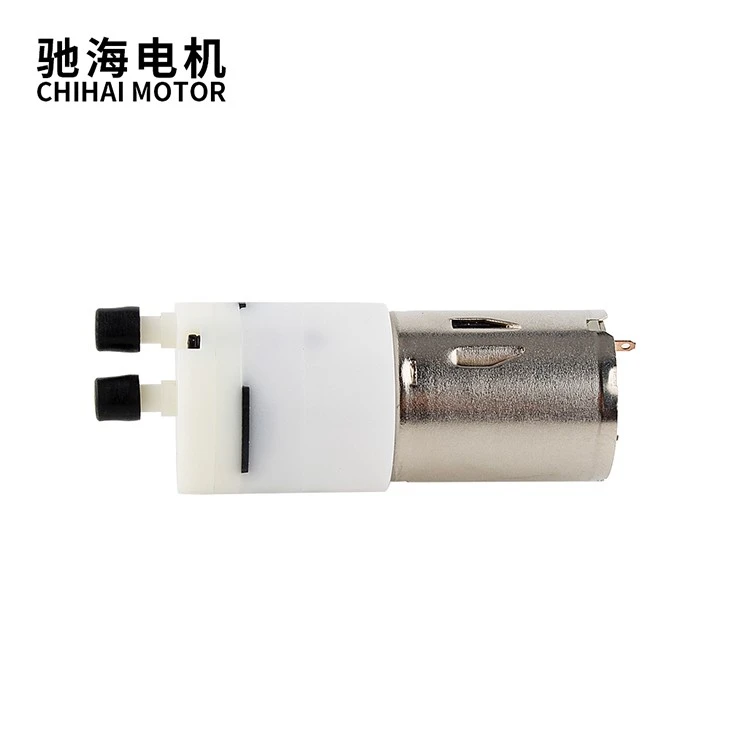

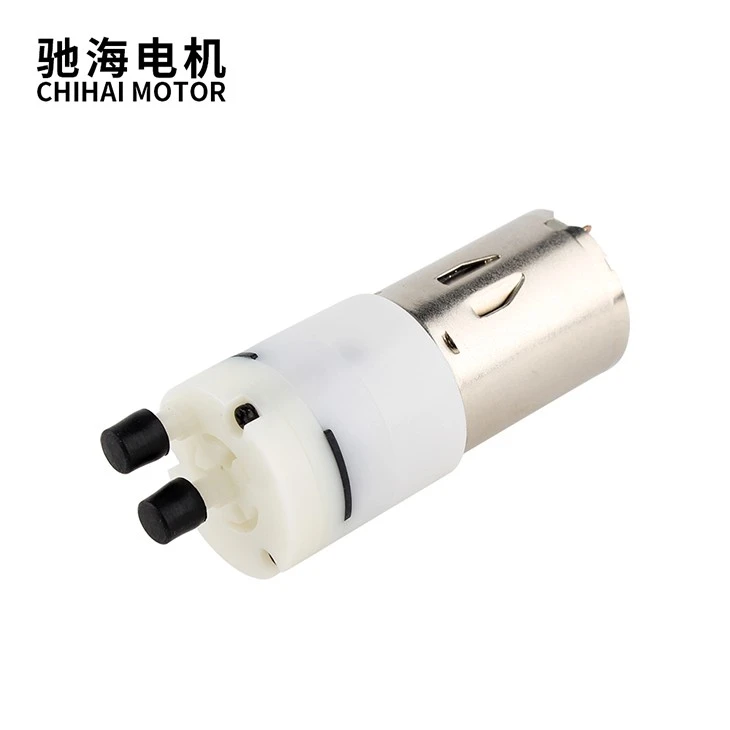

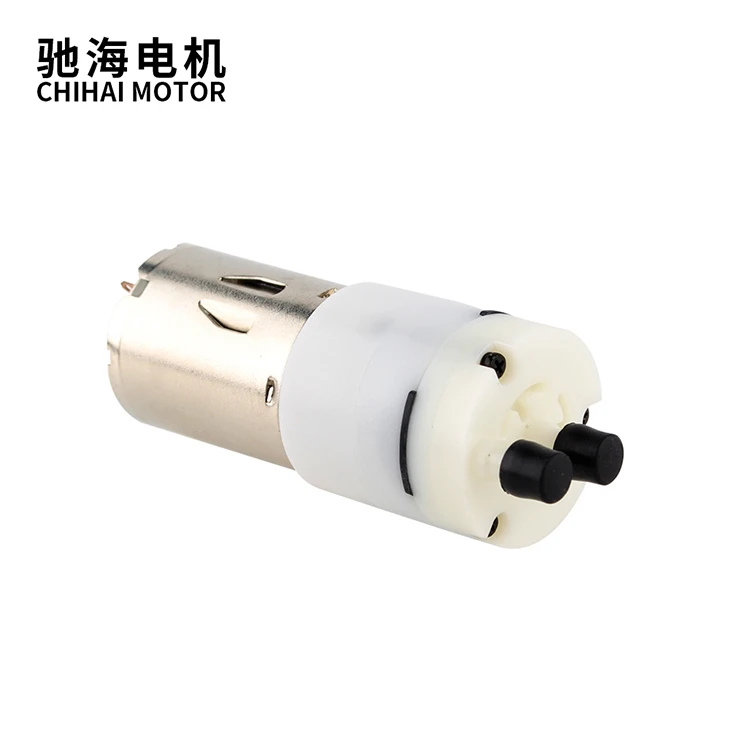

Detailed Images
Product & specifications
| Model：R370 Mini Water Pump(gas and liquid) |
| Voltage: DC12.0V |
| Test condition | From 500cc tank |
| Rated current | ＜380 mA |

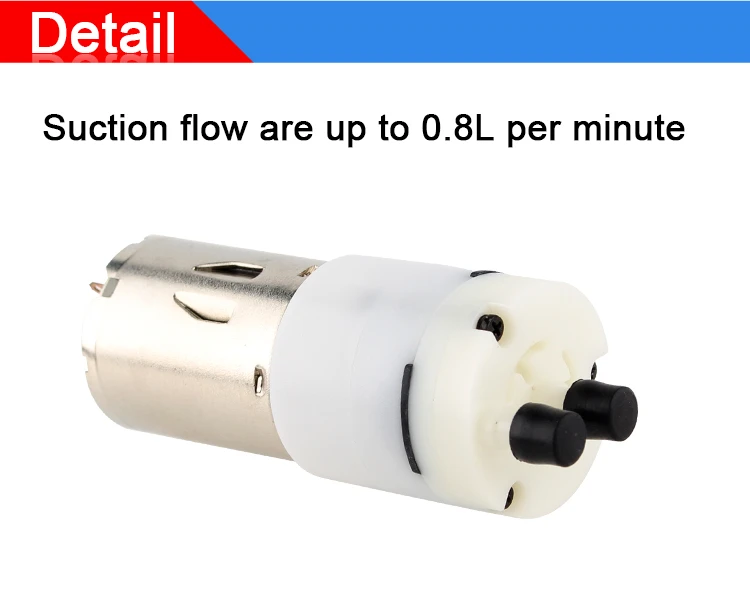

| Water flow | 0.5~1.0L/min with no load |
| No load flow | ≥1.2L/m |
| Pressure | ≤ -40KPA |
| Pump Head | ≥ 100 Cm |
| Suction Head | ≥ 100 Cm |
| Noise | ＜65 dB |
| Life test | ＞10000 Times(50s on ,20s off) |
| Voltage: DC6.0V |
| Test condition | From 500cc tank |
| Rated current | ＜580 mA |
| Water flow | 0.5~1.0L/min with no load |
| No load flow | ≥1.5L/m |
| Pressure | ≤ -40KPA |
| Pump Head | ≥ 100 Cm |
| Suction Head | ≥ 100 Cm |
| Noise | ＜65 dB |
| Life test | ＞10000 Times(50s on ,20s off) |
Packing & Delivery
PACKAGE:
Standard export carton packing.
DELIVERY TIME:
3-20 days after confirming order,detail delivery date should be decided according to
production season and order quantity.
ATTENTION:
If special customs clearance documents are required, please contact us in advance for confirmation.
