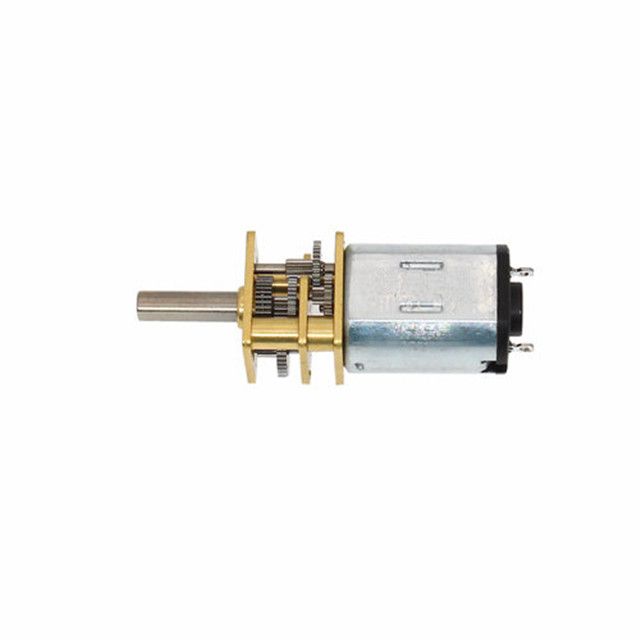

Permanent magnet dc gear motor
Voltage: DC3.0V power 0.5W Input motor model 45#
Model: CHR-GM12-N20VA
Product Description
Product Type | CHR-GM12-N20VA gear motors |
Output shaft length | 10mm D |
Shaft diameter | 3mm |
Voltage range | DC1.0- 3.0V |
Weight | About 10 grams |
Product Parameters
Specifications |
| |||||||||
Model:CHR-GM12-N20VA |
| |||||||||
Recution ratio | 1：10 | 1：20 | 1:30 | 1：50 | 1：100 | 1：150 | 1：210 | 1：298 | 1：380 | 1：1000 |
No-load current（mA) | ≤45 | ≤45 | ≤45 | ≤45 | ≤45 | ≤45 | ≤45 | ≤45 | ≤45 | ≤45 |
No-load speed (rpm) | 1200 | 600 | 400 | 240 | 120 | 80 | 57 | 40 | 32 | 32 |
Rated torque(g.cm) | 40 | 80 | 120 | 200 | 400 | 600 | 800 | 1200 | 1600 | 1600 |
Rated-load speed (rpm) | 780 | 390 | 260 | 150 | 80 | 52 | 37 | 26 | 20 | 20 |
Rated-load current（A) | ≤0.27 | ≤0.27 | ≤0.27 | ≤0.27 | ≤0.27 | ≤0.27 | ≤0.27 | ≤0.27 | ≤0.27 | ≤0.27 |
Stall torque(kg.cm) | 0.1 | 0.2 | 0.3 | 0.5 | 1 | 1.5 | 2 | 3 | 3.5 | 3.5 |
Stall current(A) | ≤0.65 | ≤0.65 | ≤0.65 | ≤0.65 | ≤0.65 | ≤0.65 | ≤0.65 | ≤0.65 | ≤0.65 | ≤0.65 |
Voltage: DC3.0V power 0.2W Input motor model 26# | ||||||||||
Recution ratio | 1：10 | 1：20 | 1:30 | 1：50 | 1：100 | 1：150 | 1：210 | 1：298 | 1：380 | 1：1000 |
No-load current（mA) | ≤45 | ≤45 | ≤45 | ≤45 | ≤45 | ≤45 | ≤45 | ≤45 | ≤45 | ≤45 |
No-load speed (rpm) | 810 | 405 | 270 | 162 | 81 | 54 | 38 | 27 | 21 | 21 |
Rated torque(g.cm) | 40 | 80 | 120 | 200 | 400 | 600 | 800 | 1200 | 1600 | 1600 |
Rated-load speed (rpm) | 780 | 390 | 260 | 150 | 80 | 52 | 37 | 26 | 20 | 20 |
Rated-load current（A) | ≤0.27 | ≤0.27 | ≤0.27 | ≤0.27 | ≤0.27 | ≤0.27 | ≤0.27 | ≤0.27 | ≤0.27 | ≤0.27 |
Stall torque(kg.cm) | 0.1 | 0.2 | 0.3 | 0.5 | 0.1 | 1.5 | 2 | 3 | 3.5 | 3.5 |
Stall current(A) | ≤0.65 | ≤0.65 | ≤0.65 | ≤0.65 | ≤0.65 | ≤0.65 | ≤0.65 | ≤0.65 | ≤0.65 | ≤0.65 |
Voltage: DC6.0V power 0.6W Input motor model 26# | ||||||||||
Recution ratio | 1：10 | 1：20 | 1:30 | 1：50 | 1：100 | 1：150 | 1：210 | 1：298 | 1：380 | 1：1000 |
No-load current（mA) | ≤45 | ≤45 | ≤45 | ≤45 | ≤45 | ≤45 | ≤45 | ≤45 | ≤45 | ≤45 |
No-load speed (rpm) | 1650 | 825 | 550 | 330 | 165 | 110 | 78 | |||
Rated torque(g.cm) | 50 | 100 | 150 | 250 | 500 | 750 | 1000 | |||
Rated-load speed (rpm) | 980 | 490 | 326 | 193 | 98 | 65 | 46 | |||
Rated-load current（A) | ≤0.23 | ≤0.23 | ≤0.23 | ≤0.23 | ≤0.23 | ≤0.23 | ≤0.23 | |||
Stall torque(kg.cm) | 0.11 | 0.22 | 0.35 | 0.6 | 1.1 | 1.8 | 2.5 | |||
Stall current(A) | ≤0.55 | ≤0.55 | ≤0.55 | ≤0.55 | ≤0.55 | ≤0.55 | ≤0.55 | |||
Voltage: DC6.0V power 0.4W Input motor model 35# | ||||||||||
Recution ratio | 1：10 | 1：20 | 1:30 | 1：50 | 1：100 | 1：150 | 1：210 | |||
No-load current（mA) | ≤35 | ≤35 | ≤35 | ≤35 | ≤35 | ≤35 | ≤35 | |||
No-load speed (rpm) | 1050 | 525 | 350 | 210 | 105 | 70 | 50 | |||
Rated torque(g.cm) | 20 | 40 | 60 | 100 | 200 | 300 | 400 | |||
Rated-load speed (rpm) | 750 | 375 | 250 | 150 | 75 | 50 | 35 | |||
Rated-load current（A) | ≤0.1 | ≤0.1 | ≤0.1 | ≤0.1 | ≤0.1 | ≤0.1 | ≤0.1 | |||
Stall torque(kg.cm) | 0.08 | 0.16 | 0.24 | 0.4 | 0.8 | 1.2 | 1.6 | |||
Stall current(A) | ≤0.22 | ≤0.22 | ≤0.22 | ≤0.22 | ≤0.22 | ≤0.22 | ≤0.22 | |||
Voltage: DC12.0V power 0.6W Input motor model 05# | ||||||||||
Recution ratio | 1：10 | 1：20 | 1:30 | 1：50 | 1：100 | 1：150 | 1：210 | |||
No-load current（mA) | ≤30 | ≤30 | ≤30 | ≤30 | ≤30 | ≤30 | ≤30 | |||
No-load speed (rpm) | 1500 | 750 | 500 | 300 | 150 | 100 | 71 | |||
Rated torque(g.cm) | 20 | 40 | 60 | 100 | 200 | 300 | 400 | |||
Rated-load speed (rpm) | 1200 | 600 | 400 | 240 | 120 | 80 | 57 | |||
Rated-load current（A) | ≤0.06 | ≤0.06 | ≤0.06 | ≤0.06 | ≤0.06 | ≤0.06 | ≤0.06 | |||
Stall torque(kg.cm) | 0.09 | 0.18 | 0.27 | 0.45 | 0.9 | 1.3 | 1.9 | |||
Stall current(A) | ≤0.22 | ≤0.22 | ≤0.22 | ≤0.22 | ≤0.22 | ≤0.22 | ≤0.22 | |||
Voltage: DC12.0V power 1.4W Input motor model 35# | ||||||||||
Recution ratio | 1：10 | 1：20 | 1:30 | 1：50 | 1：100 | 1：150 | 1：210 | 1：298 | 1：380 | 1：1000 |
No-load current（mA) | ≤55 | ≤55 | ≤55 | ≤55 | ≤55 | ≤55 | ≤55 | ≤55 | ≤55 | ≤55 |
No-load speed (rpm) | 2150 | 1075 | 717 | 430 | 215 | 143 | 102 | 72 | 57 | 21 |
Rated torque(g.cm) | 50 | 100 | 150 | 250 | 500 | 750 | 1000 | 1500 | 1900 | 3000 |
Rated-load speed (rpm) | 1450 | 720 | 480 | 29 | 145 | 95 | 70 | 48 | 38 | 14 |
Rated-load current（A) | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.2 |
Stall torque(kg.cm) | 0.13 | 0.26 | 0.39 | 0.65 | 1.3 | 2 | 2.7 | 3 | 3 | 3 |
Stall current(A) | ≤0.42 | ≤0.42 | ≤0.42 | ≤0.42 | ≤0.42 | ≤0.42 | ≤0.42 | ≤0.42 | ≤0.42 | ≤0.42 |
Packing & Delivery
PACKAGE:
Standard export carton packing.
DELIVERY TIME:
3-20 days after confirming order,detail delivery date should be decided according to
production season and order quantity.
ATTENTION:
If special customs clearance documents are required, please contact us in advance for confirmation.
