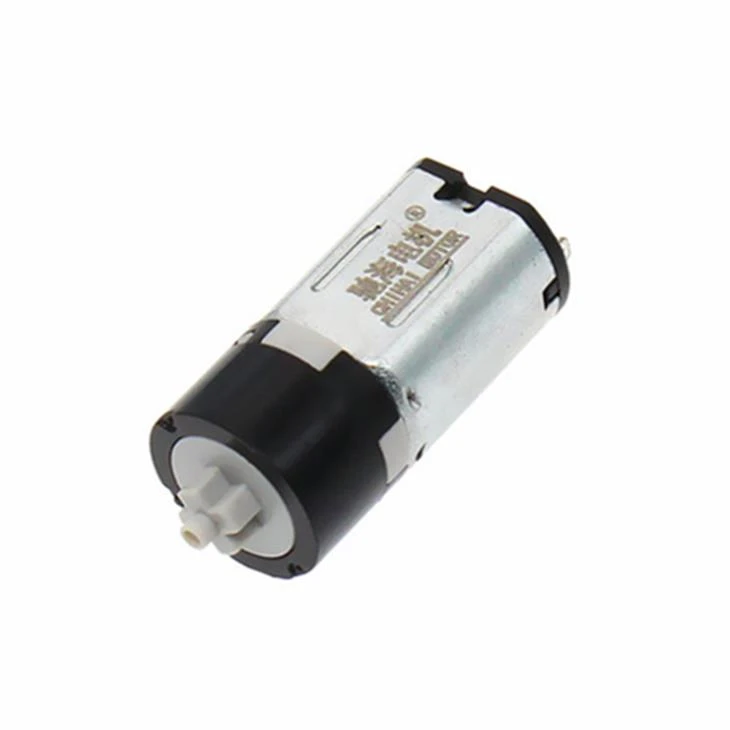

24 Volt Planetary Gearbox Brushless DC Geared Motor
No-load speed60rpm
Motor weight4.0g
Model: CHP-10GP-M10VA
Product Description
Use voltage DC3.0V
No-load speed60rpm
Motor weight4.0g
Product Parameters
MODEL | RATIO | VOLTAGE | NO LOAD | AT RATED LOAD | STALL | |||||
OPERATION RANGE | NOMINAL | SPEED | CURRENT | SPEED | CURRENT | TORQUE | CURRENT | TORQUE | ||
r/min | mA | r/min | A | Kg.cm | A | Kg.cm | ||||
CHF-GM10-M10-A95-10 | 1：10 | 1.0-4.0 | 3.0 | 1550 | ≤70 | 1150 | ≤0.27 | 0.04 | ≤1.3 | ≥0.08 |
CHF-GM10-M10-A95-20 | 1：20 | 1.0-4.0 | 3.0 | 770 | ≤70 | 570 | ≤0.27 | 0.08 | ≤1.3 | ≥0.15 |
CHF-GM10-M10-A95-30 | 1：30 | 1.0-4.0 | 3.0 | 515 | ≤70 | 380 | ≤0.27 | 0.12 | ≤1.3 | ≥0.25 |
CHF-GM10-M10-A95-50 | 1：50 | 1.0-4.0 | 3.0 | 310 | ≤70 | 230 | ≤0.27 | 0.20 | ≤1.3 | ≥0.4 |
CHF-GM10-M10-A95-100 | 1：100 | 1.0-4.0 | 3.0 | 155 | ≤70 | 120 | ≤0.27 | 0.30 | ≤1.3 | ≥0.7 |
CHF-GM10-M10-A95-250 | 1：250 | 1.0-4.0 | 3.0 | 62 | ≤70 | 50 | ≤0.27 | 0.30 | ≤1.3 | ≥0.8 |
CHF-GM10-M10-A17-10 | 1：10 | 1.5-6.0 | 4.5 | 1750 | ≤70 | 1200 | ≤0.25 | 0.04 | ≤0.6 | ≥0.07 |
CHF-GM10-M10-A17-20 | 1：20 | 1.5-6.0 | 4.5 | 870 | ≤70 | 600 | ≤0.25 | 0.08 | ≤0.6 | ≥0.13 |
CHF-GM10-M10-A17-30 | 1：30 | 1.5-6.0 | 4.5 | 580 | ≤70 | 400 | ≤0.25 | 0.12 | ≤0.6 | ≥0.22 |
CHF-GM10-M10-A17-50 | 1：50 | 1.5-6.0 | 4.5 | 350 | ≤70 | 240 | ≤0.25 | 0.20 | ≤0.6 | ≥0.35 |
CHF-GM10-M10-A17-100 | 1：100 | 1.5-6.0 | 4.5 | 175 | ≤70 | 120 | ≤0.25 | 0.30 | ≤0.6 | ≥0.6 |
CHF-GM10-M10-A17-250 | 1：150 | 1.5-6.0 | 4.5 | 70 | ≤70 | 50 | ≤0.25 | 0.30 | ≤0.6 | ≥0.8 |
CHF-GM10-M10-A25-10 | 1：10 | 1.5-6.0 | 6.0 | 1900 | ≤70 | 1300 | ≤0.2 | 0.04 | ≤0.4 | ≥0.08 |
CHF-GM10-M10-A25-20 | 1：20 | 1.5-6.0 | 6.0 | 850 | ≤70 | 650 | ≤0.2 | 0.08 | ≤0.4 | ≥0.15 |
CHF-GM10-M10-A25-30 | 1：30 | 1.5-6.0 | 6.0 | 630 | ≤70 | 430 | ≤0.2 | 0.12 | ≤0.4 | ≥0.25 |
CHF-GM10-M10-A25-50 | 1：50 | 1.5-6.0 | 6.0 | 380 | ≤70 | 260 | ≤0.2 | 0.20 | ≤0.4 | ≥0.4 |
CHF-GM10-M10-A25-100 | 1：100 | 1.5-6.0 | 6.0 | 190 | ≤70 | 130 | ≤0.2 | 0.30 | ≤0.4 | ≥0.7 |
CHF-GM10-M10-A25-250 | 1：150 | 1.5-6.0 | 6.0 | 75 | ≤70 | 55 | ≤0.2 | 0.30 | ≤0.4 | ≥0.8 |
Packing & Delivery
PACKAGE:
Standard export carton packing.
DELIVERY TIME:
3-20 days after confirming order,detail delivery date should be decided according to
production season and order quantity.
ATTENTION:
If special customs clearance documents are required, please contact us in advance for confirmation.
