24V High Torque Copper Wire Electric DC Motor for Trap Machine

Model:

CHR-GM37-31ZY
Permanent magnet dc tubular reduction motor

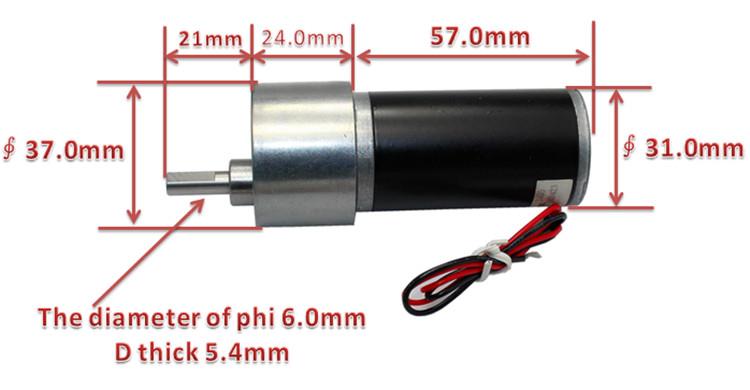

Outer shaft:

Φ37mm

shaft length:

21mm length of the D 12mm

Shaft diameter:

6mm D

Voltage:

DC 6-24V

Weight:

260g(different ratio different weight)

Application:

Intelligent self-balancing two-wheel car, intelligent tracking car, intelligent home appliances, robot, camera rocker, electric paper cutting machine, etc

Model: CHR-GM37-31ZY Permanent magnet dc motor

Voltage: DC6.0V 40# power 5W

Reduction ratio

1： 6.3

1： 10

1： 18.8

1： 30

1： 50

1： 90

1： 150

1： 270

1： 450

1： 650

1： 810

No-load current (mA)

≤200

≤200

≤200

≤200

≤200

≤200

≤200

≤200

≤200

≤200

≤200

No-load speed(rpm)

635

400

213

133

80

44

26

15

9

6

5

Rated torque(Kg・cm)

0.6

1.0

1.8

3.0

5.0

9.0

15.0

27.0

35.0

35.0

35.0

Rated speed (rpm)

508

320

170

107

64

35

21

12

7

5

4

Rated current (A)

<0.8

<0.8

<0.8

<0.8

<0.8

<0.8

<0.8

<0.8

<0.8

<0.8

<0.8

Stall torque (Kg.cm)

3

5

9

15

25

max torque 35kg.cm

Stall current (A)

3.3

3.3

3.3

3.3

3.3

not allow stall

Length of gearbox(mm)

19

19

22

22

24

24

26.5

26.5

29

29

29

Voltage: DC12.0 V 40# power 6w

Reduction ratio

1： 6.3

1： 10

1： 18.8

1： 30

1： 50

1： 90

1： 150

1： 270

1： 450

1： 650

1： 810

No-load current (mA)

≤130

≤130

≤130

≤130

≤130

≤130

≤130

≤130

≤130

≤130

≤130

No-load speed(rpm)

635

400

213

133

70

44

26

15

Rated torque(Kg.cm)

0.6

1.0

1.8

3.0

4.0

9.0

15.0

27.0

Rated speed (rpm)

508

320

170

107

64

36

21

12

Rated current (A)

<0.5

<0.5

<0.5

<0.5

<0.5

<0.5

<0.5

<0.5

Stall torque (Kg.cm)

3.5

6

11

18

33

max torque 35kg.cm

Stall current (A)

6.6

6.6

6.6

6.6

6.6

not allow stall

Length of gearbox(mm)

19

19

22

22

24

24

26.5

26.5

Voltage: DC12.0 v 80# power 20w

Reduction ratio

1： 6.3

1： 10

1： 18.8

1： 30

1： 50

1： 90

1： 150

1： 270

No-load current (mA)

≤400

≤400

≤400

≤400

≤400

≤400

≤400

≤400

No-load speed(rpm)

1270

800

426

267

160

89

53

29

Rated torque(Kg・cm)

1.0

2.0

3.5

6.0

11.0

18.0

26.0

33.0

Rated speed (rpm)

1032

650

346

217

130

72

43

24

Rated current (A)

<1.6

<1.6

<1.6

<1.6

<1.6

<1.6

<1.6

<1.6

Stall torque (Kg.cm)

6

10

18

30

max torque 35kg.cm

Stall current (A)

6.5

6.5

6.5

6.5

6.5

not allow stall

Length of gearbox(mm)

19

19

22

22

24

24

26.5

26.5

Voltage: DC24.0V 50# power 15w

Reduction ratio

1： 6.3

1： 10

1： 18.8

1： 30

1： 50

1： 90

1： 150

1： 270

No-load current (mA)

≤130

≤130

≤130

≤130

≤130

≤130

≤130

≤130

No-load speed(rpm)

794

500

266

167

100

56

33

18

Rated torque(Kg.cm)

1.0

2.0

3.5

6.0

10.0

18.0

30.0

35.0

Rated speed (rpm)

635

400

213

133

80

44

26

15

Rated current (A)

<0.65

<0.65

<0.65

<0.65

<0.65

<0.65

<0.65

<0.65

Stall torque (Kg.cm)

5

8

15

24

max torque 35kg.cm

Stall current (A)

2

2

2

2

not allow stall

Length of gearbox(mm)

19

19

22

22

24

24

26.5

26.5

29

29

29

Voltage: DC24.0v 80# power 26w

Reduction ratio

1: 6.3

1： 10

1： 18.8

1： 30

1： 50

1： 90

1： 150

1： 270

1： 450

1： 650

1： 810

No-load current (mA)

≤250

≤250

≤250

≤250

≤250

≤250

≤250

≤250

≤250

≤250

≤250

No-load speed(rpm)

1270

800

426

267

160

89

53

29

18

12

10

Rated torque(Kg・cm)

1.0

2.0

3.5

6.0

10.0

18.0

30.0

35.0

35.0

35.0

35.0

Rated speed (rpm)

1000

650

340

210

130

70

43

24

14

10

8

Rated current (A)

<1.0

<1.0

<1.0

<1.0

<1.0

<1.0

<1-0

<1-0

<1.0

<1.0

<1.0

Stall torque (Kg.cm)

6.5

11

22

35

max torque 35kg.cm

Stall current (A)

4.4

4.4

4.4

4.4

not allow stall

Length of gearbox(mm)

19

19

22

22

24

24

26.5

26.5

29

29

29
