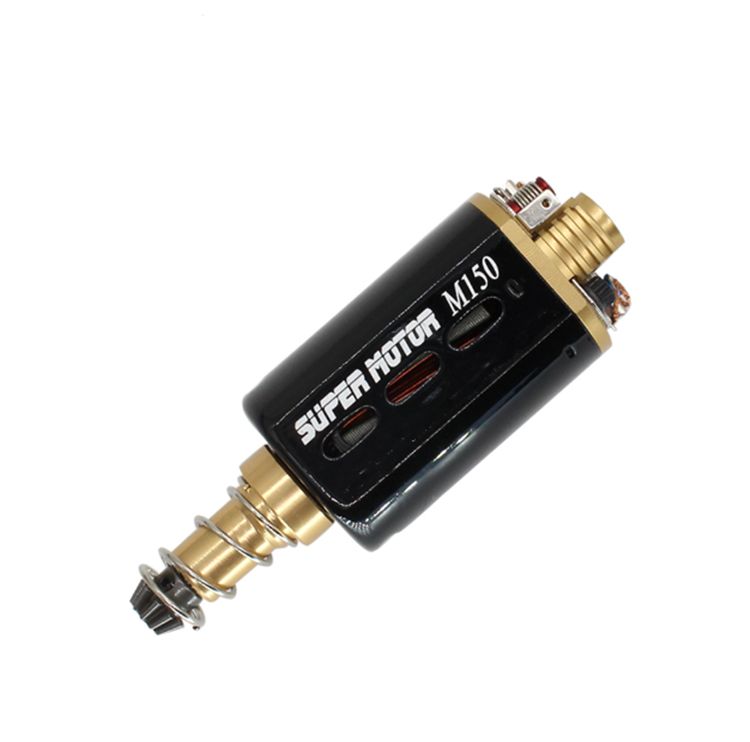

30mm Fs480wa DC Motor with NdFeB for Airsoft, Printer, Copy and Vending Machines-Chaoli
Model: CHF-480WA
Product Description
Brand: | CHIHAI MOTOR |
Model: | CHF-480WA-11310-Luxury gold (BLACK&Golden) |
Appearance: | Shell paint/CNC Aluminum Alloy Cover |
Magnetic Materials: | Sintered Nd-Fe-B Magnets |
DC11.1V SPEED: | 31000 rpm Applicable to all high-end players |
DC8.4V SPEED: | 21000 rpm |
Weight: | About 156 g |
Adaptation Type: | No.2 wave box Airsoft gun M90-M150 JIN MING M4A1-J9 ACR-J10 Wavebox upgrade 480 motor insertion(Special motor brackets are required) Special wave box type: WARINTEREST JIQU HK416D /KUBLAI BD556 JINGJI SLR/NEW WELL M4 FB WAVE BOX FIGHTING BRO |
Suitable for: G&P, M14, DMR, MK14 Crane Proto Conversion Kit Series
High-magnetic high-speed DC motors are also designed to be energy efficient. The motor uses a unique magnetic field that allows it to convert electrical energy into mechanical energy with minimal loss. Allows the motor to run for a long time without consuming too much power, making it ideal for a variety of applications.
Metal gear construction
The metal gear structure of the motor is one of its most prominent features. The gear structure is made of metal alloys, ensuring that the motor is durable and can withstand long periods of wear.
Ammonium ferric boron strong magnetic
There are two fan-shaped magnets in the motor to form a strong magnetic field
Thus, the motor torque is increased.

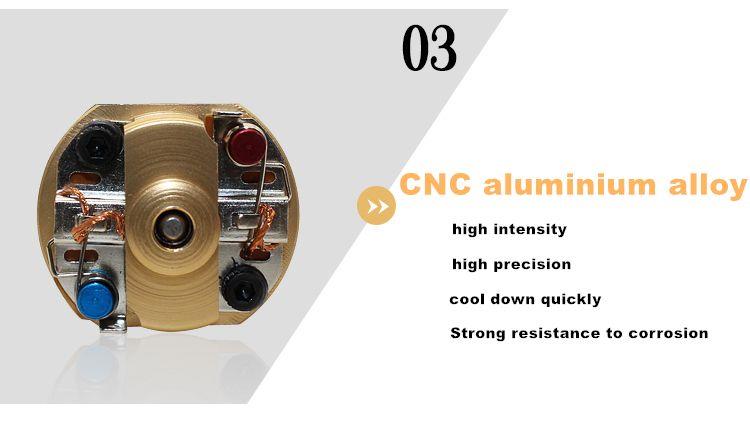

CNC Aluminium alloy
The motor adopts CNC aluminum alloy back cover which is machined by high precision numerical control and has high precision and high stability. It can better protect the internal parts of the motor, reduce the failure rate, and improve the reliability and efficiency of the motor. At the same time, the CNC aluminum alloy back cover can also play a good heat dissipation role, so that the heat is better distributed, so as to better protect the motor.
Features：
1-N35H Neodymium Magnet
2- CNC machined High thermal back cover
3-Ball bearing construction
4- extra strong powder metallurgy pinion gear
5-High heat dissipation paint case
6-High performance wear-resistant carbon brush
7-Armature Dynamic Balancing
8-Support fire control chip control
-Classic hot-selling models-
Medium-speed high-torque heat-stable motor
More single shots will heat up faster,use with 16:1
Detailed Images
Product Parameters
Specifications | |
Model：CHF-480WA | |
Voltage: | 8.4V |
No-load current（A) | 3.5 |
No-load speed(rpm) | 23500 |
Rated power(w) | 97.5 |
Rated torque(g.cm) | 439.0 |
Rated speed（rpm) | 21200 |
Rated current（A) | 20.5 |
AT MAXIMUM EFFICIENCY |
|
Rated speed（rpm) | 20680 |
Rated current（A） | 24.5 |
Rated torque(g.cm) | 540 |
Output power(W) | 114.2 |
EFF.(%) | 55.80% |
AT MAXIMUM OUTPUT |
|
Rated speed（rpm) | 11750 |
Rated current（A） | 90.4 |
Rated torque(g.cm) | 2243 |
Output power(W) | 270.3 |
EFF.(%) | 35.60% |
Strength business, professional production：
Huizhou Chihai Motor Co., Ltd. is a manufacturer of micro DC motor, brush DC motor, brushless DC motor, micro motor company.
The company has a complete and scientific quality management system.
Strong strength：
Huizhou Chihai Motor Co., Ltd. production, processing, distribution and wholesale as one, with strong strength, reasonable price and excellent service with a number of enterprises to establish long-term cooperation, the relationship is made of high-quality materials.
Focus on quality：
Professional customized quality assurance, factory process management, high production efficiency, to meet the customization needs of different customers. According to different products to provide professional motor product solutions.
Independent R&D：
Our company is specialized in research and development and production of a wide range of micro motor products, products are widely used in: a variety of toys/small household appliances/massagers/adult sex supplies/sex toys /Low energy consumption/various model aircraft/flying saucer/helicopter motors supporting military products are widely used in: large, small and medium vibration massage equipment, human body induction sanitation trash can automatic Mahjong machine Dice rolling motor, IC smart card electronic door lock, smart water meter water valve
gas valve, power tools, eyebrow machine, camera VCD/DVD movement, game machine,Electronic electric appliances toys, inflators, medical equipment, air pump pumps, hand pressure electric torches, etc.
Packing & Delivery
PACKAGE:
Standard export carton packing.
DELIVERY TIME:
3-20 days after confirming order,detail delivery date should be decided according to
production season and order quantity.
ATTENTION:
If special customs clearance documents are required, please contact us in advance for confirmation.
