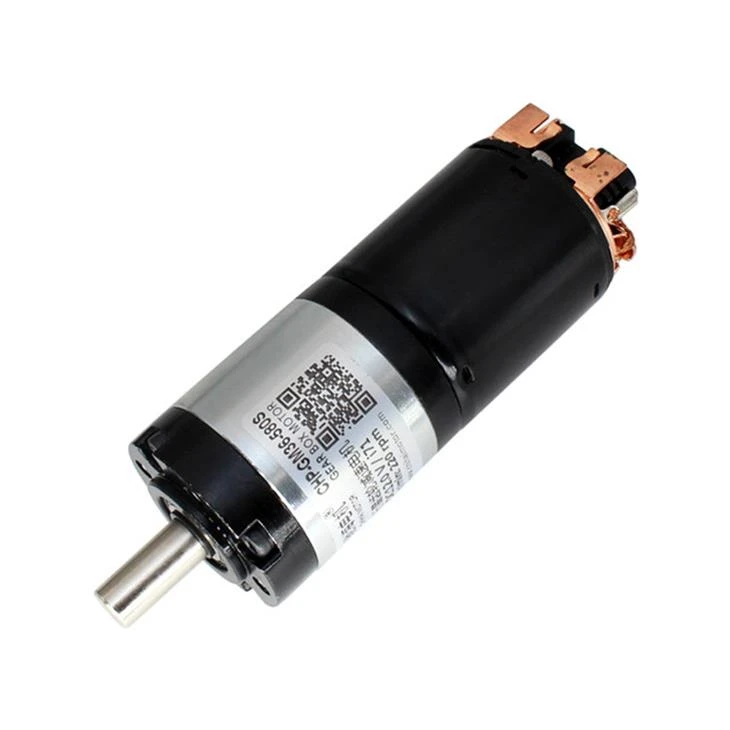

45mm High Torque Low Speed Micro DC Planetary Geared Motor with Encoder
The rotor part adopts pure copper group, small resistance and strong conductivity, so that the motor torque increases.
Model: CHP-36GP-580S
Product Description
Brand: | Chi Hai motor |

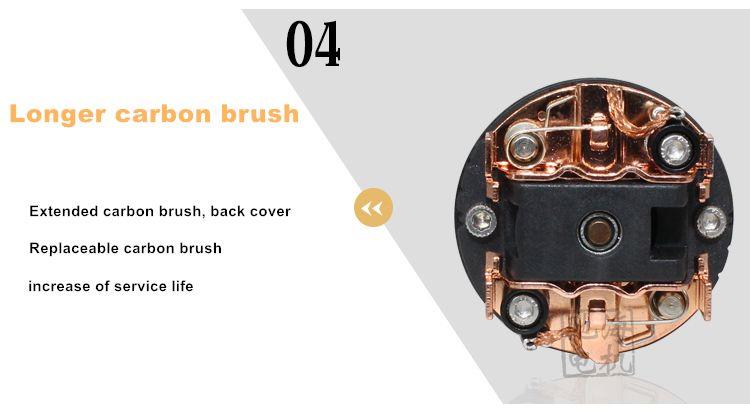

Product name: | CHP-36GP-580S permanent magnet DC lengthening carbon brush planetary gear motor |
Features: | all metal planetary gear structure, model level strong magnet, large torque 580 motor matching. |

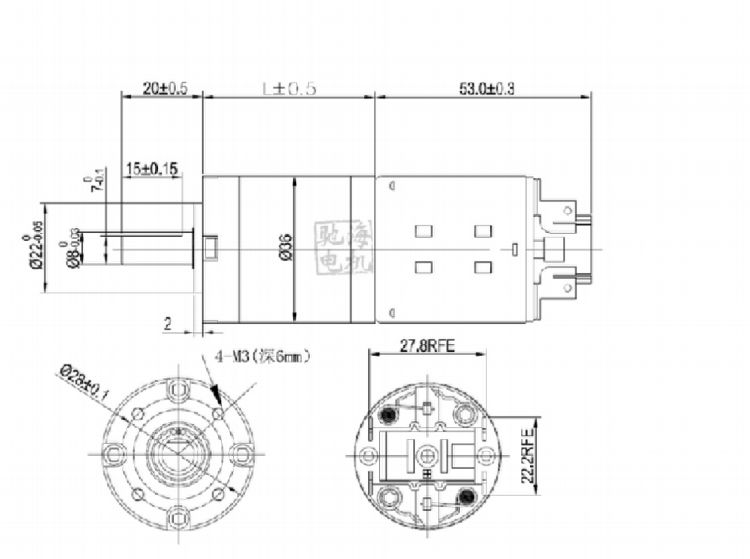

Diameter: | 36mm x Lmm (different deceleration ratio). |
Axle diameter: | out axis diameter 8mm D font D thick 7.0mm (batch customizable) |
Out axis length: | length 20mm D long 15mm (batch customizable) |
Weight: | about 420 grams (matching different deceleration ratio weight) |
Application case: | intelligent robot, electric curtain, intelligent balance car, intelligent manipulator, etc. |
Optional accessories: | reducer flange mounting bracket, flange coupling, positive and reverse stepless speed regulation driver, etc. |
Product details:
1. Pure copper wire winding
The rotor part adopts pure copper group, small resistance and strong conductivity, so that the motor torque increases.

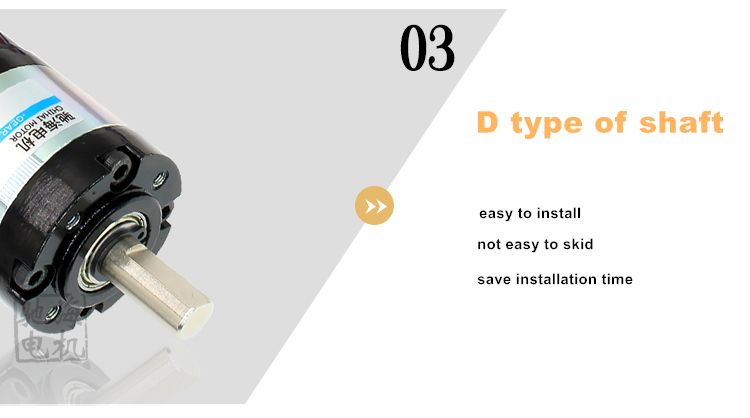

2. D font axis
D type shaft, more convenient installation, not easy to slip, save installation time.

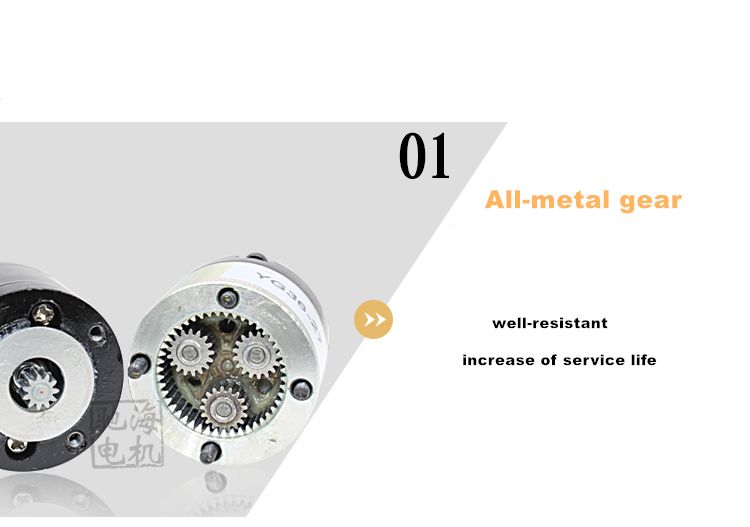

3. Adopt all metal structure.
Wear resistance, torque resistance, long life and smooth operation.

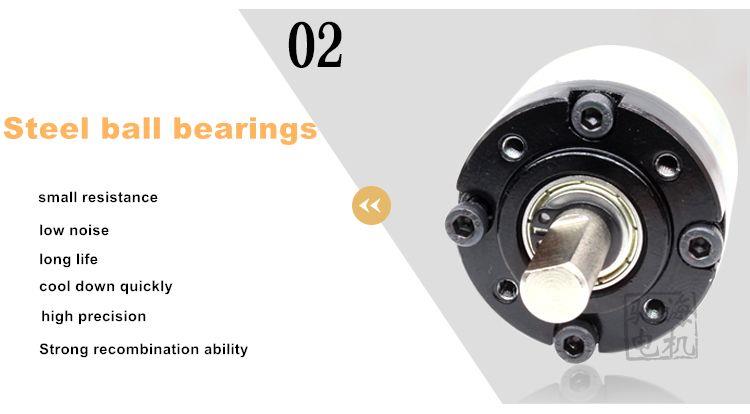

4. Use all ball bearing structure.
Small friction resistance, low noise, long life, quick heat dissipation, high accuracy and strong composite ability.

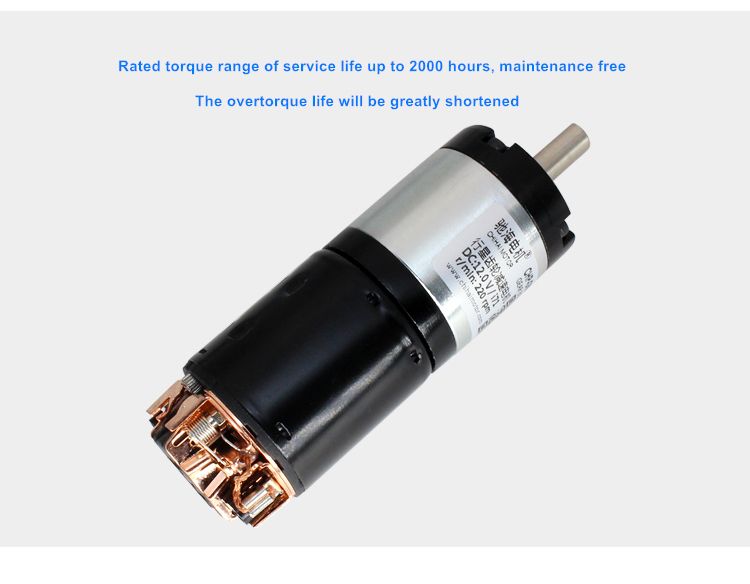

5. The service life of the rated torque range is longer than 2000H, and maintenance free. (super torque life will be greatly shortened.

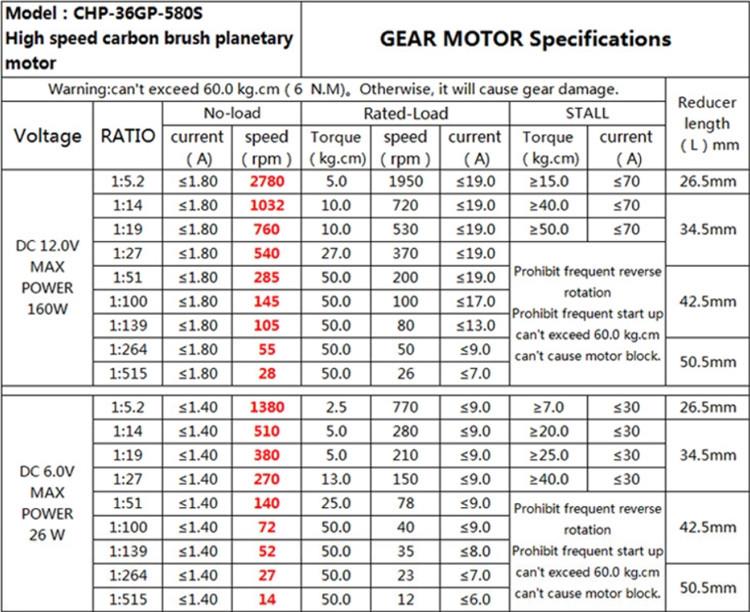

Product Parameters
Packing & Delivery
PACKAGE:
Standard export carton packing.
DELIVERY TIME:
3-20 days after confirming order,detail delivery date should be decided according to
production season and order quantity.
ATTENTION:
If special customs clearance documents are required, please contact us in advance for confirmation.
