Stepper Motor and Stepper Motor Driver for Machine Medical Device
Features: all metal reducer, brushless stepping motor.
External diameter: 10mm * 12mm * 20MM (without shaft and terminal).
Model: CHS-GM12-10BY
Product Description
Model | CHS-GM12-10BY |
Features | all metal reducer, brushless stepping motor. |
External diameter | 10mm * 12mm * 20MM (without shaft and terminal). |
Axle diameter | out axis diameter 3mm D font D thick 2.5mm (batch customizable) |
Out axis length | length 10mm (batch customizable) |
Weight | about 11 grams (matching different deceleration ratio weight). |
Applications | Intelligent Robot, Intelligent Manipulator,etc. |
Optional accessories | flange coupling, simple drive, etc. |

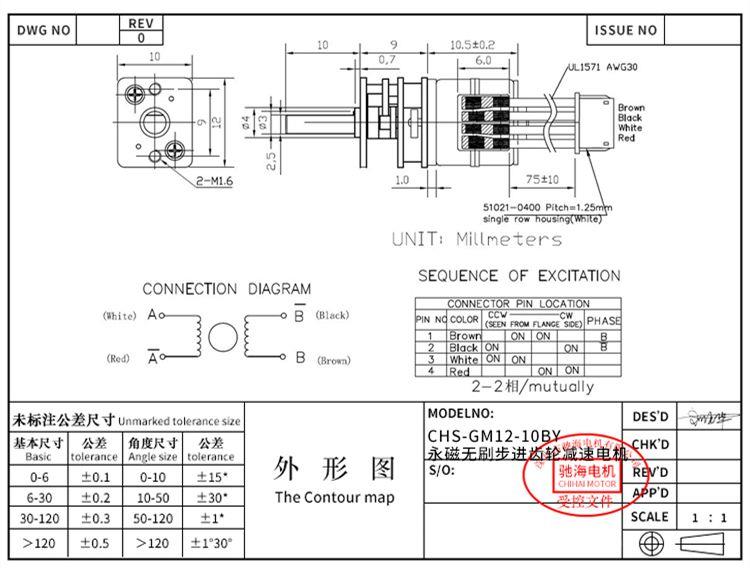

Product Parameters
Packing & Delivery
PACKAGE:
Standard export carton packing.
DELIVERY TIME:
3-20 days after confirming order,detail delivery date should be decided according to
production season and order quantity.
ATTENTION:
If special customs clearance documents are required, please contact us in advance for confirmation.
