6V Stepper Linear Motor
Valid Stroke 30mm

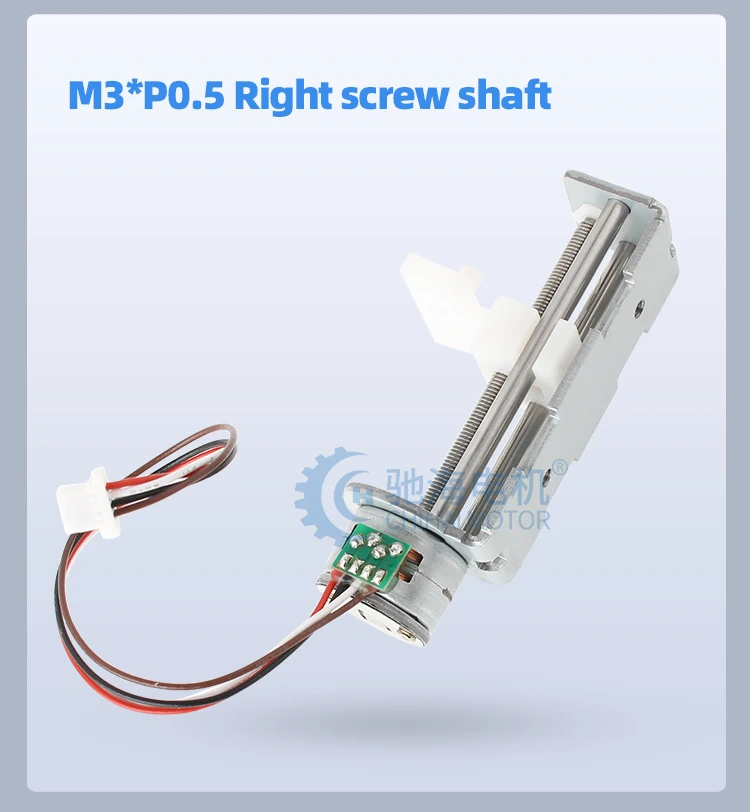

M3*P0.5 Right screw shaft
Stainless steel support shaft to ensure
the stability of linear transmission
Send Inquiry
Product Description
| Brand | CHIHAI MOTOR |
| Product Type | CHS-SM1530-M3*P0.5 Stepper Linear motor |
| External diameter | 15x14.5x60mm |
| Axle Diameter | Output shaft M3XP0.5 drive screwMaterial sUS303 Right handed the cw |
| Drive Way | Two phase four wire drive |
| Voltage | DC 6V |
| Weight | About 31g |
| Application | The micro sliding table,micro 3D printer, Microengraving machine, Micro intelligent equipment |

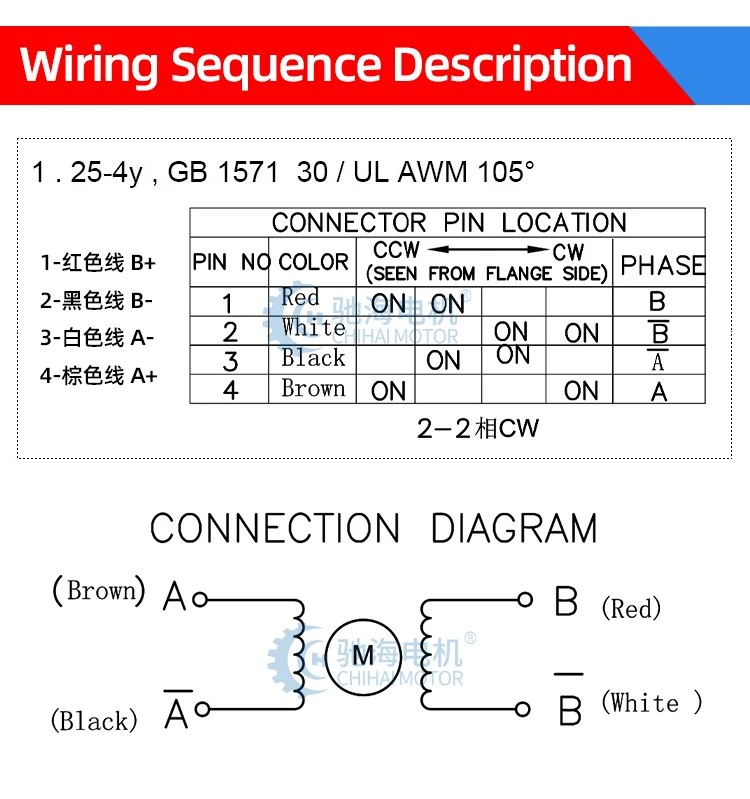

Detailed Images
Product Paramenters
| ELECTRICAL CHARACTERISTIC |
| Model：CHS-SM1530-M3*P0.5 Stepper Linear motor |
| RATED VOLTAGE | 6V DC(Driver IC ：L6219) |
| CURRENT PER PHASE | 400 mA/PHASE(1000PPS) |
| COIL RESISTANCE | 15±10% ohm/PHASE(20C°) |
| NO. OF PHASES | 2 PHASES |
| STEP ANGLE | 18°/ STEP |
| EXCITATION METHOD | 2-2 PHASES EXCITATION |
| DRIVE MODE | BIPOLAR DRIVE |
| PULL-OUT Thrust | MORE THAN 200 g AT 500pps |
| MAX RESPONSE FREQUENCY | MORE THAN 1200 pps |
| MAX STARTING FREQUENCY | MORE THAN 900 pps |
| INSULATION CLASS | CLASS E FOR COILS |
| INSULATION STRENGTH | 100 V AC FOR ONE SECOND |
| INSULATION RESISTANCE | 50MΩ DC 500 V |
| OPERATING TEMPERATURE RANGE | -0 ~ +55 °C |
