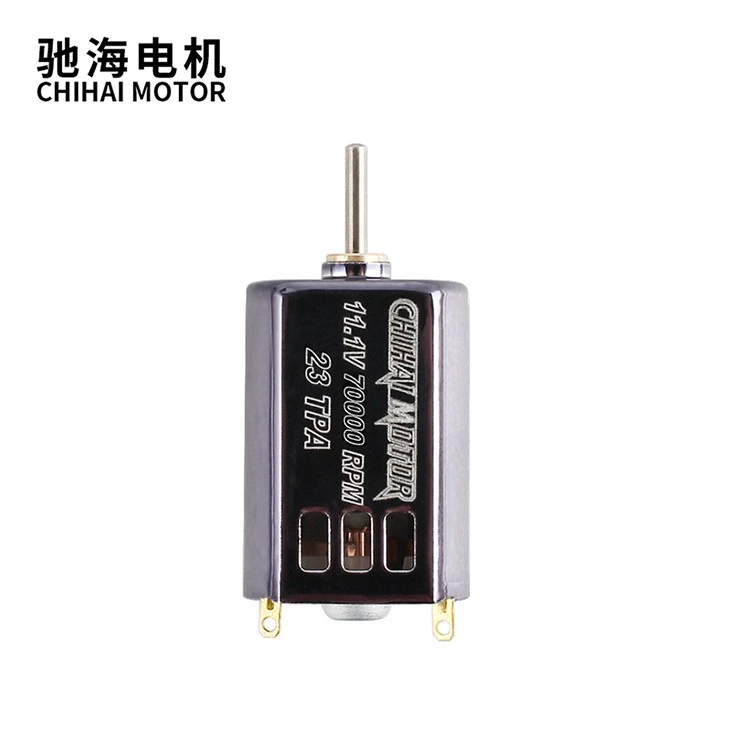

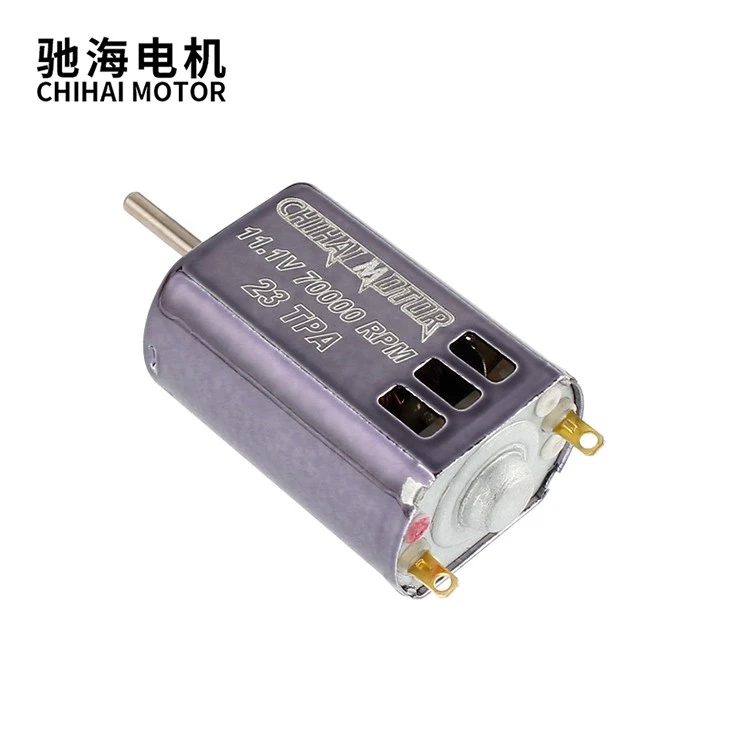

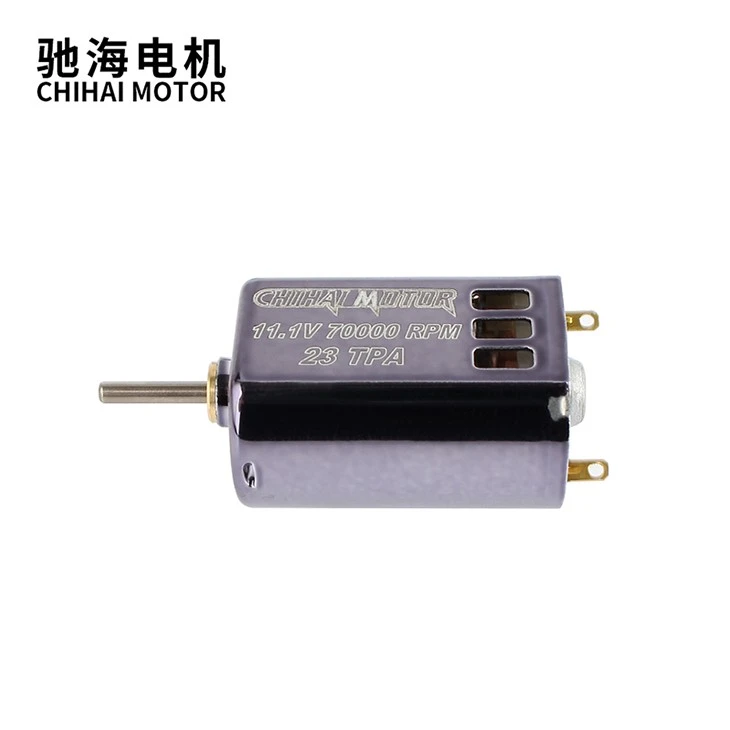

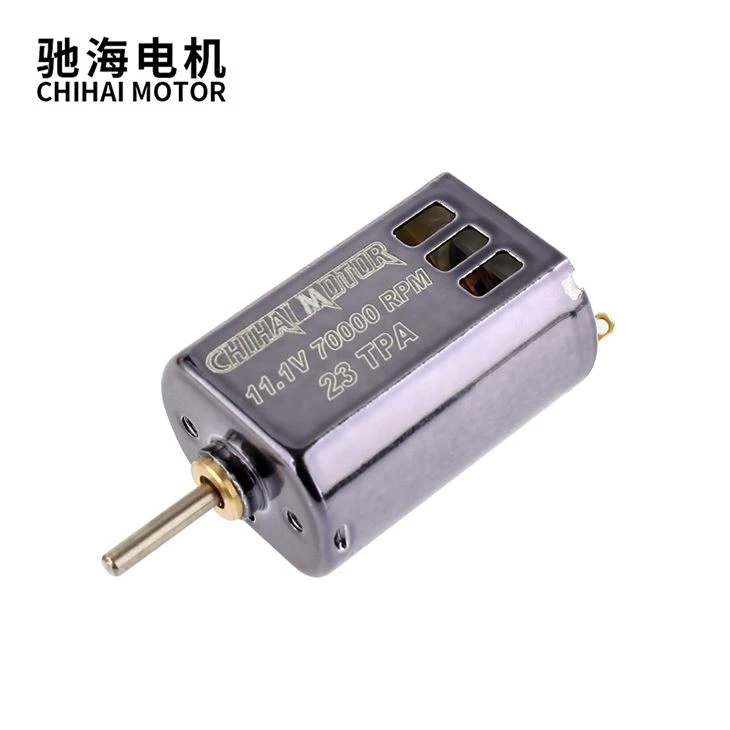

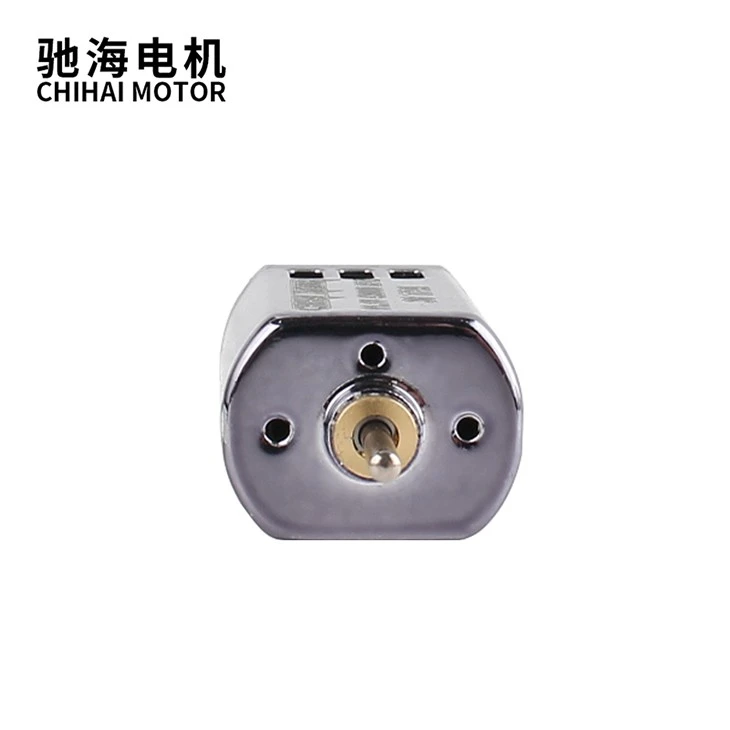

23TPA High Speed High Torque Motor 11V 70000rpm
Product Description：
| Brand | chihai motor |
| Model | CFK-132WH-23TPA High Speed High Torque Motor |
| Shaft length | 12.8mm |
| Shaft Dianeter | 2mm |
| Voltage | DC 11.1V 70000rpm |
| Weight | About 32g |
| application |
foam dart gun motor ; its for flywheel application; Used for high-speed high-speed motorcycles, four-wheel drive vehicles, toys, etc. |
Nickel-plated shell appearance：
Corrosion resistance rust prevention beautiful and durable
0.35mm thin narrow slot high performance armature：
Insulation coated powder rotor armature pure copper enamelledWires high-precision dynamic balance processing
High temperature resistant pure copper wire
Butt welding process commutator Add glue to prevent off-line
Thickened copper brush handle：
Graphite electric carbon structure with high quality copper carbon brushes Combines wear resistance and excellent electrical conductivity
Ball bearing positioning：
Front and rear 2 ball bearing positioning Good concentricity and precise positioning
N35SH Nd-Fe-B Magnet：
N35SH High performance magnetic with temperature resistance of 150℃
Detailed Images：
Product Paramenters
| Model：CFK-132WH-23TPA High pulley motor | |||
| Voltage：DC 11V | |||
| No Ioad speed | No Ioad current | At stall torque | At stall current |
| 70000 rpm | 1.7 A | 123.49 mN.m | 85.00 A |
At max efficiency
| Effi | Torque | Speed | Current | Output Powe |
| 73.6 % | 15.30 mN.m | 61327 rpm | 12.02 A | 98.25 W |
At max output power
| Output Powe | Torque | Speed | Speed |
| 226.53 W | 61.74 mN.m | 36429 rpm | 41.65 A |
Characteristics
| Torque constant | E.M.F constant | Dynamic resistance | Motor regulation |
| 1.48 mN.m | 1.48 mV | 0.13 Ohms | 566.86 A |
